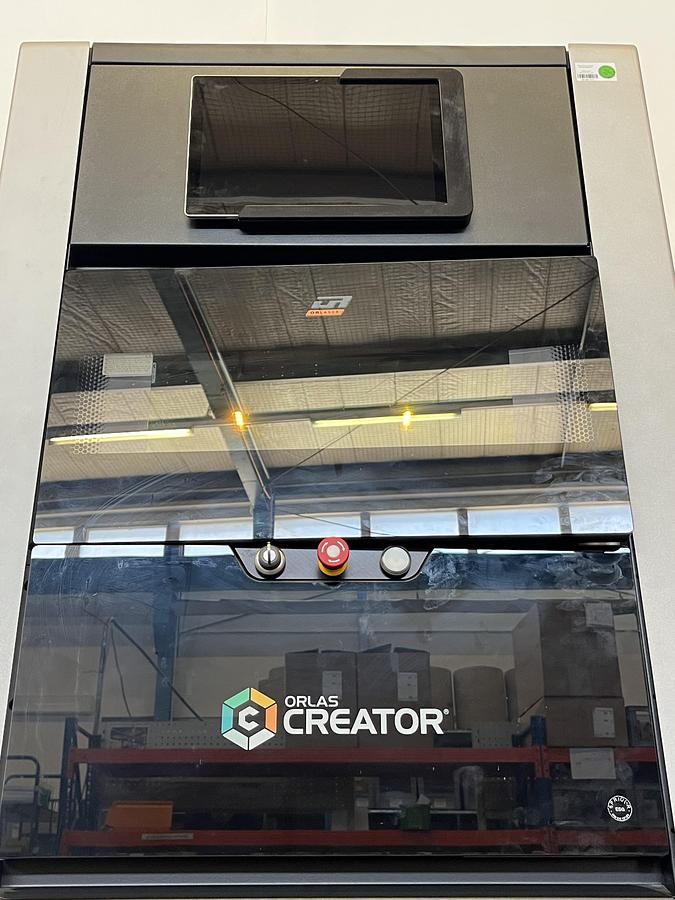

2018 Orlas Creator 3D Printer

Manufacturer:  Orlas

Model: Creator

Year of Manufacture: 2018

Type of Machine : 3D Printer

Condition: Lightly used

Compatible Materials: Aluminium, Steel, Stainless Steel, Titanium

Technical Specifications

• Build Volume: diameter 100 mm x 110 mm
• Reservoir Volume: diameter 110 mm x 200 mm
• Laser Type: Yb Fibre Laser, 250W cw
• Wavelength: 1070 nm
• Spot Size: 40 micron

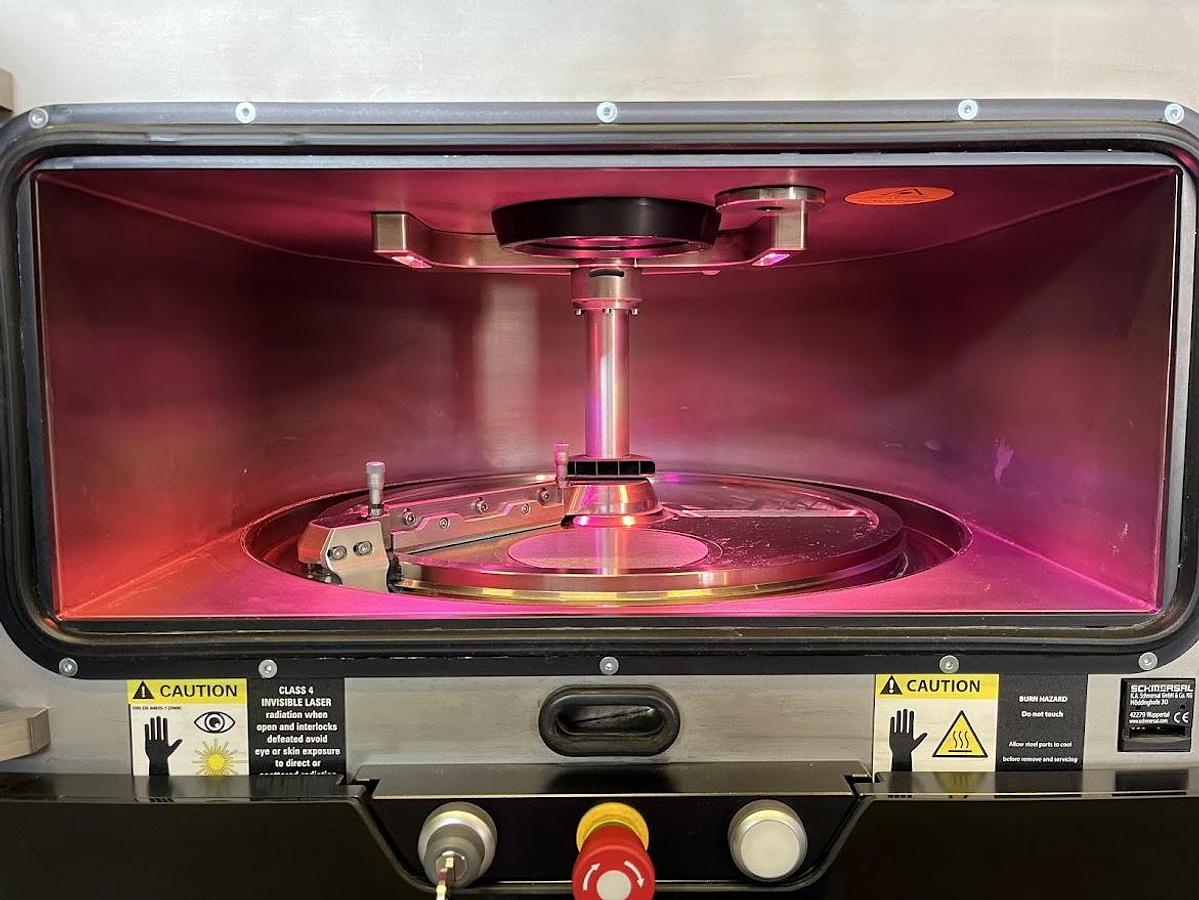

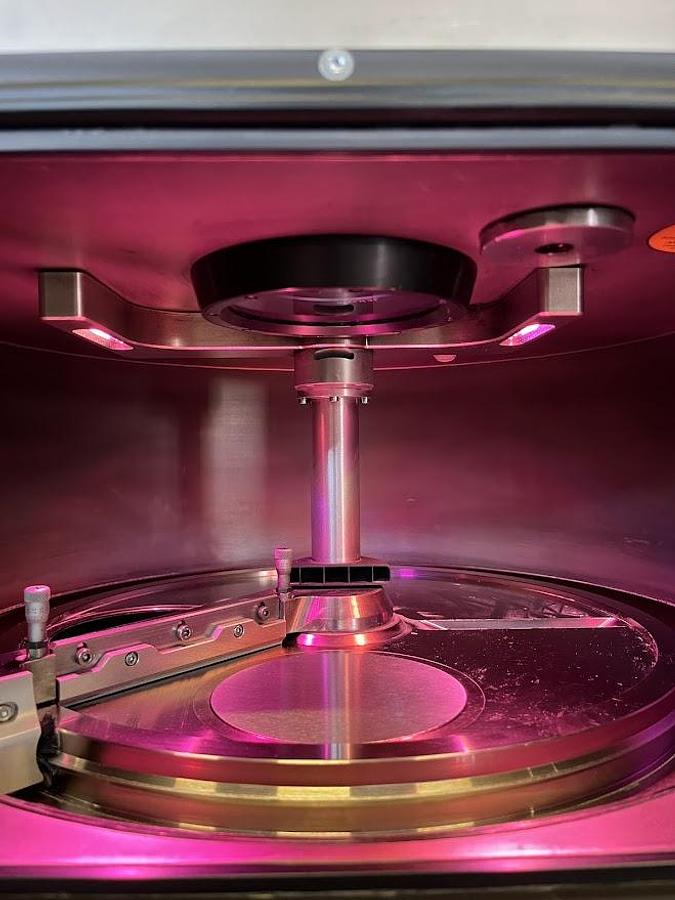

• Process Chamber: High-end, low-oxygen environment
• Recommended Shielding Gas: Argon / Nitrogen
• Extraction System: Integrated, max. flow rate 190 m3/h
• Coating System: Rotation-guided precision recoater
• Variable Blade Options: Steel, Rubber, or Brush system
• Cartridge System for fast and safe metal powder exchange

User Interface and Software

• Controller: 12-inch Microsoft Surface Pro 3 Tablet
• Control: Tablet-based monitoring and process management
• Cloud Manufacturing Technology included
• Included Software: ORLAS SUITE CAD/CAM
• Software Features: Solid slicing, 3D structure repair, automatic support generation, full
• print strategy control

Machine Dimensions and Power

• Machine Dimensions (L x W x H): 717 mm x 858 mm x 1794 mm
• Build Chamber Door Opening: 450 mm x 180 mm
• Power Supply: 230V / 1 Phase / 50 Hz
• Max. Current: 10 A
• Weight: 350 kg

Powder Processing Unit (Included)

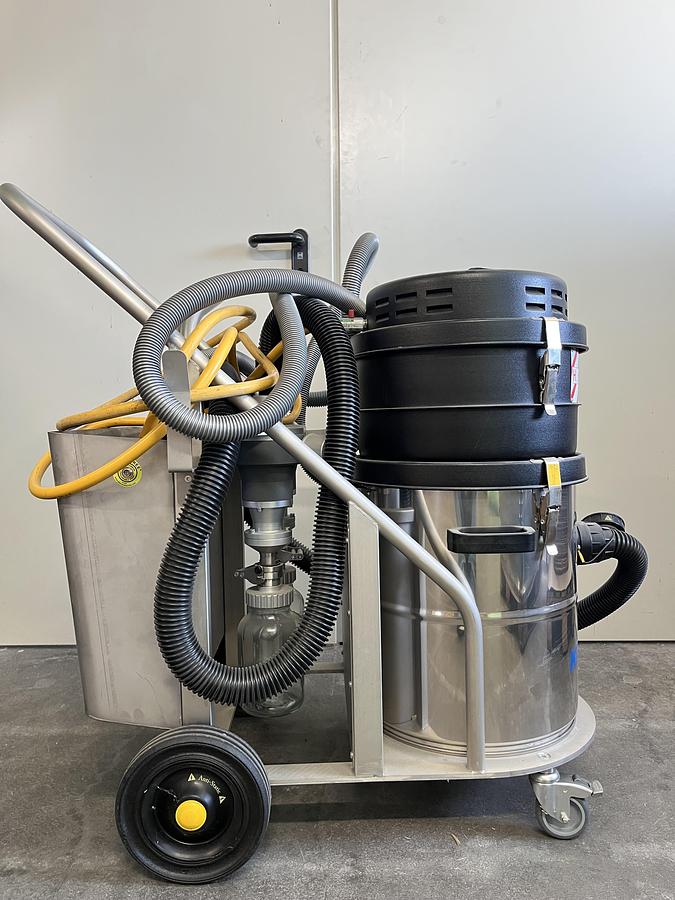

• Industrial vacuum for metal dust, compressed-air operated
• Dust Class: H
• 3-stage filtration system:
• Pre-filter 1: Dust bag MC K1 - Microfibre
• Pre-filter 2: Polyester needle felt EX
• Main filter: HEPA H14, Ex-rated, diameter 230 x 65 mm
• Separation efficiency: 99.999%
• Filter area: 8,000 cm2
• Max. suction volume: 150 m3/h
• Negative pressure: max. -250 mbar
• Air consumption: 30-45 m3/h
• Tank volume: 15 litres
• Dimensions (L x W x H): 380 x 380 x 540 mm
• Weight complete with accessories: 9.5 kg
• Certifications: ATEX 95 (100a), CE EX II 2 GD c II C 50°C (T6)
• Suitable for use in zones 1, 21, 2, 22
• 2 high-quality cyclone separators for powder separation included
