2017 Mycronic SMD TOWER 6150-7

Manufacturer: Mycronic

Model: SMD TOWER 6150-7

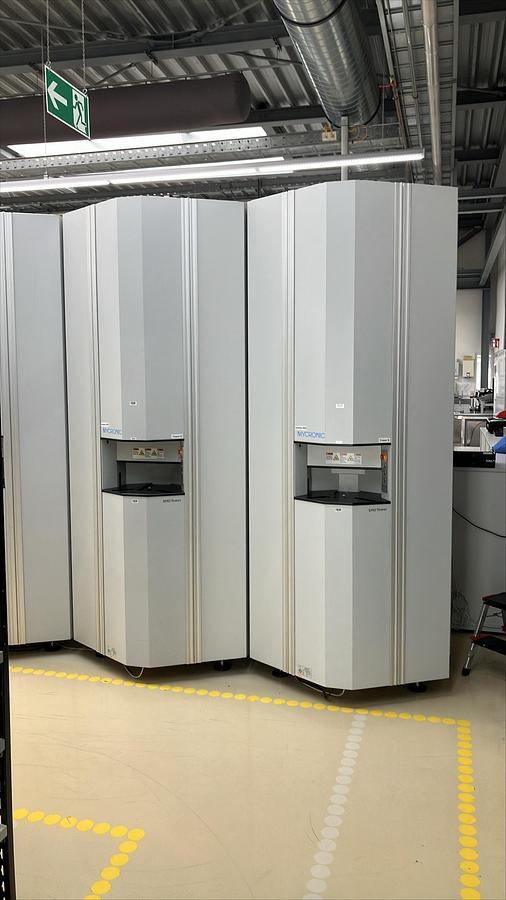

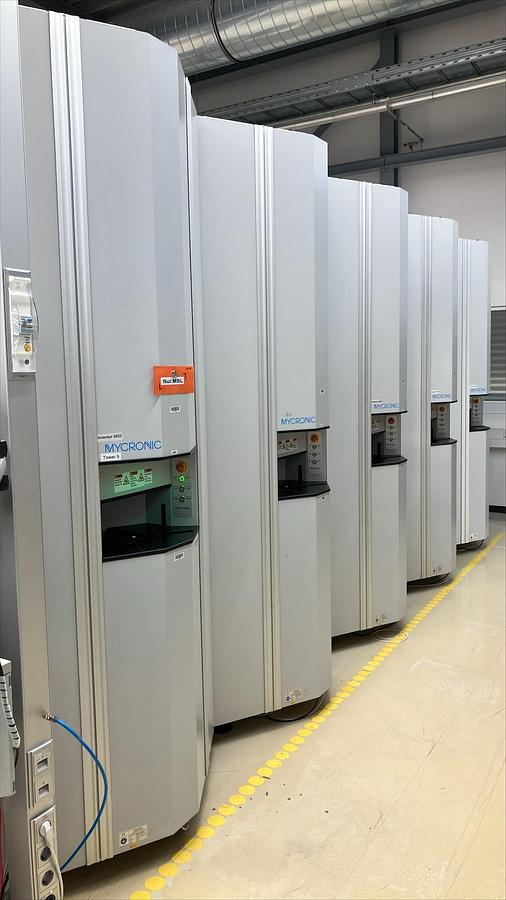

The SMD Tower is an automated and flexible storage unit designed for positioning near the production line. The SMD Tower provide a controlled environment with the right components in the right place at all times, enabling quick and smooth changeovers in your SMT line. You can even store your most frequently used components with an Agilis feeder attached. The SMD Tower 6150-7 has a max capacity of 980 and a footprint of 1.46m².

The key benefits of the SMD Tower:

• 75% reduction of labour cost

• 50% reduction in P&P downtime

• 90% reduction of retrieval time

• It keeps track of all stored reels and component quantities

• A unique identification code ensures the right component is always provided or storage making mix-ups almost impossible

• Needs barely one square meter of space to store up to 658 reels, and can be integrated into existing material handling systems

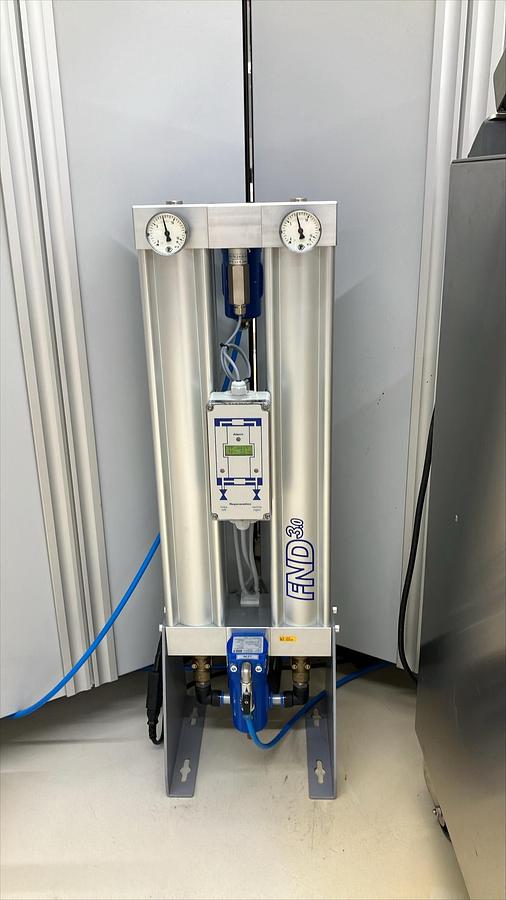

Special feature:          1 tower is equipped exclusively for MSL components with a compressed air dryer from the company ffrey. (See image)

Configuration:          varies from tower to tower / Shelves are customizable (purchased separately from the manufacturer, etc.)

Height:                  approx. 2.65 m

Software:              STSys

Tower Software:       2.2.2.0

Tower Firmware:       78

Tower configuration

Light Tower:            not installed

Terminal light:  installed

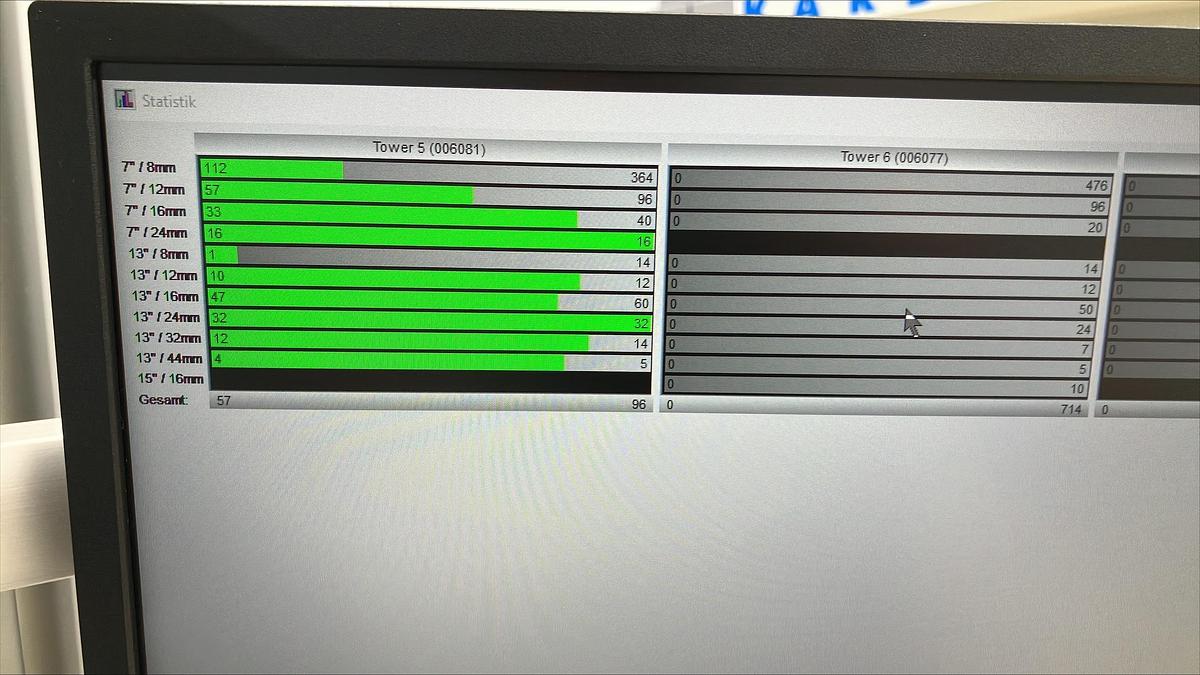

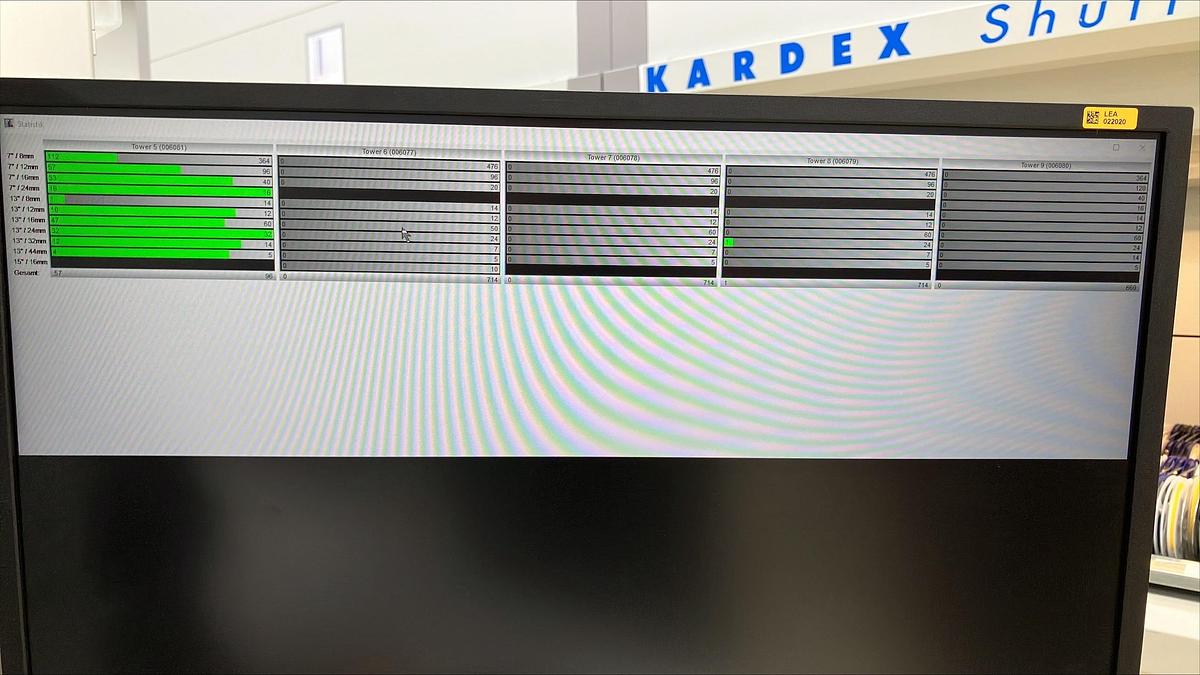

External Monitor:       not installed / Tower occupancy is displayed via SMD Tower Software

2D internal scanner    installed

Express unloading     installed

Agilis Pallet            not installed
