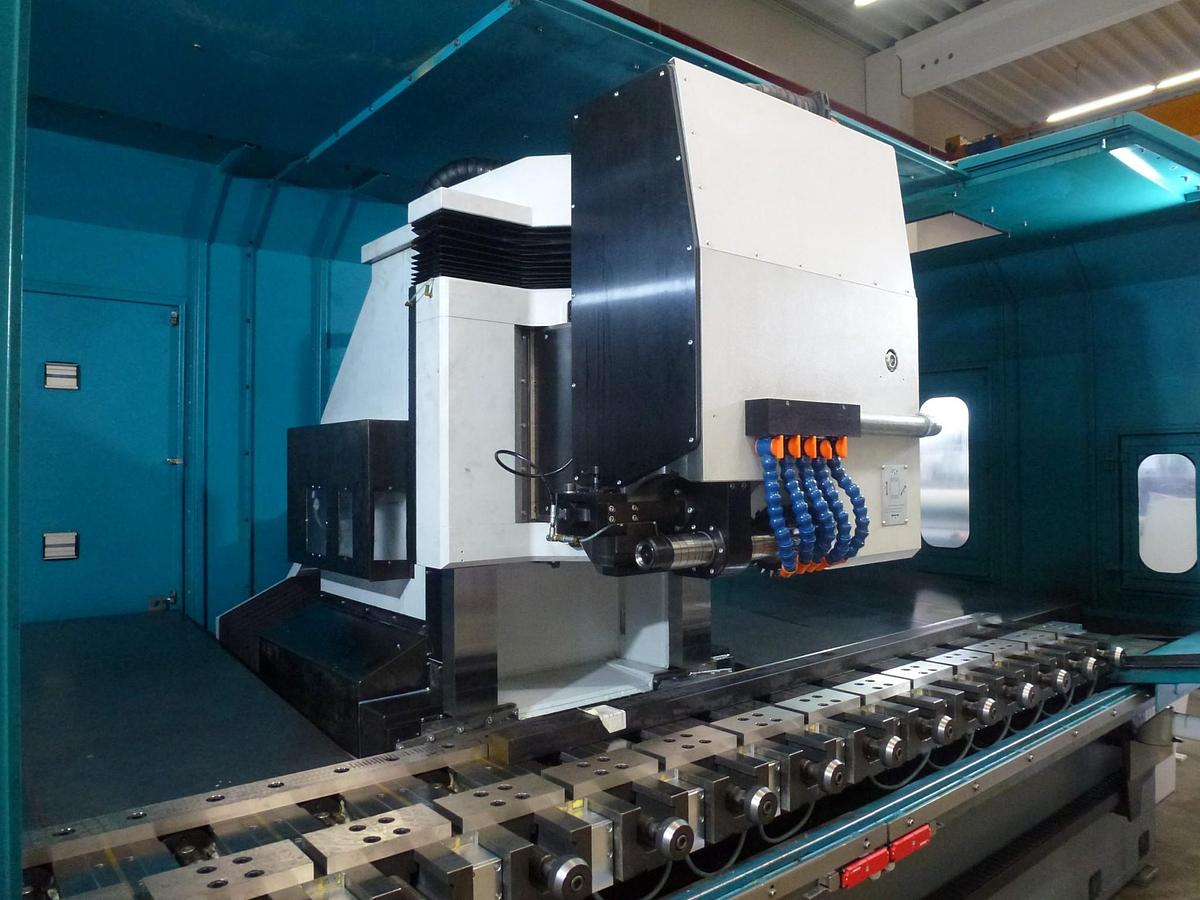

2008 Habrama PPFM 3200 Profile Precision Milling Machine

Manufacturer: Habrama

Model: PPFM 3200

Year of Manufacture: 2008

Overhauled: 2025 (complete overhaul)

Working Ranges

• X-Axis (longitudinal): 3200 mm
• Y-Axis (cross): 500 mm
• Z-Axis (vertical): 410 mm
• C-Axis: +30 degrees / -30 degrees

Machine Table

• Table Size: 390 x 4750 mm
• Maximum Load: 6000 kg
• T-Slots: 4 pieces
• T-Slot Spacing: 90 mm
• T-Slot Width: 18 H7 mm

Axis Speeds and Accuracy

• X-Axis Speed: 21 m/min, direct positioning accuracy +/- 0.002 mm
• Y-Axis Speed: 10 m/min, direct positioning accuracy +/- 0.002 mm
• Z-Axis Speed: 6 m/min, direct positioning accuracy +/- 0.002 mm
• C-Axis Speed: 2 rpm, direct positioning accuracy +/- 0.003 degrees

Milling Head

• Drive Power: 45 kW (S6 at 40% ED)
• Spindle Speed: 0 to 360 rpm
• Maximum Cutter Diameter: 300 mm
• Minimum Cutter Diameter: 125 mm + 2x cutting depth
• Milling Capacity: up to Module 36
• Spindle Interface: SK 45 DIN 69871
• Arbor Diameter: 40 to 60 mm
• Swivelling counter bearing for milling arbor

Machine and Control

• CNC Control: Siemens 840D sl
• Drives: Siemens
• Total Connected Load: 80 kVA
• Machine Weight: approx. 22,000 kg
• Coolant System: self-cleaning filter unit approx. 2000 litres
