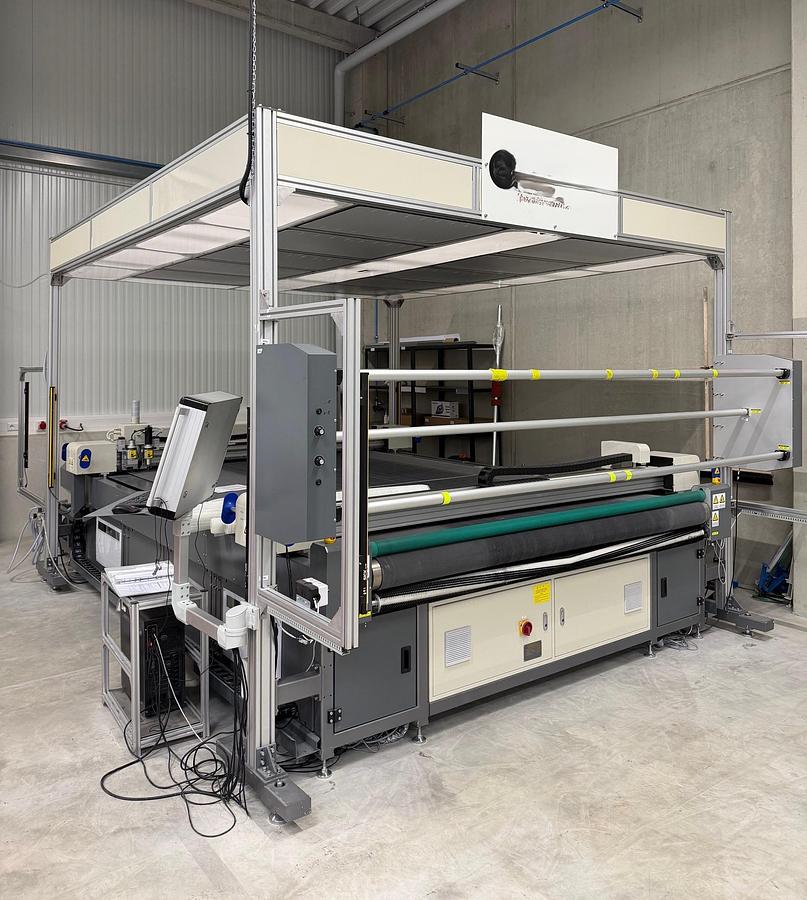

2020 Richpeace Flat Plate CNC Cutting Machine (3-in-1)

Manufacturer: Richpeace

Machine Type: Flat Plate CNC Cutting Machine (3-in-1)

Model: RPFP-NM-1D-FD-CKC-1-2000X2000-DGSF-QC-P-CK-EVK-PG-AF+AR-SP380

Year of Manufacture: 2020 (July 27, 2020)

Technical Specifications

• Working Mode: Camera + double bridge cutting
• Cutting Area: 2000 mm (X) x 2000 mm (Y)
• Camera Recognition Area: 1500 mm (X) x 2000 mm (Y)
• Maximum Cutting Speed: 60 m/min
• Maximum Cutting Thickness: 5 mm
• Locating System: Vision localization
• Loading, Orientation and Recognition Time: 10 seconds

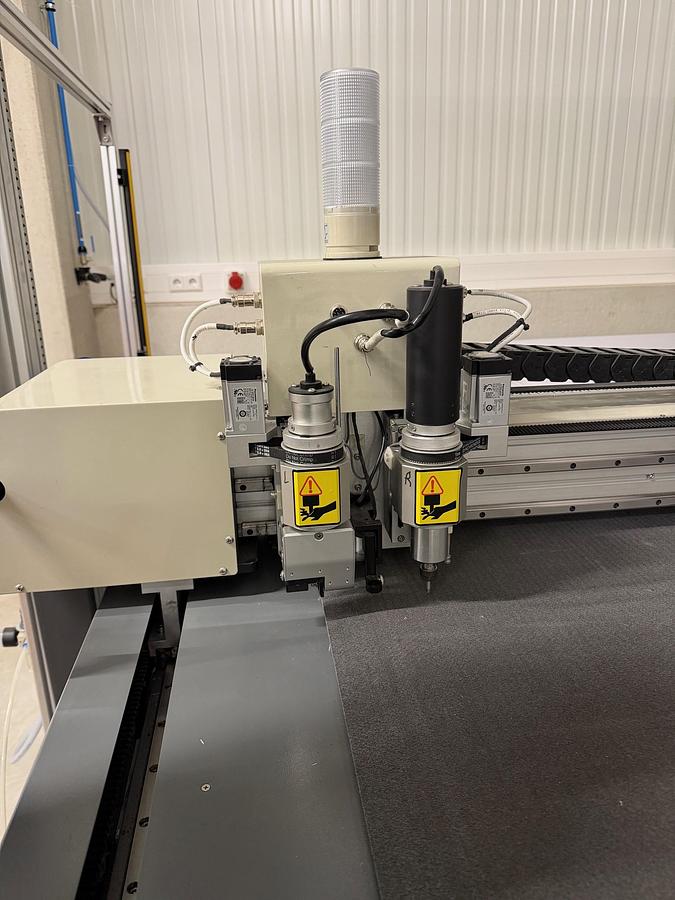

• Cutting Tools: Ink jet (optional) + round knife + vibrating knife (optional) + mark pen
• Knife Replacement Cycle: Every 5 days x 8 hours of operation

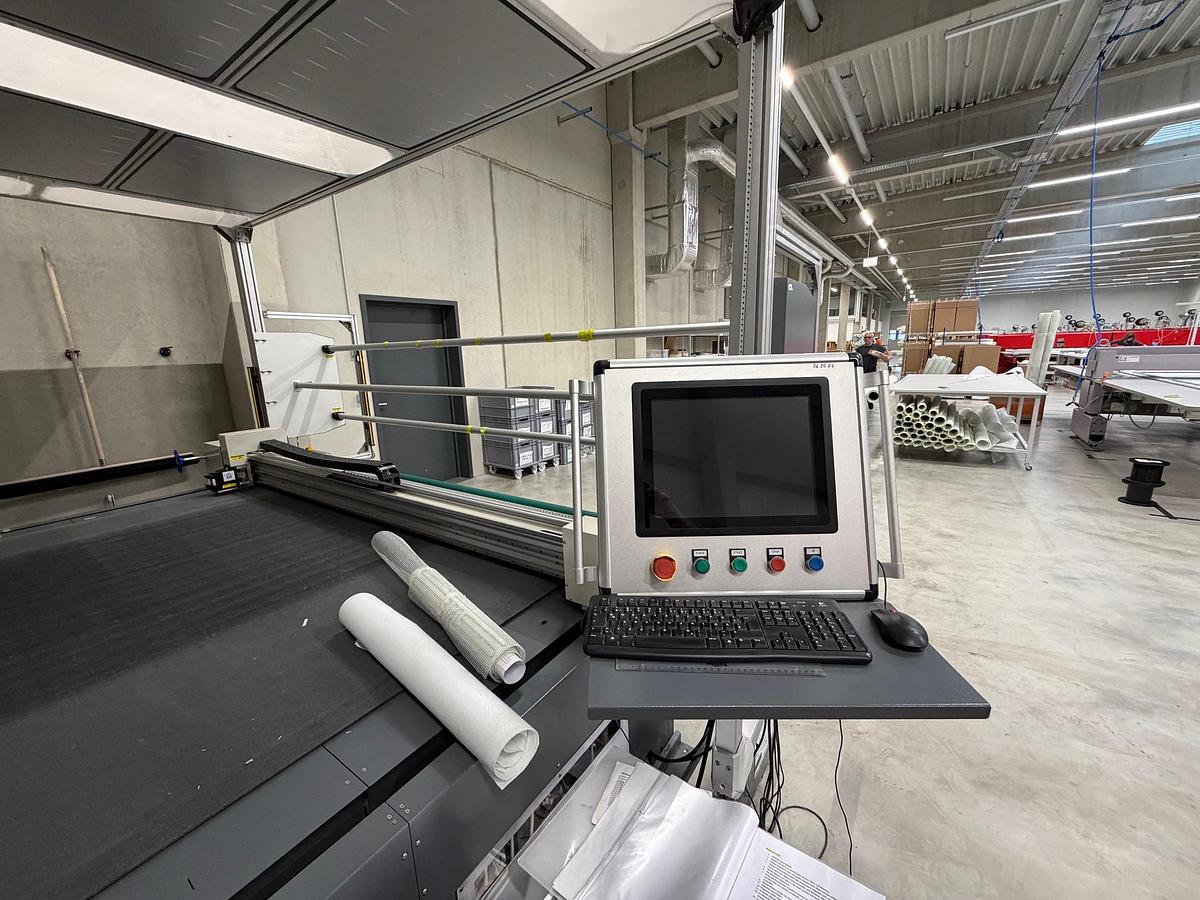

• Control System: Full servo system

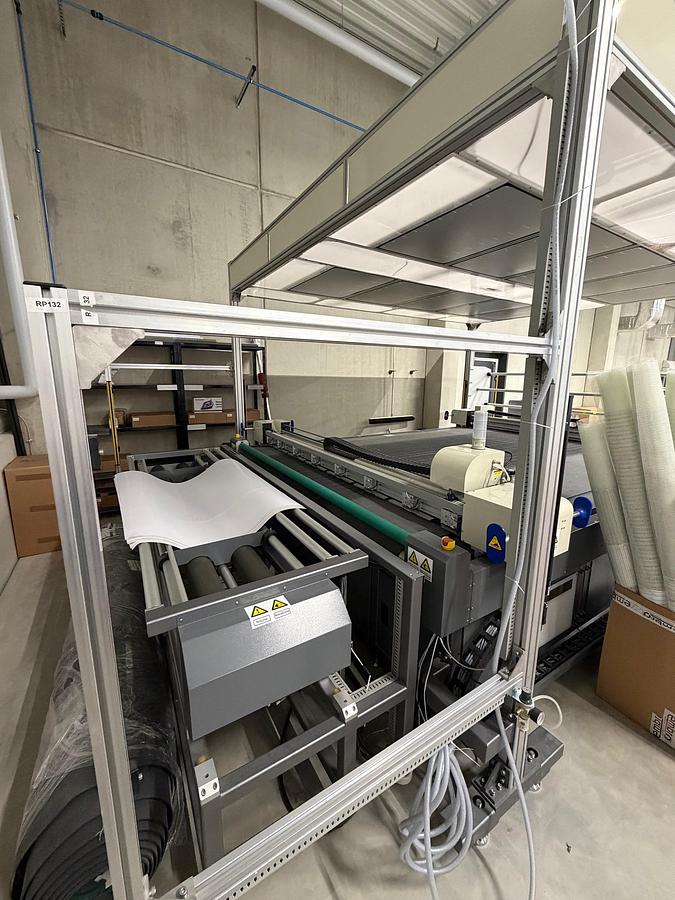

• Feeding System: Automatic transfer feed

Transmission and Drive

• X-axis: High-precision timing belt + linear guide
• Y-axis: High-precision timing belt + linear guide

Physical and Electrical Details

• Machine Dimensions: 5000 x 3300 x 2650 mm (L x W x H)
• Net Weight: 2500 kg (nameplate: 3500 kg)
• Power Supply: 3-phase AC 380V +/- 10%, 50/60 Hz, 5.0 kW
• Compressed Air: 0.6 - 0.8 MPa
• Operating Temperature: 15 - 45 degrees C
• Relative Humidity: 85% maximum, no condensation
• Noise Level: 75 dB maximum
