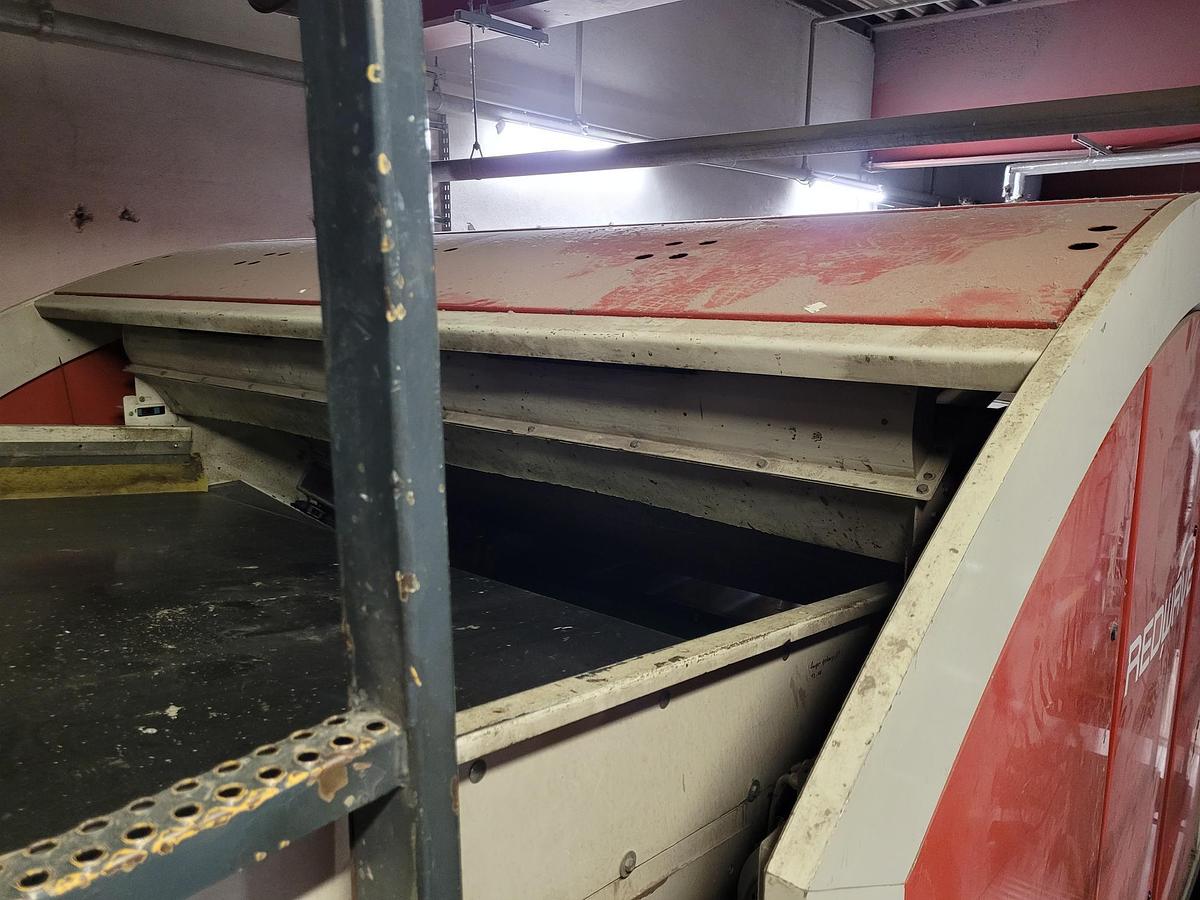

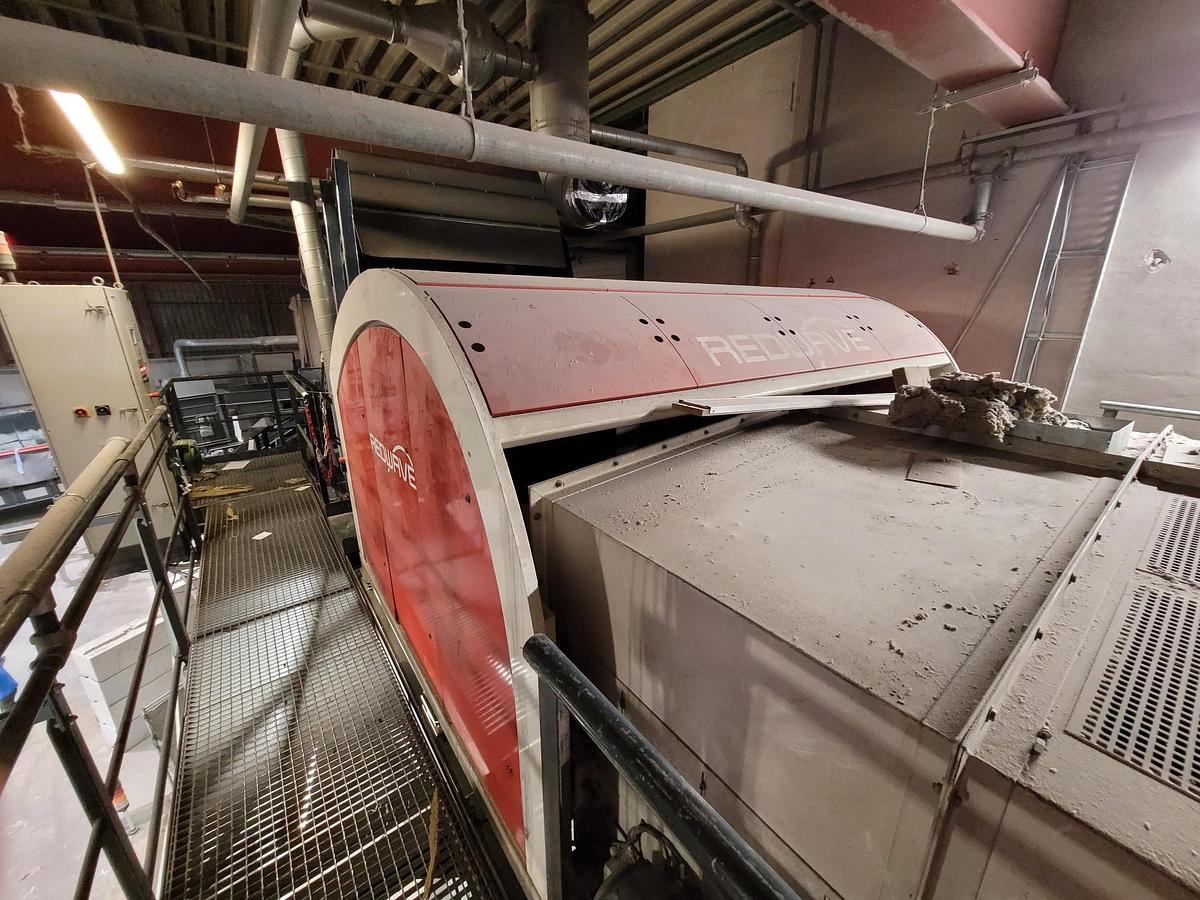

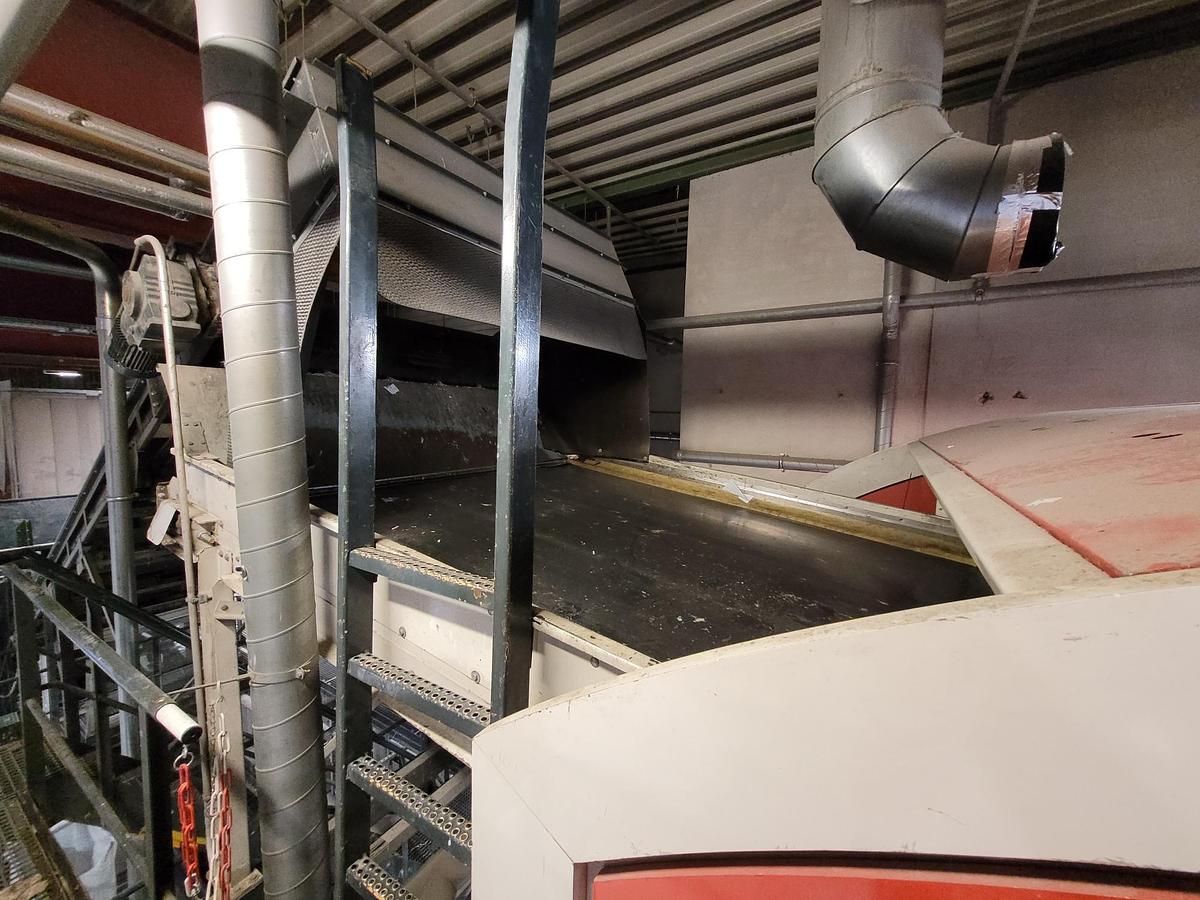

2008 Redwave 2,400 NIR/C 2 Way

Manufacturer: Redwave

Model: Redwave 2.400 NIR/C 2 Weg

Type of Machine: Sorting Machine with NIR Recognition and Color Sensor

Year of Manufacture: 2008/08

Technical Details

• Machine Weight: approximately 3110 kg, including infeed and outfeed conveyor
• Machine Dimensions (Height x Width x Length, without conveyor belts): 2065 x 3075 x 3200 mm
• Feed Material: Paper, deinking, cardboard
• Sorting Width: 2400 mm
• Sorting Fractions: 1 ejection (cardboard), 1 pass-through
• Capacity: approximately 12 t/h, depending on feed fraction
• Ejector Strips: 1
• Valves: 64
• Nozzle Spacing: 37.5 mm
• Electrical Data - Nominal Voltage: 3x400V + N (AC)
• Electrical Data - Network Type: TN network (3 phases + PE)
• Electrical Data - Nominal Frequency: 50 Hz
• Electrical Data - Customer-Side Fuse: 3 x 32 A T
• Electrical Data - Additional Line: 230V, 16A
• Electrical Data - Supply Cross-Section: 5 x 2.5 mm squared (AWG 12)
• Electrical Data - Rated Power: 14 kW, including infeed/outfeed conveyor motors at 2.2 kW each
• Connection: Terminal Block
• Emergency Stop Category: integrable in category 2, 3, or 4
• Signal Exchange: potential-free contacts
• Remote Maintenance Access: dial-in PC
• Switch Cabinet Weight: approximately 250 kg
• Switch Cabinet Dimensions (Height x Width x Depth): 1800 x 800 x 500 mm
• Pneumatics - Air Consumption: approximately 400 Nm3/h
• Pneumatics - Air Quality: filtered (5 micron), dry, buffered, oil-free
• Pneumatics - Air Pressure: minimum 6 bar, maximum 10 bar
