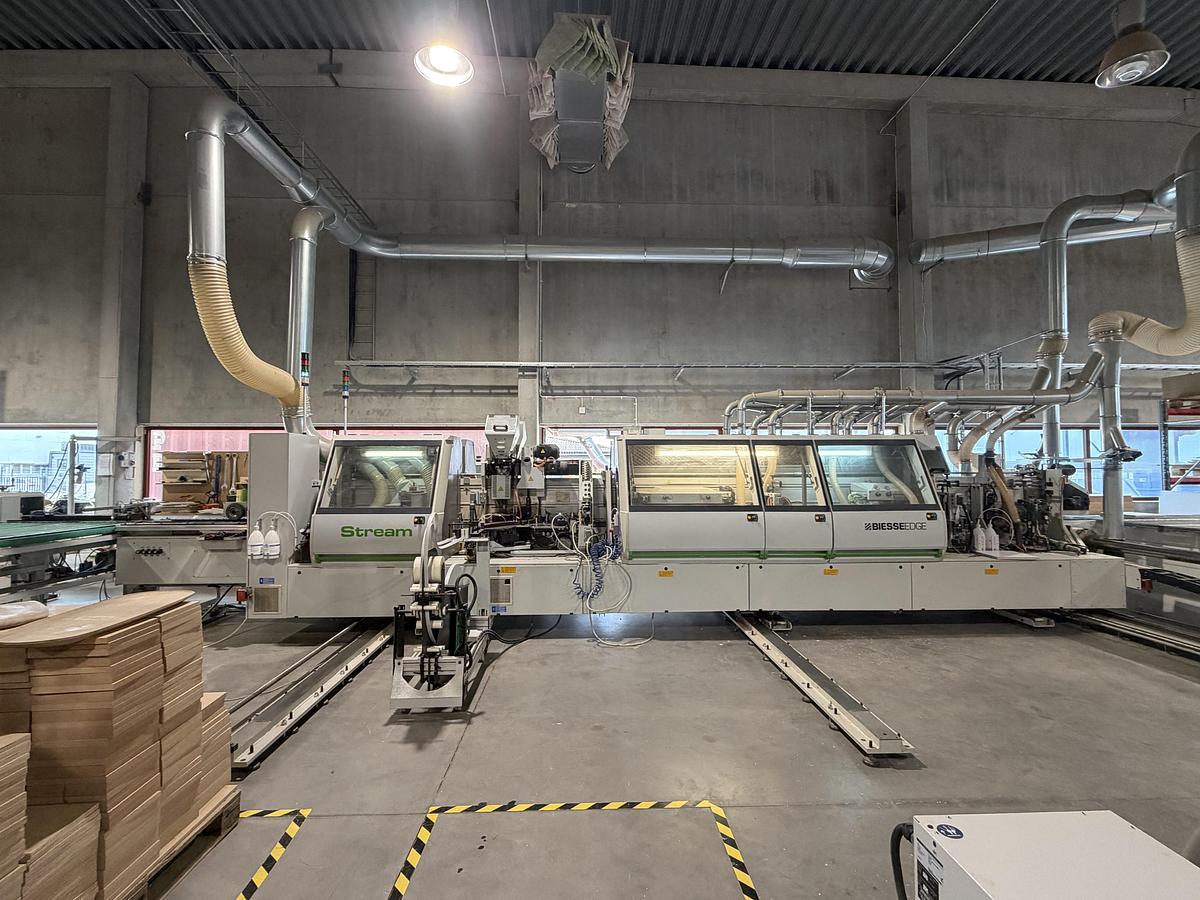

2007 BIESSE EDGE STREAM SB2

Manufacturer: BIESSE

Model: STREAM SB2

Type: Squaring and edgebanding machine, double sided

Year of construction: 2007

Technical Details:

• Air supply: 7 Bar
• Suction flow rate: 30 m/sec
• Weight: 17100 Kg

Machine description:

- Squaring and edgebanding machine double sided

- Automatic machine to apply the edge into straight profiles

General specifications:

- Industrial machine with heavy-duty structure

- Machine able to work both as first or second position in a line

- Max working panel height with straight edge 10 - 60 mm

- Applicable banding material in coils: thin edge and PVC up to 3 mm

- Max working width 2700 mm, running by THK guides

- Working process with adjustable width in automatic by numerical control

- Revolver system for a facilitated regulation of the working units

System and optionals of the panel handling:

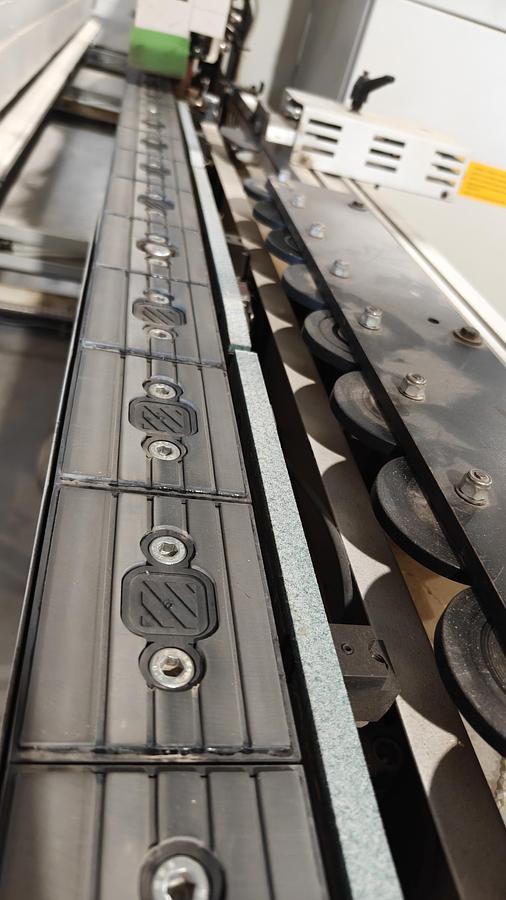

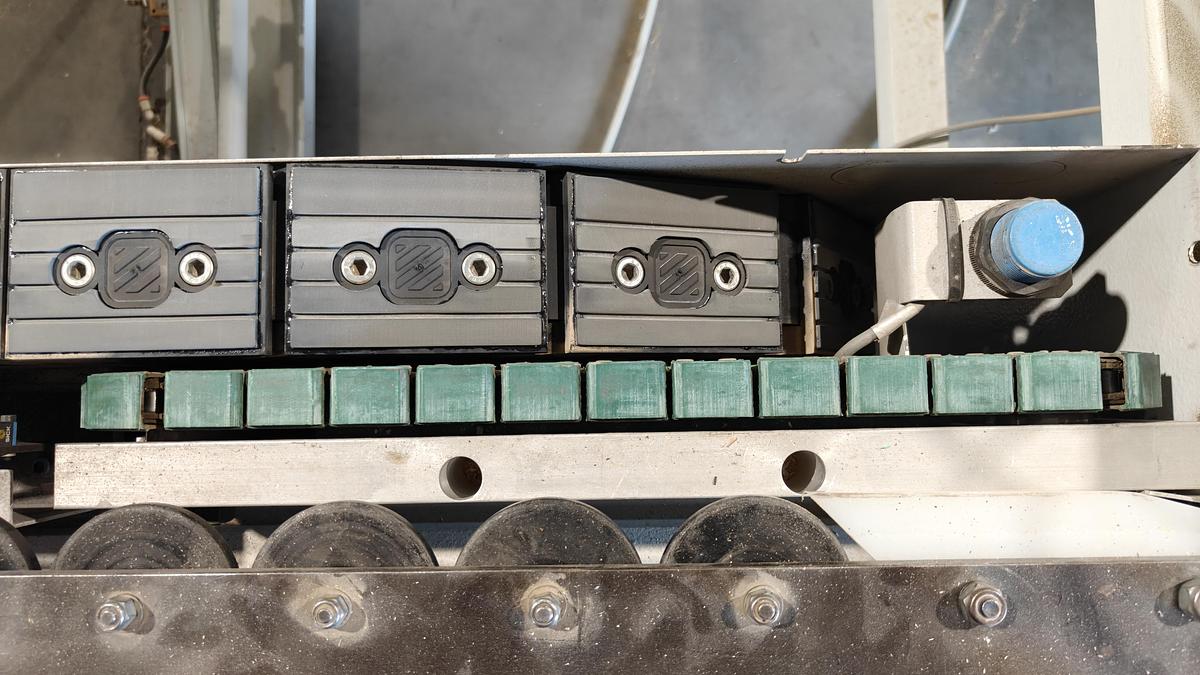

- Driving chain is running by roller bearings

- Top pression unit made by motorized rubbered belt

- Top pression unit with adjustable height in automatic by numerical control

- Adjusting in continuous feeding speed with regulation in automatic by numerical control 10 / 40 m/min

- Input panel guide

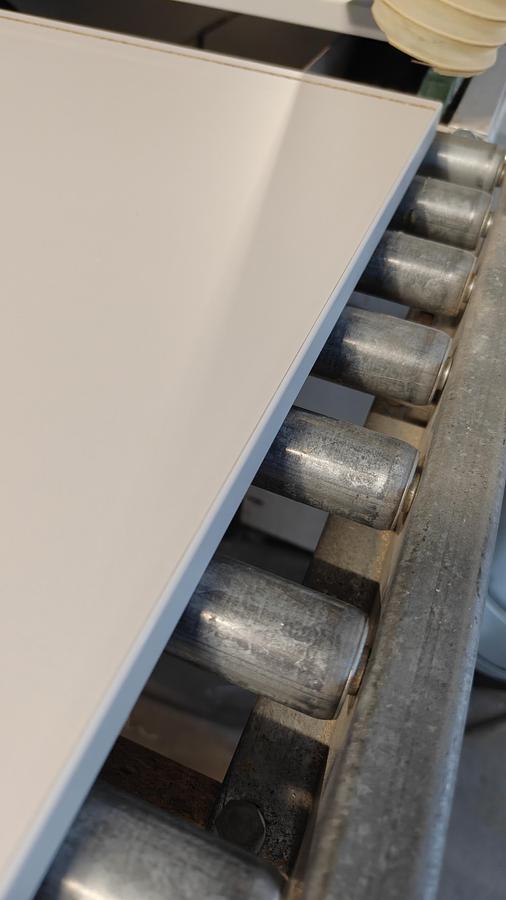

- Central bar with lines of idle wheels to support the panels

Working units on the squaring side for each side:

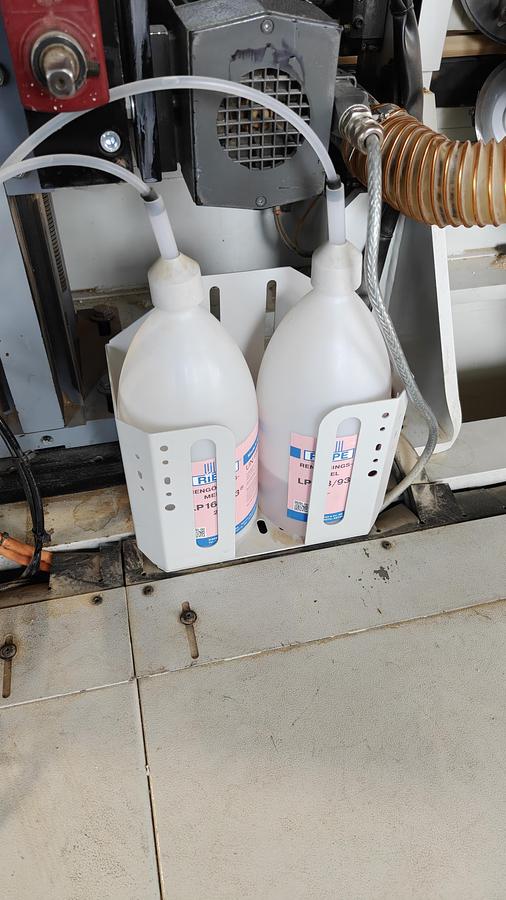

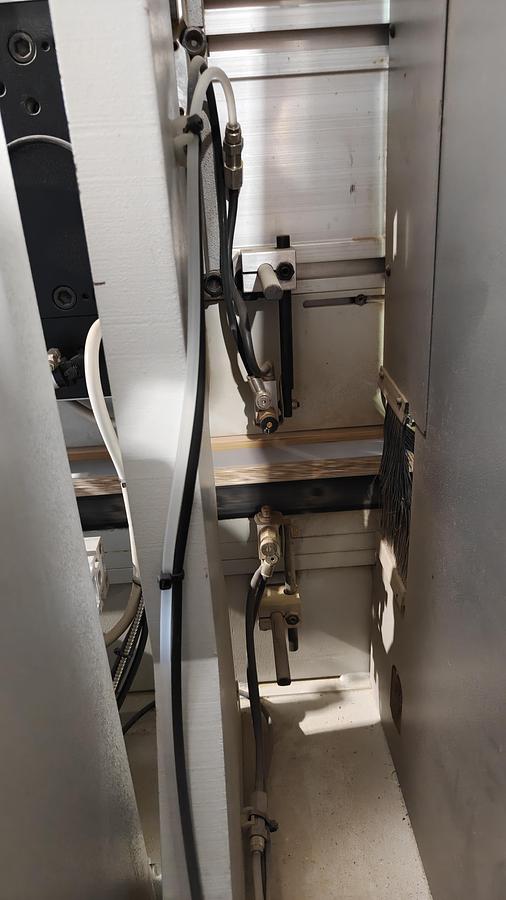

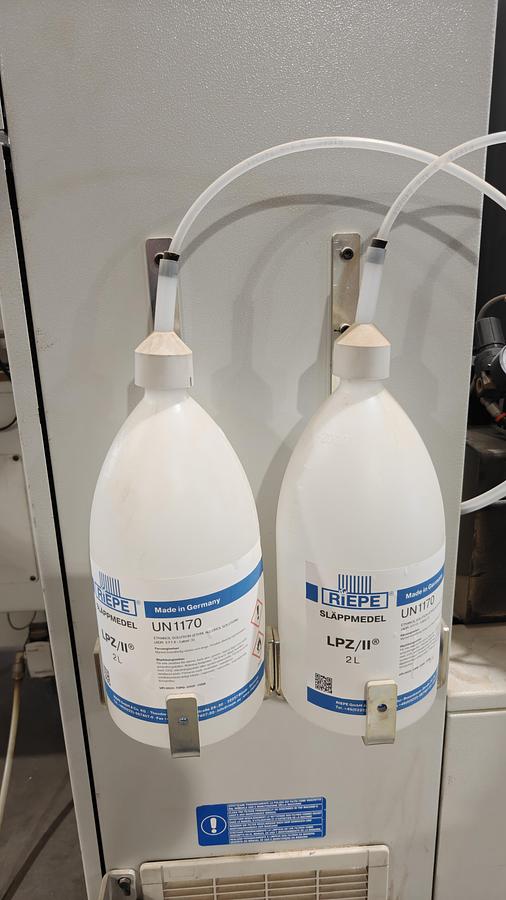

- Anti-gluing unit made by 2 guns that spray liquid on the top and bottom part of the panel

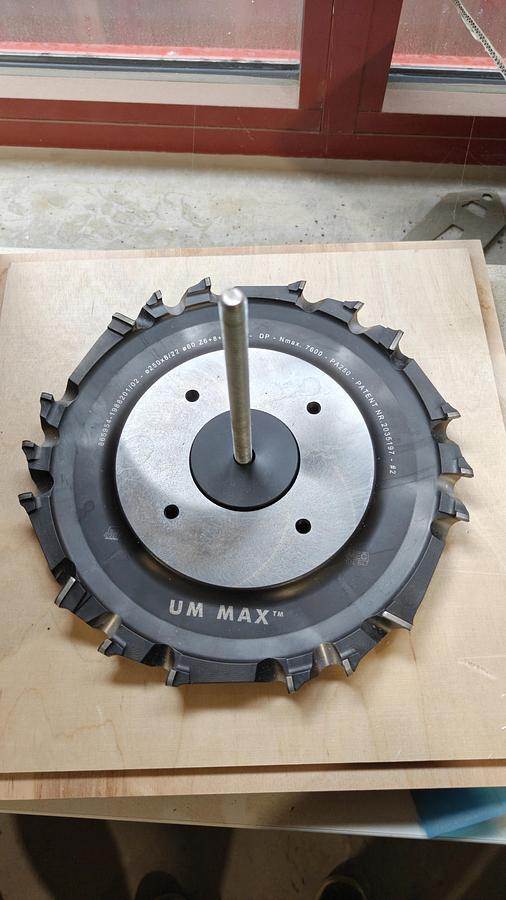

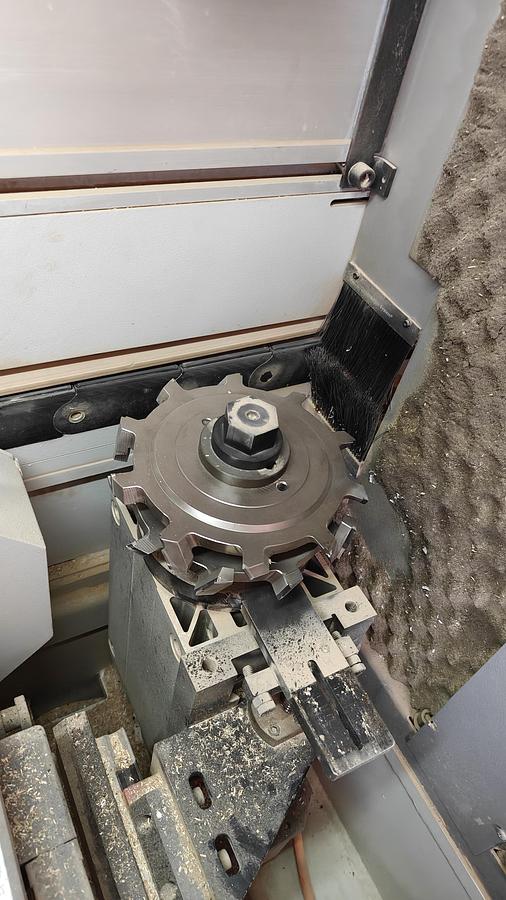

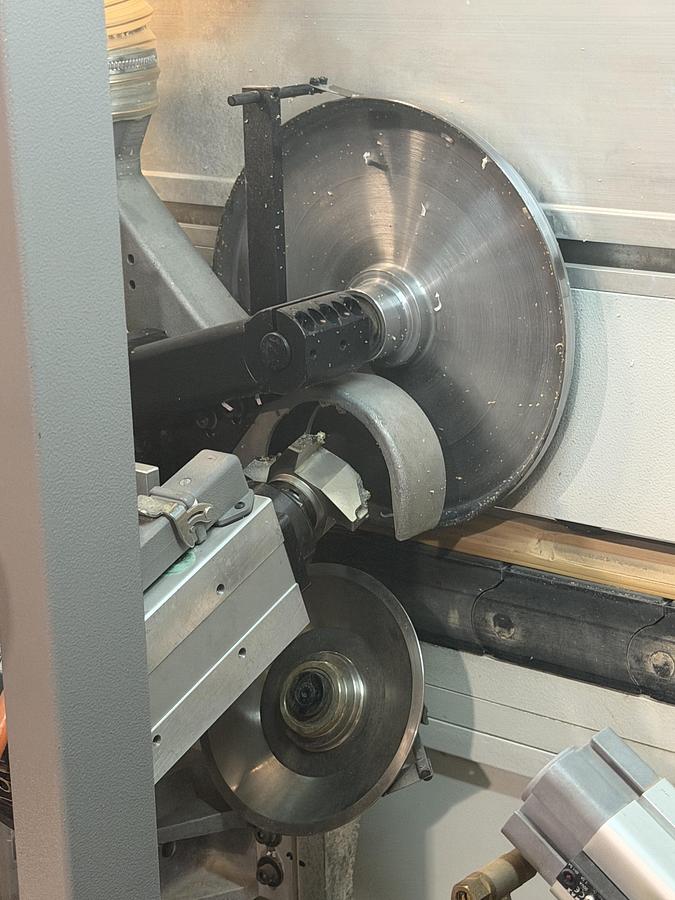

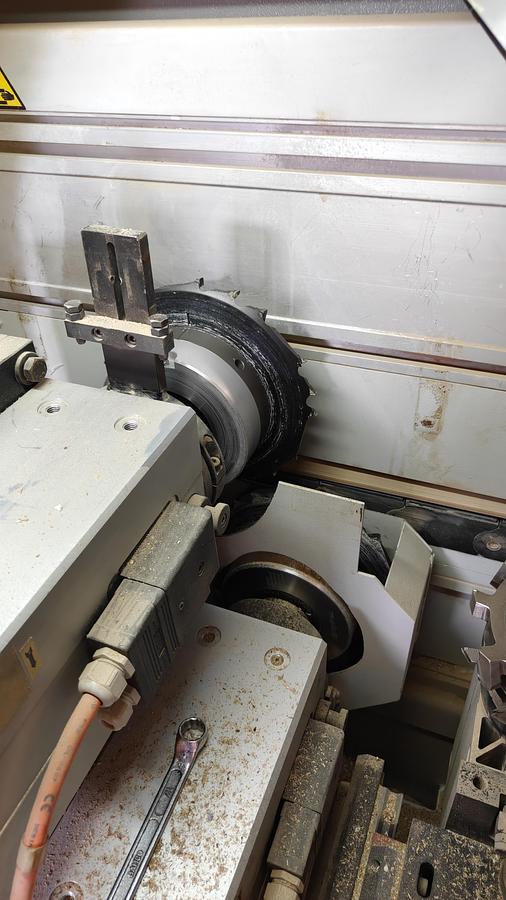

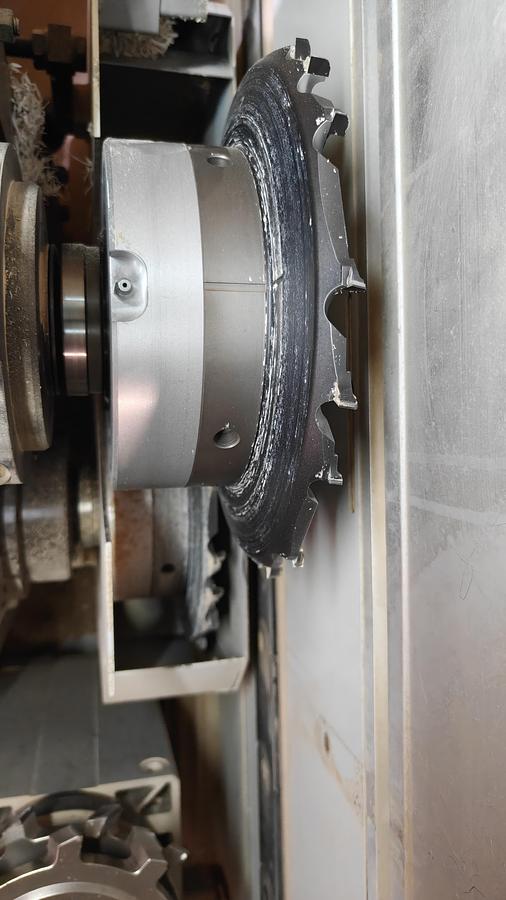

- Antisplint milling hogging unit, automatic in/out intervention, in vertical position

- Top and bottom double hogging unit

Gluing unit, insertion and pression of the edge for each side:

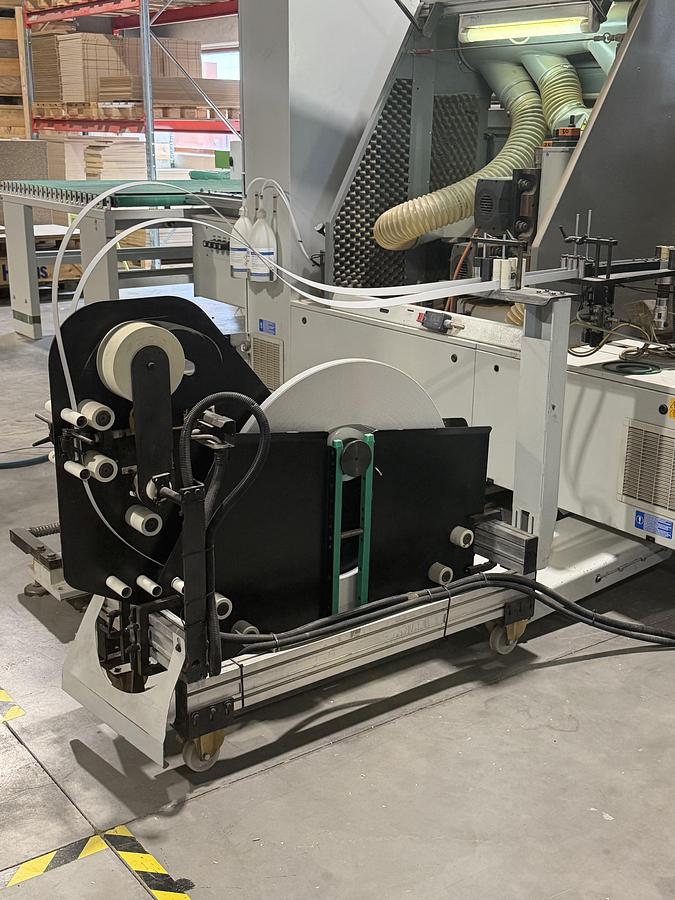

- Multiple magazine for edge coils with nr. 2 positions, to automatically change the edge type

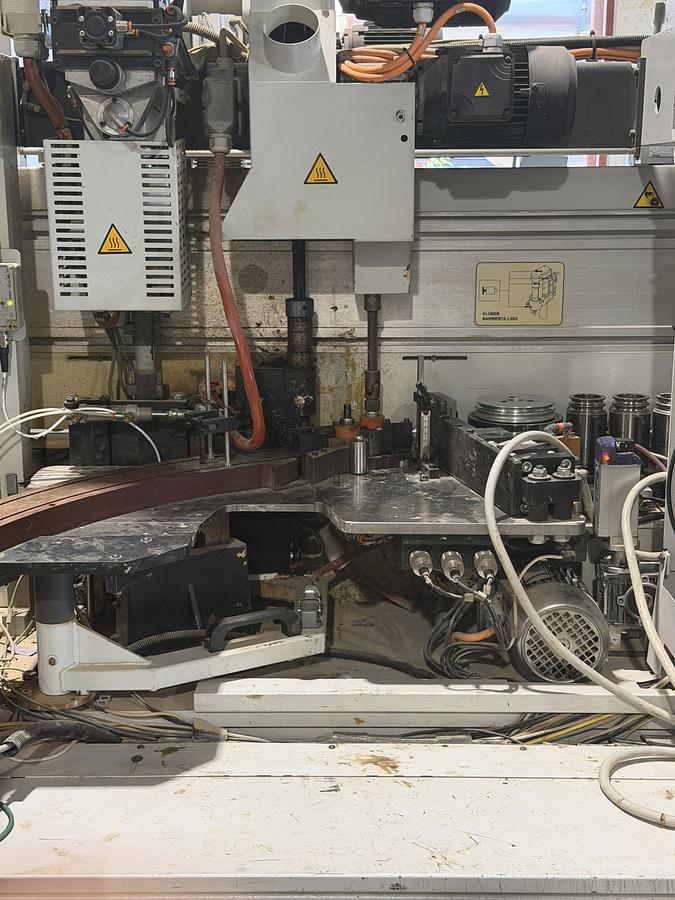

- Hot-melt glue pot and premelter

- Spreading roller to regulate the quantity of applied glue

- Guillotine to cut the edge in coils

- Roller set to press the edge on straight profiles, nr. 1 + 3 pression rollers, motorized regulation of depth position in automatic by numerical control

Working units on the edge banding side for each side:

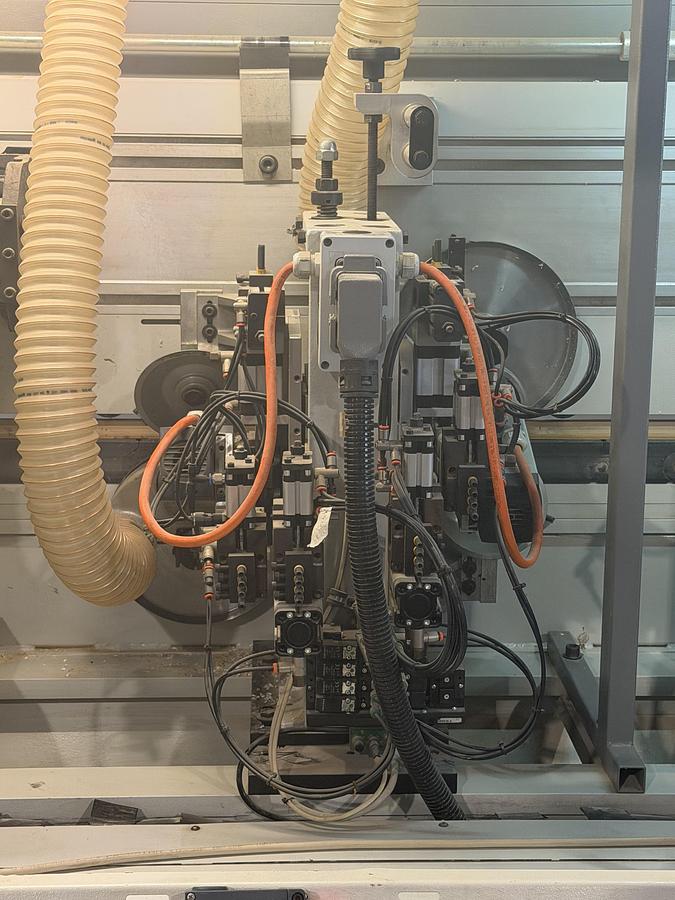

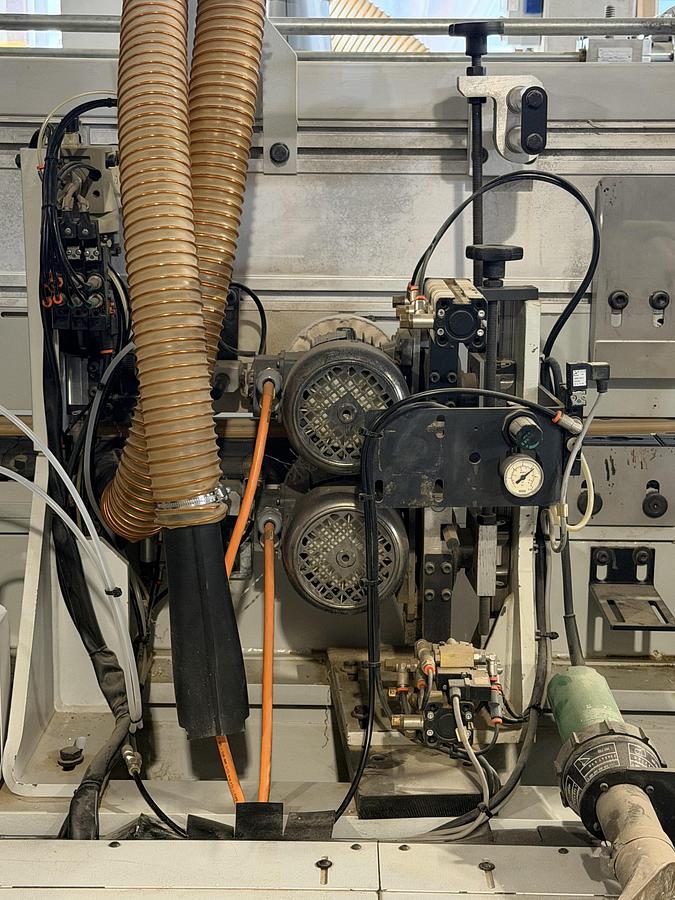

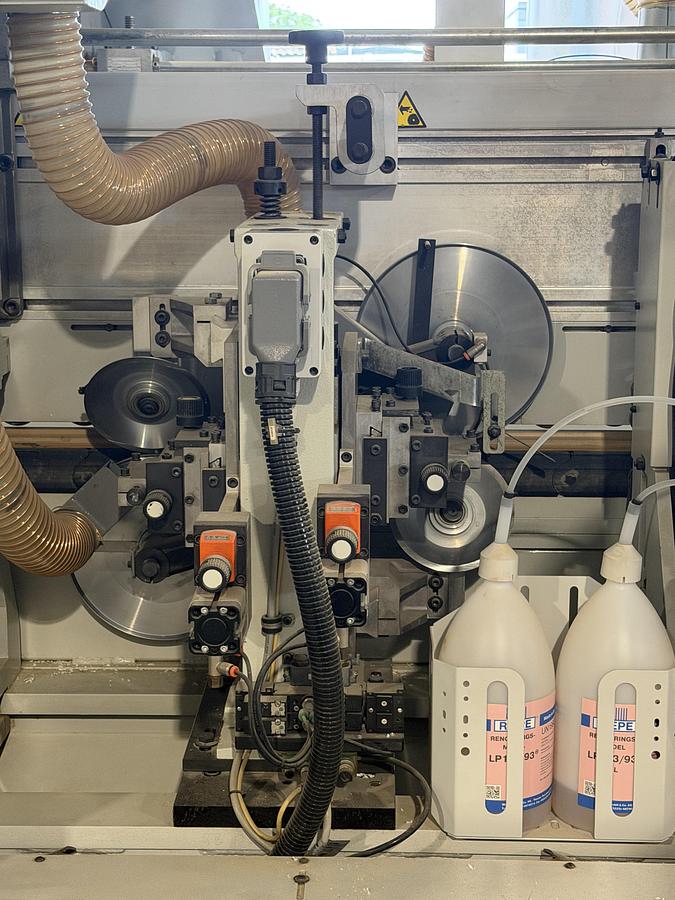

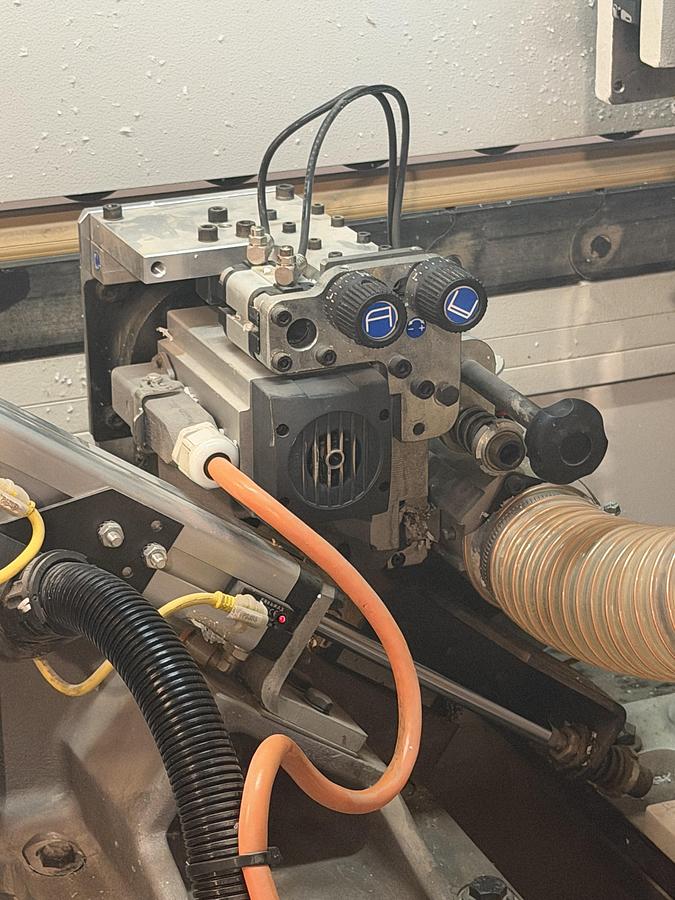

- End cutting unit with 2 motors to cut the excess edge on the front and back part of the panel, motors tiltable 0 / 25 degree, tilting regulation in automatic, motors power 0.3 KW,max working speed 25 m/min (12000 RPM)

- Fine trimming unit to trim and round off the excess edge on the top and bottom part of he panel, motors tiltable 0 / 20 degree, motors power 0.55 KW (12000 RPM)

- Rounding unit multifunction AR 30 with regulation in automatic by numerical control, double function: to trim and round off the excess edge, and to round the edge corners on the top and bottom part of the panel, motors power 0.35 KW

- Edge scraping unit for the edge superfinishing

- Glue scraping unit to remove the excess glue from the join between edge and panel

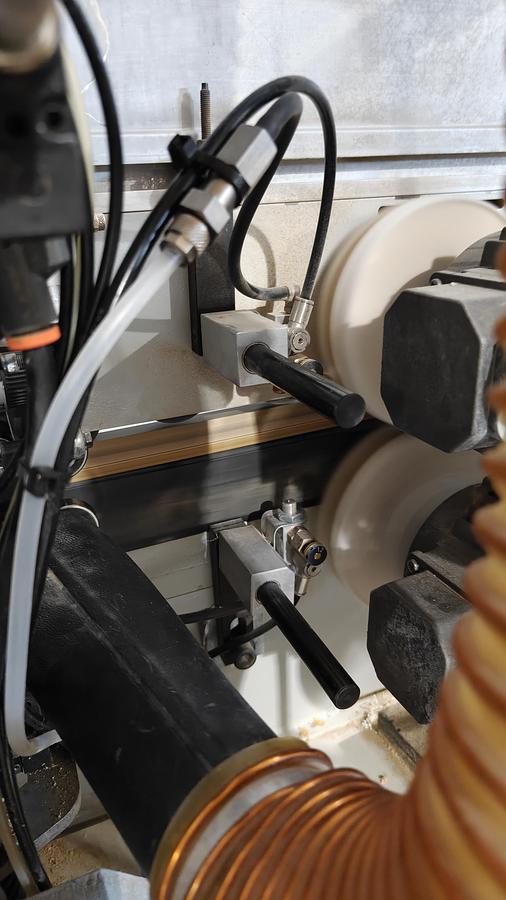

- Brushing unit with 2 motors to clean and polish the upper and lower edge

- Air heating unit to heat the edge and reactivate the colour

Control of the machine and accessories:

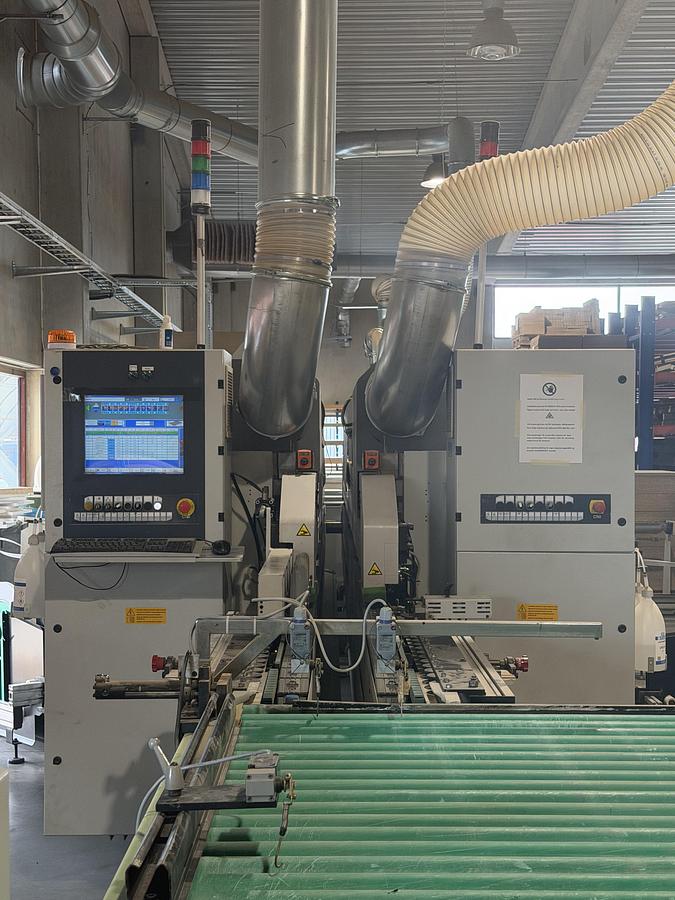

- Control and program system CNI with the following features: pc, colour screen, CD-ROM reader, keyboard

- Command board installed on a separated electrical cabinet to control the machine

Norm and optional for the security:

- Security norm CE mark

- Safety and sound-proof enclosure cabinet of the working units

- Aspiration system on the top part of the safety enclosure cabinet
