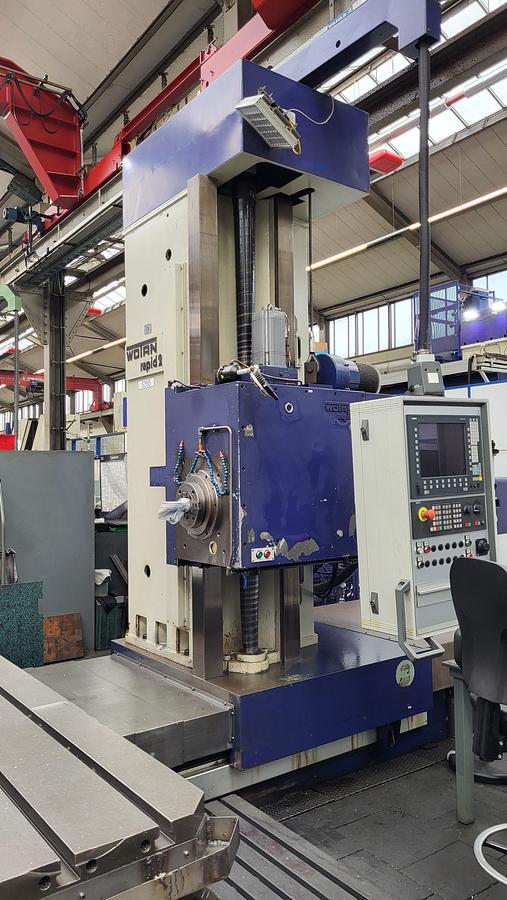

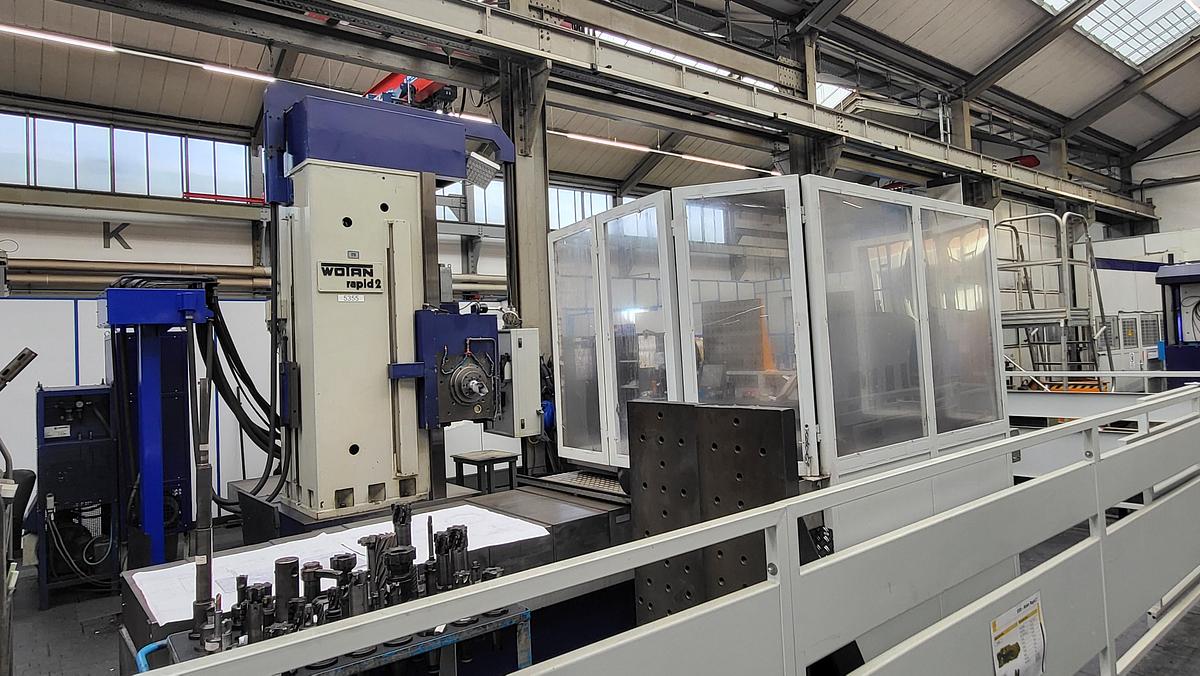

1979 WOTAN RAPID 2

Manufacturer: Wotan

Year of manufacture: 1979

Model: RAPID 2

Type of machine : Horizontal boring and milling machine with numerical handwheel data entry

Last overhaul: 2006

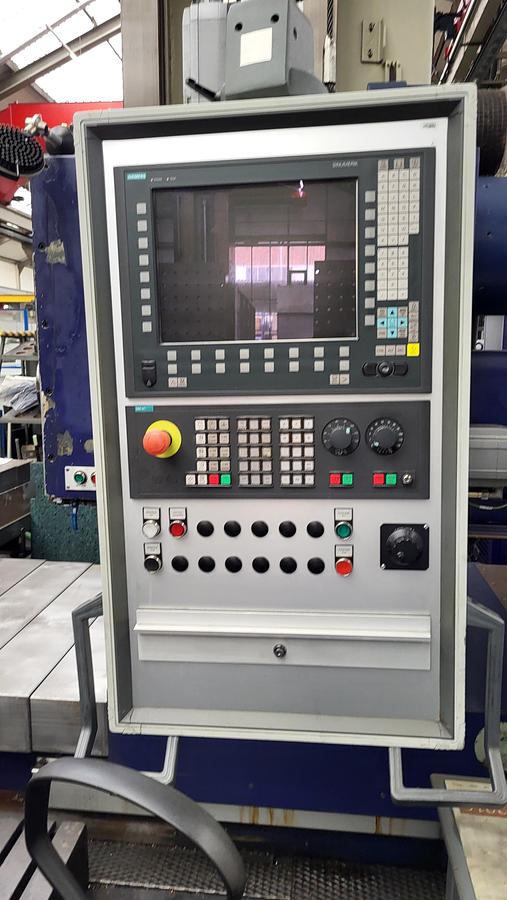

Control system: Upgraded to Siemens 840D

Working range:

- Clamping surface: 1250 x 1600 mm

- Rotary table, work spindle diameter: 130 mm

- Table load capacity: 6,000 kg

- Travel X: 2,000 mm

- Travel Y: 1,250 mm

- Travel Z: 900 mm

- Travel W: 1,000 mm

Spindle head :

- Boring spindle diameter: 130 mm

- Boring spindle internal taper: ISO 50

- Boring spindle longitudinal travel (Z): 800 mm

- Milling spindle tool holder: ISO 60, 221.44 mm

- Tool clamping: Hydraulic-mechanical

- Spindle head vertical adjustment (Y): 1250 mm

- Speed steps: 49

- Speed range: 3.2-1250 rpm

- Drive power max/min (100% ED): 45 kW

Feeds and rapid traverse:

- Feed range for W, X, Y, Z axes: 1-2000 mm/min

- Rapid traverse for W, X, Y, Z axes: 5000 mm/min

- Feed range for B axis: degrees/min (value not specified)

- Rapid traverse for B axis: 3 rpm

Column (Standard):

- Longitudinal adjustment (W): 1000 mm

Table:

- Swivel range (B): 360 degrees

- Clamping surface: 1250 x 1600 mm

- Cross adjustment (X): 2000 mm

- Max table load over entire adjustment range: 6 kp

- Indexing positions: 4x90 degrees

Total weight: ca. 16.3 kp
