2019 ECONO-PAK Carton Packaging Line

 Manufacturer: ECONO-PAK

Type of Machine: Carton Erector (type FA / FA-V) and Angle Closer / Carton Closing Machine (type

WVE-LD), used together as a top-load carton packaging line

Year of Manufacture: Purchased in 2019

Operating Hours: Carton erector 1931 hours. Carton closing machine 3303 hours.

Product Application: Ice cream in pouches

Carton Format and Capacity: Format 1: 293 x 193 x 96 mm, 15 cartons per minute

Carton Erector Machine Width: 1300 mm

Carton Erector Technique: Tab-lock blank constructions

Carton Erector Max Quantity of Heads: 1

Carton Erector Max Capacity per Head: 40 cartons per minute, depending on quality, size and design of the carton

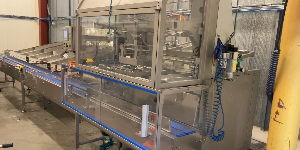

Carton Erector Function: A carton feeder with vacuum suckers takes flat carton blanks individually off the magazine and places them centrally onto the lower tool part. A forming head pushes the blanks through the tool chute and the cartons are formed. The erected cartons fall onto a conveyor and are transported out of the erector area. Can be used as a stand-alone unit or integrated into packaging lines. Standard equipment includes a quick-change magazine and fixed-format parts for fast tool change

Tab-Lock Tool Function: The forming head pushes the blank through the forming chute. The carton is formed and the hooks are pulled through the window with the help of a knife. This technique is fast,proper and very reliable, and the formed carton remains flexible and easy to fill.

Angle Closer Working Height: Approximately 850 plus or minus 50 mm, machine feet adjustable in height

Angle Closer Conveyor Chains: Attachment pitch of 508 mm

Angle Closer Glue System: Hot glue jet system with 3 glue tubes and 3 application heads

Angle Closer Format Range: 125 x 100 x 25 mm to 300 x 250 x 120 mm

Angle Closer Max Capacity: 80 cartons per minute, depending on quality, size and packaged good

Angle Closer Dimensions: In-feed 2700 mm, out-feed 2000 mm

Angle Closer Protection Grade: IP54

Angle Closer Function: The carton is fed into the continuously running WVE closer with a pneumatically driven pawl in-feed. The upright standing lid is bent down and glue is applied on the front flap, which is bent and pressed on. The carton is turned by 90 degrees in the angle section and transferred onto the downstream transport conveyor. Glue is applied on the lateral flaps, which are bent and pressed on, completing the closure. The angle section provides a space-saving layout and allows handling of cartons in very long or disproportionate formats. Driven upper belts with lateral press-on rolls facilitate correctly angled closure. A spring system for the press-on rolls allows secure handling of bulged cartons

Power Supply: 230/400V, 50Hz, 3 AC-N-PE

Pneumatic Data: 6 bar continuously, free of oil and water
