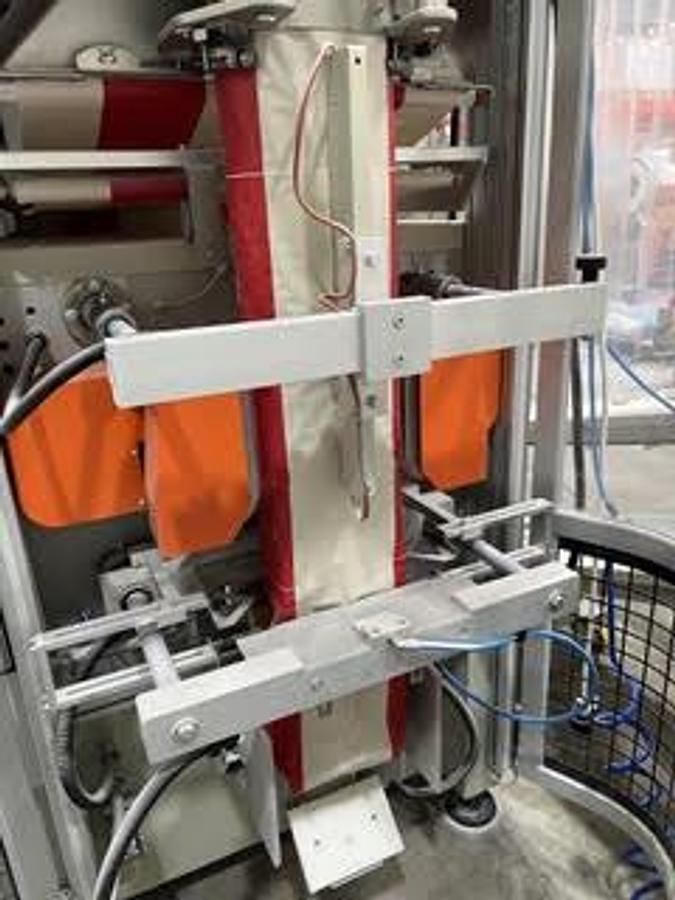

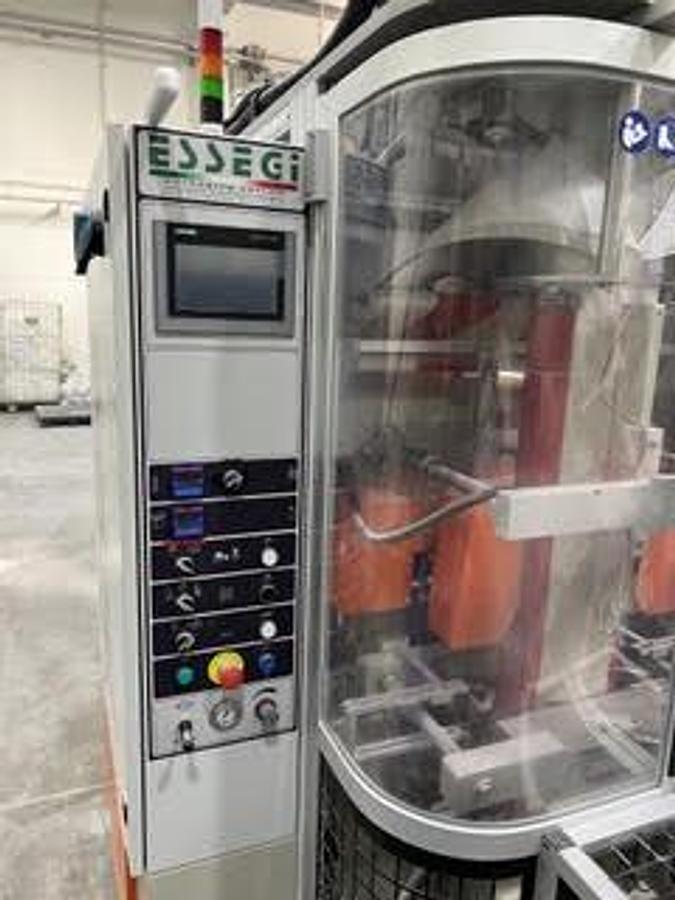

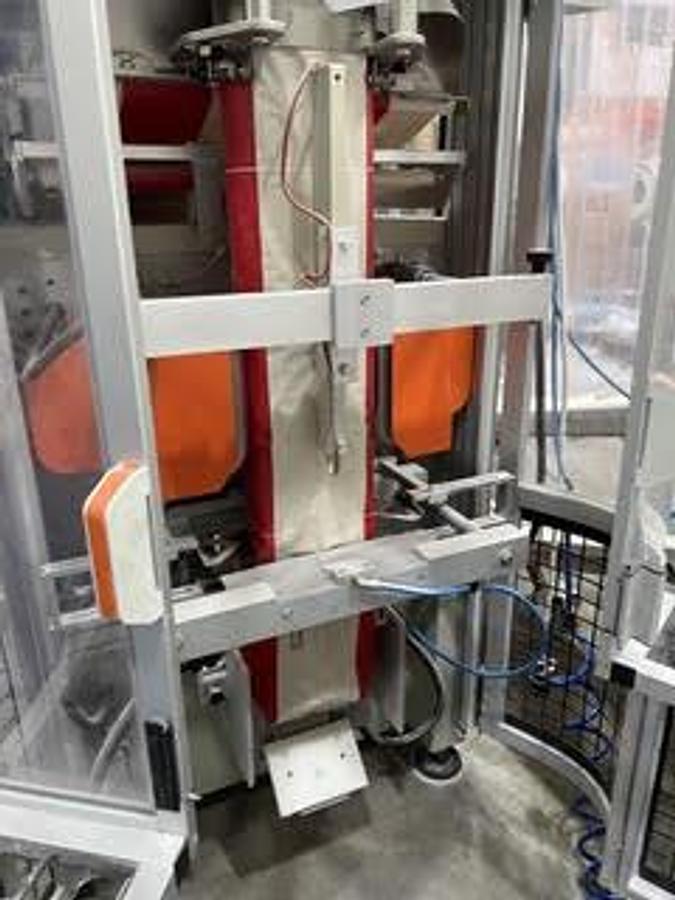

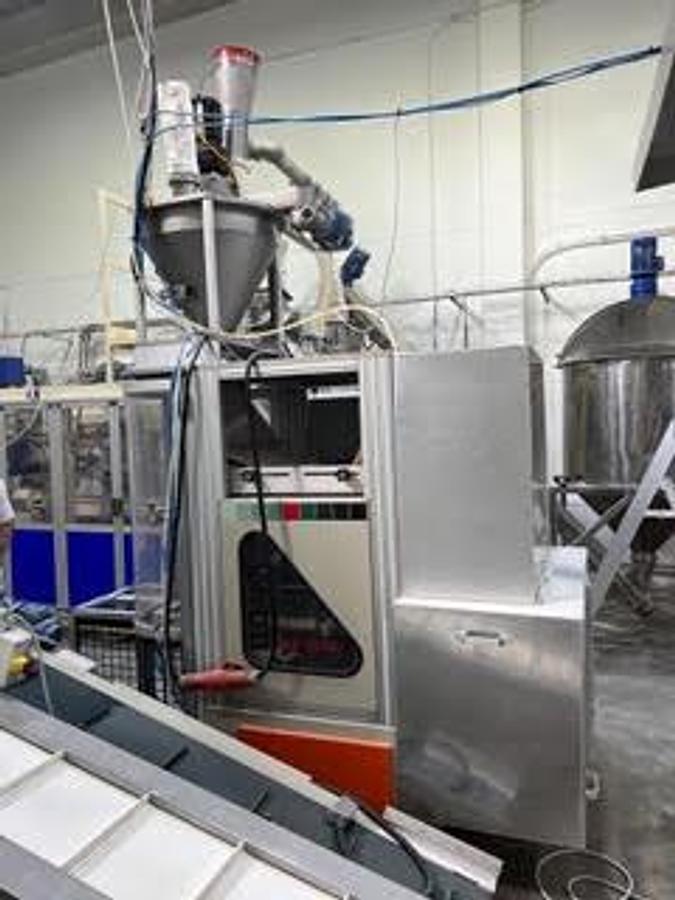

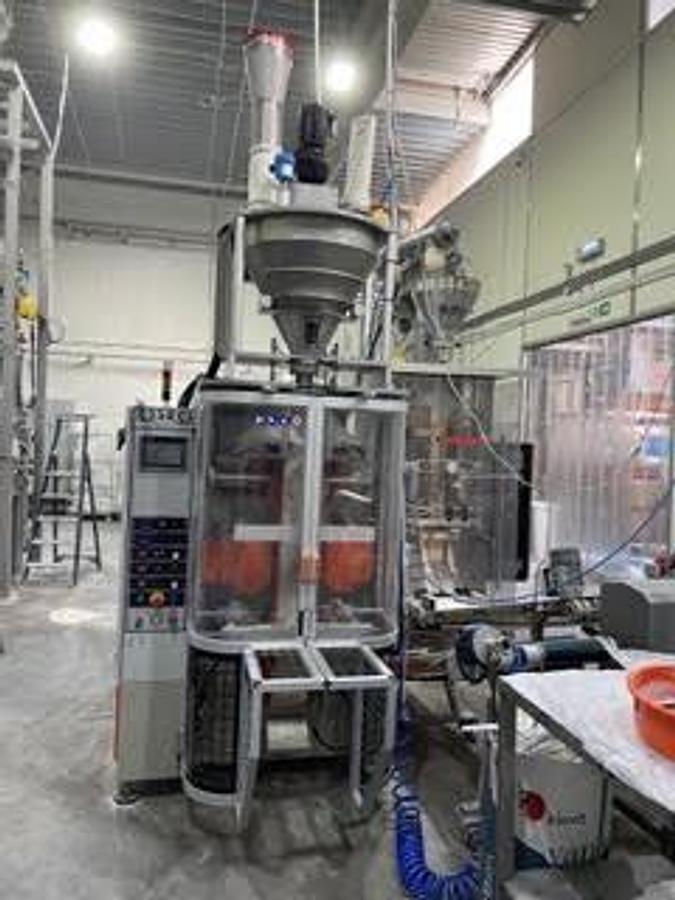

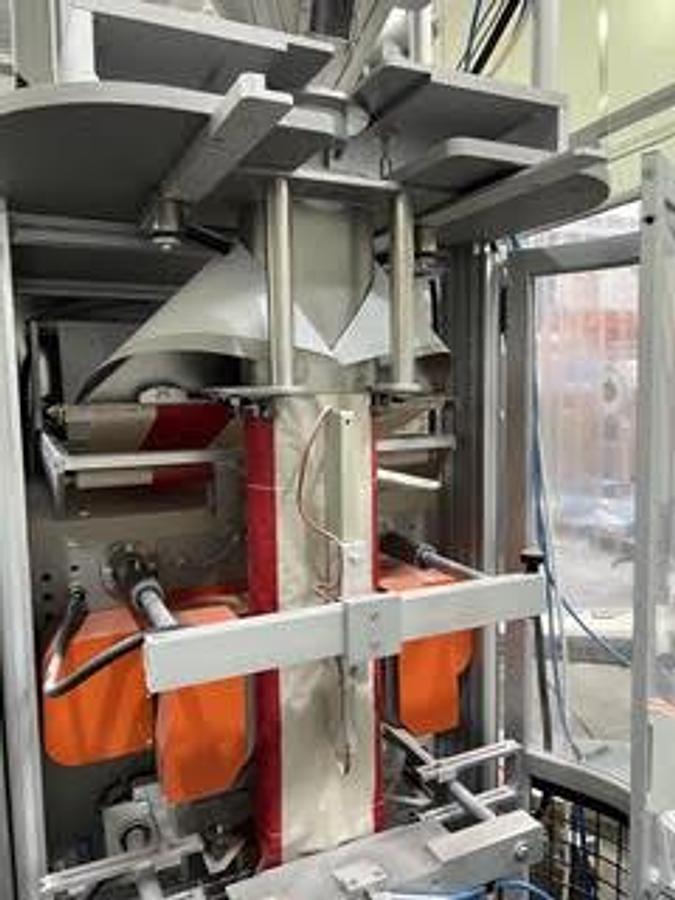

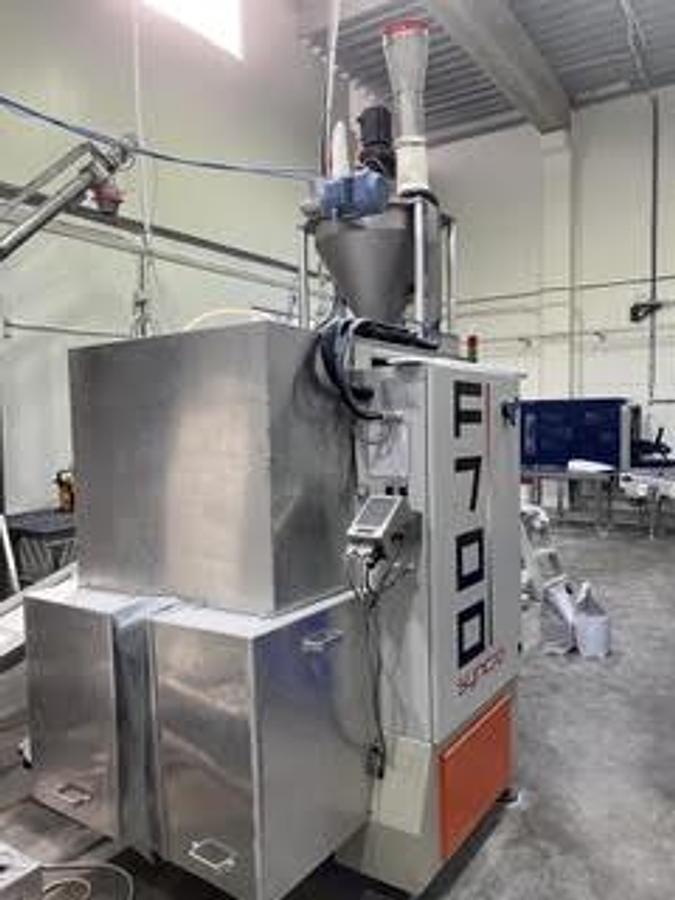

2017 Essegi F700 Syncro VFFS with DV5000 Auger Filler

Manufacturer: Essegi

Type of Machine: Vertical Form Fill Seal (VFFS) bagging machine with volumetric screw auger filler

Model:

• F700 Syncro (VFFS Bagging Machine )
• DV5000 (volumetric screw doser /auger filler)

Year of Manufacture: 2017

Technical Details:

• Product Bulk Density: 0.3 to 0.6 kg per dm3
• Packaging Weight Range: 0.5 to 2.5 kg
• Bag Material: Laminate film
• Bag Closure: Heat sealing bars
• Maximum Bag Length: 420 mm
• Maximum Bag Width: 300 mm
• Maximum Film Width: 650 mm
• Machine Speed: 18 to 20 bags per minute at 250 g, 14 to 16 bags per minute at 2.5 kg,
• Syncro version 3 to 4 bags per minute faster
• Doser Hopper Capacity: Approximately 75 dm3
• Doser Drive: SEW servo motor with adjustable speed
• Product Contact Parts: Food grade stainless steel
• Control System: Siemens PLC with Siemens color touchscreen
• Safety System: Pilz category 3 safety relay

Included :

• Photocell
• Side gussets
• Micro-perforation
• 2 extra forming shoulders
• Extra auger
• 2 meter outfeed belt
• Ewon remote module
