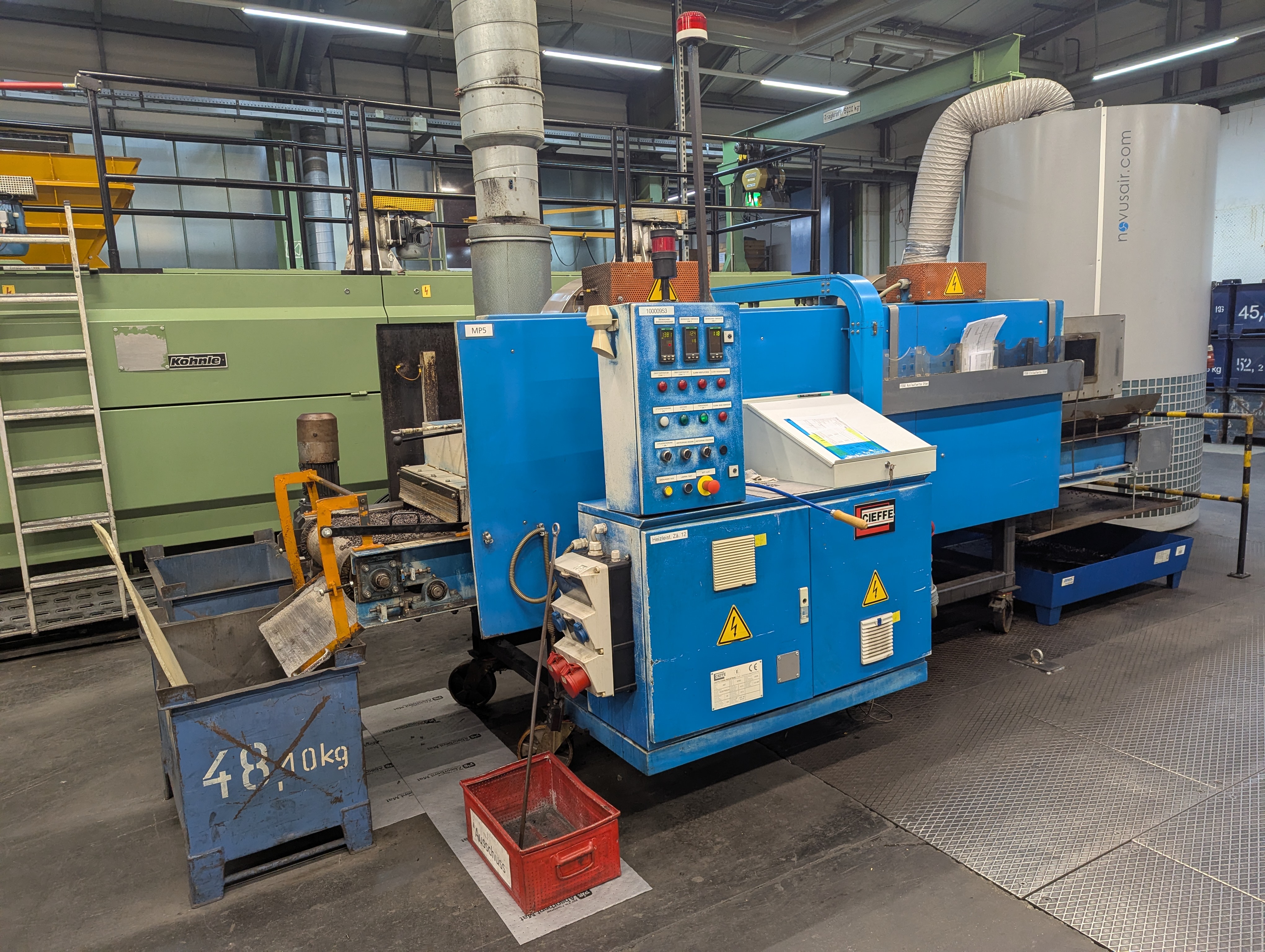

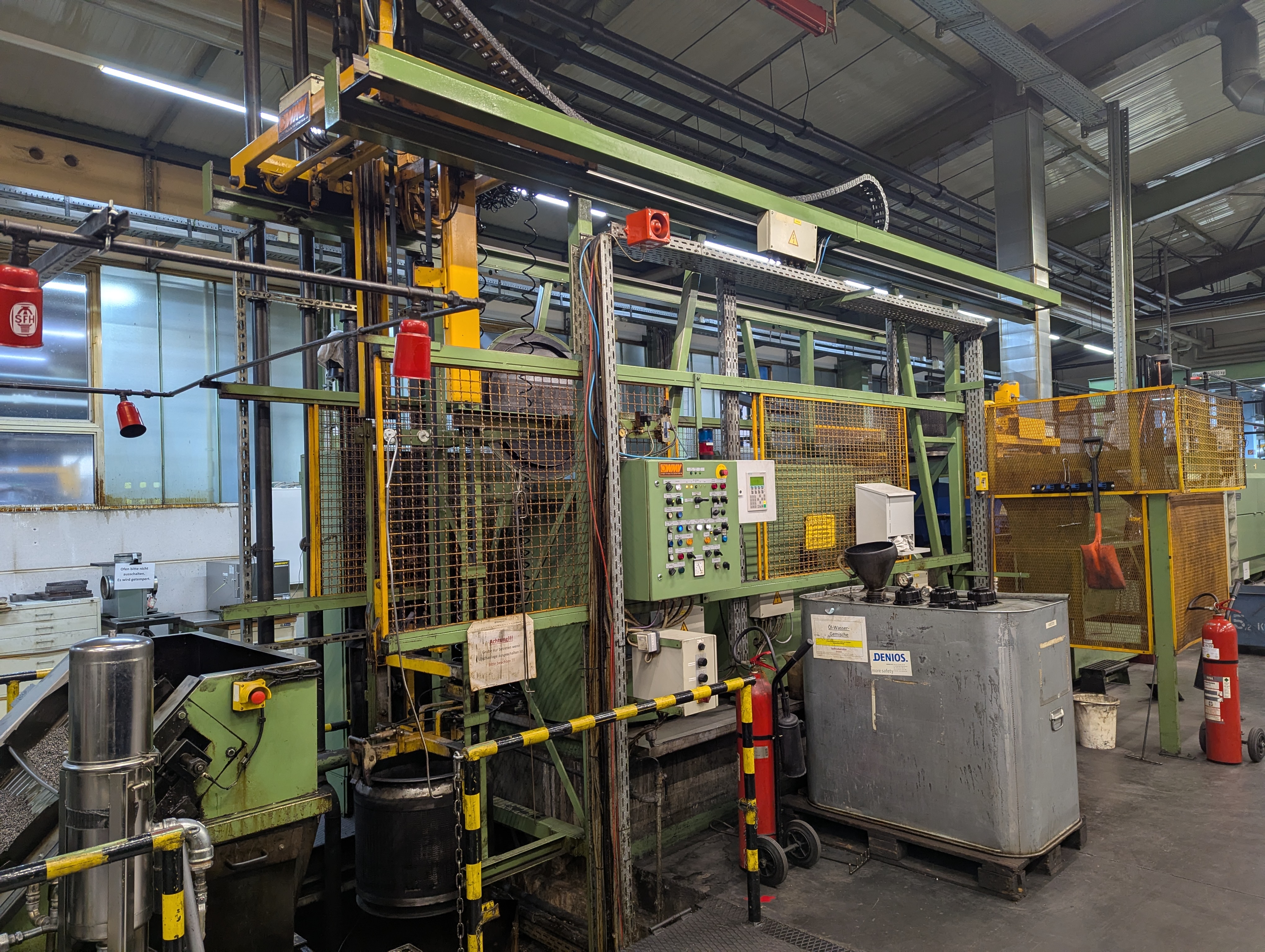

Kohnle Continuous Hardening System

Kohnle continuous hardening system consisting of hardening furnace, oil quenching bath, WMV intermediate washing system, tempering furnace, water bath and dryer

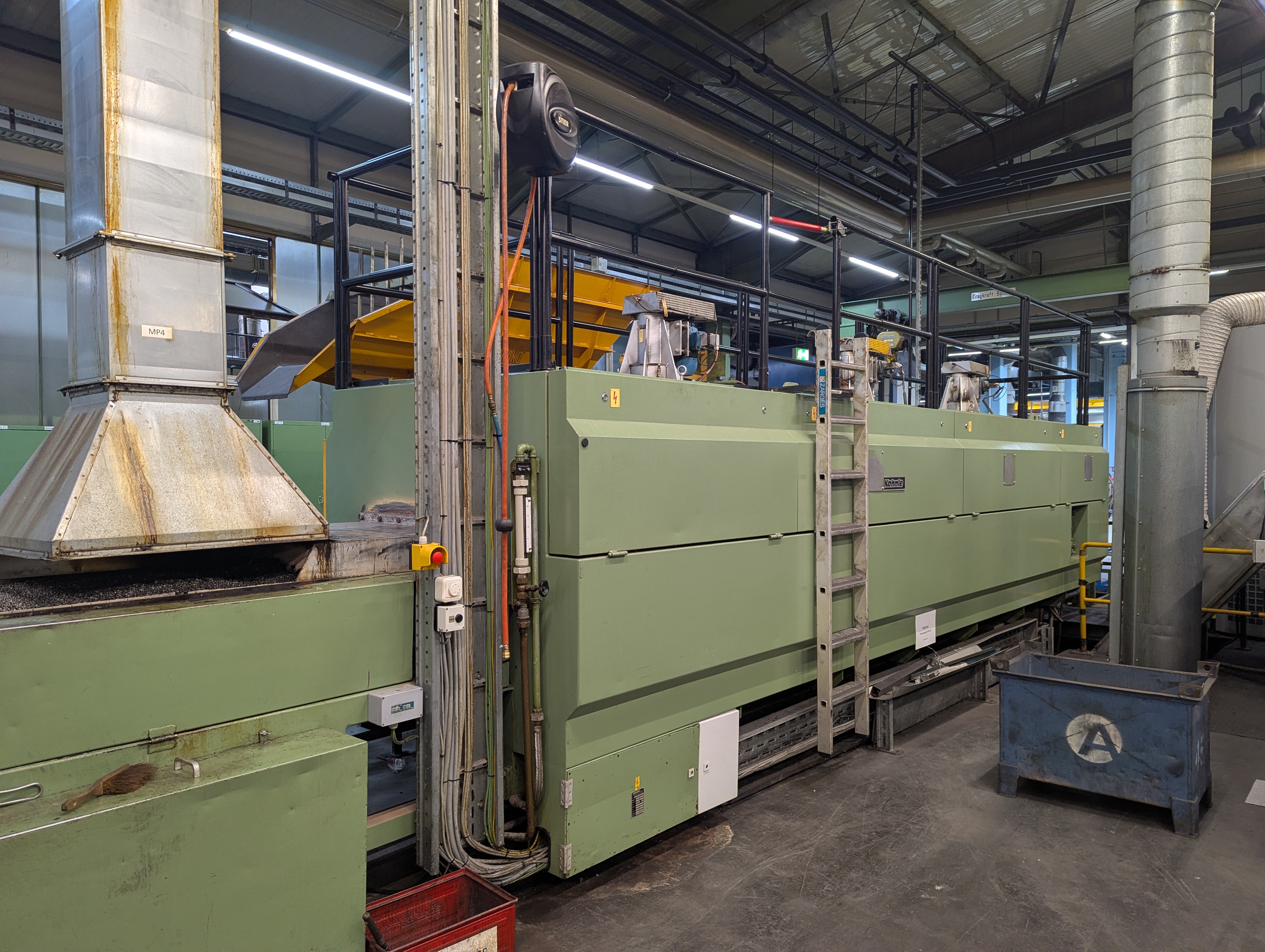

Hardening furnace:

• Continuous belt furnace (with muffle)
• Year of manufacture: 1987
• Tonnage: 350kg/h
• Heating type: electric
• Current operating temperature: 890°C
• Current throughput time: approx. 60 minutes
• Holding time at temperature: approx. 15 minutes
• Subsequent quenching in oil

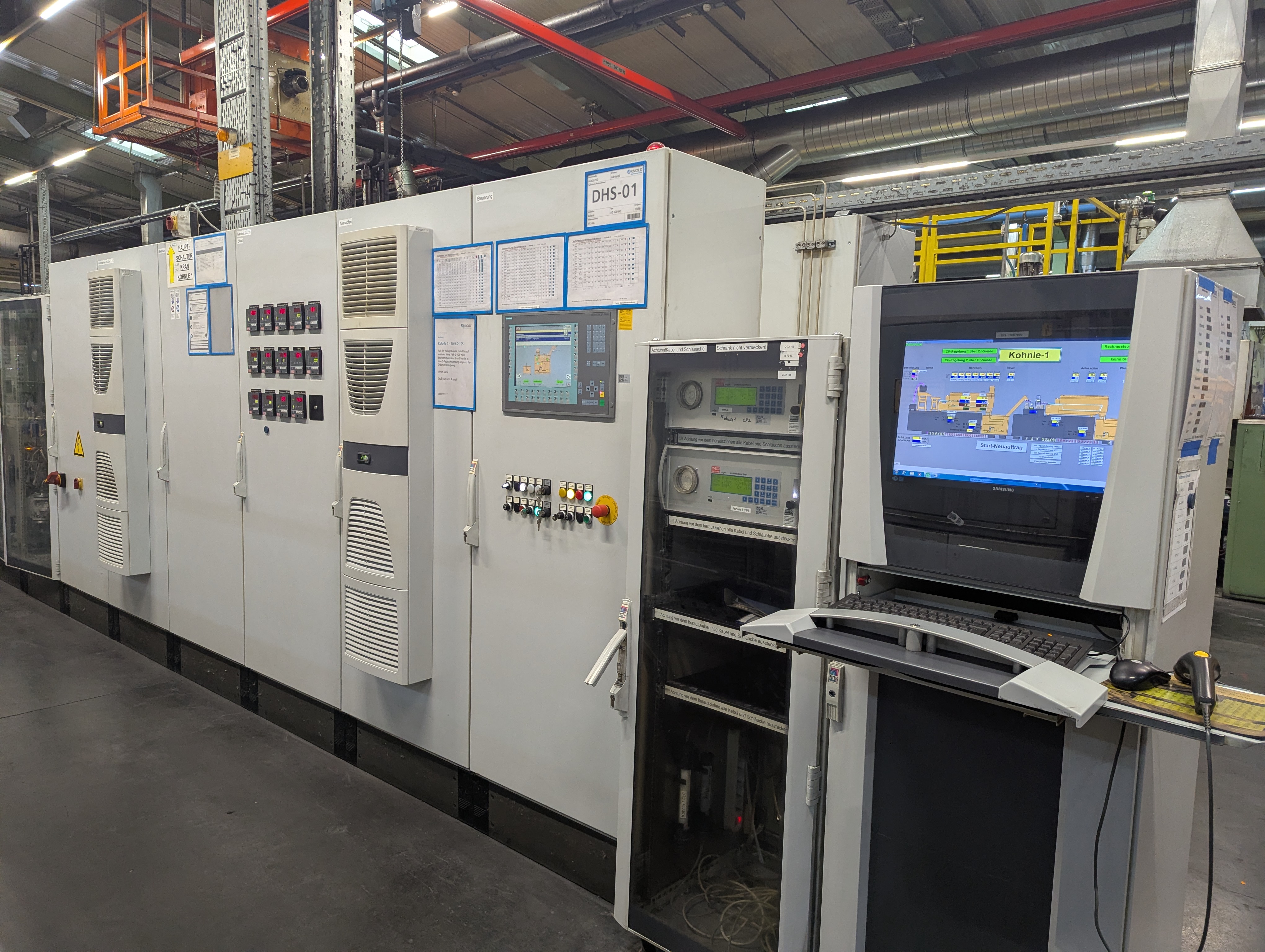

• PLC from MESA
• Computer control anavis also from MESA (Windows 7)

WMV:

• Charging using drums
• Year of manufacture: 1987
• Consisting of: trolley, transfer unit, oil centrifuge, washing system, drying centrifuge, tipping station
• The car wash also has an oil separator.

Tempering furnace:

• Year of manufacture: 1987
• continuous belt furnace
• Heating type: electric
• Max. temperature: 600°C
• Cooling of the parts in a subsequent water bath

Dryer:

• Year of manufacture: 2005
• Belt dryer
• Manufacturer: Cieffe
• Heating type: electric
