Pressure Sandblasting Booth 1500mm CBBK-2000

Pressure Sandblasting Booth 1500mm CBBK-2000

Contact us for price

Munich, Germany

orCall +49 (0)89 44354985

Description

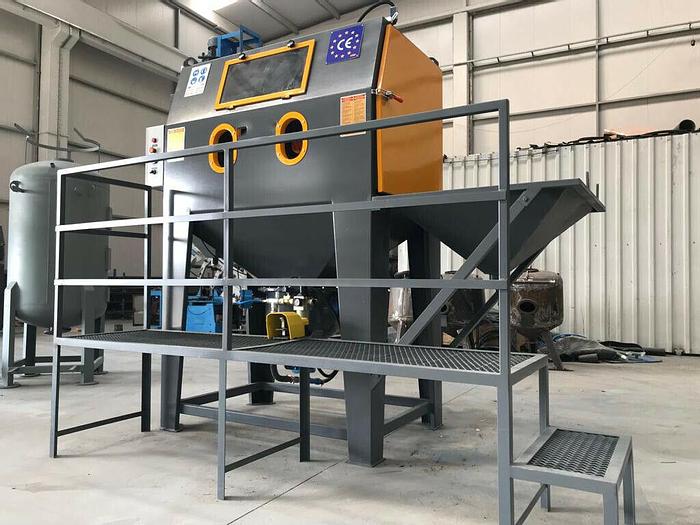

Professional Pressure Sandblasting Booth 1500mm CBBK-2000 NEW with CE Made in Germany



The equipment has been designed for demanding users - both in workshops, powder coating companies and in industry.

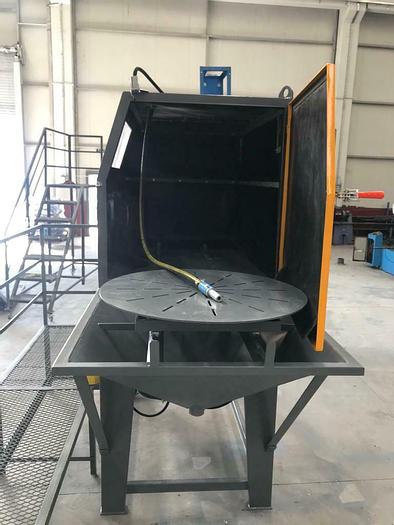

With frame with rail and turntable for convenient insertion of heavy parts. Load capacity up to 500 kilos.


Technical specifications:



CBBK-2000


Sandblasting cabin CE 1 piece


Operation type 1 - With adjustable foot controlled pedal

Rotating hopper and trolley 1 set For convenient material movement

Loading door 1 - Safety switch available

Sandblasting hose 1/2 " 1 set The sandblasting hose is mounted above the cabinet

Air gun 1 piece For material cleaning

Dust collection unit 1 piece 4 m2 jet pulse automatic cleaning

Filter cabinet 1 piece cartridge filter

Regulator 1 piece air pressure regulator with waterfall filter

Manual sand sieve of 3000 installed

Fan 1 piece 0,75 kW/3000 rpm 380 V

1 pair of gloves attached to the machine

Sand jet tip nozzle and device 1 set 8 mm

sight glass 1 piece flexi glass

Lighting 1 piece LED ceiling lamp

Switchboard 1 piece Siemens /Schneider

Air consumption 2 m³/min.

Voltage 380 V/50 Hz.


Tasks to be performed by the customer


1. 220 V electric cable to the control panel and ground the machine.

2. installation and, if necessary, connection of compressed air lines.

3. continuous dry air supply of 6 bar 2 m³/h for the blasting machine.

4. provision of the required sand for the sandblasting process.




Specifications

ManufacturerPressure Sandblasting Booth
Model1500mm CBBK-2000
ConditionNew
