2000 Trumpf Trumatic TC 500 R

2000 Trumpf Trumatic TC 500 R

Contact us for price

Kassel, Germany

Description

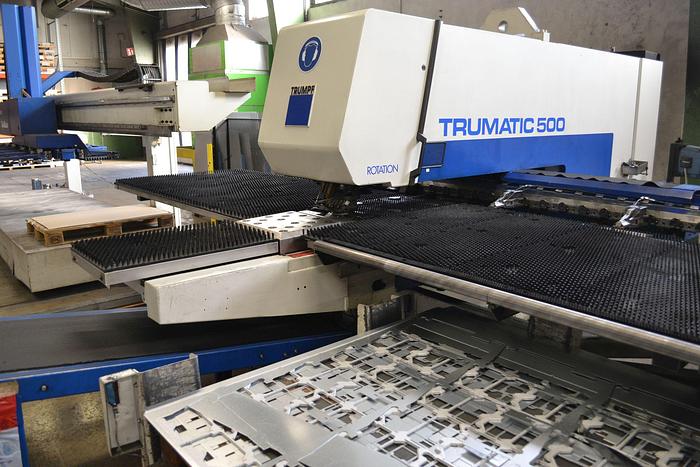

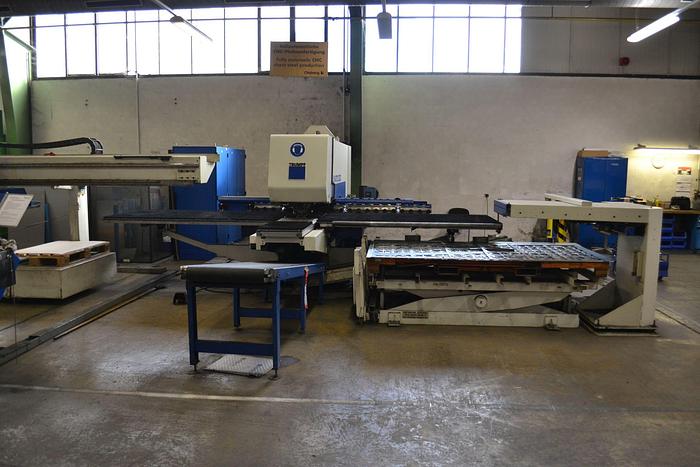

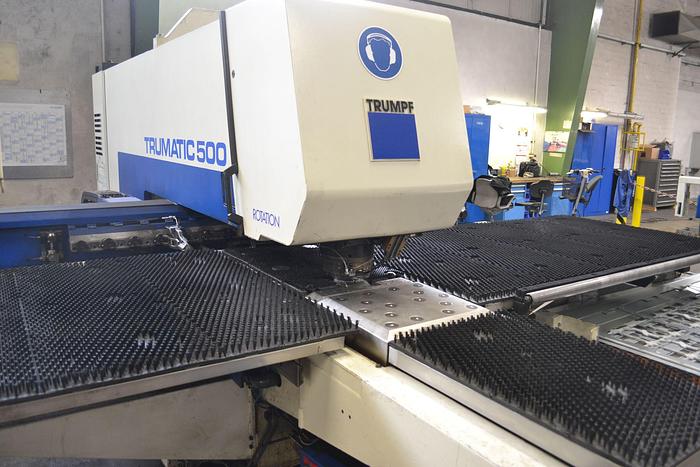

Punching-nibbling center


Description TC 500

Type: Trumatic TC 500 R

Year of manufacture: 2000


Working area: 2500x1300

Max. Factory back weight: 150kg

Max. Sheet thickness: 8mm

Max. Punching force: 220 KN

Max. Stroke rate: 900 1/min

Weight. Of the machine: 11050 kg

Speeds:

X- axis: 90 m/min

Y- axis: 60 m/min

Simultaneous: 108 m/min

C- axis: 360˚/s

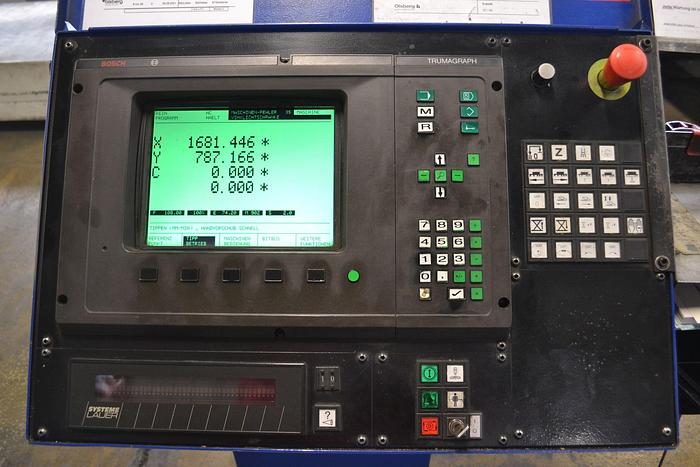

Control system:

Contouring control Trumpf CNC

Trumagraph CC220S

Connected loads:

Approx. 17kVA/50Hz

Approx. 19 kVA with Sheetmaster

8Nm³/h at 6 bar

Tool change time: ca- 1,5-5-s

Number of tool places: 20

3 clamps


Effective usable tool places 17

Installation dimension

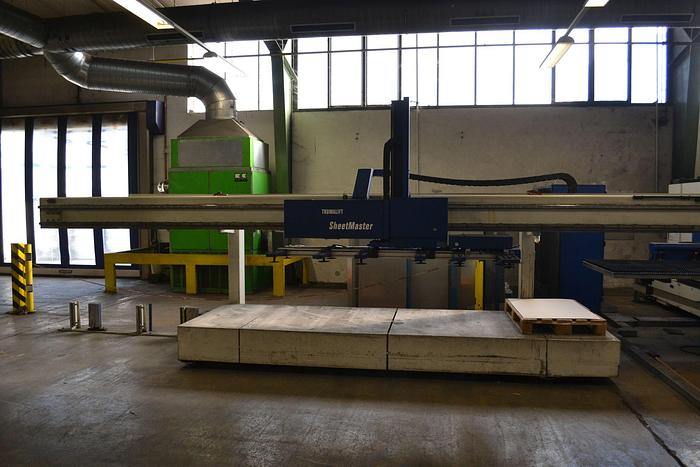

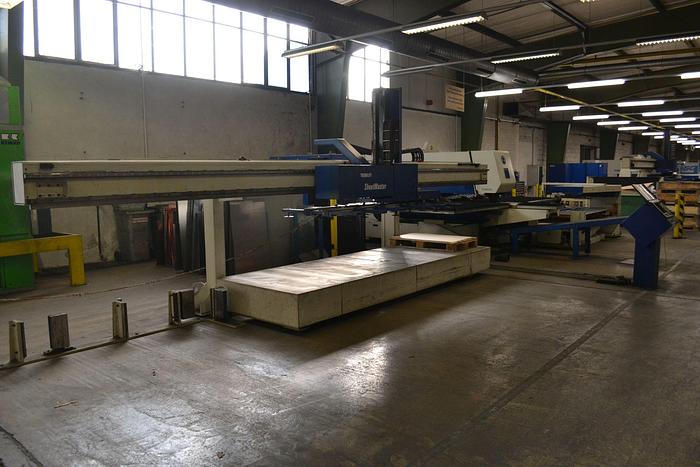

With Sheetmaster

The machine is programmed via interface


Last maintenance

Maintenance on 23.05.- 25.05.22


Machine hours

02.22 94172 STD.



Find more here - https://www.ucymachines.com/

Specifications

ManufacturerTrumpf
ModelTrumatic TC 500 R
Year2000
ConditionUsed
