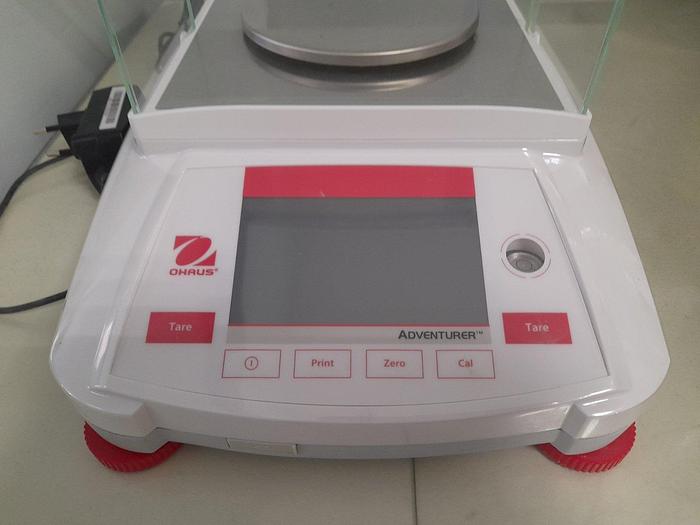

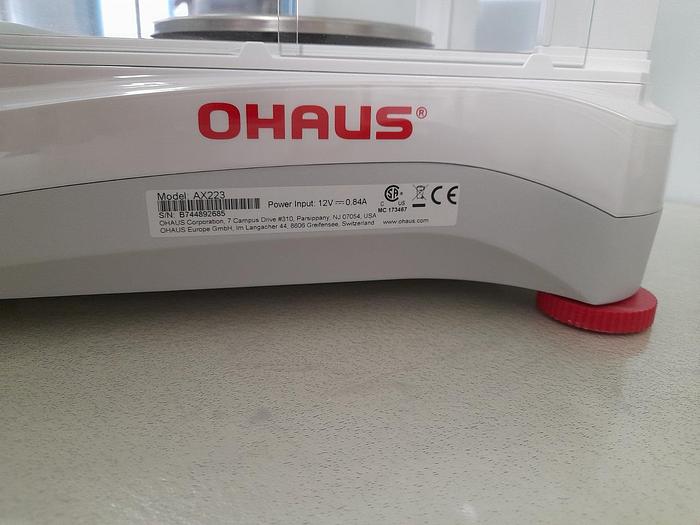

OHAUS AX223

ADVENTURERTM PRECISION OHAUS AX223 Electronic Balance

Intuitive Balance Designed for a Variety of Needs

AX223

Maximum Capacity 220 g

Readability 1 mg

Pan Size 5.1 in (130 mm)

Item Number: 30100605

Condition Excellent (never been used)

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing,

Totalization/Statistics, Formulation, Density Determination, Display Hold

Display

4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness

Operation

AC adapter (included)

Communication

RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.

Construction

Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted

side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh

below hook, security bracket, calibration lock, full housing in-use cover

Design Features

Selectable environmental filters, auto tare, user selectable span calibration points, software

lockout and reset menu, user selectable communication settings and data print options, user

definable project and user IDs, up to 9 operating languages

SPECIFICATIONS

Maximum Capacity 220 g

Readability 1 mg

Pan Size 5.1 in (130 mm)

Internal Calibration AutoCalTM - Automatic

Draftshield Included

Auto Door Not applicable

Auxiliary Display Model Available as an Accessory

Battery Life Not applicable

Communication USB; RS232 (Included); USB Host

Dimensions 13.93 in x 13.39 in x 9.05 in

(354 mm x 340 mm x 230 mm) (LxHxW)

Display High resolution full colour VGA touch display

Inuse cover Included

Legal for Trade Not applicable

Linearity ± 0.002 g

Minimum Weight (USP, 0.1%, typical) 2 g

Net Weight 12.8 lb (5.8 kg)

Pan Construction Stainless Steel

Power AC Adapter (Included)

Repeatability, typical 1 mg

Stabilization Time 2 s

Tare Range To capacity by subtraction

Units of Measurement Singapore Tael; Ounce Troy; Pennyweight; Grain;

Tical; Custom; Milligram; Newton; Momme;

Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound;

Tola; Mesghal; Carat; Ounce

Working Environment 50°F – 85°F, 80%RH, non-condensing

(10°C – 30°C, 80%RH, non-condensing)

Shipping dimensions 507 mm x 387 mm x 531 mm
