2019 supercritical Co2 extraction system 50L
2019 supercritical Co2 extraction system 50L
Shanghai, China
Description
supercritical Co2 extraction system 50L in stock.
It is a new one.
Finished in 2019

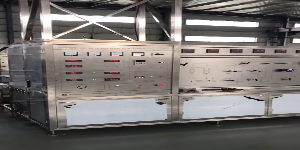

GSFE Supercritical Co2 Extraction Machine 220-40-50
Two Extract Two Separate Co2 Cycle Type
Description:
The technology of SFE(Supercritical Fluid Extraction) is a new subject from Modern Chemicals Industries, which is one of
the advanced Separation Technology. As for SCF(Supercritical Fluid), it is was that fluid on Critical Point(Pc, Tc) under
Thermodynamic State, the Critical Point is the state point when interface of Gas and Liquid disappear, which process very
novel physical& chemical characters. It density degree close to liquid, viscosity degree close to gas, but bigger diffusion
coefficient &dielectric constant, smaller viscosity etc. these characters have contributed to good separation effects. So the
SFE is mainly about Separation, the solution will touch with extracted materials under High Pressure& Suitable
Temperature, the Solutes would be diffused into the solution, then change the operation Conditions, to make the Solutes
separate out.
Technical Parameter
Model GSFE220-40-50
Max. extract pressure 50MPa
Single extract cylinder volume 1L
Extraction temperature Room temp – 75℃
Max. flow 0-50L/h(adjustable)
Kettle material 1Cr18Ni9Ti
Separation kettle volume 600ml * 2sets
Separation kettle pressure 30MPa
CO 2 store tank volume 3L
CO 2 store tank pressure 16MPa
Dimension 1700*1520*1000mm
Weight 300KG(Approximate)
I. Refrigeration System:
Equip water jacket cycle heating system, temperature adjustable, equip solid, liquid barrel.
Material 1Cr18Ni9Ti
Volume 25L/ 2set
Max Working Pressure 40MPa
II. Separating Kettle
Equip water jacket cycle heating system, temperature adjustable;
Material 1Cr18Ni9Ti
Volume 15L 2 set
Max Working Pressure 30MPa
III. CO2 High Pressure Pump
Flow(Three colume) max 400L/h frequency inverter adjustable
Max Working Pressure 40MPa Pump head equip cooling system
IV. Entrainer Pump
Flow(Double colume) 1/4~20L/h Mechanical Adjustable
Max Working Pressure 40MPa
V. Refrigeration System
Refrigerant Qty: 17000Kcal Air cooling/Water cooling
Temperature Control Range -5℃~+5℃ Meet craft request
VI. Heat Exchange System
Material 1Cr18Ni9Ti
Specification φ14 φ18
Max Working Pressure 40MPa 30MPa
Equip with water jacket cycle heating system, temperature adjustable
VII. Purifying System
Material 1Cr18Ni9Ti
Max Working Pressure 5L/16MPa
VIII. CO 2 Storage Tank:
Material 1Cr18Ni9Ti
Volume 20L 2set
Max Working Pressure 16MPa
IX. Flow Meter
Specification Metal Pipe Float Flow Meter Digital Display etc 40~400L/h
Display Chart Display Timing and Accumulate flow
X. Temperature Control System
Control Range Room~75℃ adjustable(water soak)
Dynamic Temperature Control Accuracy +1℃ Digital Double Screen
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | supercritical Co2 extraction system 50L |
Year | 2019 |
Condition | New |
