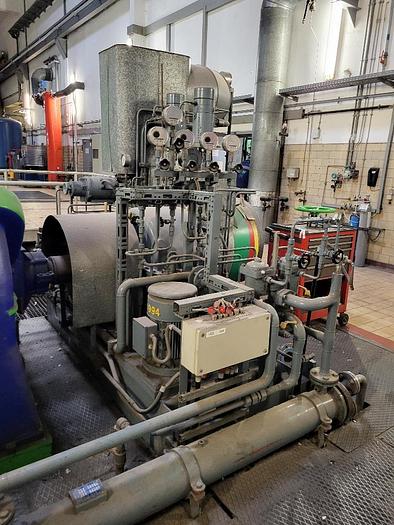

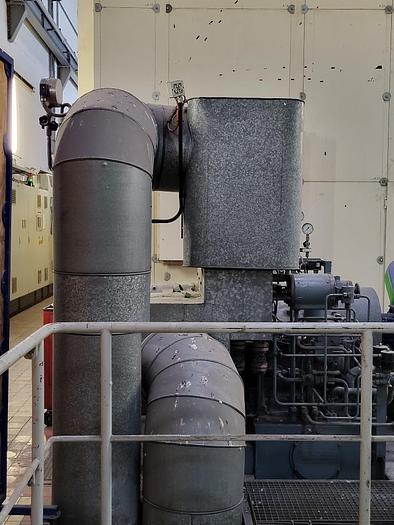

Turbine

The following are the turbine data according to the operating instructions:

Live steam pressure: min (limit): 32.30 bar

Normal (operation): 36,00 bar

Max (limit): 39.70 bar

Live steam temperature: min (GW): 400 °C

Normal (operating): 450 °C

Max (GW): 460 °C

Exhaust steam pressure: min (limit): 2.50 bar

Normal (operating): 3.50 bar

Max (limit): 4.50 bar

Exhaust steam temperature: 379° C

Coupling power: Normal: 1027.1 kW

Max (GW): 1129,9 kW

Speed: Normal: 1500 1/min

High speed: 1695 1/min

Weight: Turbine: approx. 2500 kg

Coupling: 220 kg

Base plate: 700 kg
