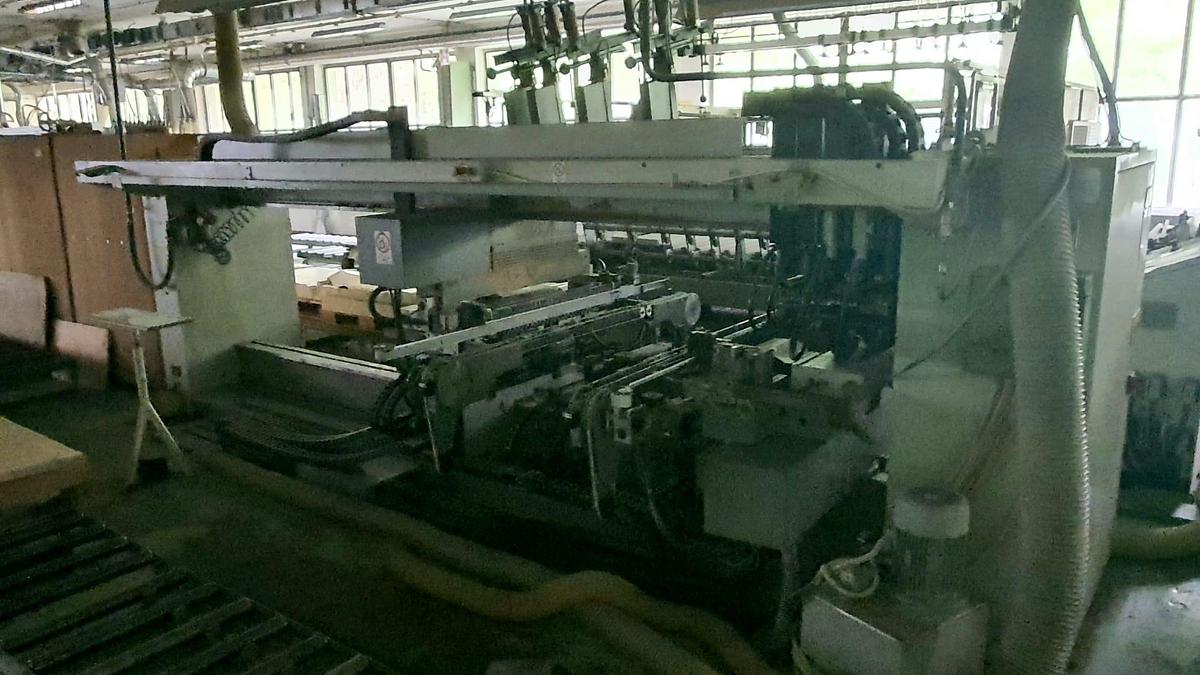

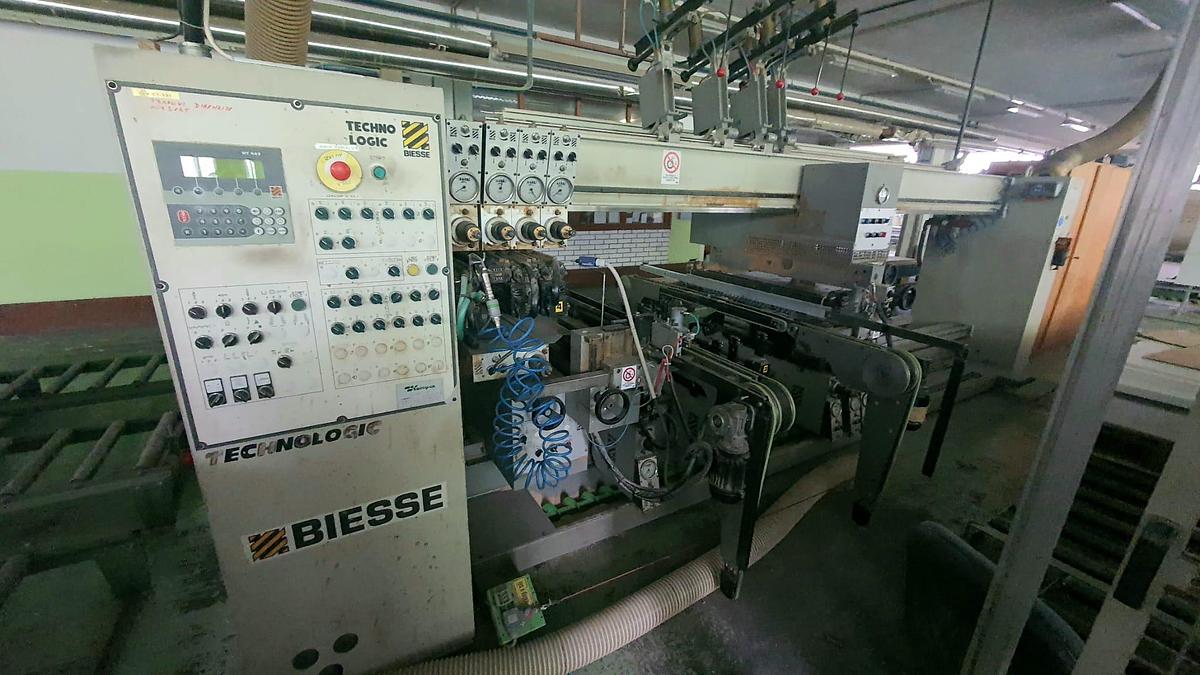

1997 BIESSE Electronic drilling machine with loader TORNADO

Manufacturer: Biesse

Year of Manufacture: 1997

Type of Machine : Electronic drilling machine with loader

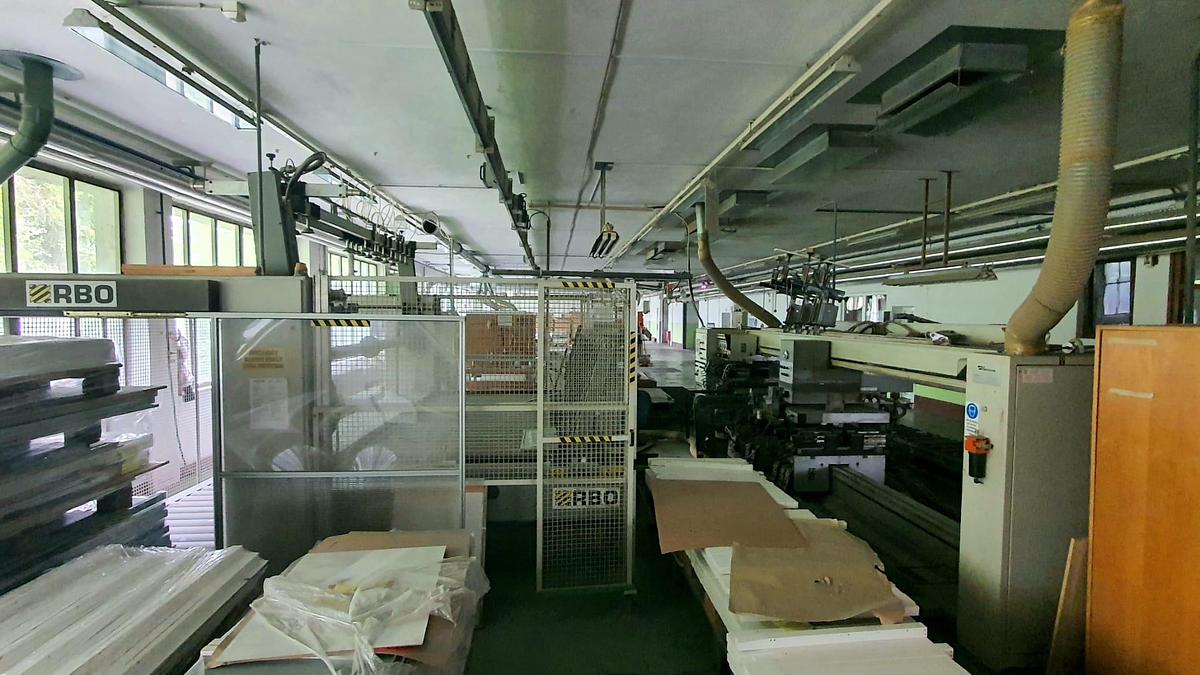

Loader :

• Manufacturer: RBO
• Model: Tornado

Technical Specifications :

• Number of Lower Vertical Drilling Heads: 6
• Number of Upper Vertical Drilling Heads: 4
• Number of Transverse Drilling Heads: 2
• Number of Drilling Heads with 11 Spindles: 16
• Number of Drilling Heads with 7 Spindles: 2
• Number of Drilling Heads with 5 Spindles: 2
• Number of Spindles in the Horizontal Drilling Head: 5
• Total Number of Spindles on the Horizontal Head: 20
• Spindle Speed: 4000 rpm
• Distance Between First and Last Spindles on Horizontal Head: 608 mm
• Maximum Run of Horizontal Head on Z Axis: 40 mm
• Working Surface Height: 900 mm
• Conveyor Belt Length Through Machine: 1900 mm
• Input Transfer Length: 670 mm
• Output Belt Extension: 315 mm
• Dust Extraction Connection: 1 x 150 mm
• Control System: Electronic control of three axes
• Software: Integrated software for creating drilling plans

CE certified
