2019 Glaston FC Series

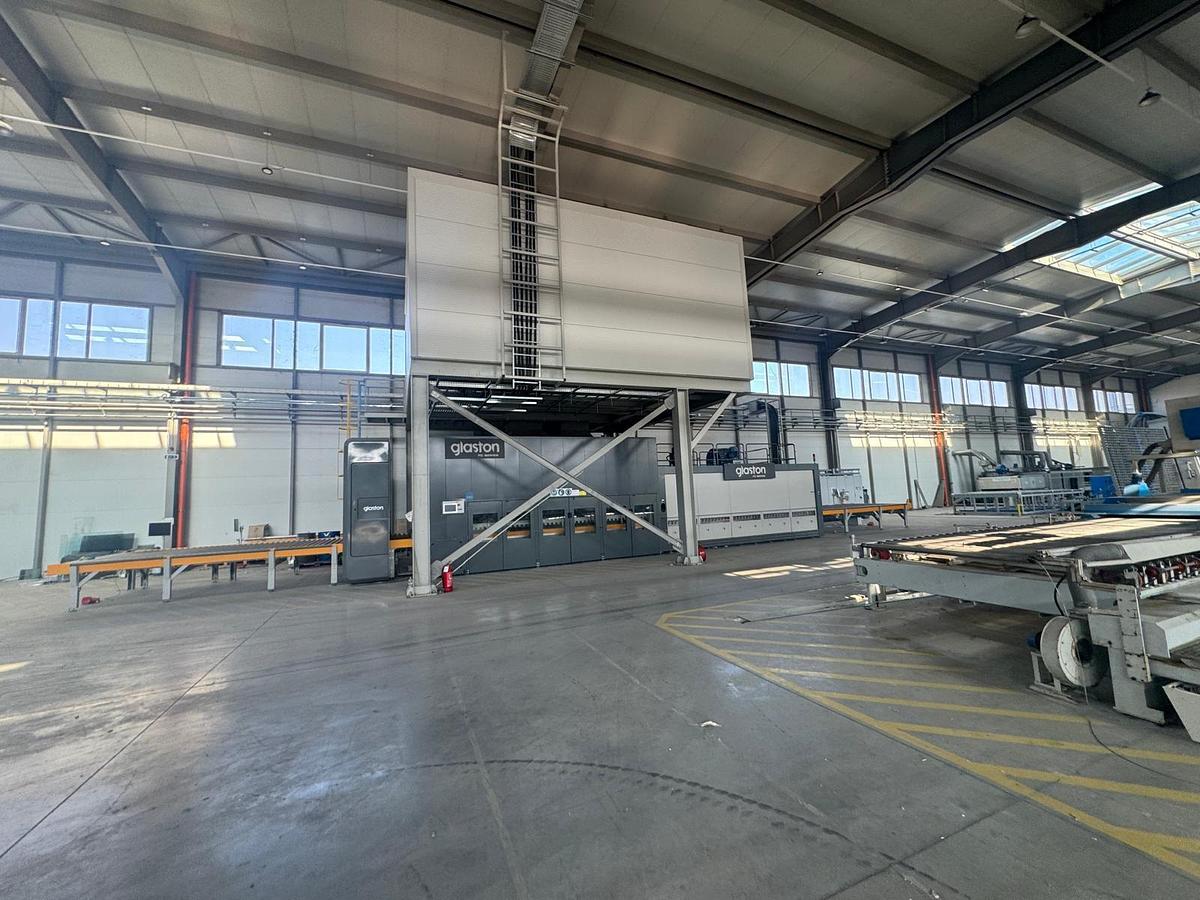

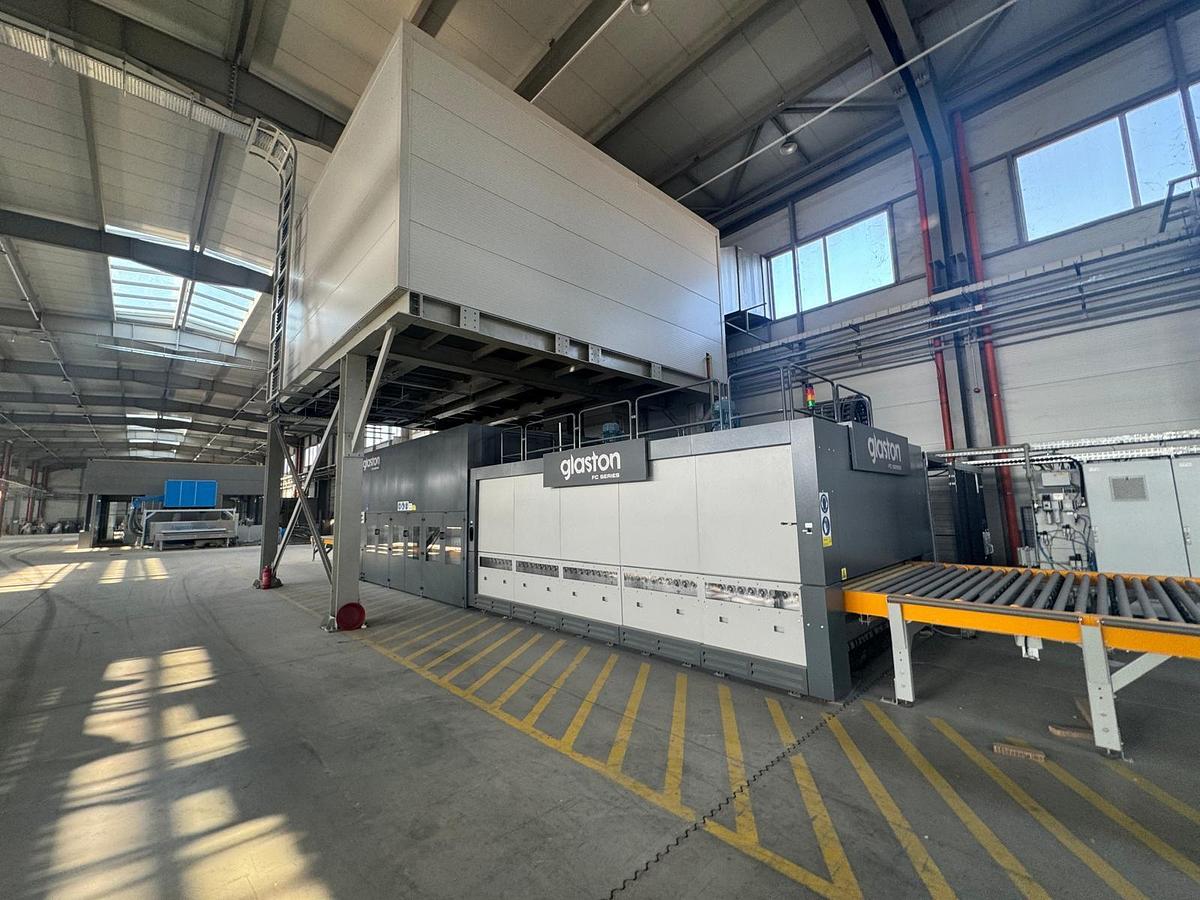

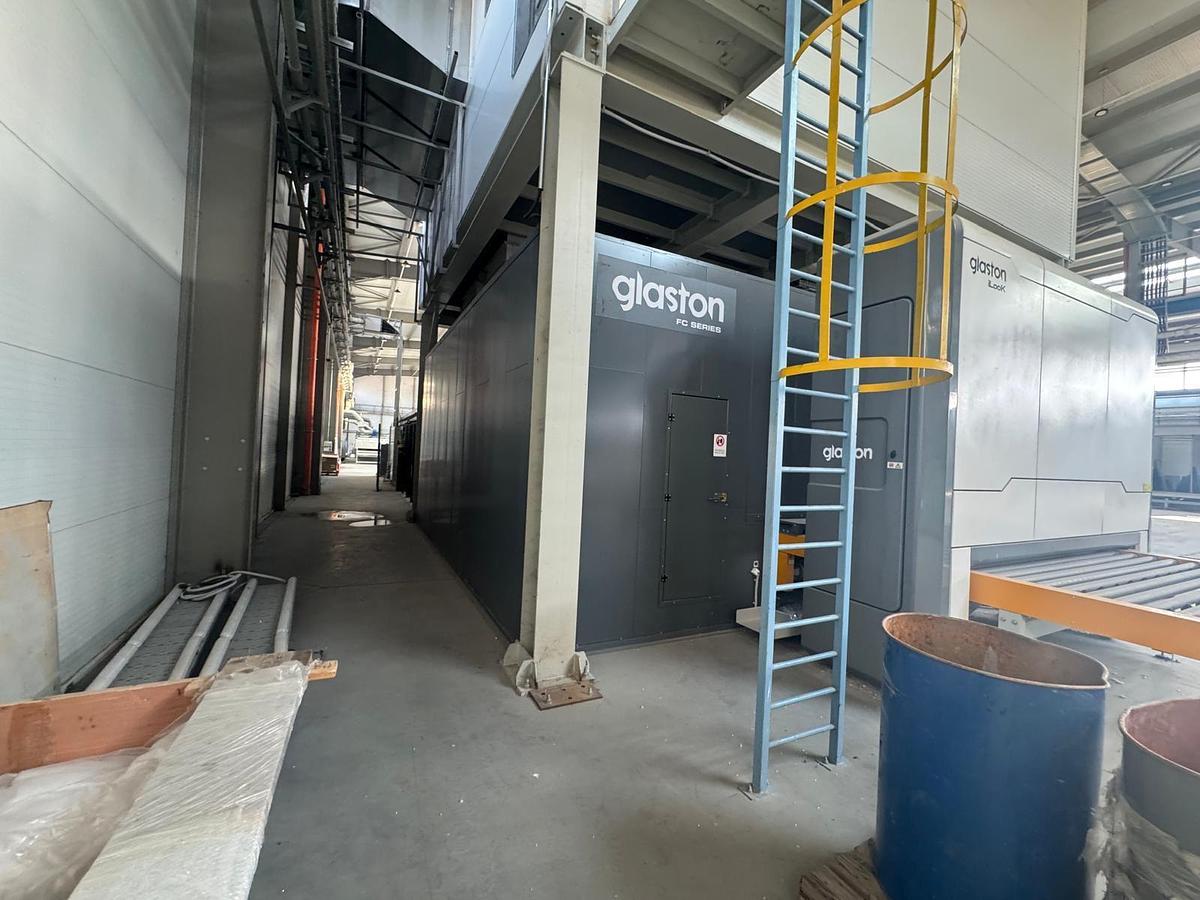

The 2019 Glaston FC Series refers to a large industrial glass tempering machine

Glaston FC Series – Complete Technical Identification

General Information

• Manufacturer: Glaston

• Country of origin: Finland (Tampere)

• Model / Series: FC Series 2448-380-R

• Year of manufacture: 2019

• CE certified: Yes

Electrical & Technical Data

(according to manufacturer nameplate)

• Supply voltage: 400 VAC

• Frequency: 50 Hz

• Control voltage: 230 VAC / 24 VDC

Installed power:

• Heating power: 1017 kW

• Motor power: 534 kW

• Total installed power: 1551 kW

Current:

• Heating: 1623 A

• Motors: 953 A

• Total: 2576 A

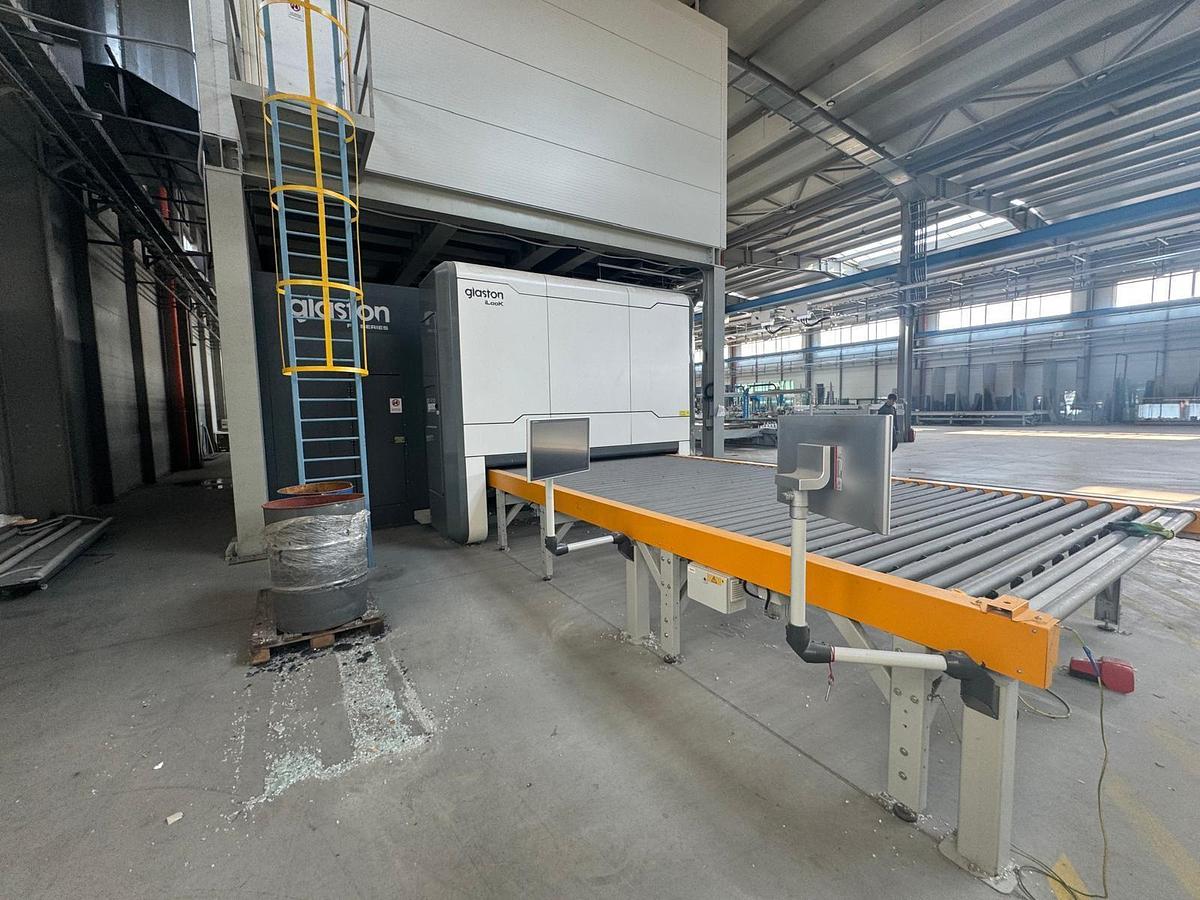

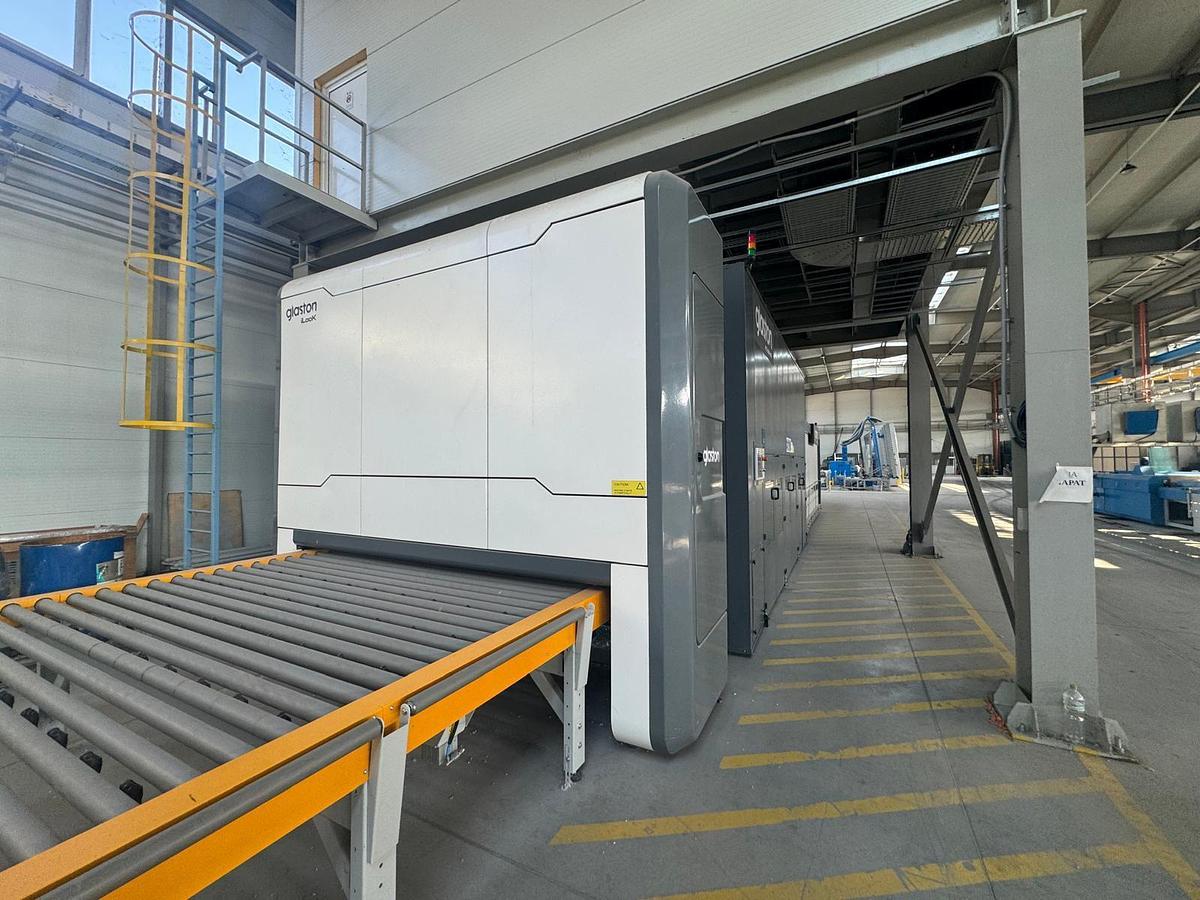

1. Infeed roller conveyor

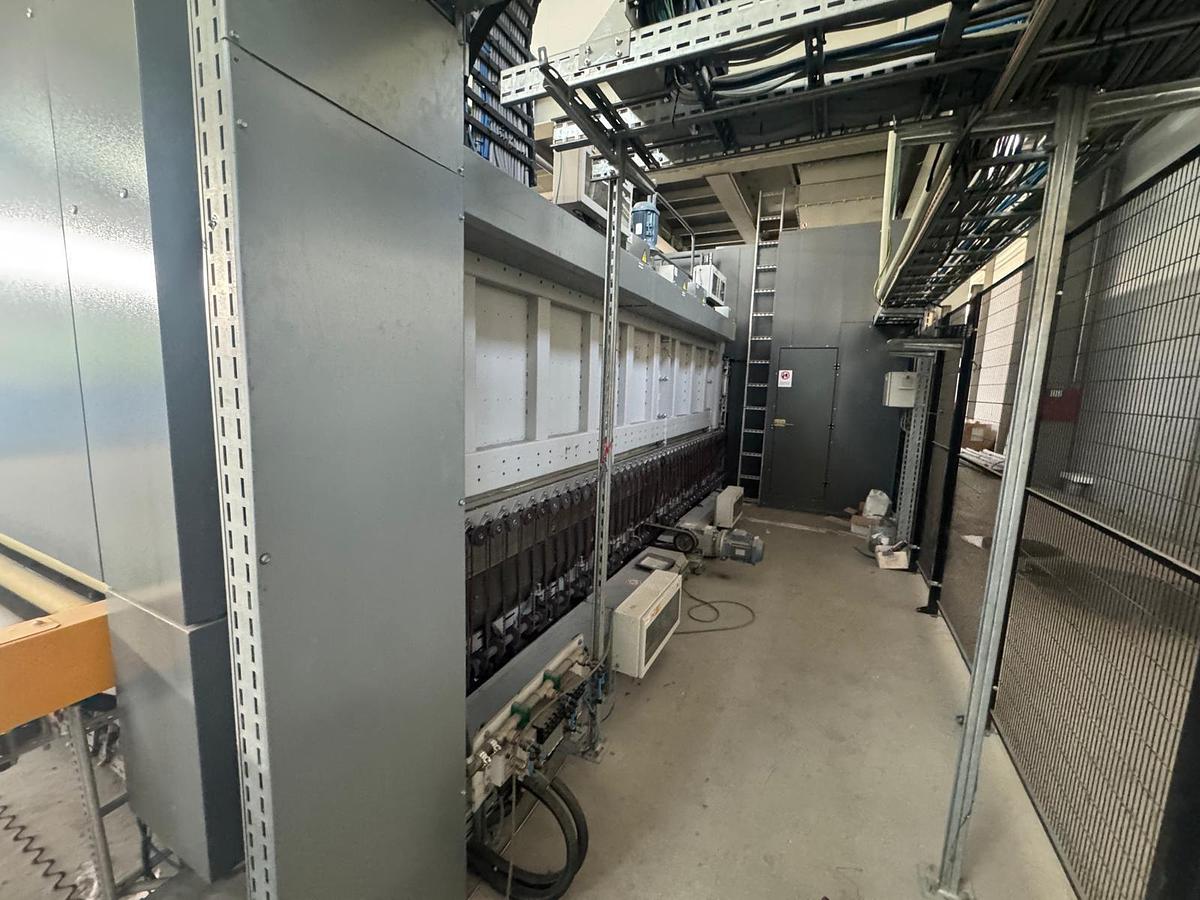

2. Heating furnace (FC Series) with multi-zone temperature control

3. Quench cooling section (top & bottom air blowing)

4. Outfeed roller conveyor

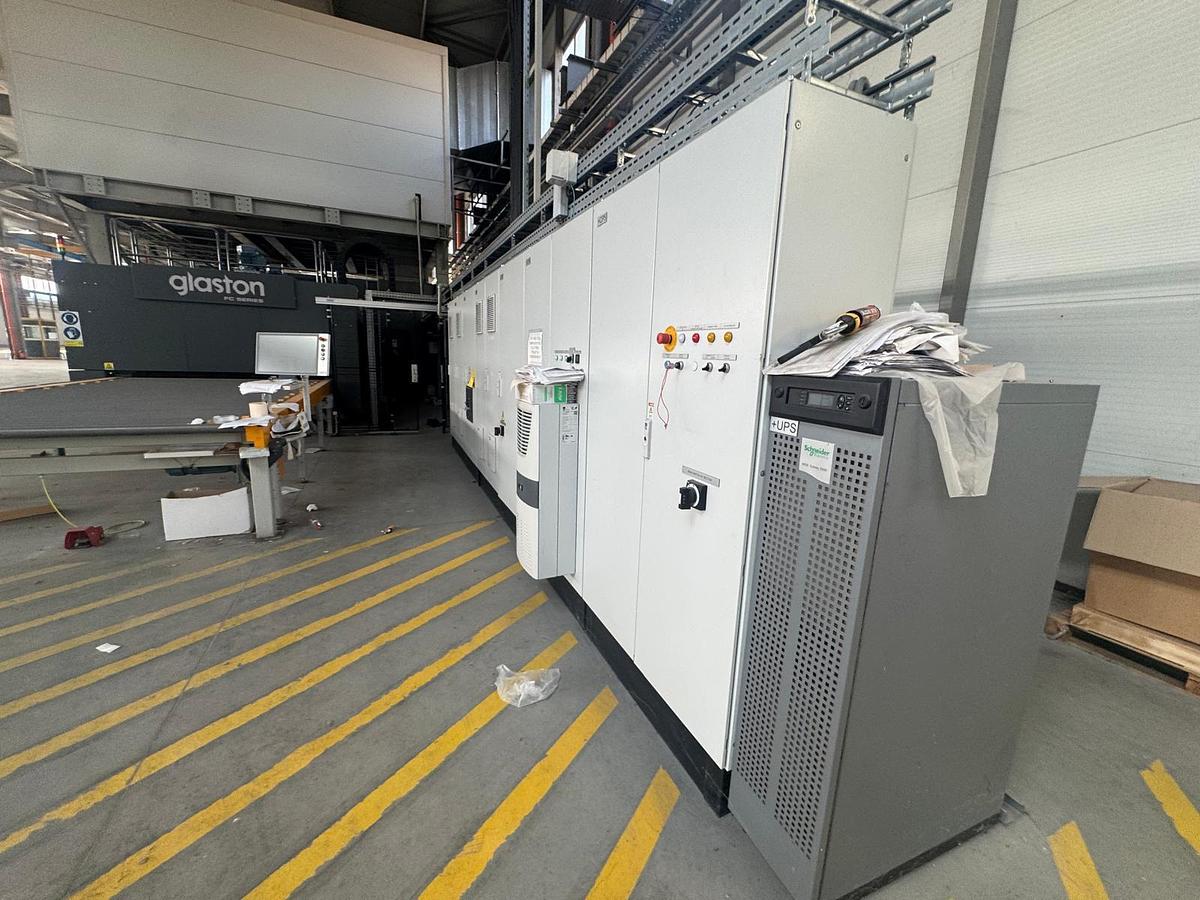

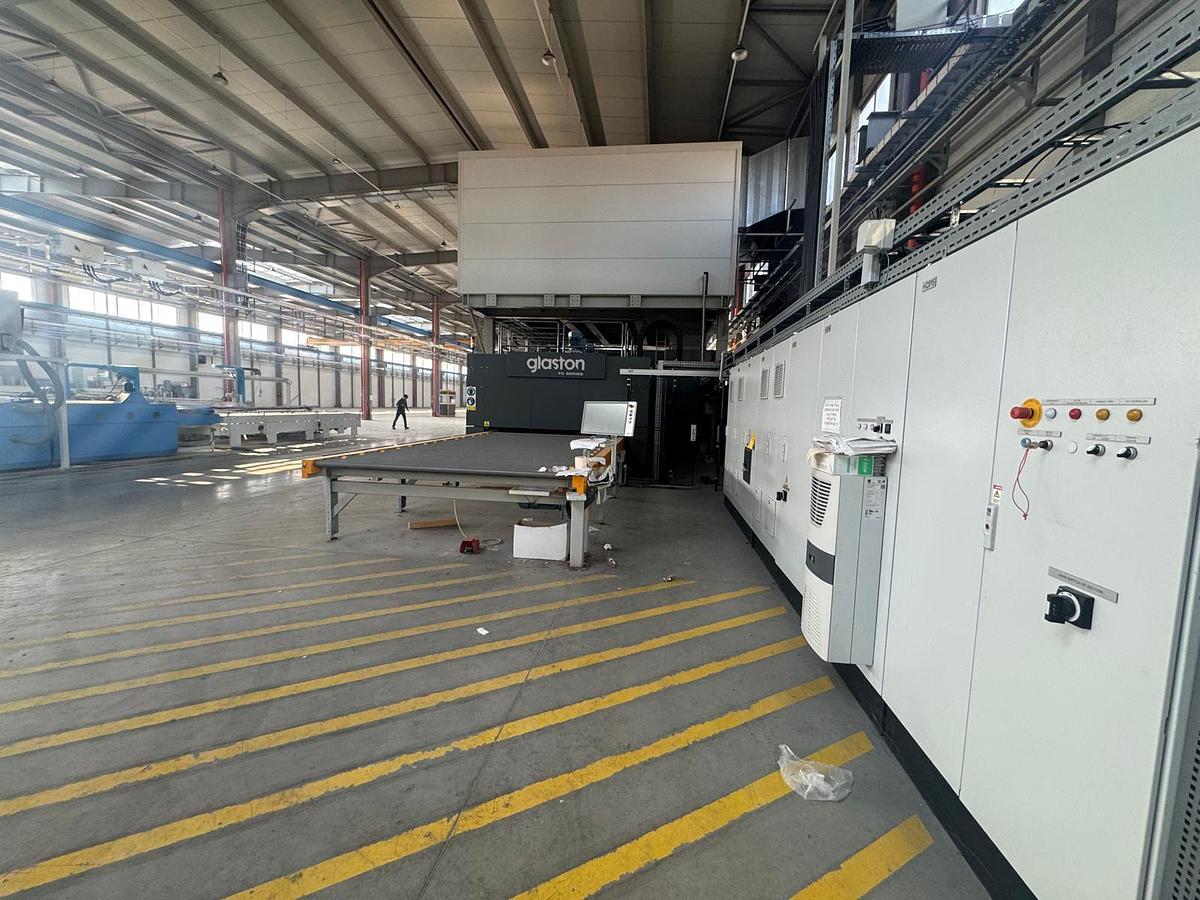

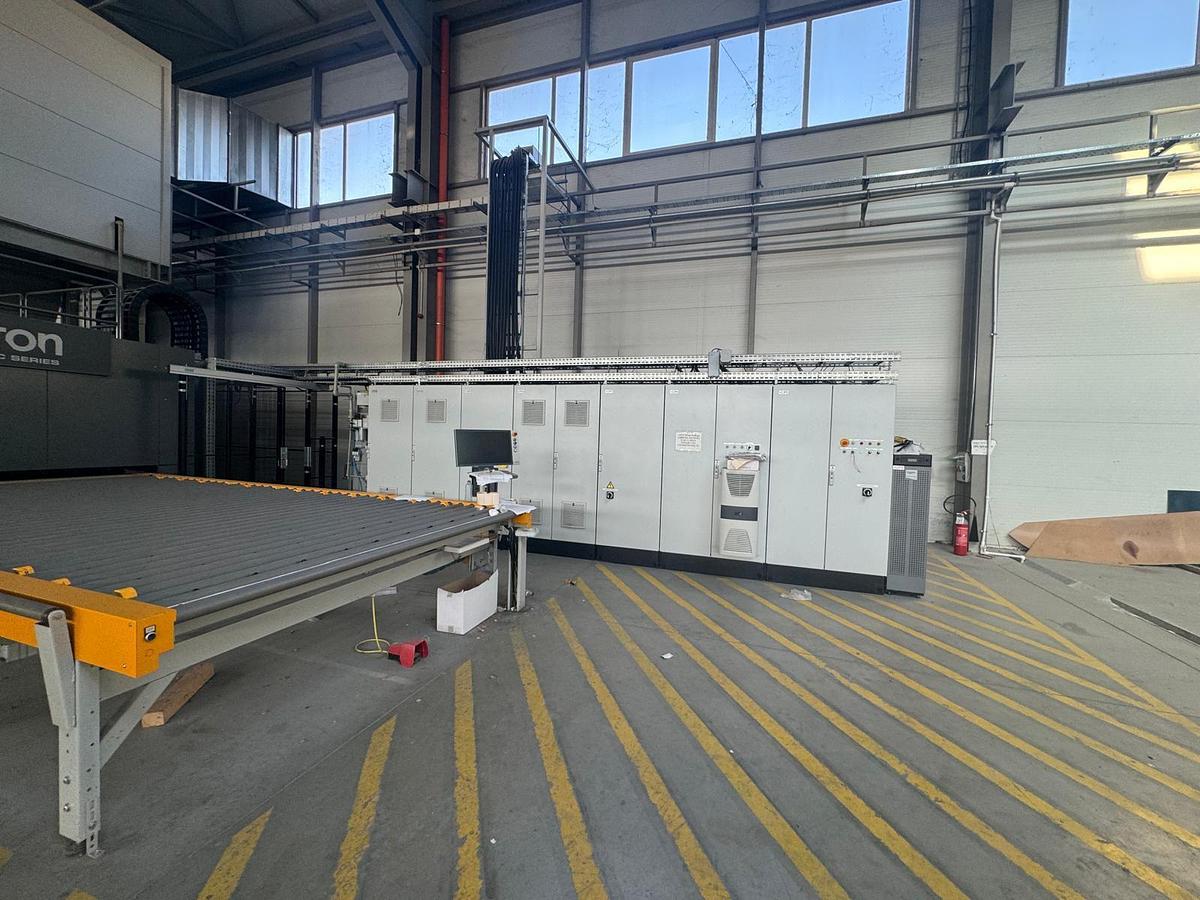

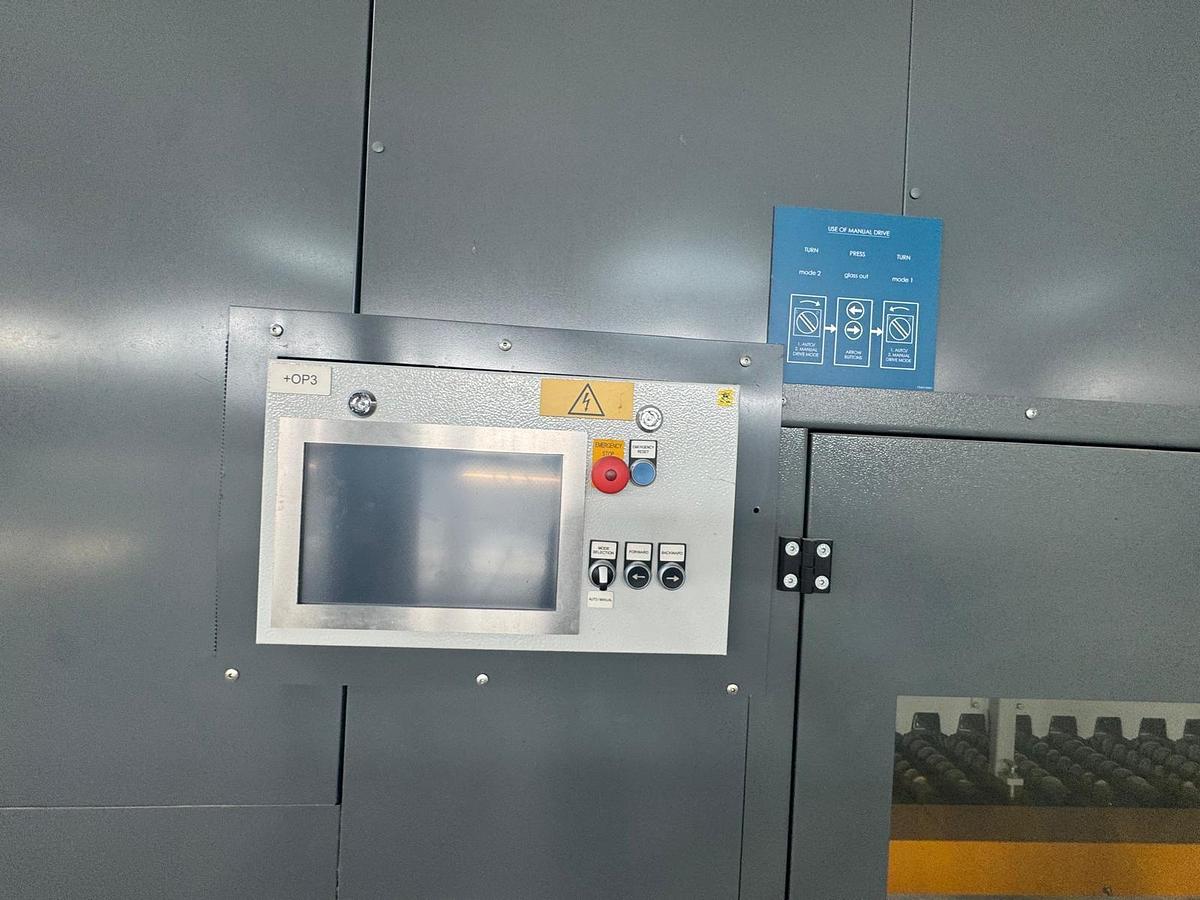

5. Central electrical cabinets with PLC / HMI control system

6. Steel support structure with service platforms

• Maximum glass size: approx. 2440 × 4800 mm

• Glass thickness range: approx. 4 – 19 mm

• Glass type: Flat (float) glass tempering
