2018 KLEI ADHESIVE MACHINERY KAM-LINE-SP-001

Sandwich panel production line

Type: KAM-LINE-SP-001

Manufacturer: Klei adhesive machinery

Year: 2018

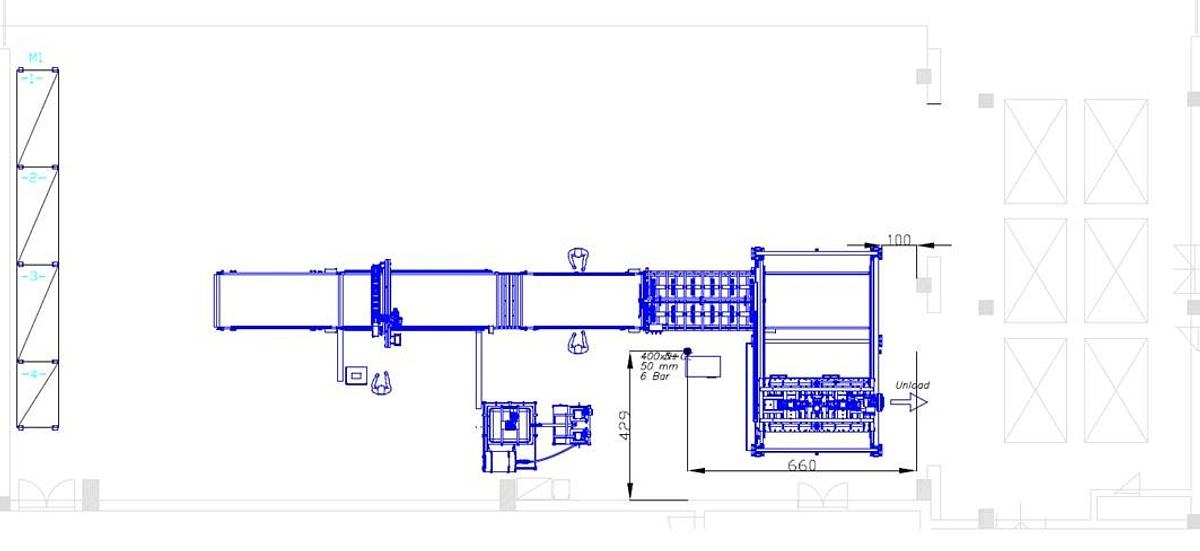

Total built-up area of ​​the line: 7 x 23 m

Sandwich panel dimensions

Width: 150 - 1500 mm

Length: 250 - 2900 mm

Thickness: 30 - 70 mm

Press pressure approx.: 500 kg/m2

Heating temperature: 60 °C

Electrical input up to 45 kW

Power max.: 50 kW

Optimal air pressure max.: 6-8 bar

Electricity source 3 phases 400V, 50Hz

Dimensions: 20000x6000x5000 mm

Total weight: 10,000 kg

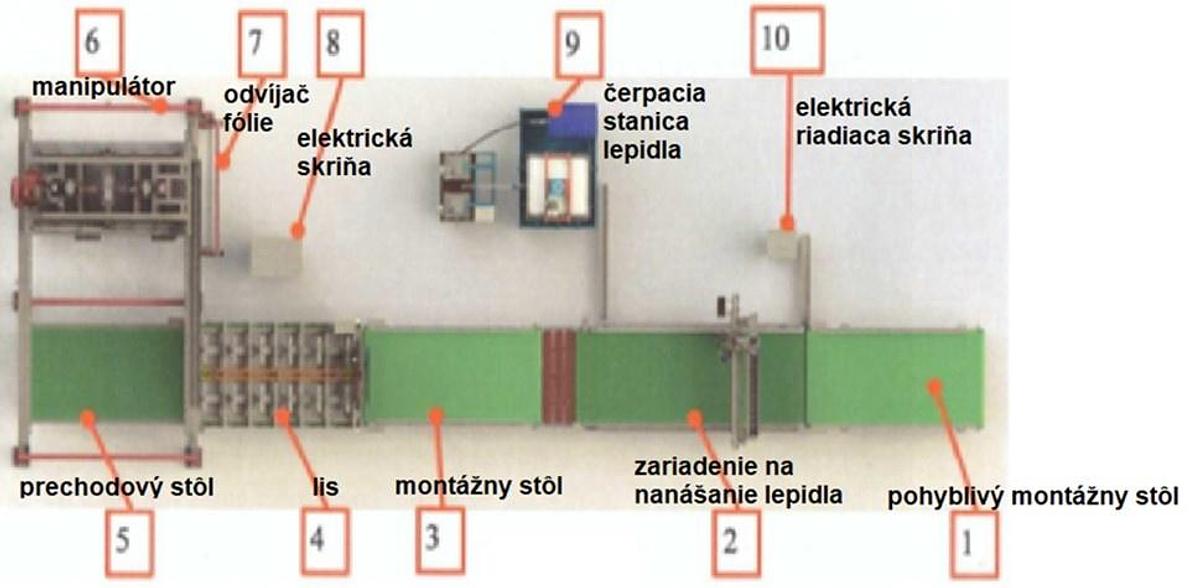

The line enables the production of assembly panels in a semi-automated manner:

* simultaneous processing of multiple orders based on customer requests,

* already at the design stage, including preparation of the panel layout on the shipping pallet,

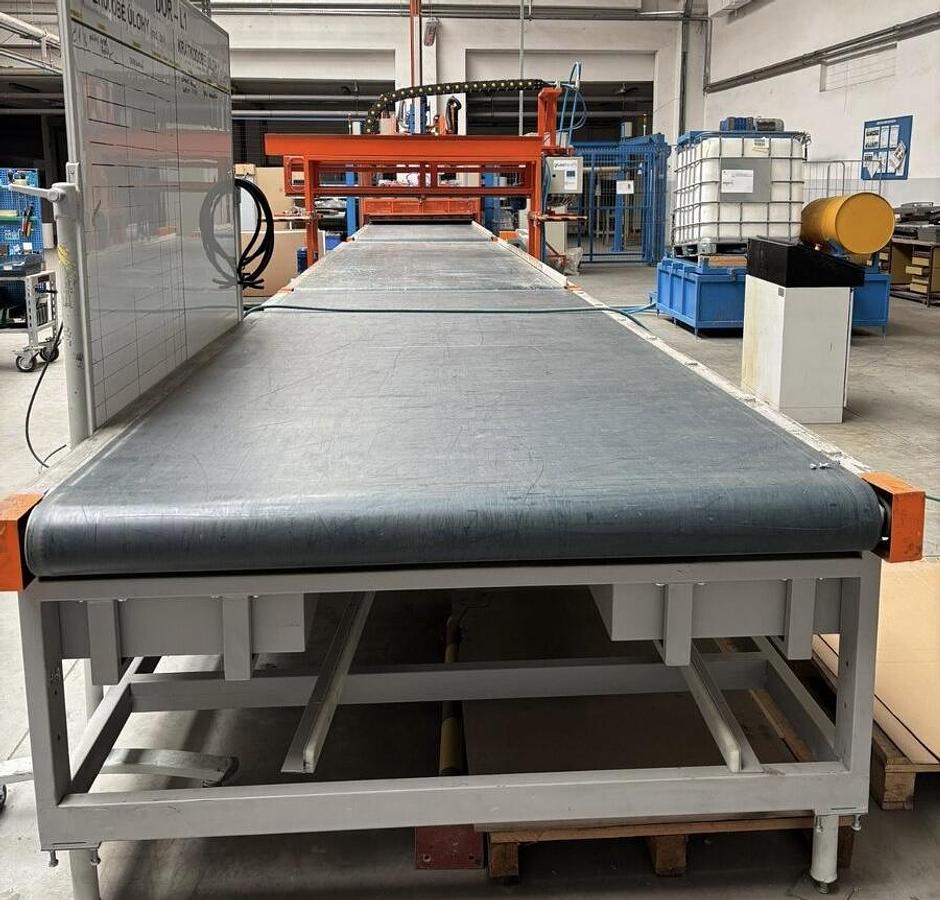

* the modular design of the line allows transfer between two or even three assembly tables,

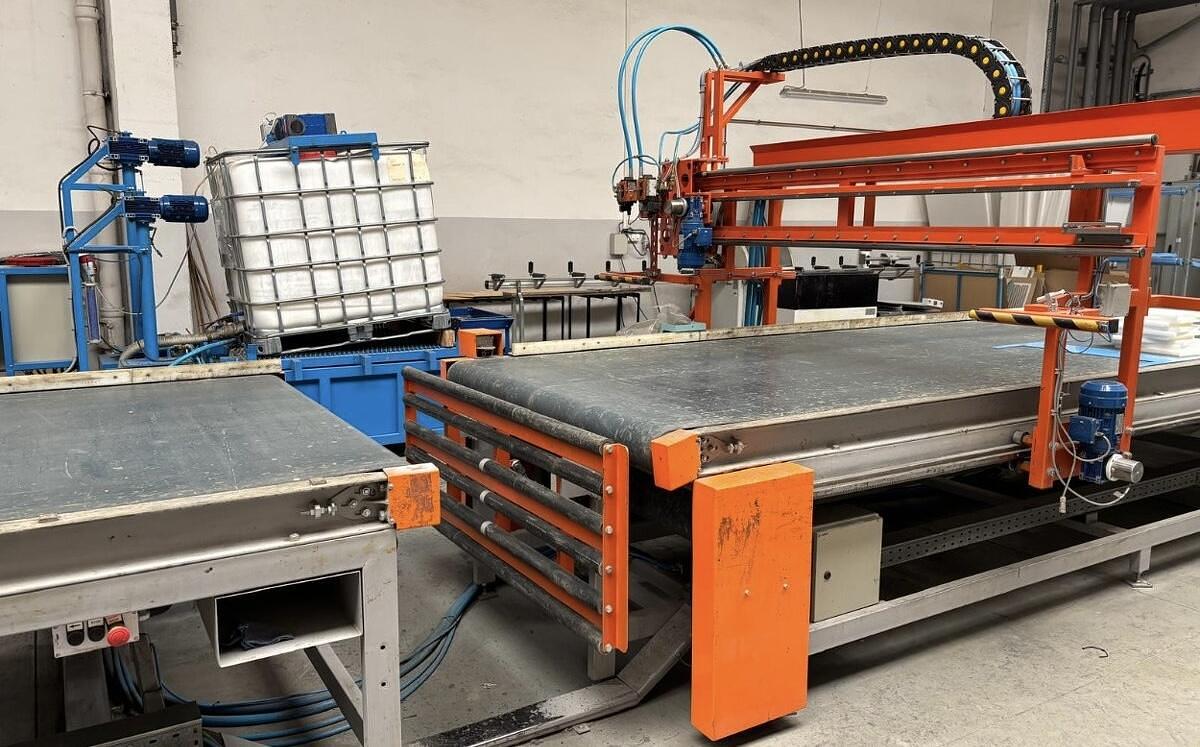

* adhesive mixing and application are performed by an automatic dosing system, ensuring precise quantities on the required surfaces,

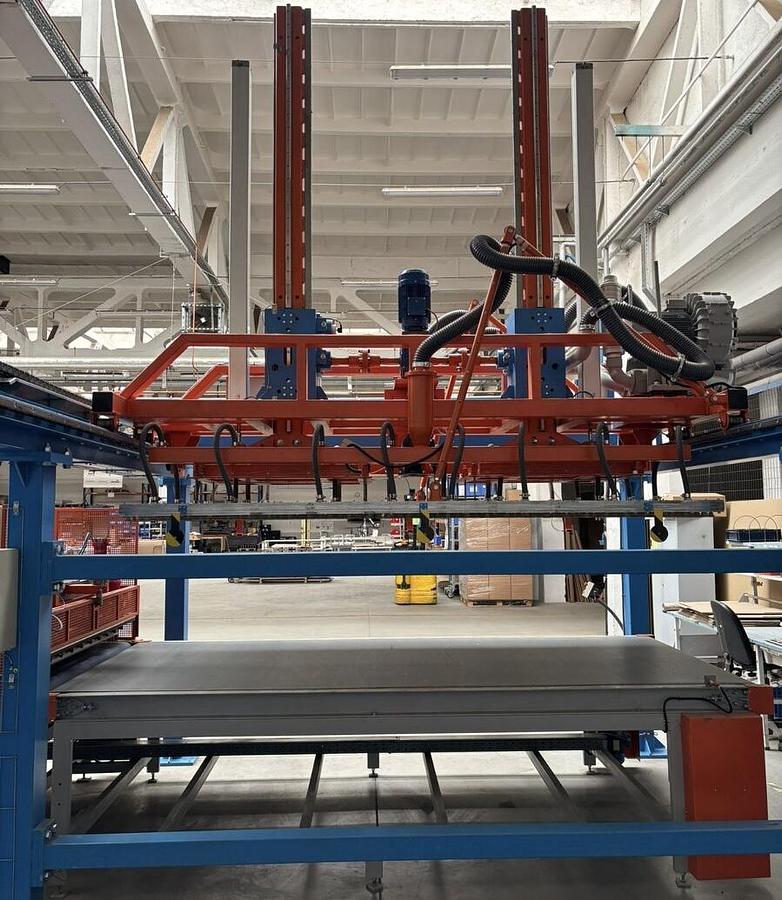

* assembled sandwich panels forming one layer on the shipping pallet are automatically transported by a conveyor to a heated press, where they are completed within approximately 15 minutes and prepared for dispatch,

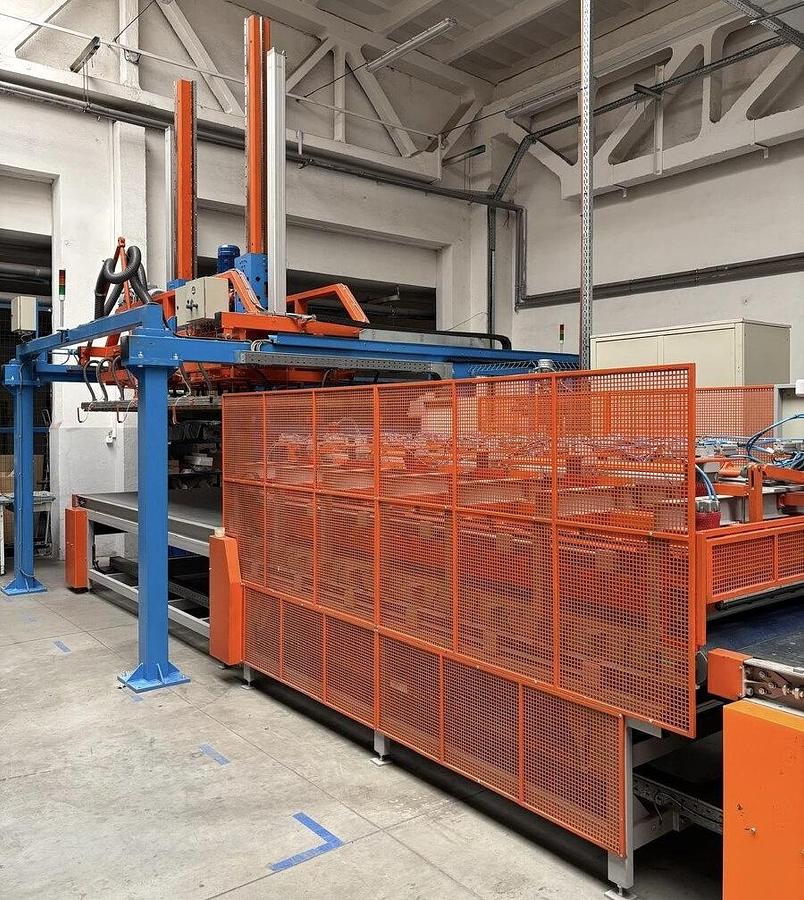

* these are then automatically transferred by a manipulator onto the pallet in the required layer arrangement and sequence according to customer specifications,

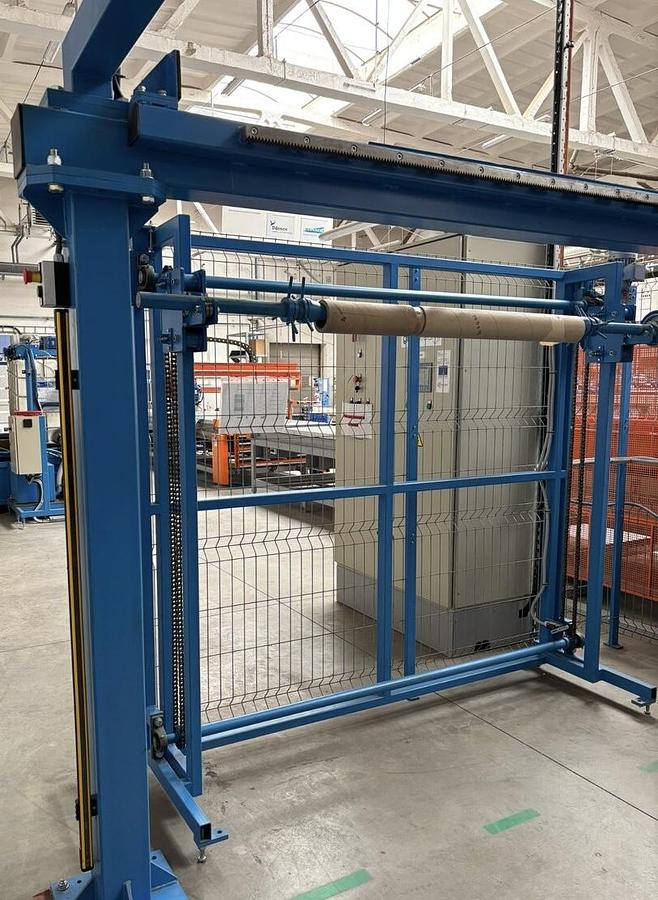

* final stage – wrapping with stretch film followed by shipment.

Summary:

* increased productivity,

* reduced dependence of production quality on the human factor through semi-automation,

* improved production flow,

* implementation of line-based (continuous) supply to the process.

The line is in very good condition, fully functional, under power
