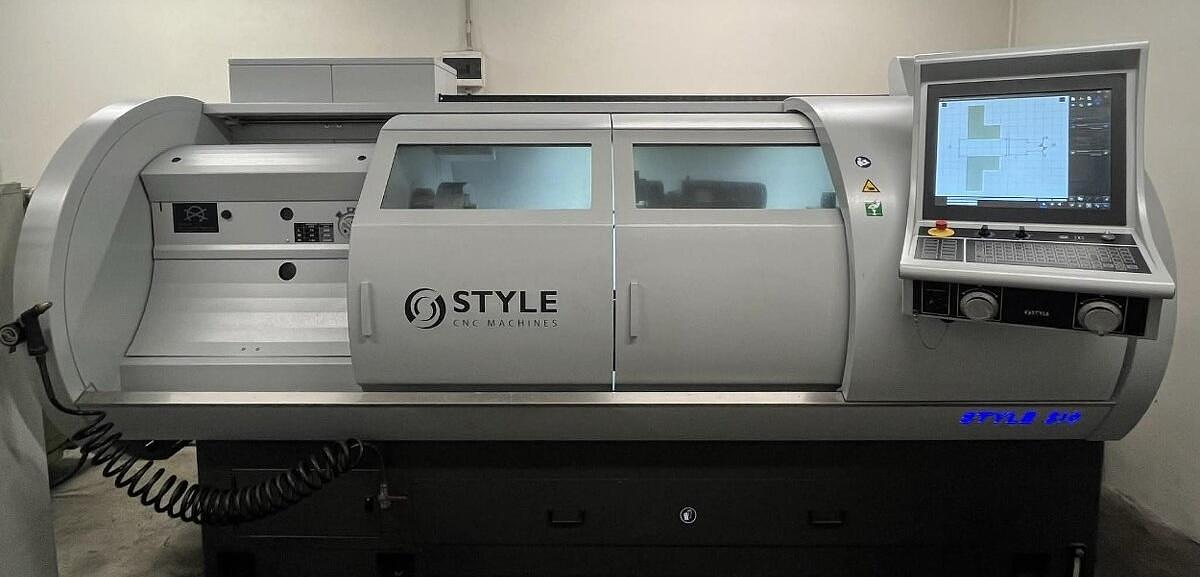

2021 Style 510

CNC lathe

Type: Style 510

Manufacturer: Style

Year: 2021

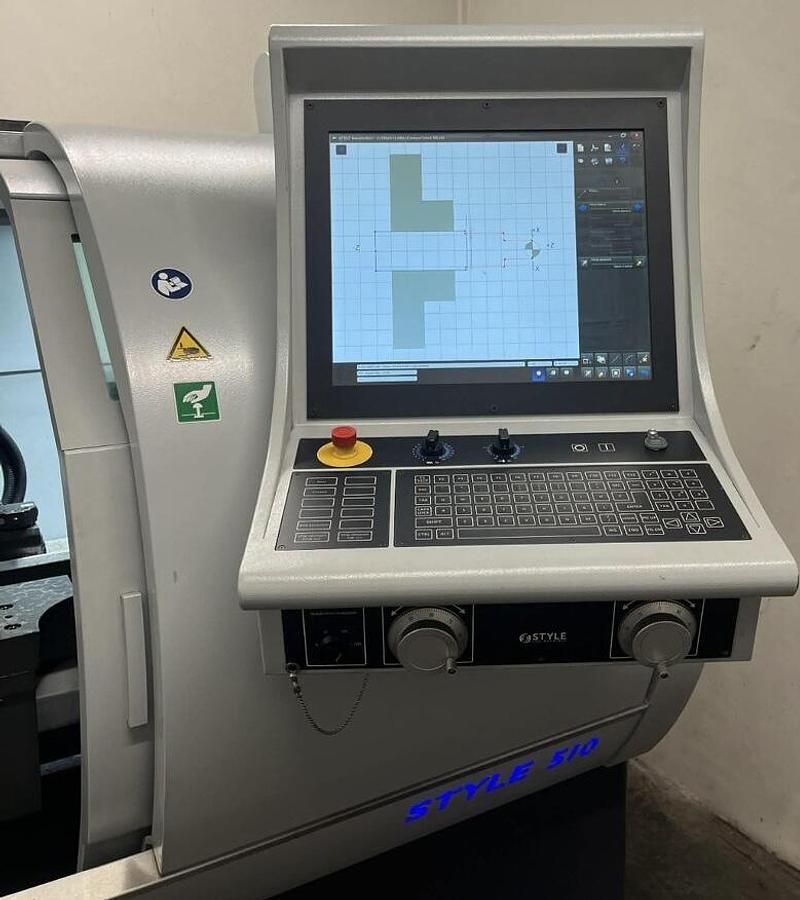

Control: STYLE 2021 Turning Edition

Swing over bed: 510 mm

Swing over cross slide: 300 mm

Center distance: 1350 mm

Bed width: 330 mm

Main motor power (S6): 11 kW

Spindle bore: 80 mm

Max. weight between centers: 750 kg

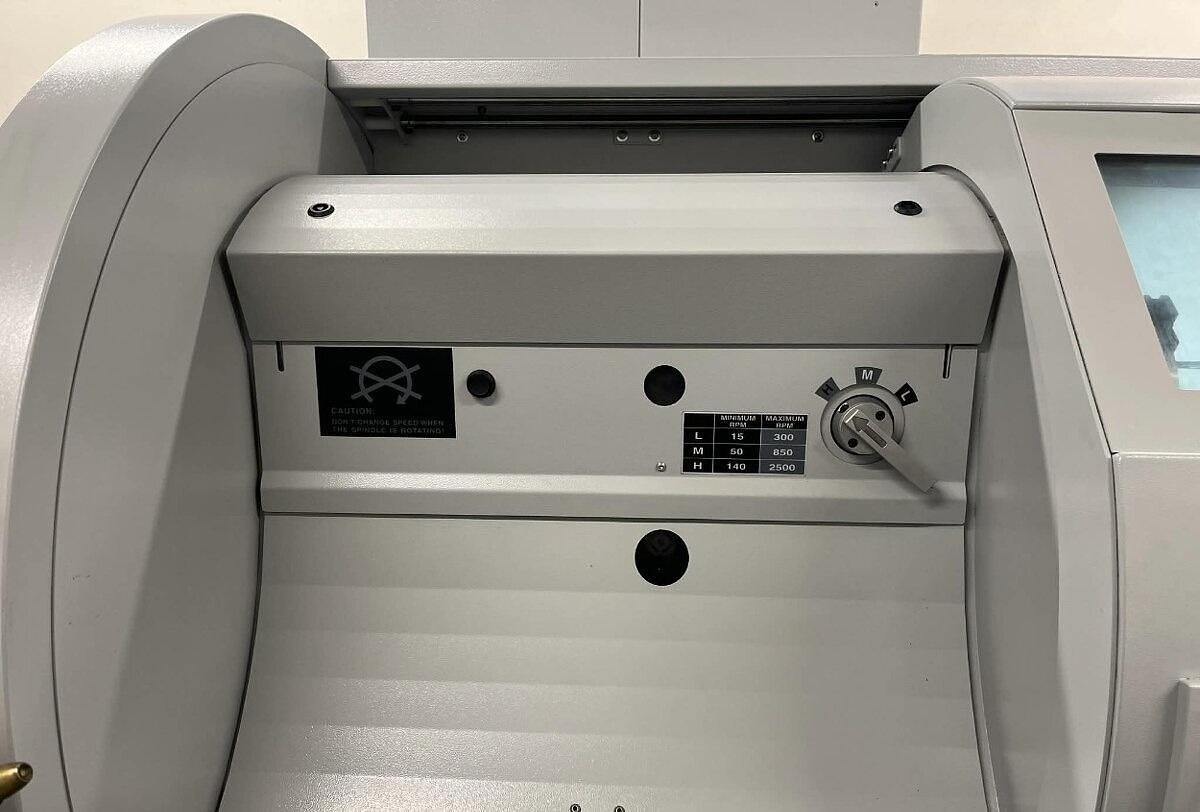

Maximum spindle speed: 2500 rpm

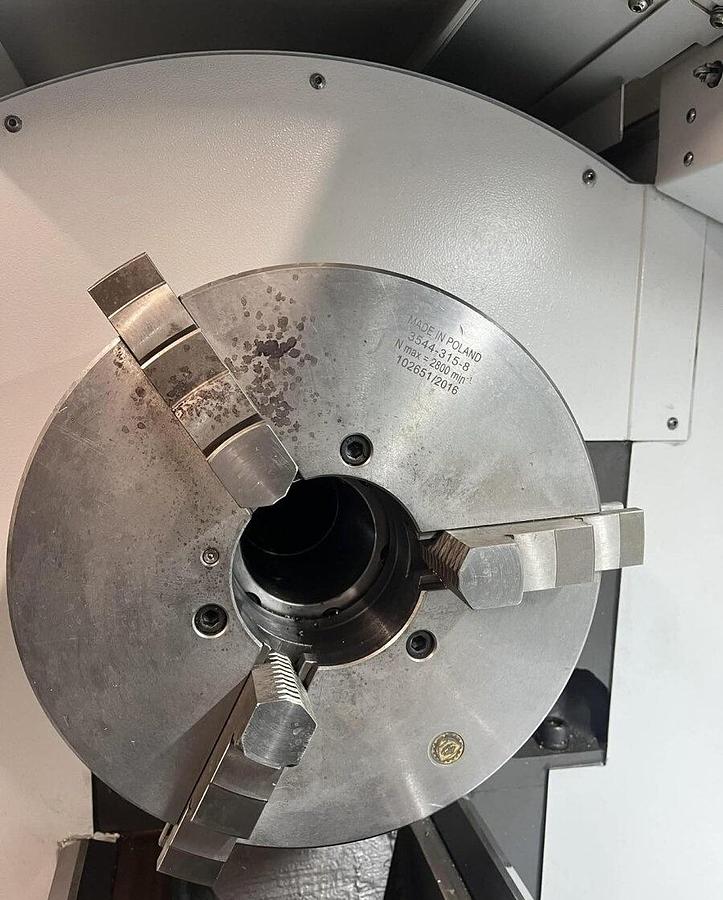

Spindle nose: D1-8

X and Z Axes

Rapid traverse: 8 m/min

Feed rate range: 2 m/min

Tailstock

Quill diameter: 80 mm

Quill travel: 160 mm

Quill taper: MT5 (Morse Taper 5)

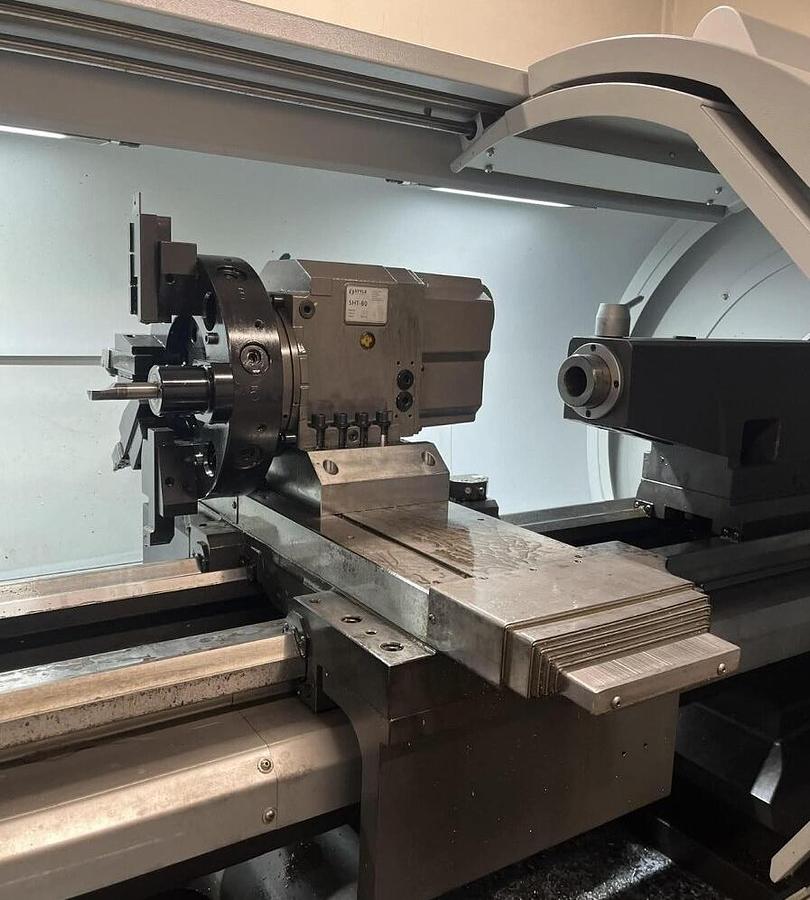

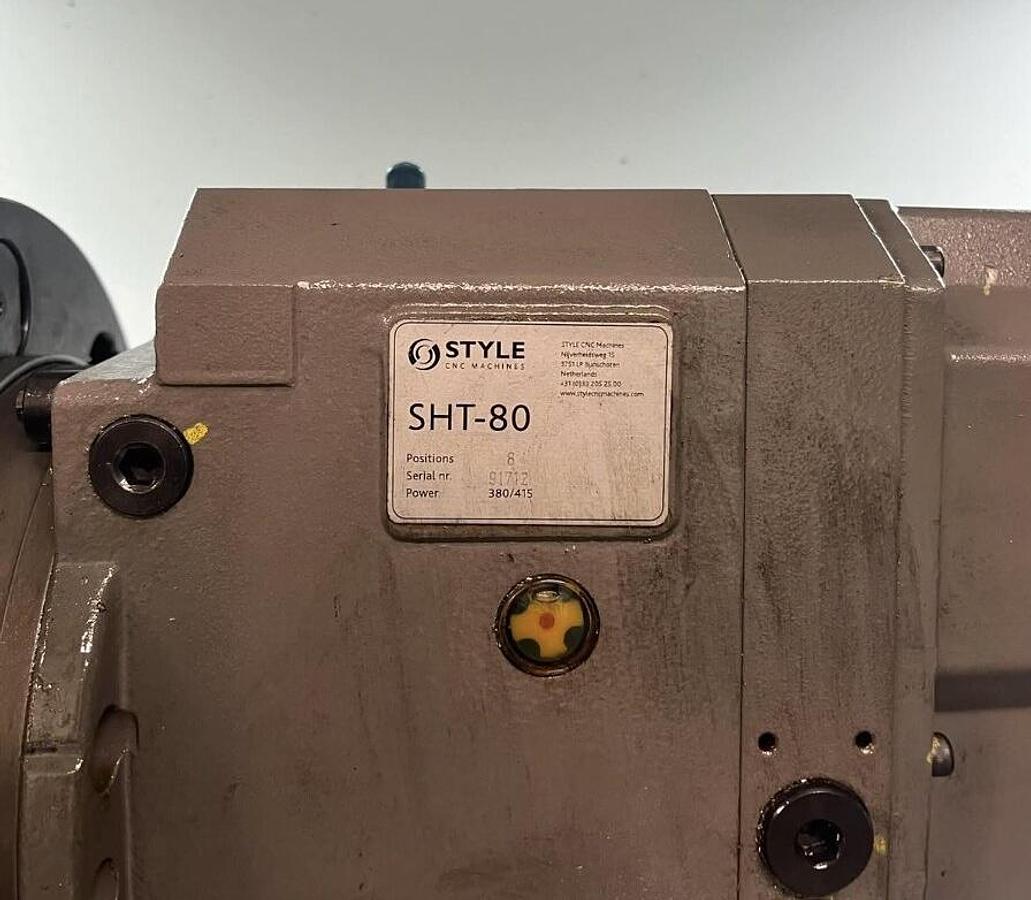

Turret: 8-position

Machine in very good condition, fully functional, under power
