2003 Traub TNK 36

Manufacturer: Traub

Model: TNK 36

Year of Manufacture: 2003

Operating Hours: approx. 124,705 h (as of May 2026)

Total Connected Power: 33 kW

Voltage: 400 V / 50 Hz

Condition: No known defects. Available for live demonstration.

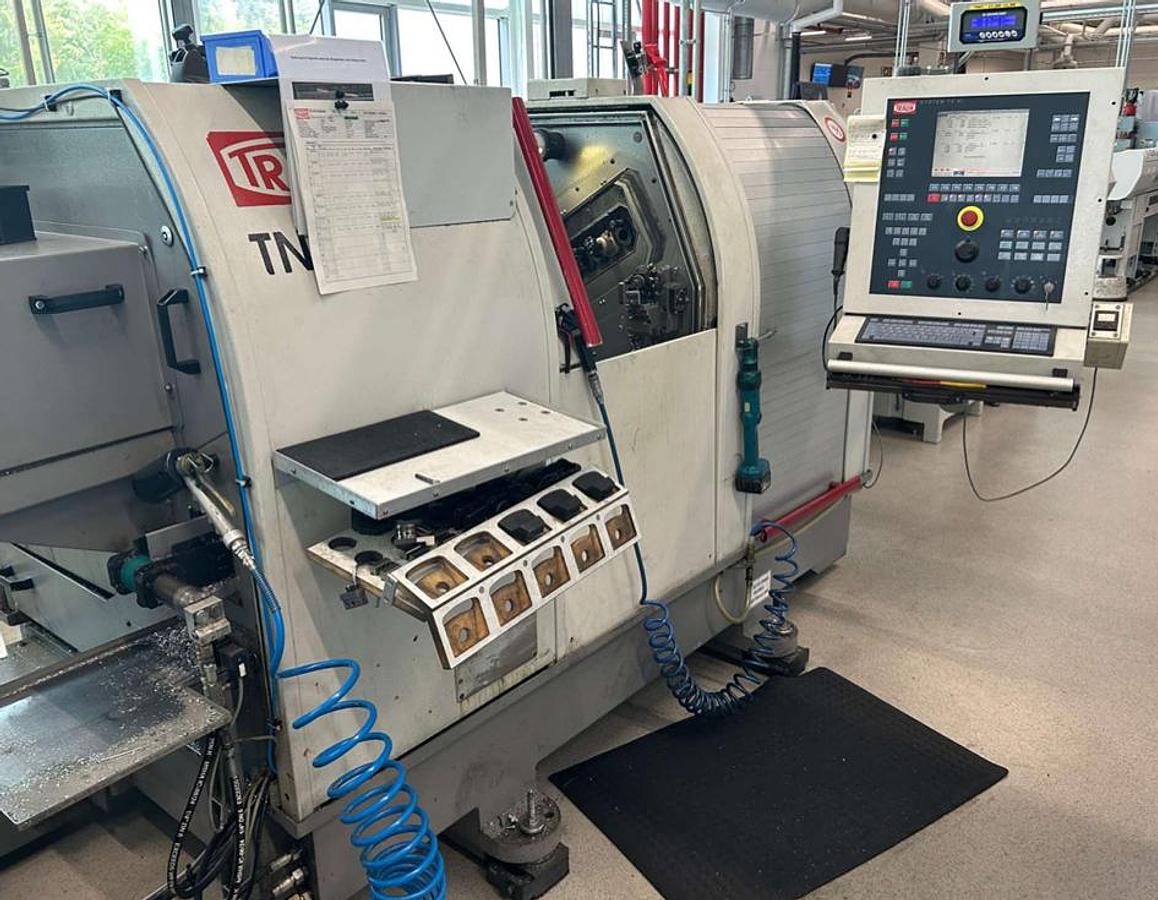

CNC Control

• Control: TX8i (64-bit)
• Screen: 10.4 inch flat panel display
• Interface: V24 RS232 in control cabinet
• MDE Interface: Machine running / piece counter
• Tool monitoring included
• Thread cutting without compensation chuck
• Programming: At machine control or via WinFlex IPS software on PC

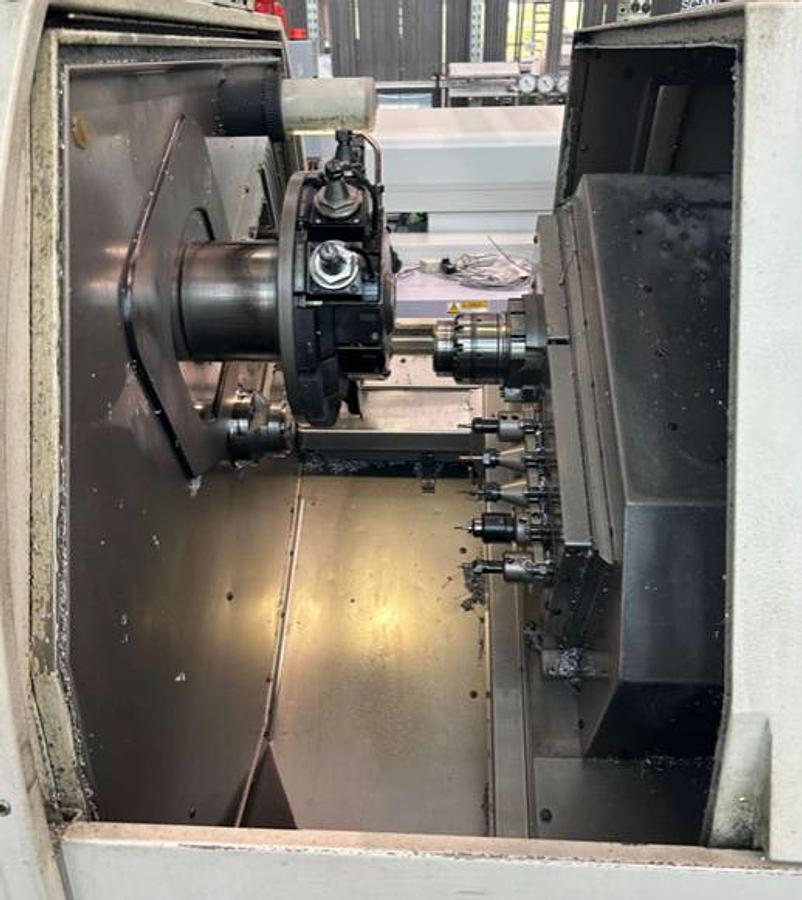

Main Spindle

• Spindle Bar Capacity: 36 mm
• Max. Speed: 6,300 rpm
• Drive Power: AC 6.7 / 10.7 kW
• C-axis included
• Hainbuch collet chuck system (manual change device included)

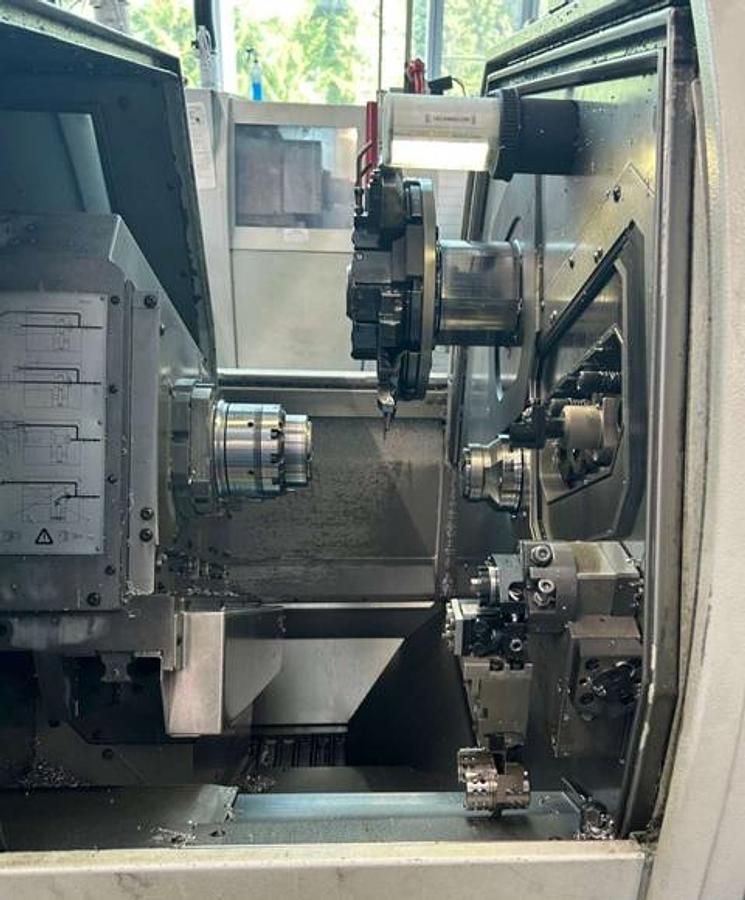

Counter Spindle

• Motor spindle with C-axis
• Counter-clamping pressure device
• Workpiece ejector
• Hainbuch Axfix collet chuck
• Upper tool carrier with driven tools and electronic gearbox
• X3 cross axis for front attachment
• 5-position front attachment with driven tools
• Parting-side machining station with driven tools

Workpiece Handling

• Workpiece gripper included
• Gripper jaws: D5-8, D8-20, D20-36

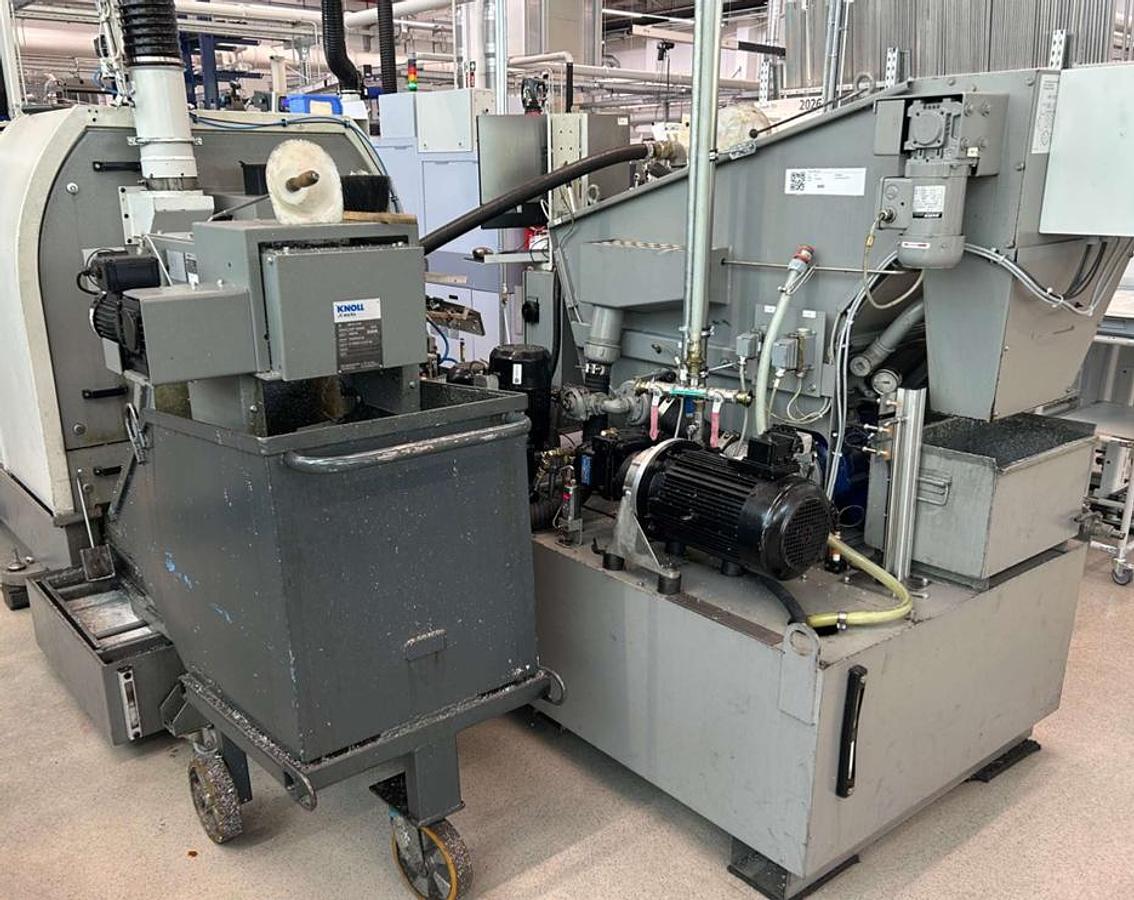

Coolant System

• Tank: 230 litres / 7 bar / 50 l/min
• Internal coolant supply: 30 bar
• High-pressure coolant: 120 bar at front and rear machining station
• Knoll VRF 150/750 vacuum rotation filter (suitable for aluminium, plastic, brass and steel)
• Wash gun included

Additional Equipment

• Hinged chip conveyor, discharge height 950 mm
• Bar loader preparation (guide tube D25, D36)
• Follow-up workpiece stop (shank 16x16)
• Brankamp CMS 100 collision monitoring on main and counter spindle
• Basic set of fixed and driven tool holders included

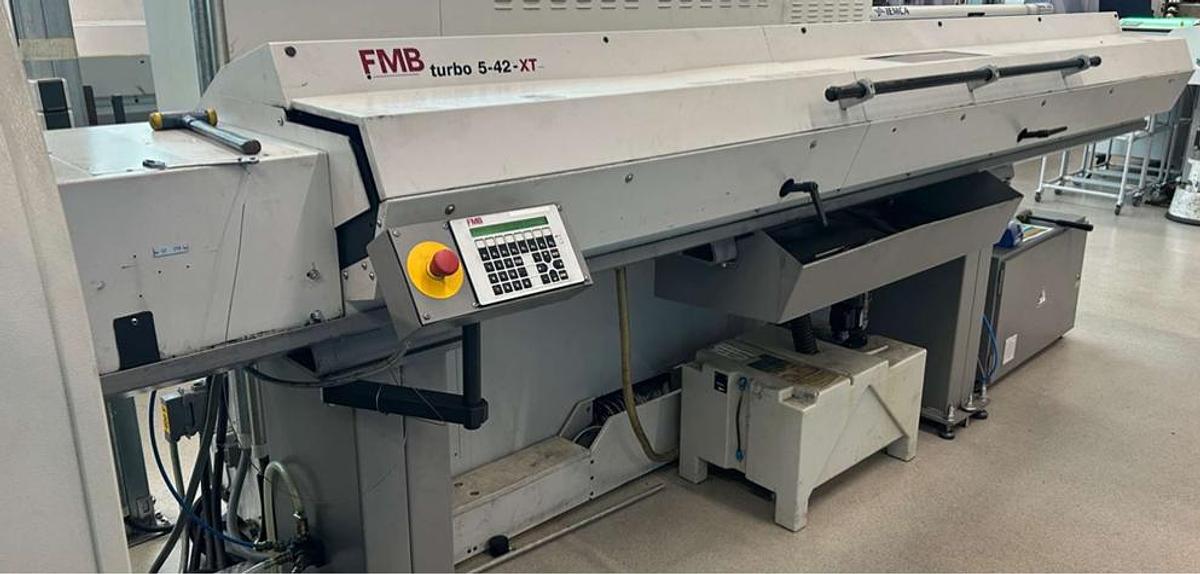

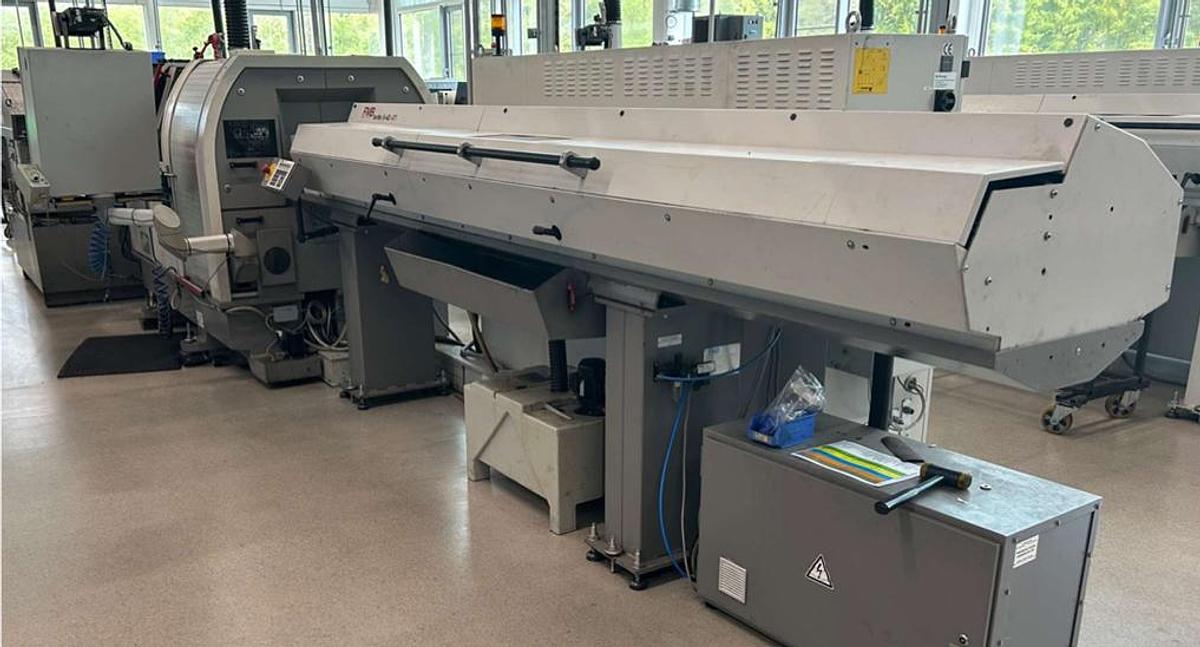

FMB Bar Feeder (Included)

• Brand: FMB
• Model: Turbo 5-42 XT / 3200 C
• Machine No.: 33-170 215
• Year of Manufacture: 2003
• Bar capacity: up to D36 mm diameter, up to 3 m length
• Designed for unmanned automatic operation
