Homag Complete Woodworking Package – Panel Saw, Edge Bander & Production Line

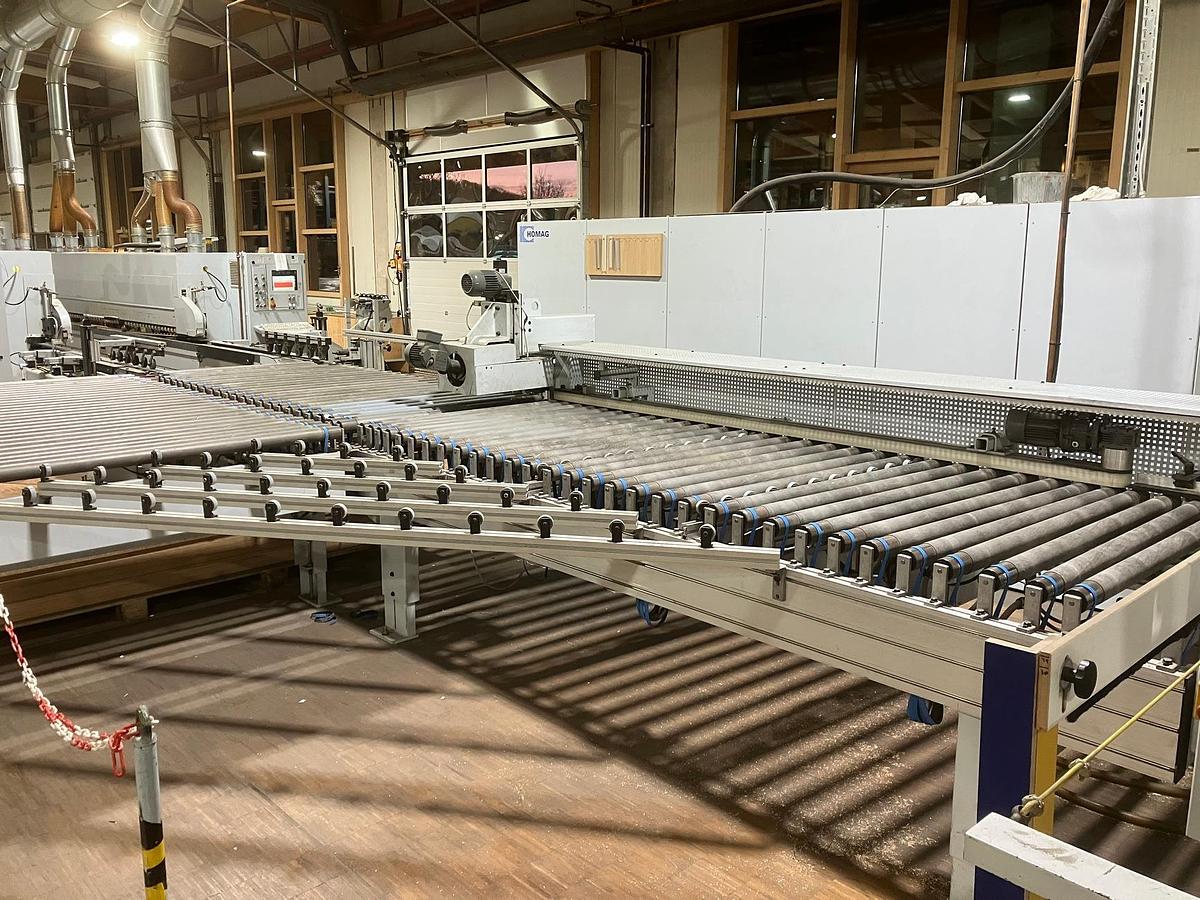

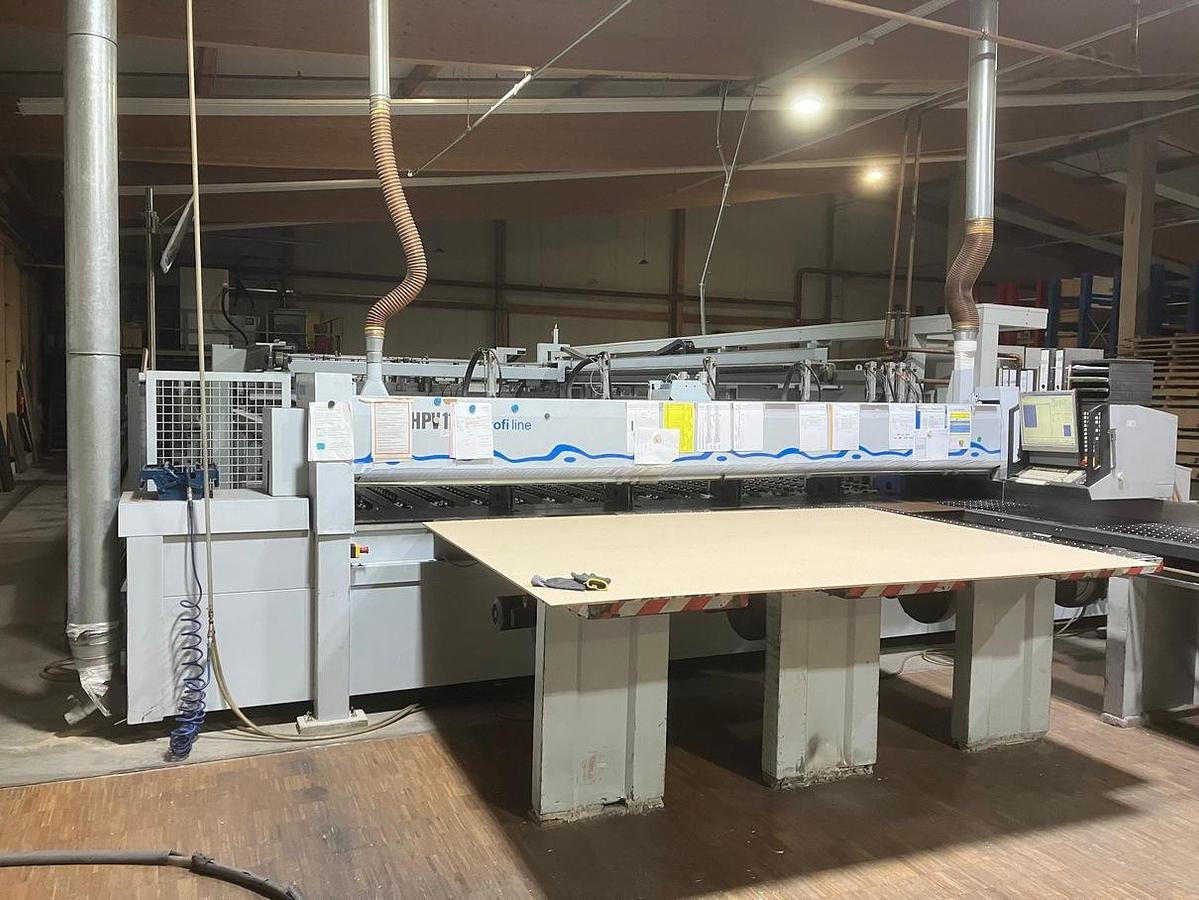

MACHINE 1 - Panel saw

• Manufacturer/Type: Homag HPV 11
• Model: HPV11/X/43/22
• Year of manufacture: 1999
• Made in Germany
• Equipment: 3 stockyards with 25 panels each, panel dimension max 2,100 x 4,100 mm, up to 6 panels can be cut simultaneously, automatically height-adjustable clearing table
• Special features: cut layout optimisation for optimal utilisation of panel material, low waste
• Electrical: 400 V, 50 Hz, 3 phase + N, 80 A, 80 A fuse, 24 V control voltage
• Length: 26 m
• Width: 8.5 m
• Height: 2.5 m
• Equipped with lifting tables and Liftomat

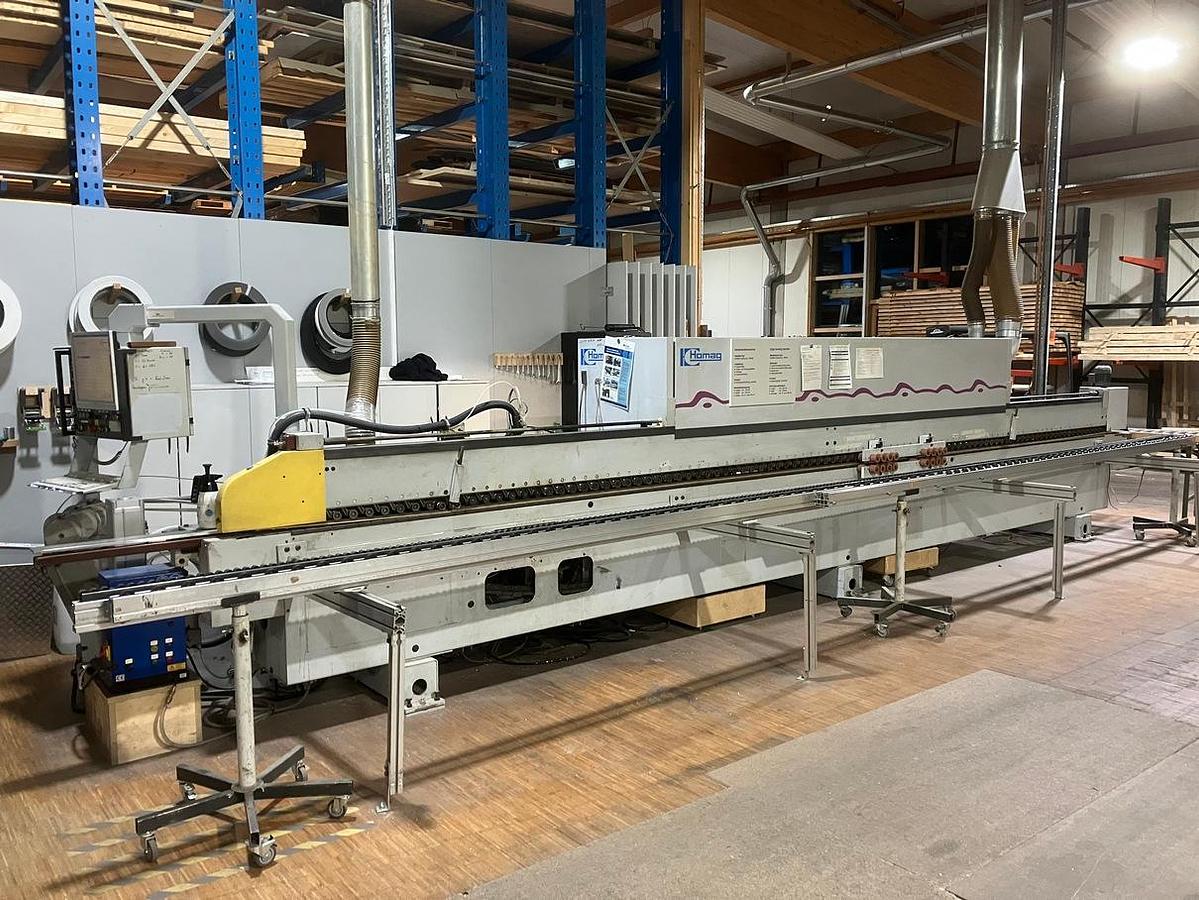

MACHINE 2 - Edge banding machine

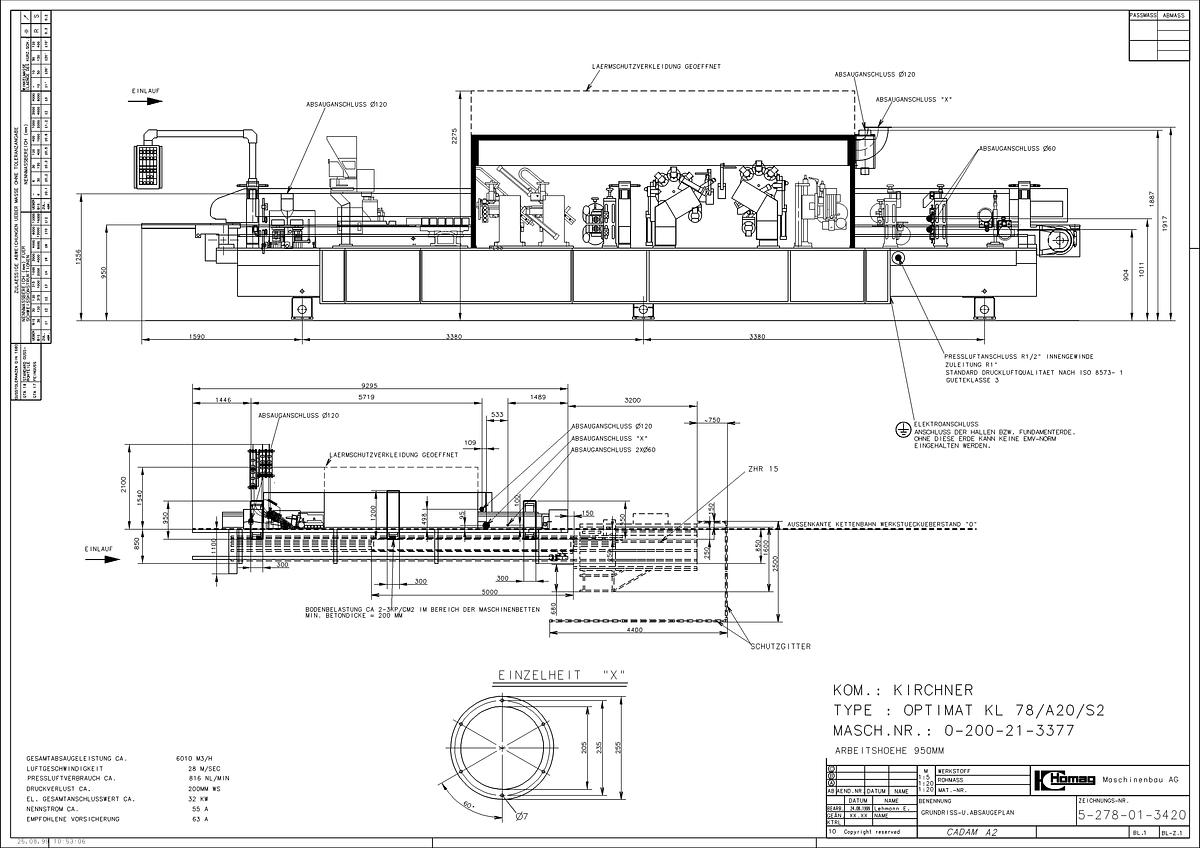

• Manufacturer/Type: Homag Optimat KL 78/A20
• Model: KL 78/A20/S2
• Year of manufacture: 1999
• Made in Germany
• Equipment: panel formatting milling cutter, bevel and rounding milling cutter, groove saw, edge draw blade
• Function: edge banding, one-sided
• Work piece dimensions - length: min 120 mm
• Work piece dimensions - width: min 120 mm
• Work piece dimensions - thickness: min 8 mm - max 60 mm
• Electrical: 400 V, 50 Hz, 3 phase + N, 55 A, 63 A fuse, 24 V control voltage
• Length: 9.6 m
• Width: min 2.5 m
• Height: 2.3 m (flaps open)

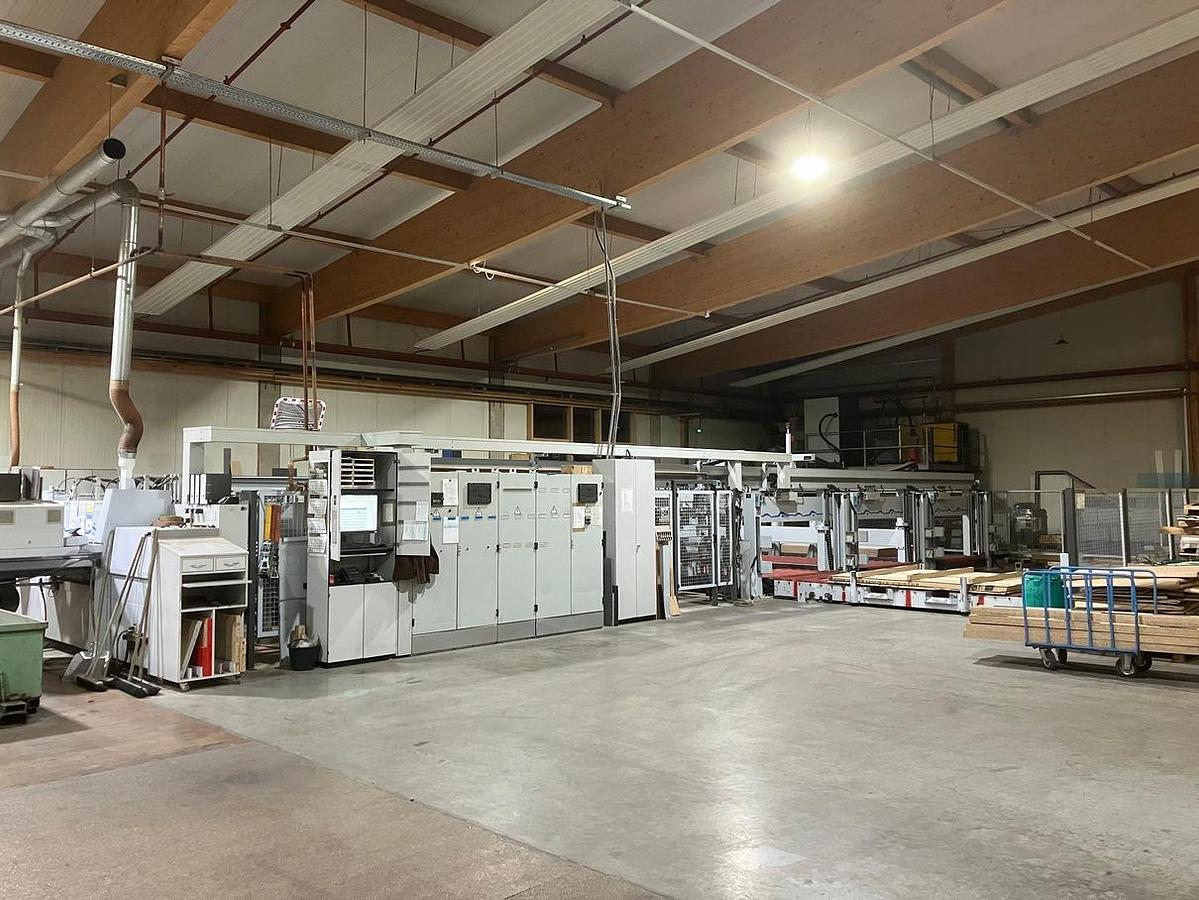

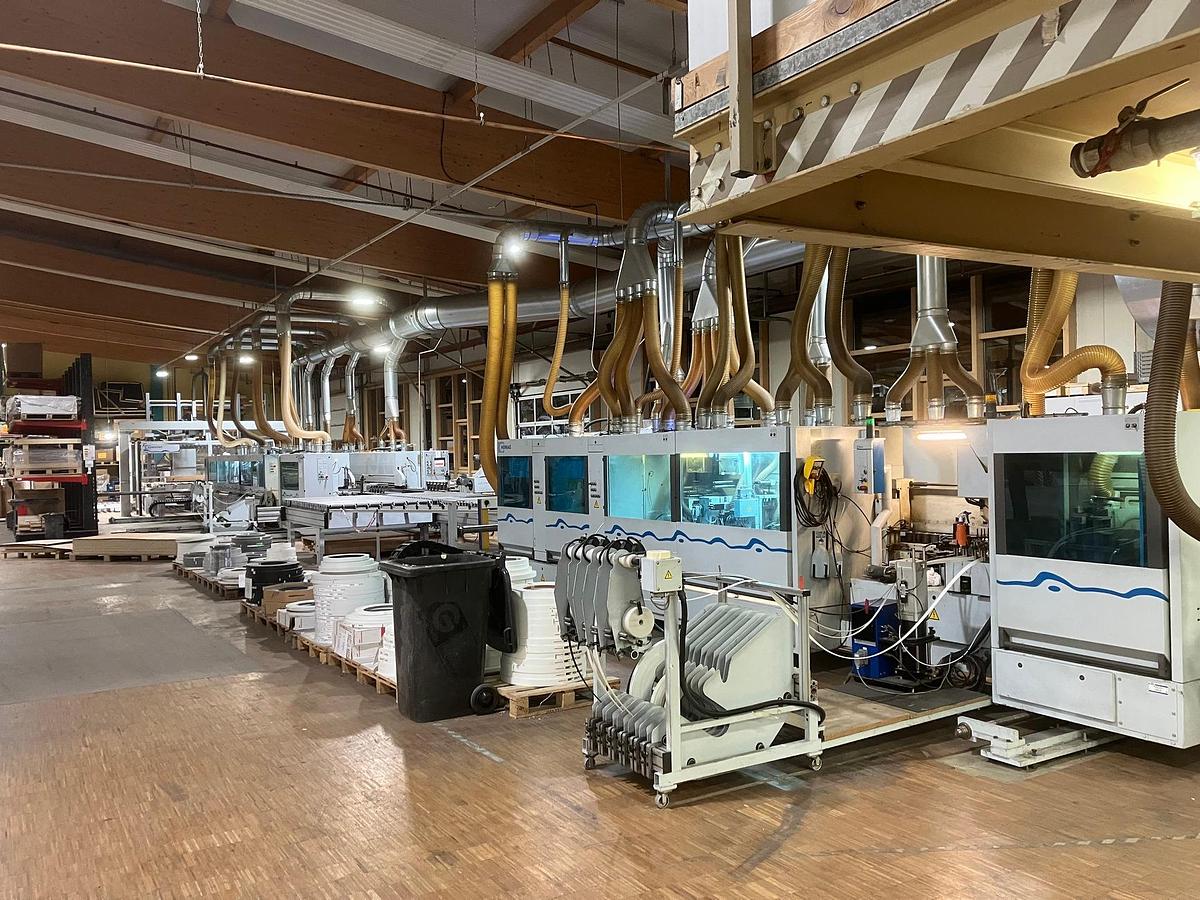

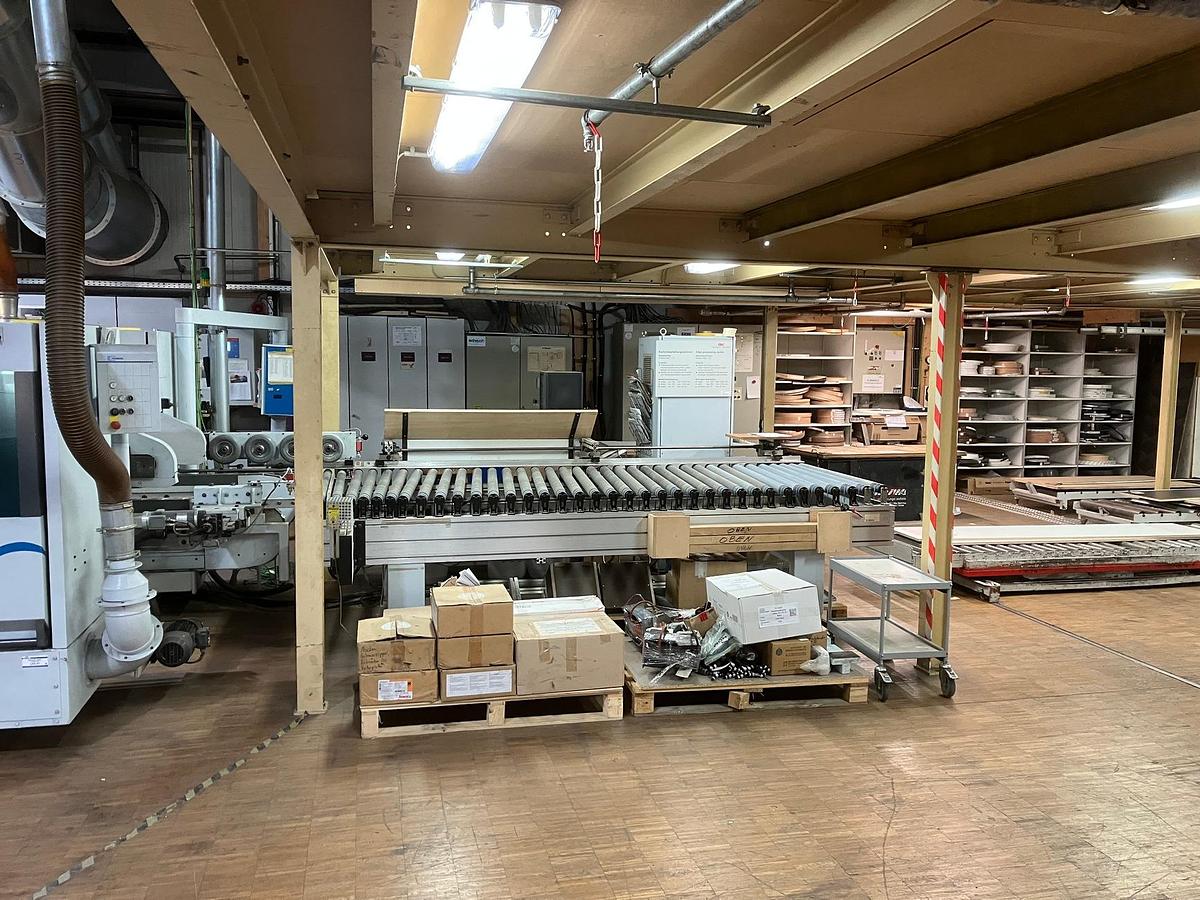

MACHINE 3 - Complete production line

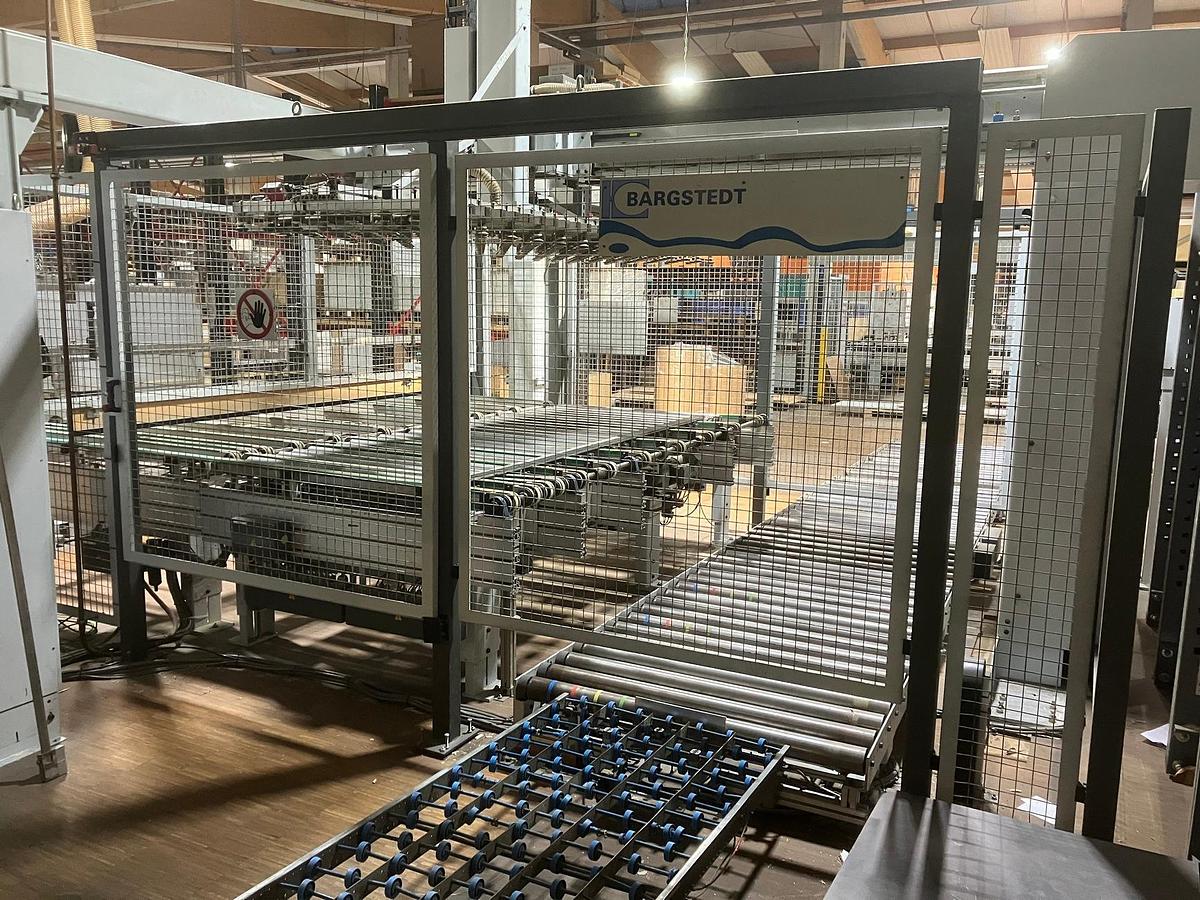

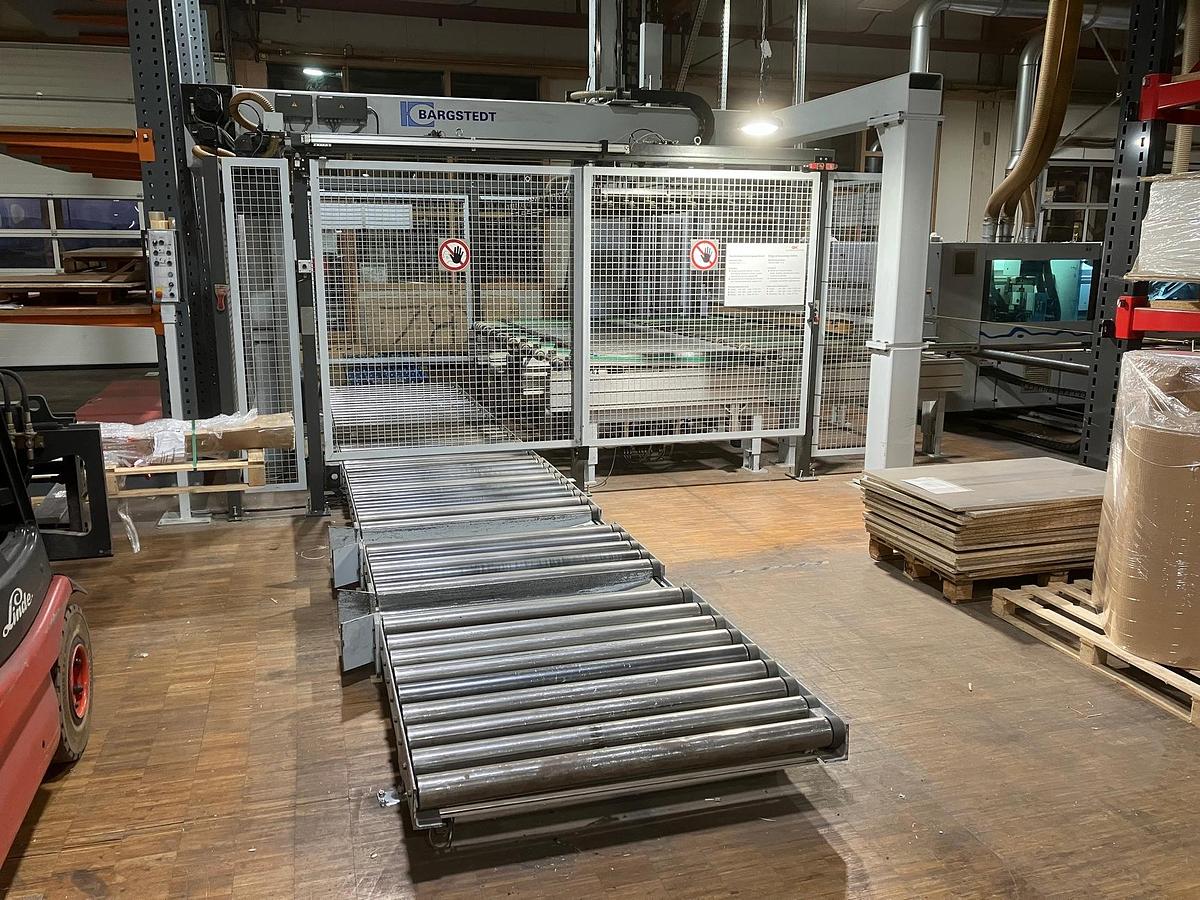

• Machine name: Homag KBZ KFR20 / KFR526 Complete production line with rotary station and Bargstedt stacker
• Manufacturer: Homag
• Model: KBZ KFR20 / KFR526
• Year of manufacture: 2004
• Work piece dimensions - length: min 250 mm - max 3,200 mm
• Work piece dimensions - width: min 250 mm - max 1,350 mm
• Work piece dimensions - thickness: min 15 mm - max 57 mm
• Length: 40 m
• Width: 6.8 m
• Height: 2.6 m (flaps open)
