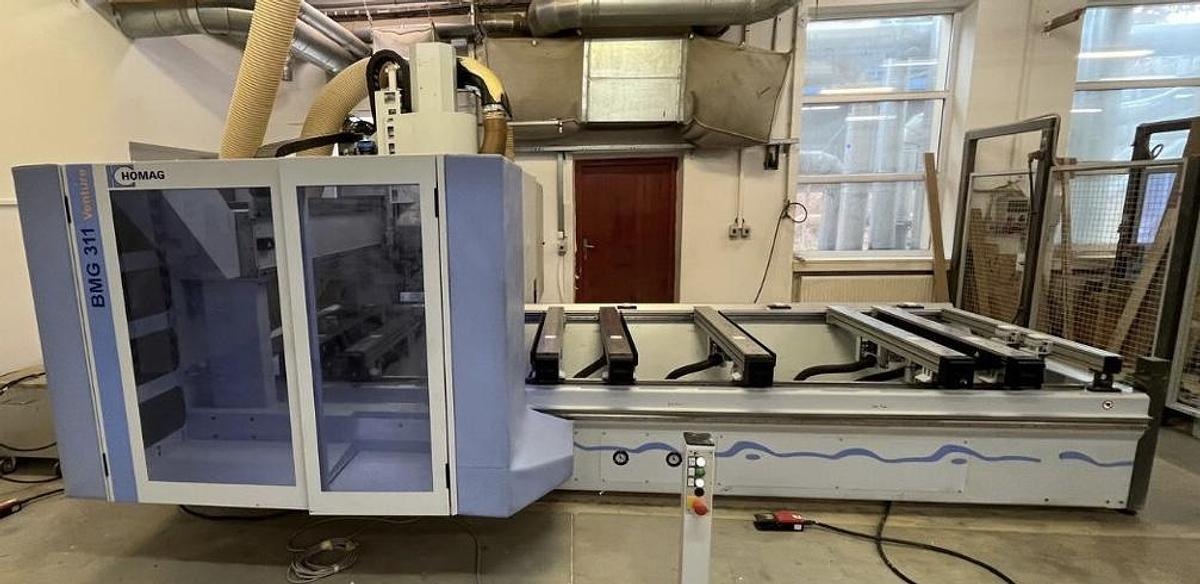

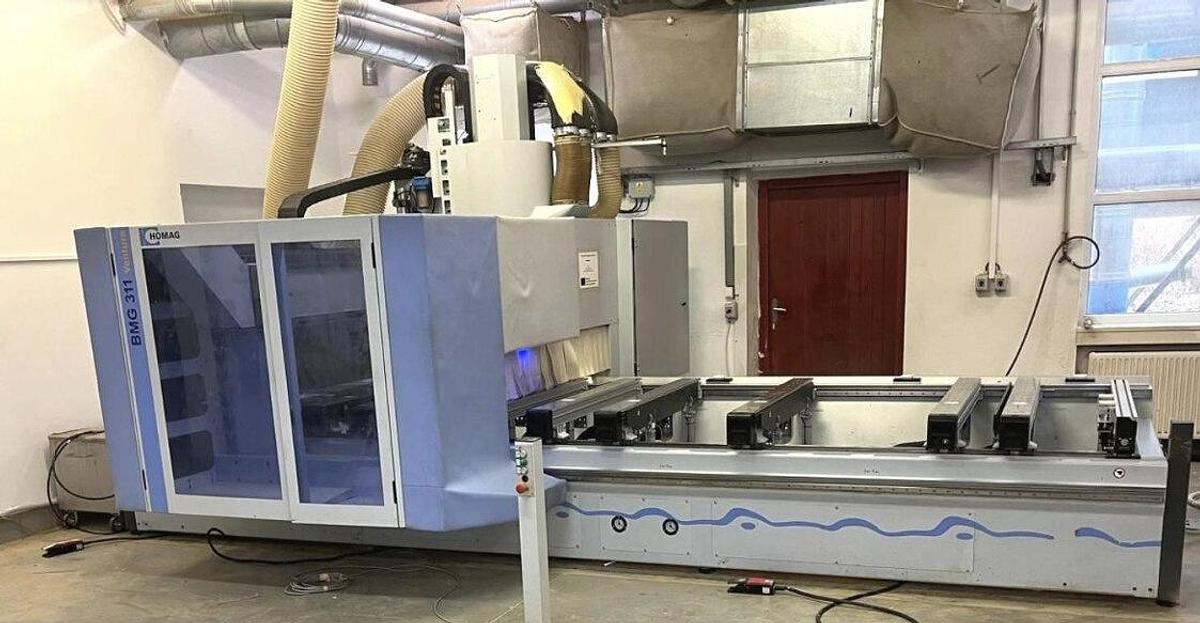

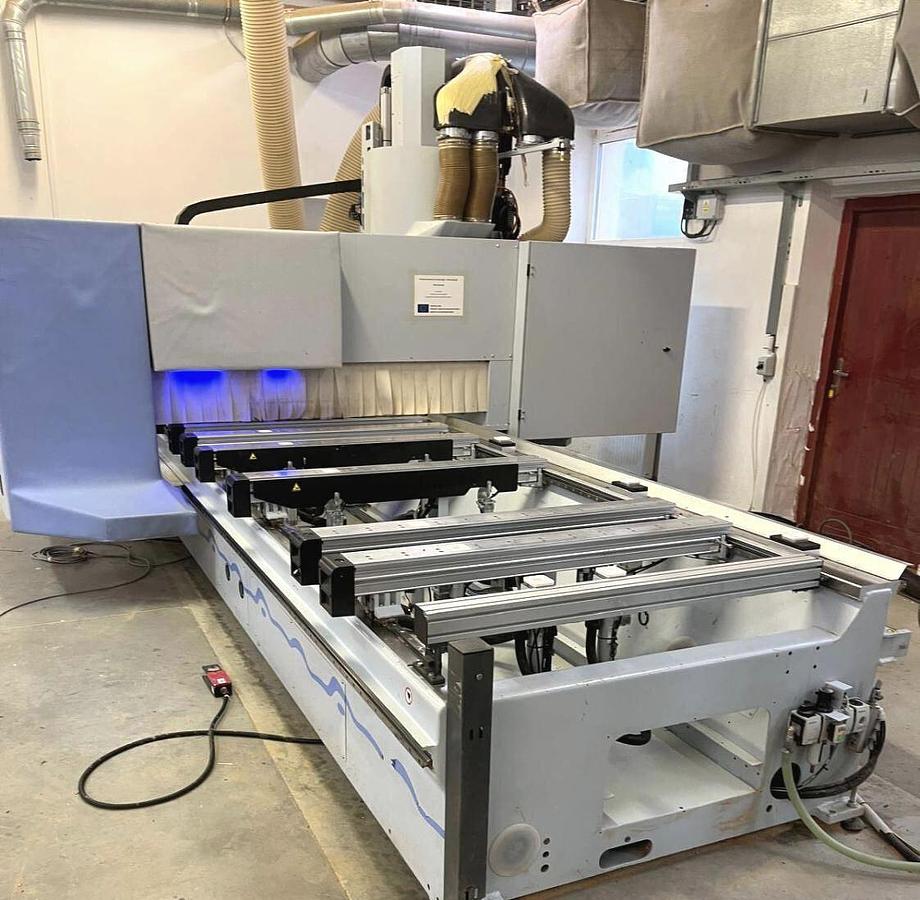

2015 HOMAG BMG 311/42/F/K

CNC machining center

Type: BMG 311/42/F/K

Manufacturer: Homag

Year: 2015

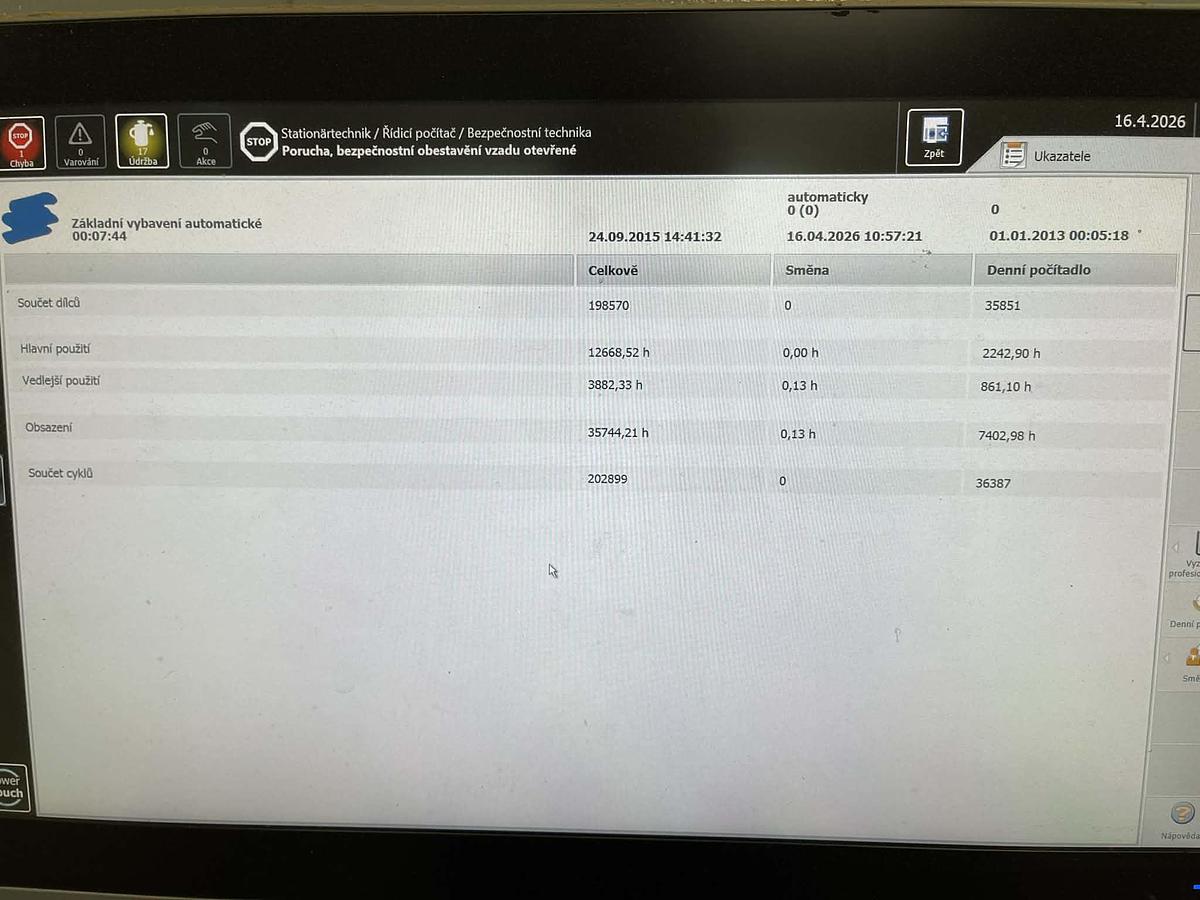

Control: Homag powerTouch

Software: HOMAG WOODWOP 7.0

Working dimension X: 4.200 mm

Working dimension Y: 1.550 mm

Working dimension Z: 270 mm

Number of milling spindles: 1

Main motor power: 10 kW

Rotation speed max: 24.000 rpm

4th axis: Yes

5th axis

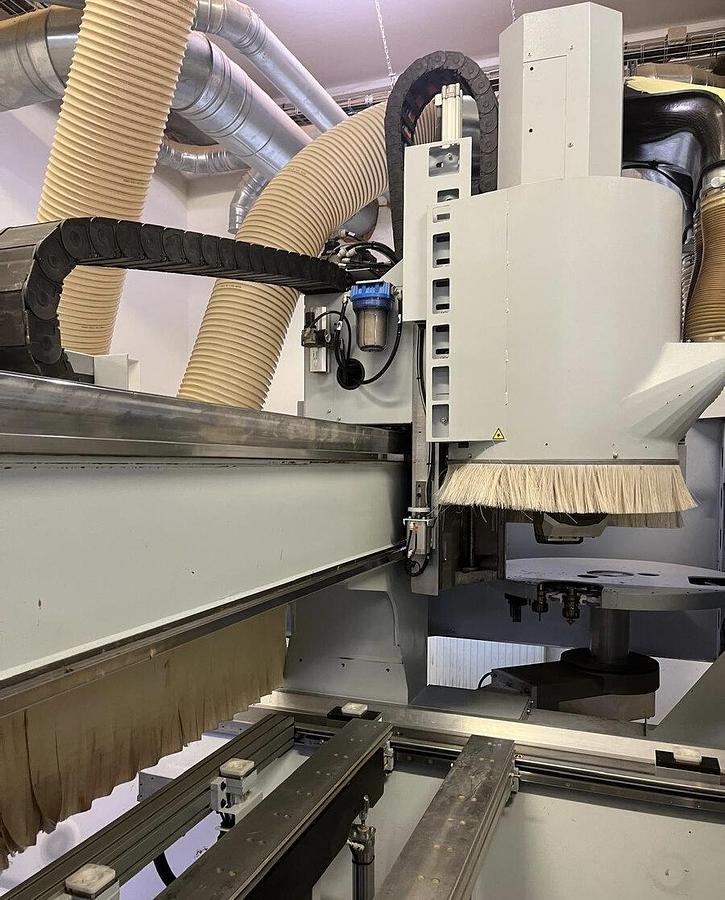

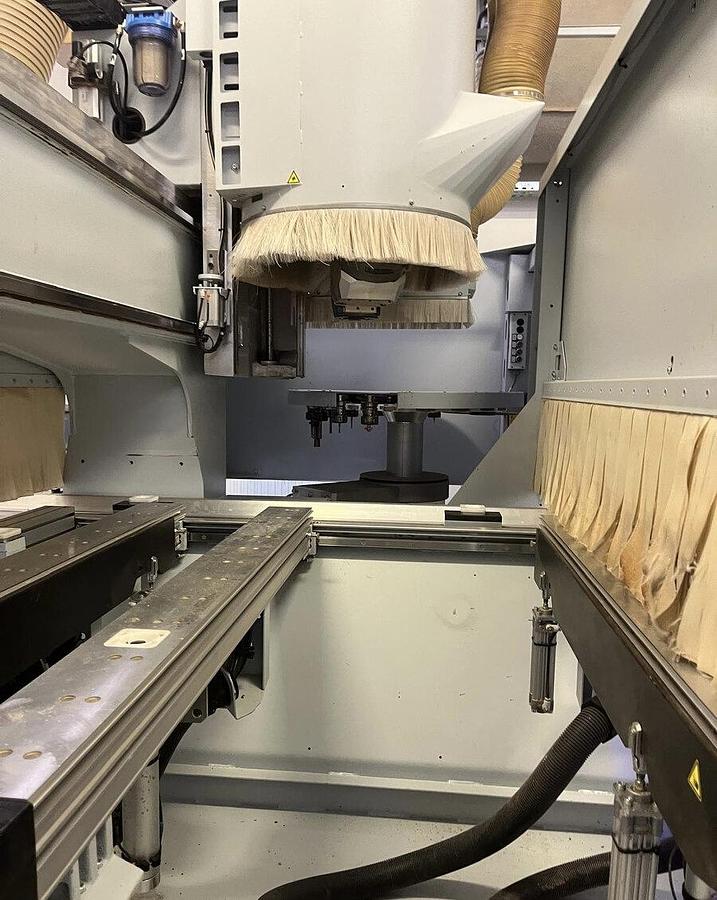

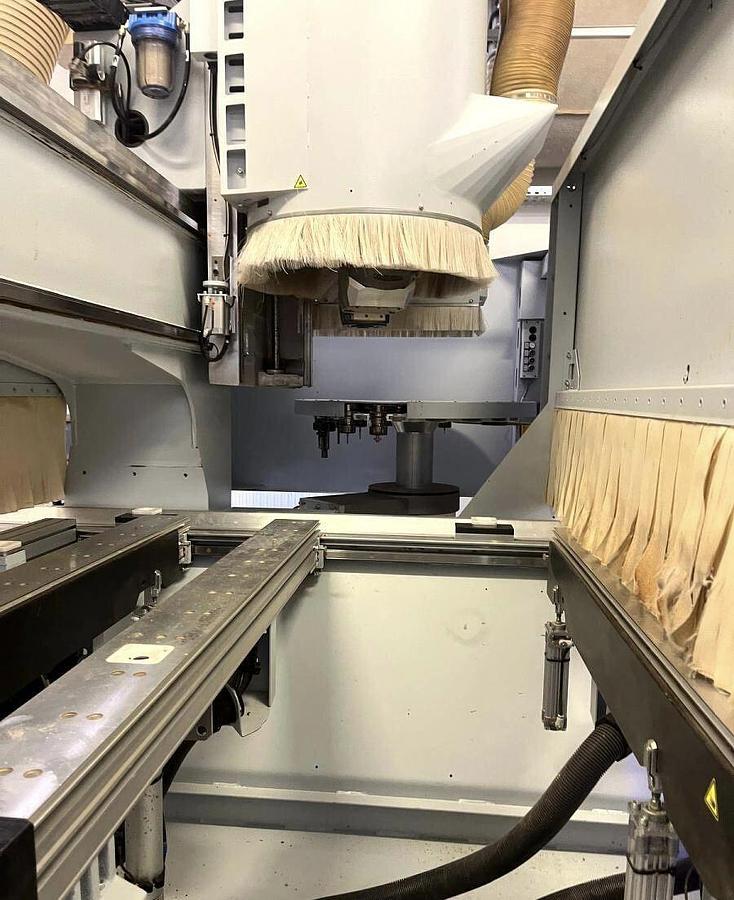

5-axes spindle

Tool clamping system: HSK-F63

Tool changer positions: 18

Disc tool changer

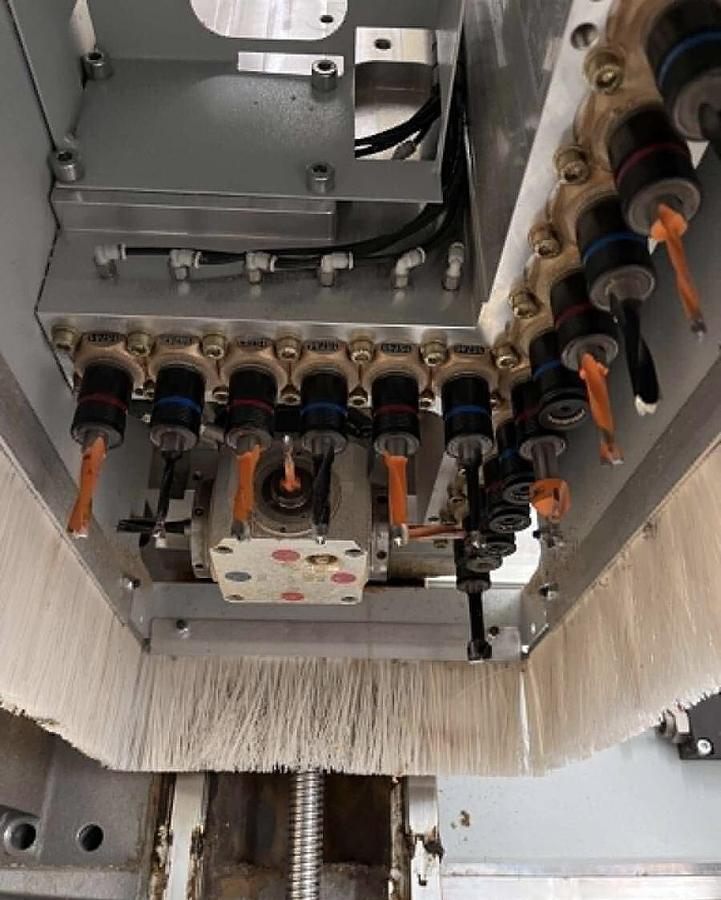

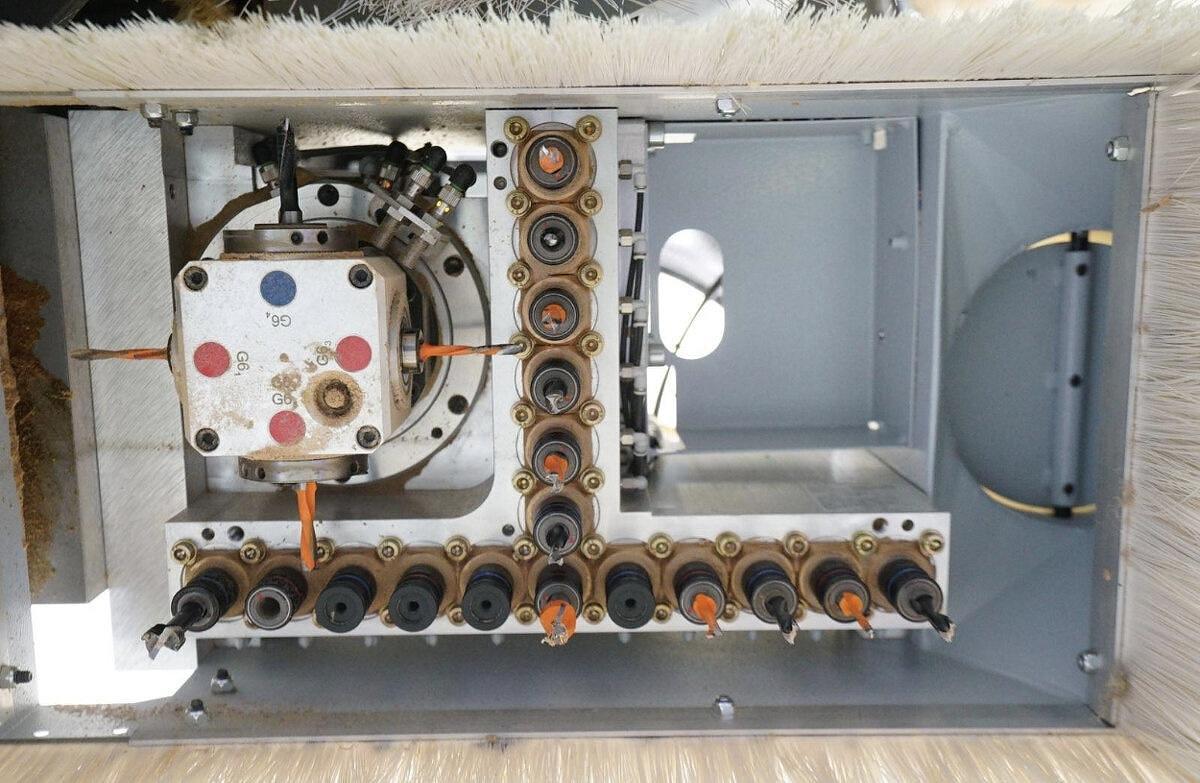

Vertical drilling spindles: 17

Horizontal drilling spindles in X: 2

Horizontal drilling spindles in Y: 2

Groove saw: 90° turnable

Gantry machine: Yes

Machine table

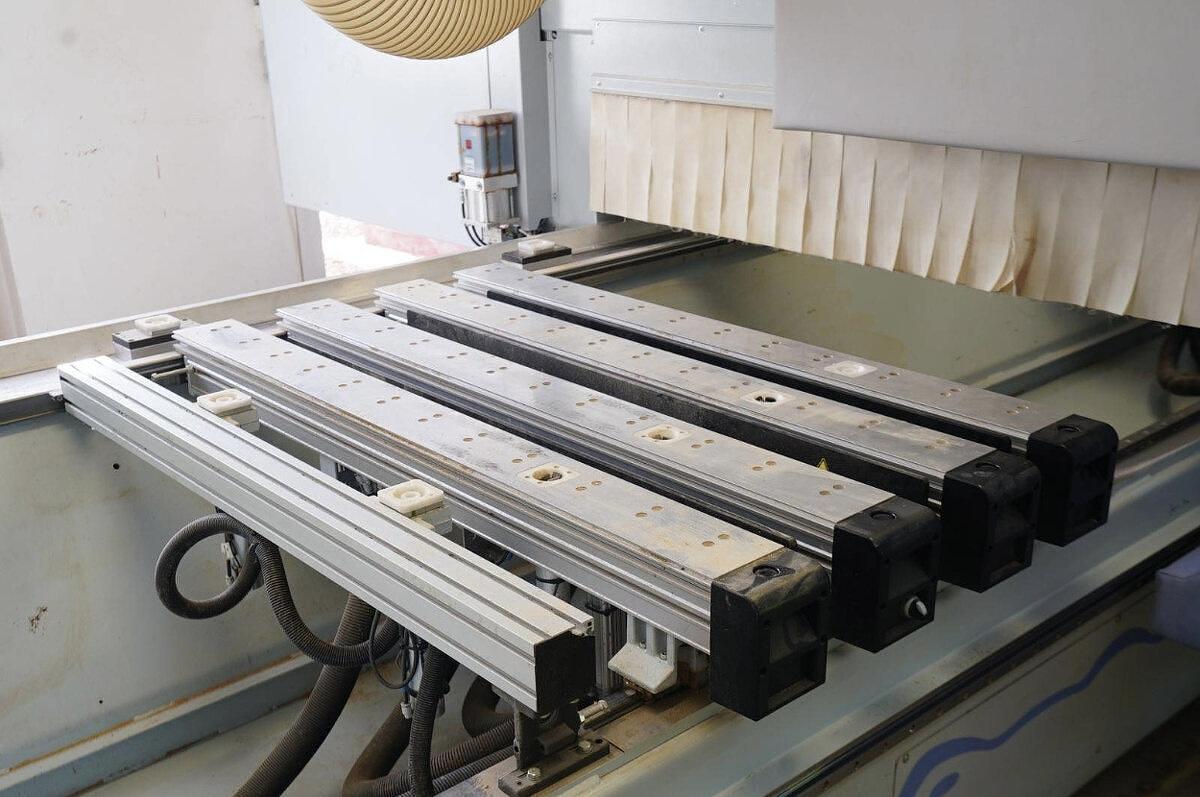

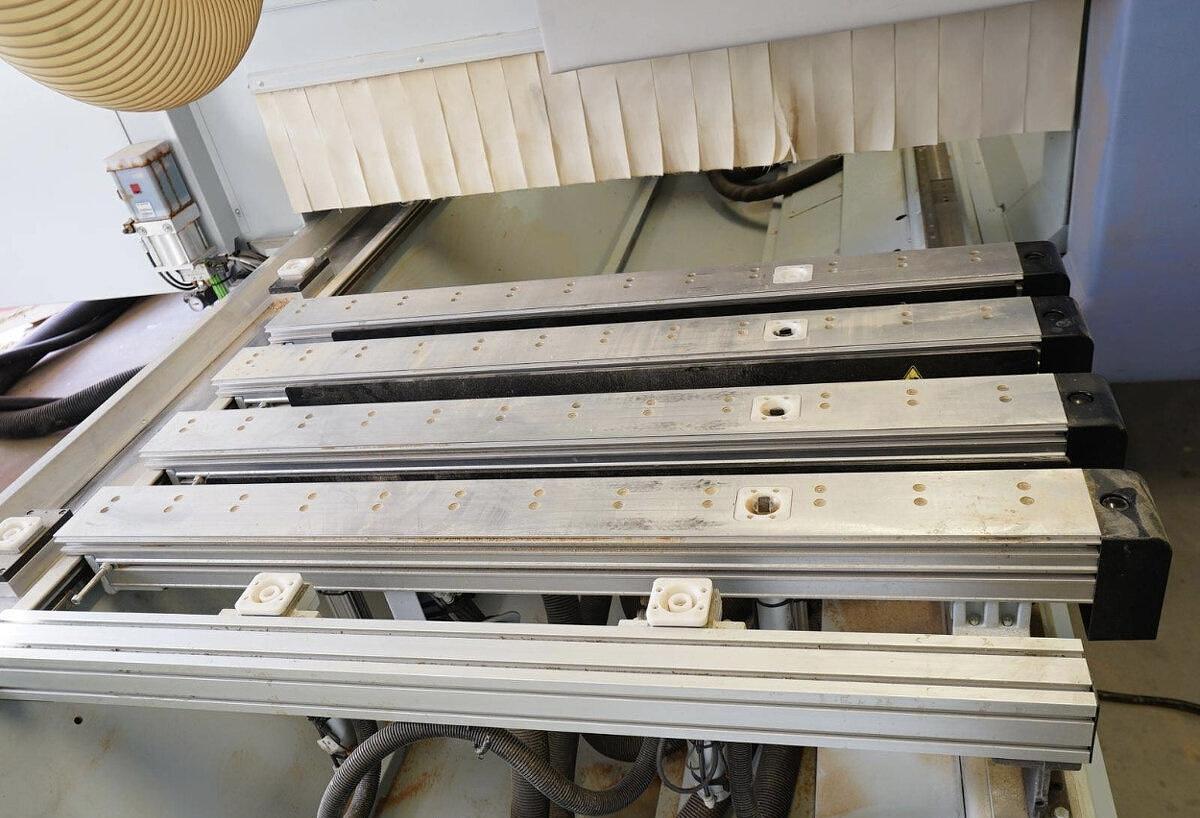

Pod and rail table

Number of consoles: 6

Positioning aid

Crosshair laser

Vacuum pump

Number of vacuum pumps: 2

Capacity vacuum pump: 180 m³/h

Safety device

Bumper

Two rows of stops

Workpiece support aids

Stop for top layer protrusion

Machine in good condition, fully functional
