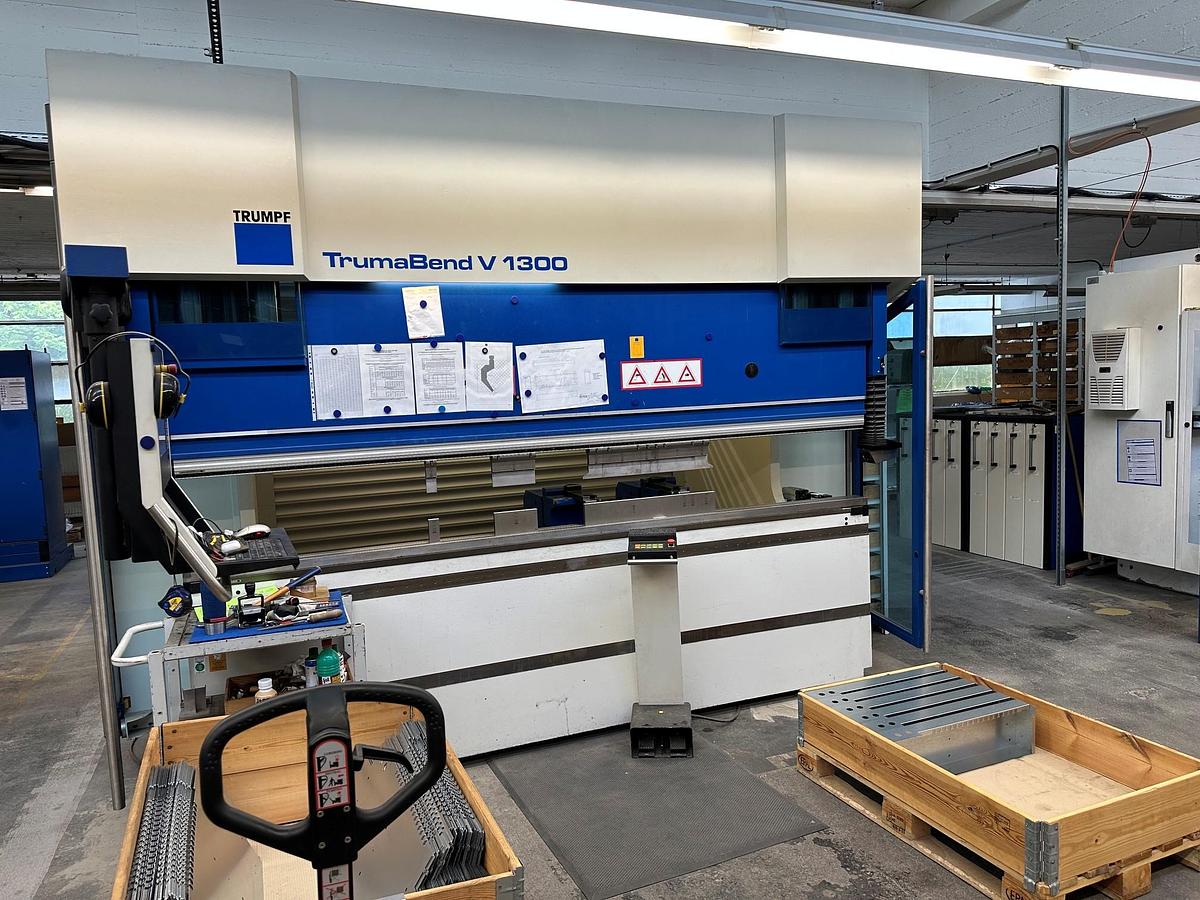

2006 TRUMPF TrumaBend V 1300 Press Brake

Manufacturer: TRUMPF

Year of manufacture: 2006

Type:press brake

Technical Specifications:

• Operating hours: 33,450 h
• Press force max: 1300 kN
• Stroke max: 445 mm
• Operating pressure max: 300 bar
• Follow-up time max: 95 ms
• Follow-up travel at 220mm per second, max: 10 mm
• Follow-up travel at 160mm per second, max: 8.5 mm
• Safety distance min: 190 mm
• Weight of the press: 10900 kg
• Voltage: 3x400 V
• Rated current: 34.0 A
• Frequency: 50 Hz
• Connected load: 24.0 kVA
• Control voltage: 24 V DC
• Compressed air connection: 6 bar
