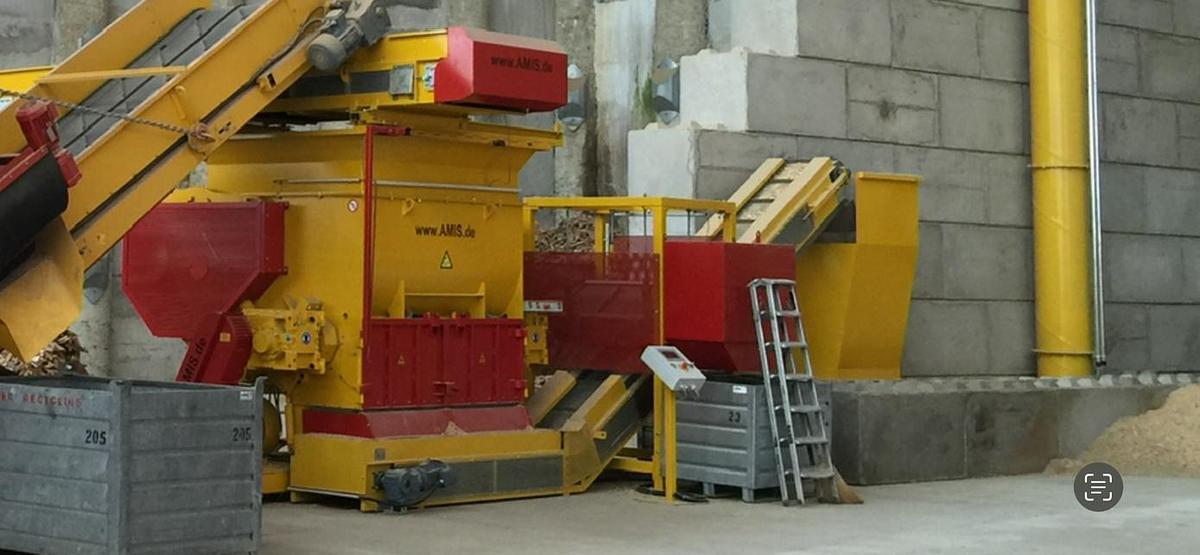

2014 ZERMA ZPS 2000

Manufacturer: ZERMA

Year of Manufacture: 2014

Model: ZPS 2000

Operating Hours: 4,953 hours

Type of Machine: Single-Shaft Shredder / Shredding Plant

• Drive power 2 x 55 kW
• Including frequency converter for the ZPS 2000

Rotor and Cutting System:

• Rotor diameter 457 mm

• Rotor width 2000 mm

• Rotor speed approximately 74 rpm

• 96 to 144 rotor knives

• Stator with 1 row of knives

Drive Principle: Low rotor speed with high torque for energy efficient operation.

Dimensions and Weight:

• Machine length approximately 3760 mm

• Width approximately 2300 mm

• Height approximately 2795 mm

• Weight approximately 8500 to 8600 kg

Cutting Chamber:

• Working area approximately 800 x 1890 mm

• Screen size typically greater than 40 mm, adjustable

Design Features:

• Hydraulic ram with 2-stage system to prevent blockages

• Swing ram without guide rails for reduced wear

• Large rotor with replaceable knives

• Hydraulically opening screen basket for easy maintenance

• External bearings for extended service life

Conveying Technology:

• Discharge belt type WF 4000 x 2500 x 580 with 1.5 kW drive

• Inclined conveyor belt mounted on the shredder, belt width 980 mm, axle spacing 5000 mm

• PVC belt with cleats

• Metal-free zone

• Pull cord and emergency stop

• Right-hand drive 1.5 kW

Spiral Conveying System:

• Type HS 450 NW 560

• Manufacturer BULCOTECH

• Drives 0.75 kW, 11 kW, 5.5 kW, and 11 kW

Magnetic Technology:

• Drum magnet (1 unit)

• Over-belt magnet type DM01.60, ferrite version

• Drive 1.5 kW

• For belt width 600 mm

Further Components:

• Control cabinet

• Spare parts package (1 unit)

• Various screens

Applications:

• Plastics, wood, paper, cables, and bulky parts

• Typically used for recycling and production waste

• Particularly suitable for heavy, voluminous materials such as pipes and sprues
