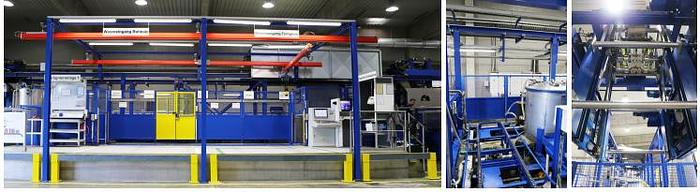

2017 Maldan automated impregnation line

MODERN PREPREGNATION PLANT / IMPREGNATION PLANT

Maldan plant, impregnated with IM 3000.

HIGH-QUALITY MATERIALS AND EFFICIENT PLANT COMPONENTS

- Automated impregnation line

- Manual loading

- Year of construction: 1999

- Retrofit: 2017

- Dimensions: 24 m x 9 m x 4.6 m (LxWxH)

- Control system: Siemens S7

- 2 x manipulators

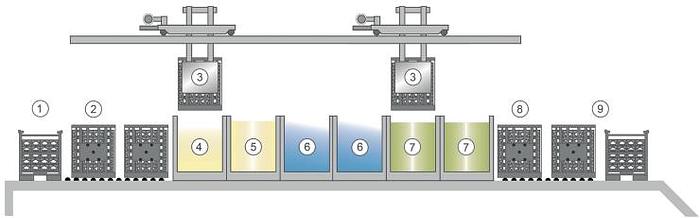

PROVISION

The workpieces are prepared in the goods receiving area and can be

be registered by scan.

LOADING OF BASKETS

Employees load baskets with a volume of 0.8 m3

with

workpieces. The components are protected by plastic

plastic inserts.

LOADING

The baskets are transported into the plant fully automatically and are

fed to the individual work steps via the manipulators.

VACUUM / RESIN BASIN

The resin basin (autoclave) is closed in a pressure-tight manner and a

vacuum is created. The impregnating resin is let in and acts

on the components for a period of approx. 5 minutes.

CENTRIFUGES

In order to ensure uniform distribution of the resin on the workpieces

the baskets are centrifuged. The excess

resin is skimmed off.

WASHING AND RINSING BASINS

The components are cleaned and excess resin is rinsed off.

rinsed off. Cleaning takes place in two stages auto-

matically.

POLYMERIZATION

The resin on the workpieces hardens completely for 10 minutes at

90° in deionized water. At high capacity

a second polymerization basin absorbs the time difference to

to increase the throughput capacity.

COOLING AND REPACKAGING

After completion of the impregnation process, the components are

components are cooled down and automatically discharged from the

fully automatically. Labeling and repacking into the transport containers is

containers is carried out by employees.

QUALITY CONTROL

All components can be inspected manually after processing as a

visual inspection and under UV light after processing.

quality control.
