1990 Elmass ELM - P 8 / 300

Elmass ELM- P8/300

Keyway broaching/ slotting machines

Specs/Details of each machine

Machine 1

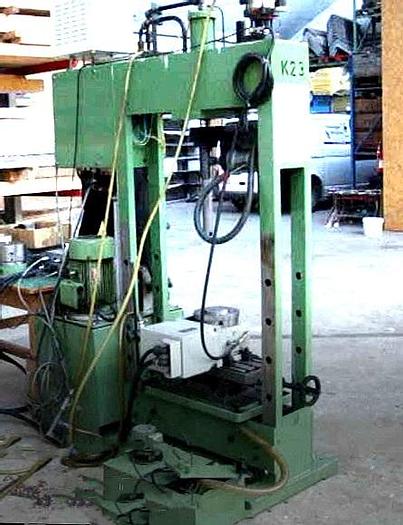

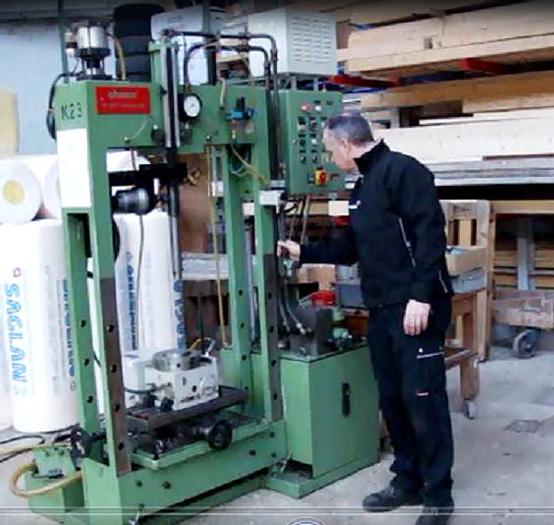

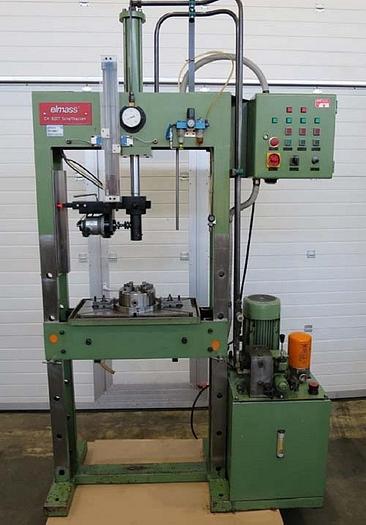

Elmass keyway broaching/ slotting machine ELM- P8/300

Model:   ELM- P 8/ 300 Year of production 1990

Hydraulic Keyway broaching – slotting machine

Width of keyway                           2 -36 mm

Ram stroke     P8 1 and P8 2             300

Automatic adjustment of feed stroke:          Number 4

fro 0,05 to 0,2 mm

Force max. of press :                       8 To

Speed of cutting stroke :                     10 – 20 m/min

Table: Width x depth                    600x300 mm

Vertical adjustment                     1100 mm

Distance between columns               800 mm

Distance between table and ram: Max      1150 mm

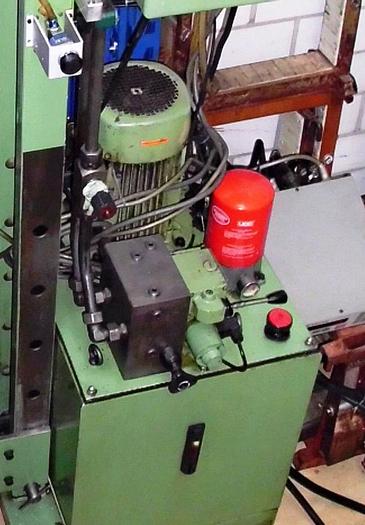

Motor 400 volt, power                   5,5 Kw

Air pressure                          5-6 Bar

Size of machine: width/depth/height

approx                          1600x650x2600 mm

Weight approx                        800 Kg

Accessories and equipment:

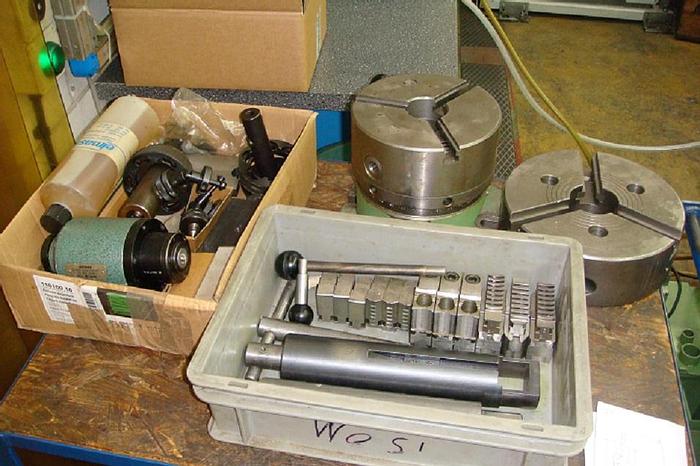

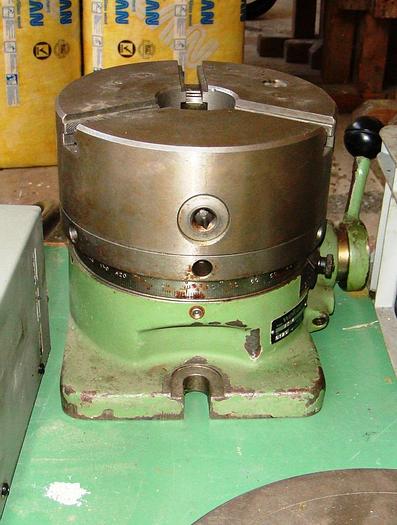

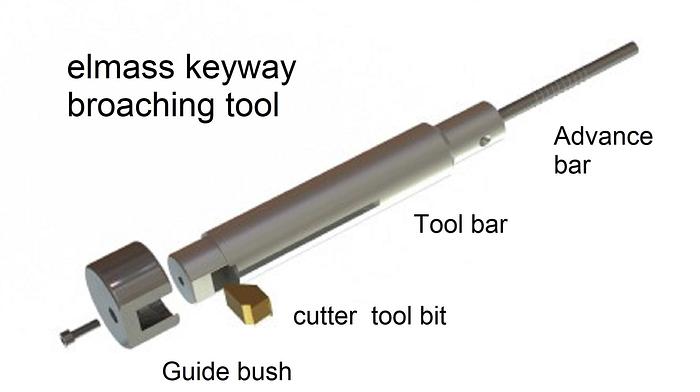

Misc. Accessories keyway broaching tools, chucks, x – y table , NC rotary turn table

Ex stock our warehouse in Switzerland
