Goss Magnum

Goss Magnum

Contact us for price

Munich, Germany

orCall ‭+49 152 23026695‬

Description

Printing Units

6Nos – 4 high towers(CMYK) capable of producing 24 pages

Broadsheet in full colour or 48 pages Tabloid.

Cut –Off size 578 mm

Maximum Web Width 889 mm

Minimum Web Width 584 mm

Maximum Speed 35,000 copies per hour

Dryers

6 nos Megtec Vertical Coanda dryers

Folder 2 nos

1) Goss Universal folder with Quarter fold

2) Goss SSC folder with Quarter fold

Reel stands

Megtec Splicers – 6 nos

Parker Drive

Shaftless drive with individual motors.

Infeed

3 nos. Double infeeds with turner bars

Ancilliary equipment

1) Baldwin temperature controlled Dampening unit.

2) QTI Silicone Coaters 6Nos

3) Trane Chilled water unit (60 tons)

4) Megtec Epsilon RTO after burner

5) MM Stacker

6) Lots of spares and trollers.

Year of Manufacture

4 Printing Units & 2 dryers 1997 installation 1998

2 Printing Units & 4 dryers 2015 installation 2017

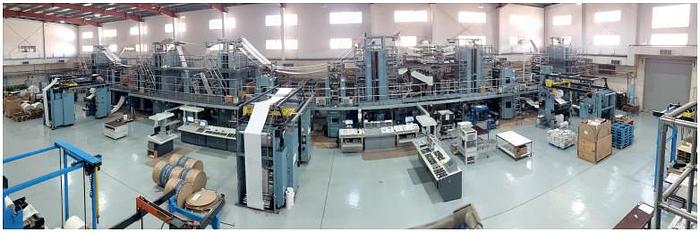

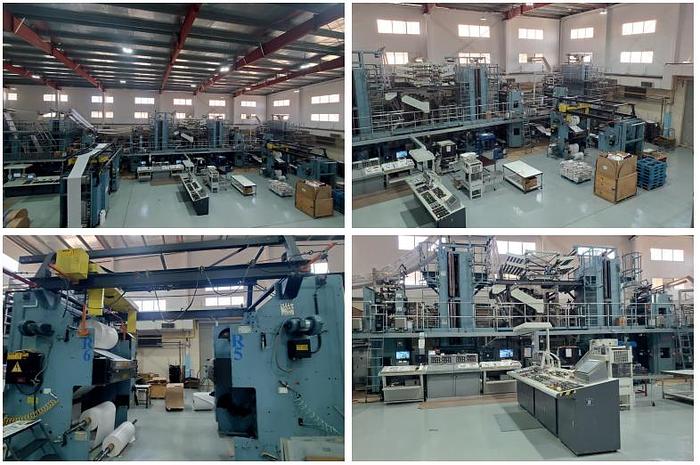

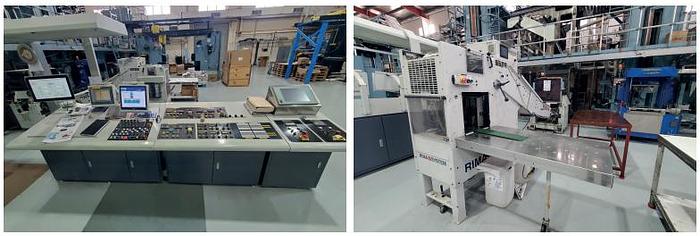

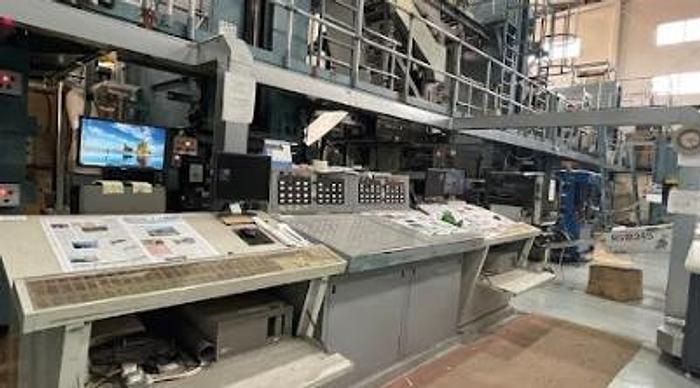

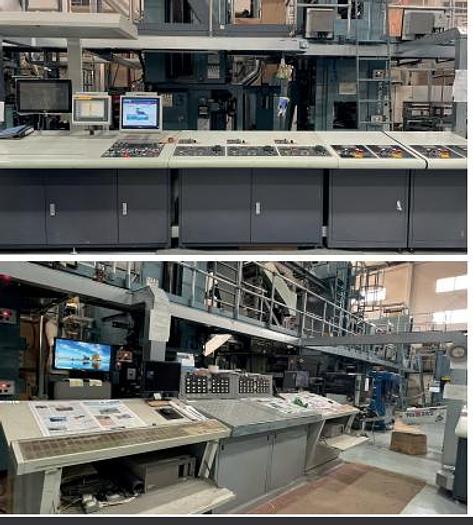

Goss Magnum Press

cut-off: 578mm


Consisting of the following equipment:

1 X Goss SSC 778 Folder with quarter folder

1 X Goss Universal 122 folder with quarter folder

6 X Goss Magnum / Community 4-High Printing Towers

6 X Megtec Vertical Coanda LPG Dryers

6 X Megtec Chill Rolls stand with Silicone Applicators

5 X Megtec 1000 Series Splicers

1 X Megtec 900 Series Splicer

3 X Zhenli Dual Infeed Assembly with Angle Bars

2 X GMI Remote Control Inking System for 4 X 4-High towers

1 X Goss Remote Control Inking System for 2 X 4-High towers

2 X Q. I. 3D Auto Colour Registration for 6 towers



Find more here - https://www.ucymachines.com/

Specifications

ManufacturerGoss
ModelMagnum
ConditionUsed
