2011 PTK PM-1060

2011 PTK PM-1060

Contact us for price

Vilnius, Lithuania

orCall +49 (0)89 44354985

Description

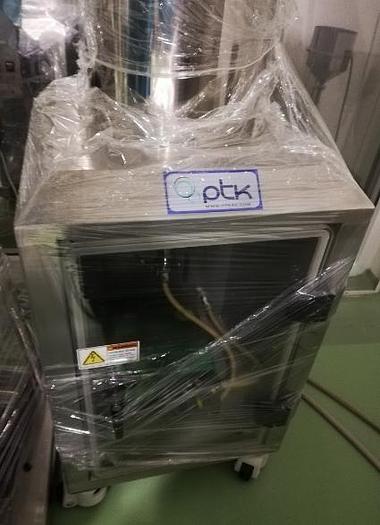

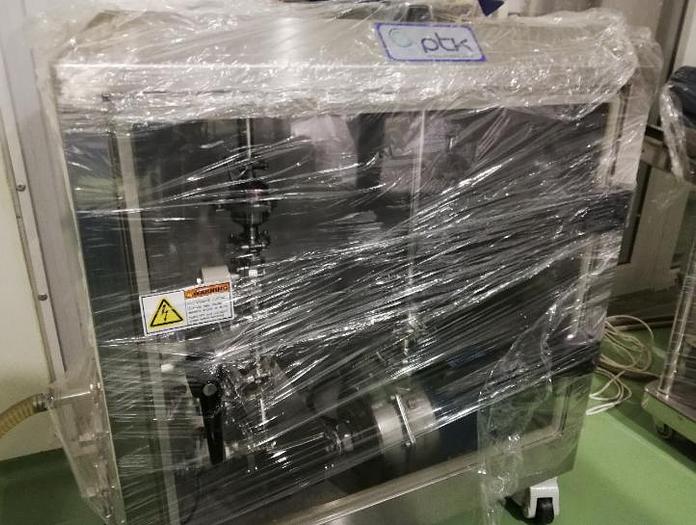

The PTK PM-1060 is a small scale high shear – granulator which is ideal for laboratory, scale-up or small

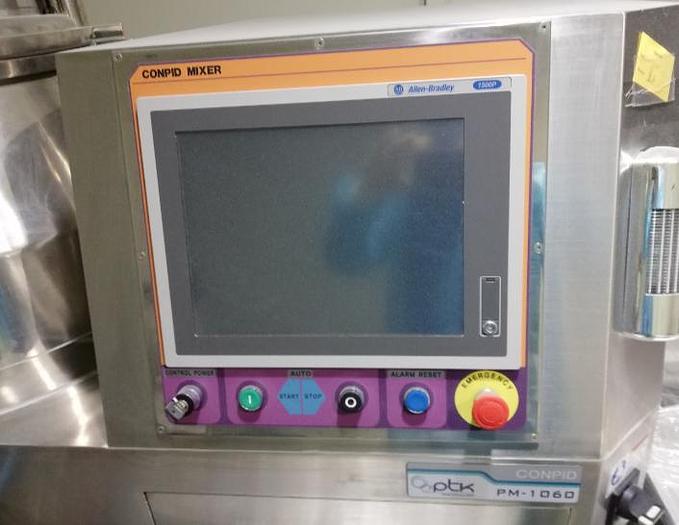

batch production. The PTK PM-1060: saves all recipe/product data onto HMI for manual or automated

mixing control; allows full data analysis and batch reporting; has a main Impeller lifting device for easy

cleaning; has many powder loading options, integrated sieve or external granulators (cone mill), bottom

driven single pot mixer.


Vessel Volume (L)

130


Working Volume (L)

44.4 to 75


Output Capacity (kg)

31 to 53



Agitator Drive Motor (kW) 7.5


Dimension (mm)

1500 x 1450 x 1930



Power Supply Data

220/380/400/415/440/460 Vac 3Ph 50/60 Hz


Control Power

24Vdc

Volts direct current




Find more here - https://www.ucymachines.com/

Specifications

ManufacturerPTK
ModelPM-1060
Year2011
ConditionUsed
