1987 Schaublin 102 CNC

No longer available

1987 Schaublin 102 CNC

Prague, Czechia

Description

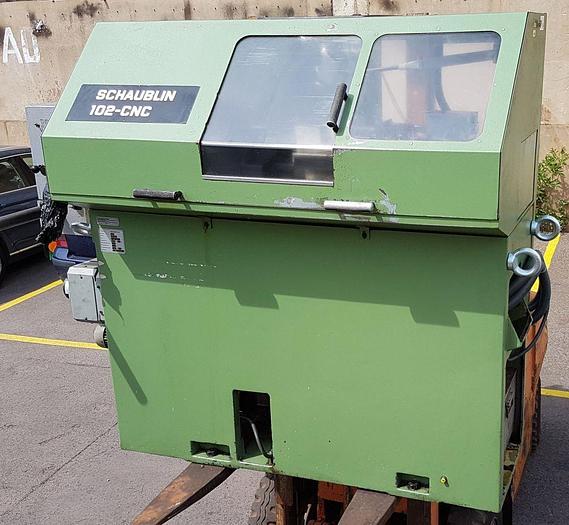

Fully functional compact small Schaublin 102 CNC in very good condition

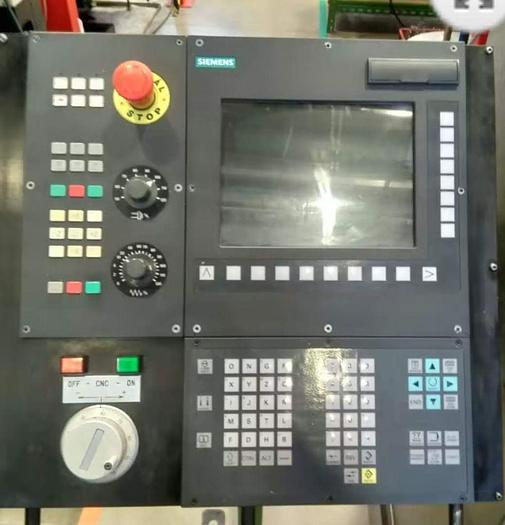

Converted to modern Siemens control system.


Including complete documentation.


Feed range : X 150mm, Z 300mm.

Working displacement 2000mm/min. Quick feed 5000mm/min.

Speed 5000rpm.


Clearance over table : 75mm, over bed 102mm.


For 12x12mm tools


Machine dimensions LxWxH 221x97x169cm. Weight 800kg


Tool changing is realized by movement in Z axis.

Without tailstock.


Minor servicing will be required(air system, feed potentiometer - but even so the machine achieves normal feeds).

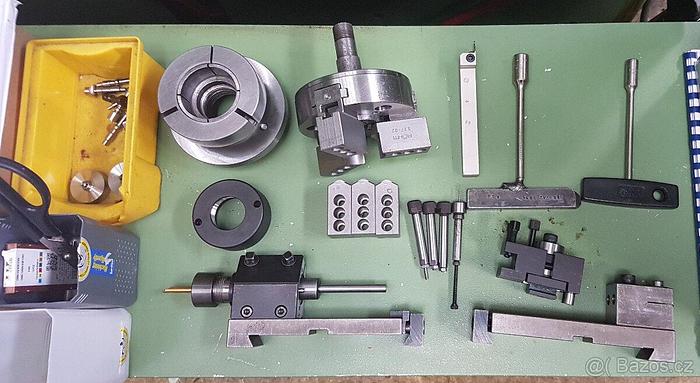

Including accessories - pair of pliers, universal, soft jaw drill rod. accesories, chuck, colletes, tools.



Find more here - https://www.ucymachines.com/

Specifications

ManufacturerSchaublin
Model102 CNC
Year1987
ConditionUsed
