2015 Bernardo RD 1300 Vario

2015 Bernardo RD 1300 Vario

€10,500 (EUR)

Leipzig, Germany

orCall ‭+49 152 23026695‬

Description

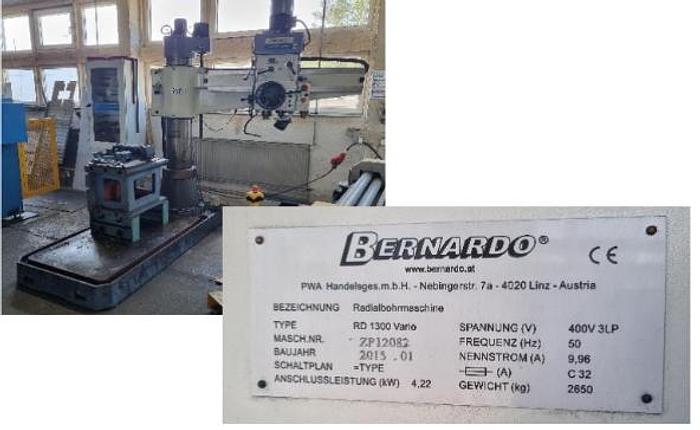

RD 1300 Vario Bernardo Radial Drilling Machine


The compact RD 1300 Vario radial drilling machine is ideal for drilling, countersinking and reaming work on large workpieces (such as steel beams, flanges....). The versatility of this machine makes it ideal for mechanical workshops, repair stores, mechanical engineering, among others.


Drilling capacity max.


40 mm


Thread cutting max.


M30


Throat min./max.


295 - 1300 mm


Vertical movement of the boom


610 mm


Travel of drilling head (horizontal)


1005 mm


Quill stroke


275 mm


Spindle mount


MK 4


Spindle speed, 2 steps


54 - 340 / 340 - 2150 rpm


Feed range


(4) 0.10 - 0.63 mm/rev.


Distance spindle / cube table


130 - 740 mm


distance spindle / base plate


485 - 1195 mm


Clamping area base plate


1320 x 850 mm


Cube table (L x W x H)


635 x 455 x 455 mm


Motor power


2,2 kW


Machine dimensions (W x D x H)


2100 x 900 x 2600 mm


Weight approx.


2650 kg


boom arm with mechanical clamping and drill head with manual clamping

Switching and operating elements clearly arranged at the front of the machine

Torsion-resistant and ground steel column for vibration-free working

Large-dimensioned quill ensures highest possible stability

Change of direction of rotation or engagement/disengagement of the spindle is effected by means of a pilot switch on the underside of the drill head

Standard with stepless speed control, the set speed is shown on a digital

speed is read off on a digital display

High spindle concentricity due to precision bearings

Height adjustment of the boom arm by means of lifting motor

Hardened and ground gears, running in an oil bath


Find more here - https://www.ucymachines.com/

Specifications

ManufacturerBernardo
ModelRD 1300 Vario
Year2015
ConditionUsed
