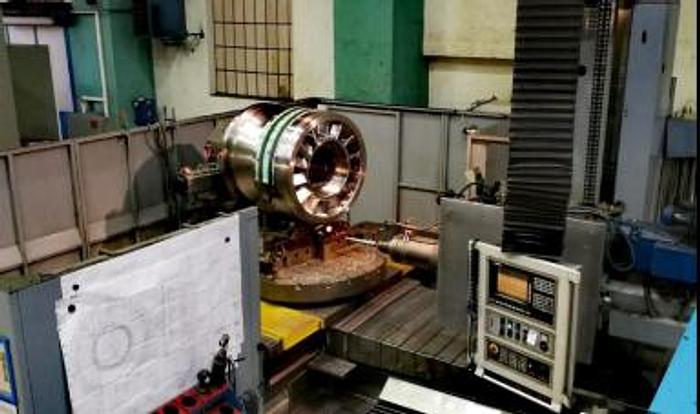

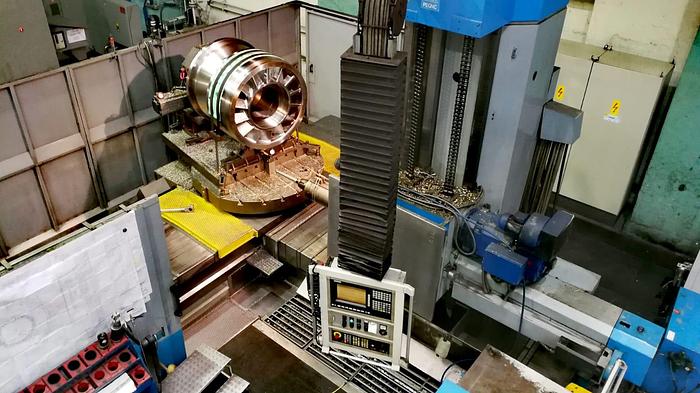

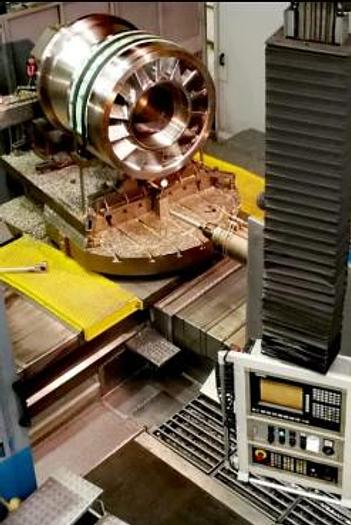

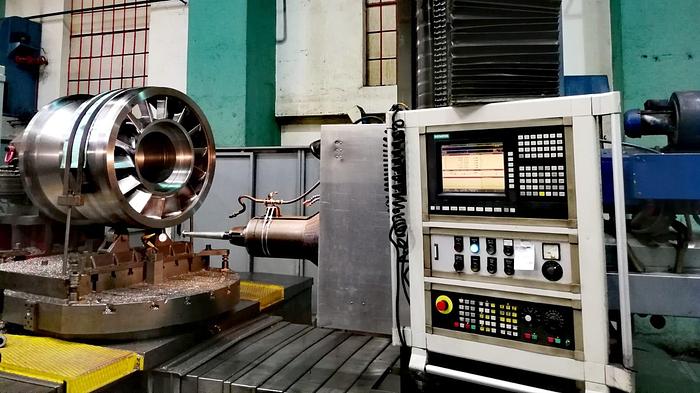

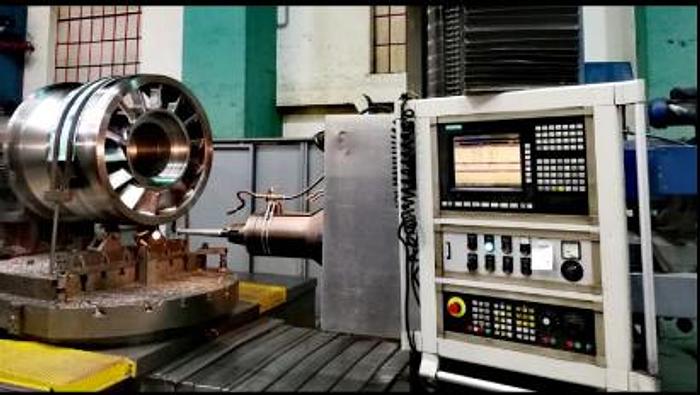

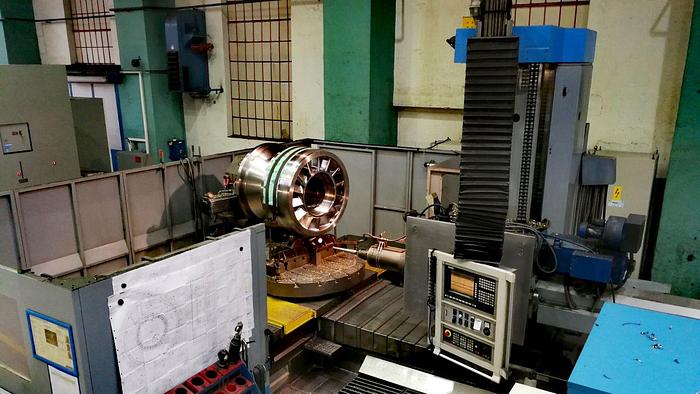

1999 Pegard AF 130 S

No longer available

1999 Pegard AF 130 S

Graz, Austria

Description


CNC boring/milling mill


year: 1975 (1999 Retrofit)


Technical data

Driving power of the main spindle 20 kW

Speed range 1000 rpm

Max. Torque 12000 Nm

Tool holder SK 50 according to DIN 6987

Control Siemens 840C

Operating hours 27.877h

Spindle diameter 130 mm

Coolant (pump/tank not incl.)

Support sleeve

workpiece clamping device

Rotary table dimension Ø 1620

slot width 28H7mm

groove distance 7x200mm

Centering hole Ø260H7

Clamping pallet 1800 x 2200 mm

Max. workpiece weight 8000 kg

Travel range

X-axis 2370 mm

Y-axis 1800 mm

Z-axis 1000 mm

W-axis 1500 mm

Rotary table endless

Feeds

axis feeds stepless 1-6.000 mm/min

rapid traverse 6.000 mm/min

Space requirement

length 5.000 mm

width 5.000 mm

height 3.500 mm


Find more here - https://www.ucymachines.com/

Specifications

ManufacturerPegard
ModelAF 130 S
Year1999
ConditionUsed
