1973 LVD PP100 20-25 Hydraulic press brake 100t
No longer available
1973 LVD PP100 20-25 Hydraulic press brake 100t
Dortmund, Germany
Description
LVD PP100 20-25 Hydraulic press brake 100t
05/1973
Capacity: 100 tons
Stop: 2500 mm
Passage between uprights: 2050 mm
Max ram: 150 mm
Distance between table - ram: 350 mm
Overhang: 250 mm
Table width: 200 mm
Closing speed: 100 mm/sec
Working speed: 8 mm/sec
return speed: 50 mm/sec
electric motor (power): 10 pk
Mains voltage: 380 V
length L -- R: 2500 mm
depth F -- H: 1500 mm
height: 2400 mm
weight: 7500 kg
- All technical data without guarantee of correctness -.

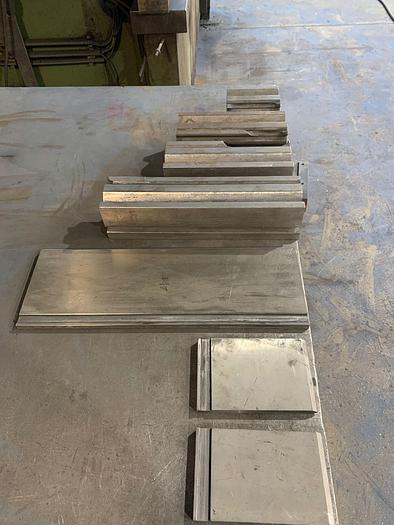

Including bending prisms for sheet metal forming, currently used for sheet metal forming in the range of 5-8mm, fully functional
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | LVD |
Model | PP100 20-25 Hydraulic press brake 100t |
Year | 1973 |
Condition | Used |
