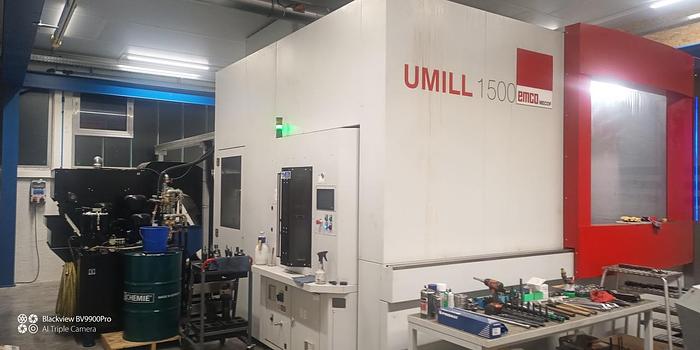

2019 EMCO UMILL 1500

The machine has only about 1000 hours of operation.

5 axes high speed milling

x 1500 mm

z 1100

y 1500mm

5 axis high speed milling center year 2019 UMILL 1500

Transverse travel (X axis) 1500 mm

Vertical travel (Z-axis) 1100 mm Longitudinal travel (Y-axis) 1500 mm

TUE58

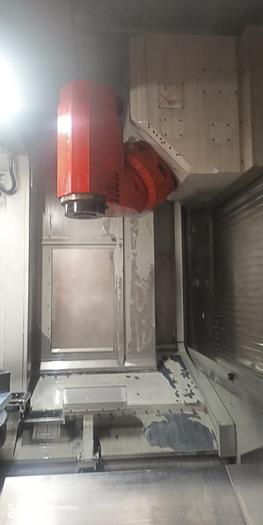

Milling head with electric spindle E58

(45 W, 300 Nm (S1); 58 W, 372 Nm (S6), 12000 rpm), HSK 100 T, electrospindle supported

half body with contiunous

rotation (B axis)

TT14CC03

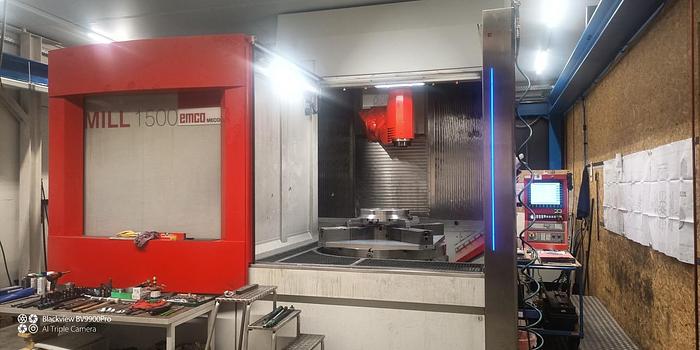

Rotary transfer table diameter

1400 mm, continuous rotation and displacement up to 260 rpm, load capacity 3500 kg

CU 122

Tool changer with 122 places in

tower design

Tool holder HSK 100-T.

Allows tool change with spindle in vertical position

-2-

TTM

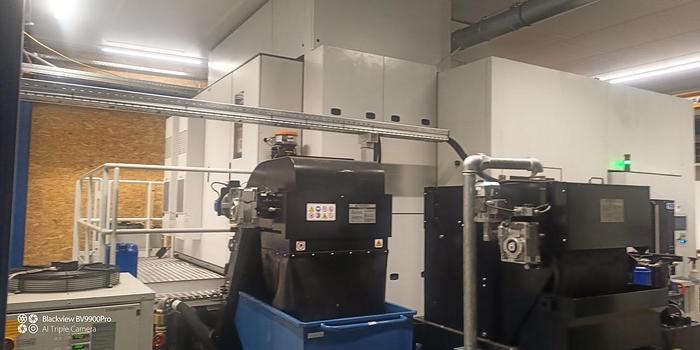

Chip conveyor consisting of two screws arranged laterally to the longitudinal axis and el. preparation for chip conveyor positioned outside the working area transversely to the screws.

IRDD-80

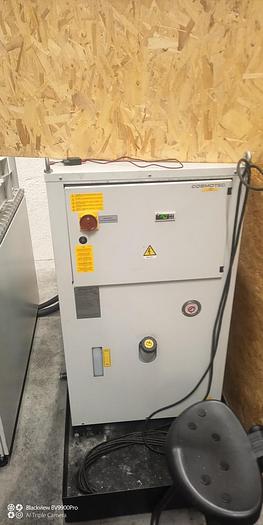

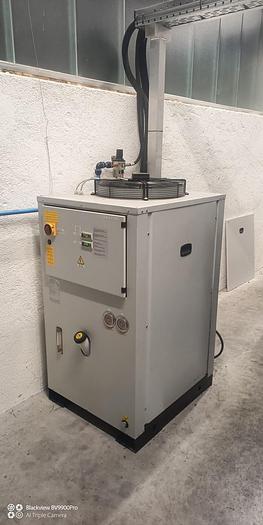

Tool cooling system with double feed:

1) Feeding near the spindle.

(pressure 6 bar, flow rate 28 l/min) through collectors and orientable nozzles

2) Feeding through the spindle

(pressure 80 bar, flow rate 20 l/min) through a bore coaxial to the spindle

using tool holders with central bore

central bore (tools according to DIN 69871/A)

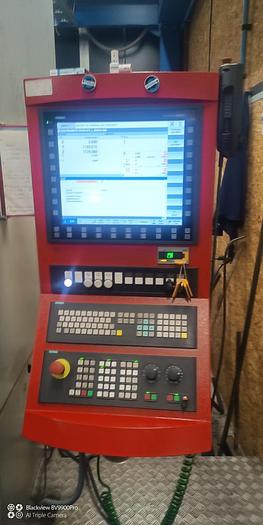

Main control panel and remote control panel

Control panel complete with air conditioning unit,

degree of protection IP54.

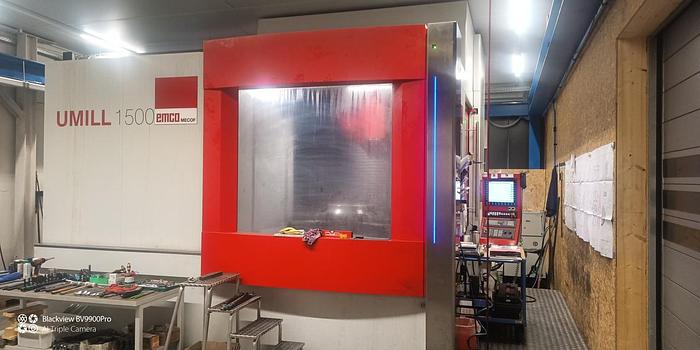

The four sides of the machine are completely covered and the working area is completely

closed and protected.

On one side there is a manual door with a

large window and a Visiport rotating window for visualization.

IES

Integrated energy saving

4-color message LEDs that announce the status of the

machine activity

Gun for cleaning the workpiece

High speed cutting Mecof formula

Electronic key with 4 access levels

and operating modes

Safety package Power failure Software programmed maintenance Help on line

CMTN

Hardware and software for the connection

of the machine tool to M.T.N. (Mecof Teleservice Network)

through an Internet connection of at least 1 MB/sec.

Power supply 400 V (± 10%), 50 Hz (± 1%)

-3-

Standard painting gray RAL 7035 and red RAL 3020 with lightly grained surface

The machine is CE marked Numerical control Siemens 840 D SOLUTION LINE

TASR probe with radio link

Type Renishaw RMP 60

OMSK head calibration

CMPT laser measurement tool for milling/turning tools
