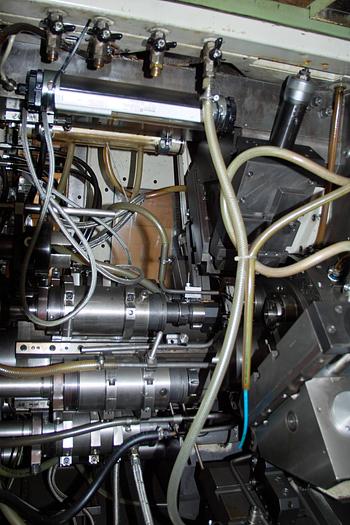

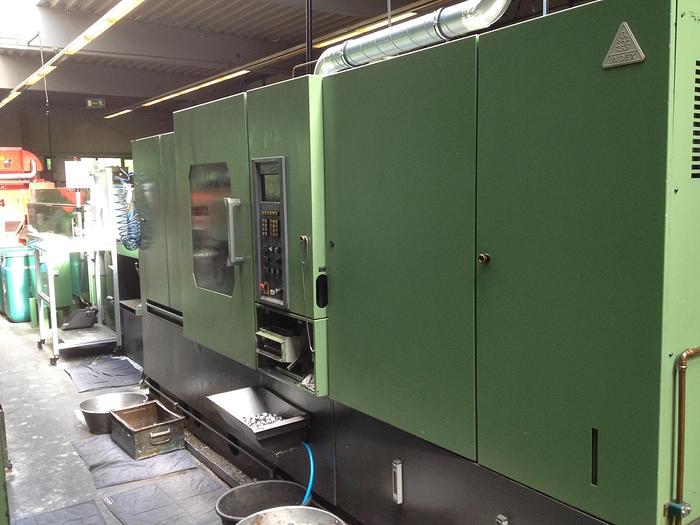

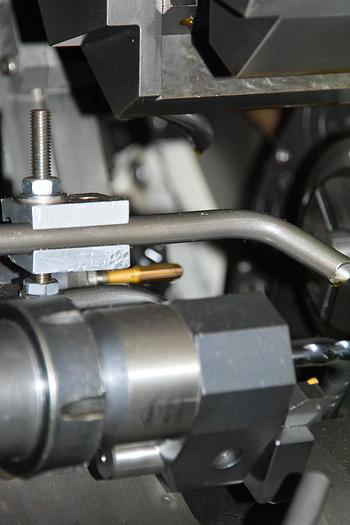

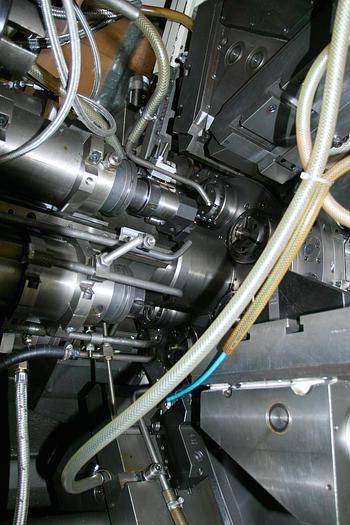

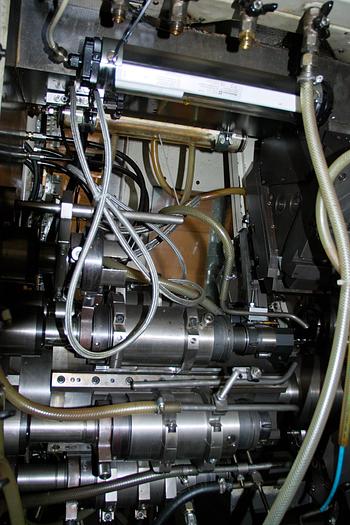

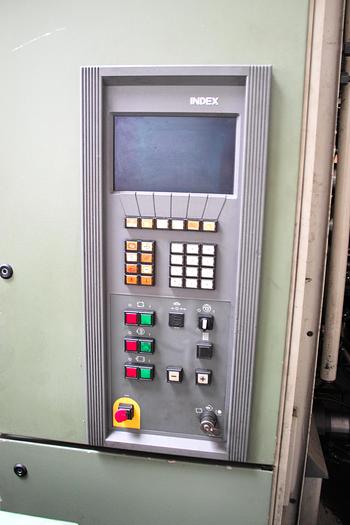

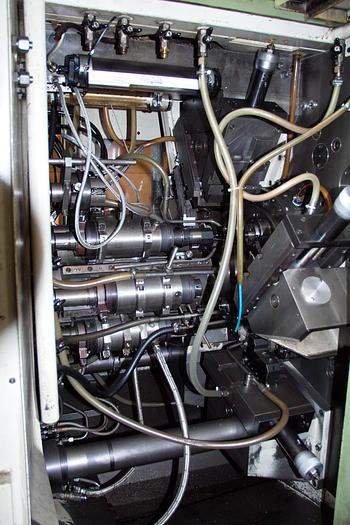

1996 Index MS36E

Multispindle INDEX MS36E BJ 1996 including many accessories (collets, synchronized collets, change gears, various working cams, etc.)

The machine is ready for shipment, in disassembled condition and stored in logistics for inspection. It has no major defects, is basically ready for operation, only the rubber hoses should be changed before commissioning and the cooling-lubricant system should be cleaned throughout.

Clamping HSP: Clamping heads type BZI 42

Collet gripping device: SZ 42

Largest machining Ø: 36 mm

Y - axis / C - axis: No

Bar feeder: Iemca

Type: PRA 40/33/P

Additional equipment:

2xlong turning attachment, polygon turning attachment, thread cutting attachment, thread milling attachment

Fette thread rolling head incl. div. thread rolls

3 jaw chucks f. RSB, oil filter unit

Tool holder:

Fette thread rolling head incl. div. thread rolls,

Div. transverse heavy tools basic holder Zürn

Div. cross heavy tools basic holder Göltenbodt

7 longitudinal tool holders fixed

2 longitudinal tool holders revolving

Backing device Göltenbodt

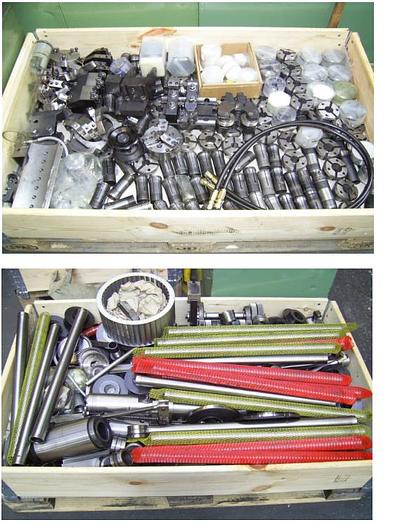

Other:

Various clamping pots and feed tongs (RS36)

Various synchronous grippers

Various jaws f. 3 jaw chucks

3 sets of bar guide tubes

Various reducers f. feed tubes

Various change gears f. revolving. Wkz holders

Various working cams

Various drive and intermediate shafts

Accessories list:

1x spindle stop (currently position 4)

3 sets of rod guide tubes

Div. reducers for feed tubes

Div. change gears for revolving tool holders

Div. working cams

Cross machining:

Div. cross tool basic holder Zürn (7x narrow / 4x wide)

Div. cross shear tool basic holder Göltenbodt

2x long turning attachment

Polygon turning attachment

Fette thread rolling head + div. thread rolls

longitudinal machining:

Threading device

altogether 7 longitudinal tool holders fixed

2x longitudinal tool holder revolving

div. drive and intermediate shafts

thread milling device

Göltenbodt tailstock device

Syncron pickup with collet and 3-jaw chuck
