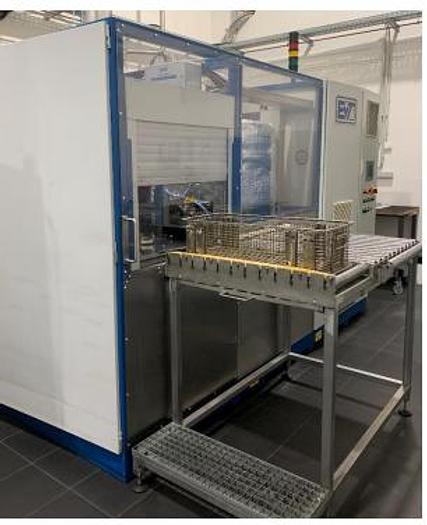

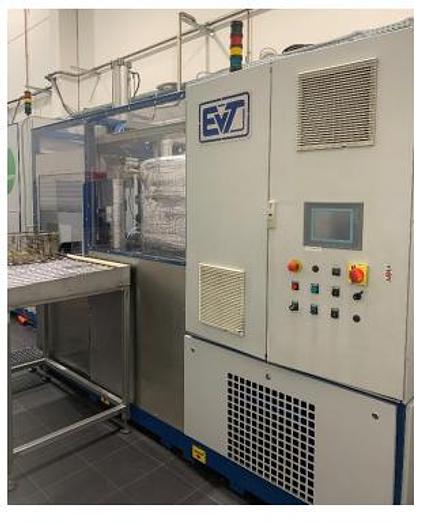

2012 EVT BAMBINO-S FRONT-TOP-PER

Demonstration plant year of construction 2012

Equipped with the following options

 Goods movement

 2 x flow device hot

 Steam degreasing

 Circulating air drying

 Vacuum drying

 Ultrasonic with 1,0 kW / 25 kHz

 Filter unit in process

 Filter unit in bypass

 Regenerable activated carbon unit

Technical data

Applicable

solvents:

Perchloroethylene (PER)

Filling capacity: 600 dm3

Heating power: 27 kW

Connected load: 45 kW

Compressed air: 6 bar

Weight of the plant:

4000 kg

Throughput: 2-3 baskets/h

150 kg/h

max. 70 kg per batch

basket dimensions: 530 x 320 x 200 mm

700 x 320 x 200 mm

plant dimensions: 3250 x 1800 x 2850 mm

mode of operation: 2-shift
