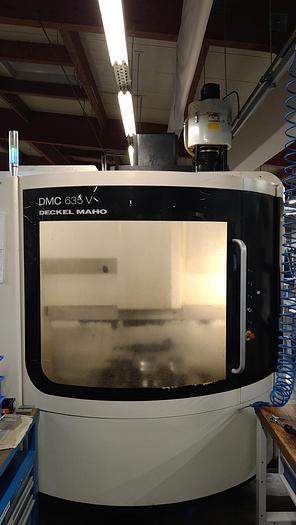

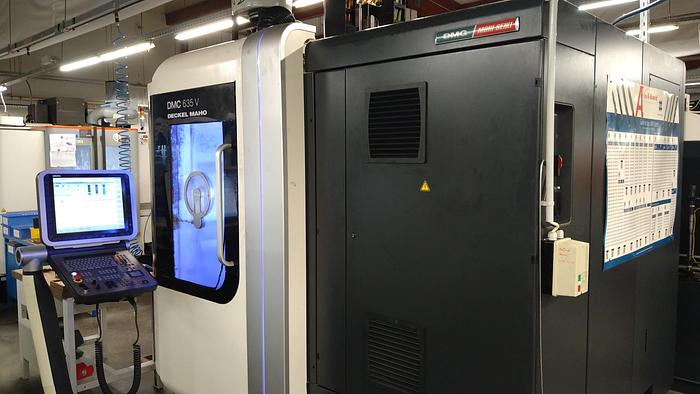

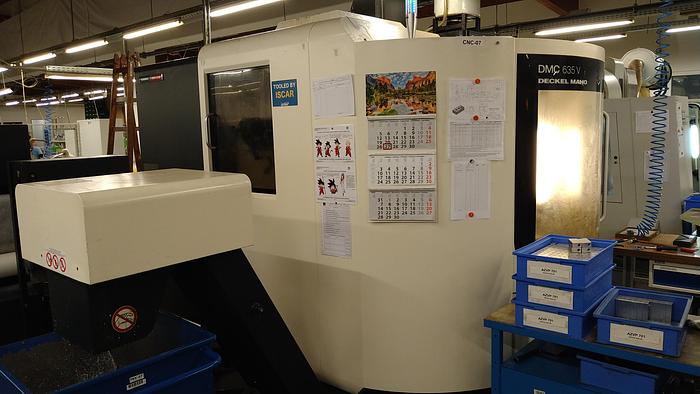

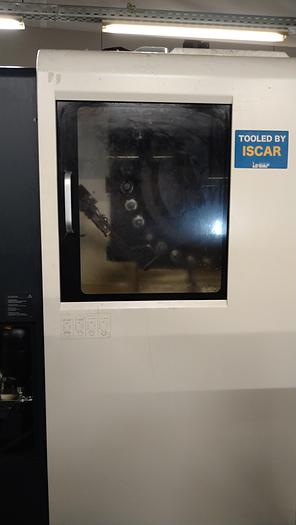

2013 DMG DMC 635 V-PW

DMG DMC 635 V-PW

Range of motion (mm)

X

635

Y

510

Z

460

High-speed runs Speed (m/min)

X

30

Y

30

Z

30

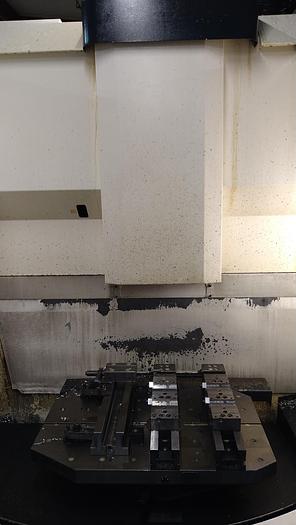

Pallet size (mmxmm)

800x500

Number of pallets (pcs)

2

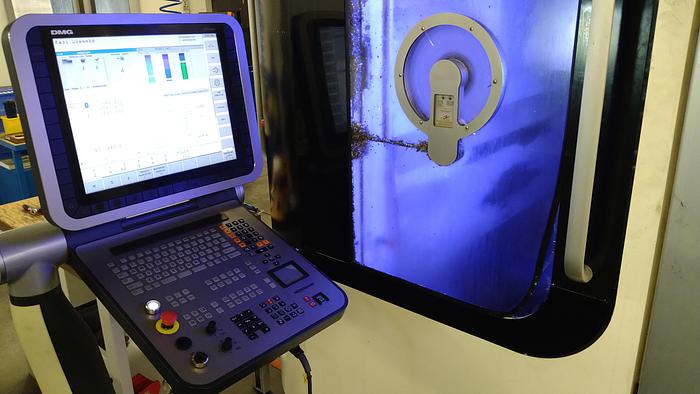

Operation language

Heidenhain ITNC 530

Main spindle speed (1/min)

14000

Termination of the main spindle

ISO-40

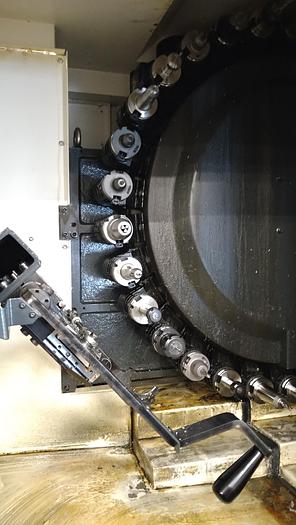

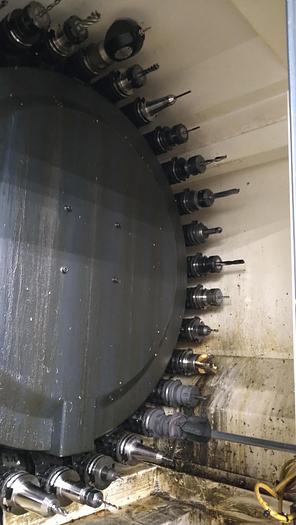

Tool magazine

30

Cooled by the main spindle (bar)

40

External air cooling

yes

Cooling water system

External tank (700l)

Filtering of cooling water with paper filter

Electric manual wheel

available

Rotating inspector (visiport)

available

Status indicator light

present

Working area washing gun

available

Oil mist extraction

available

Scraper belt conveyor for chips

Switch-on time (h)

34879 (as of September 2022)

Spindle time (h)

27260 (as of September 2022)

Weight (kg)

5 500

Year of manufacture

2 013

currently operating machine is in perfect technical and aesthetic condition. The main spindle was replaced in 2010 and in 2018. The X-measuring system was replaced in 2013. The machine has been maintained according to regulations (worksheets are available). The machine works in two shifts, mainly for drilling operations in aluminum raw materials.
