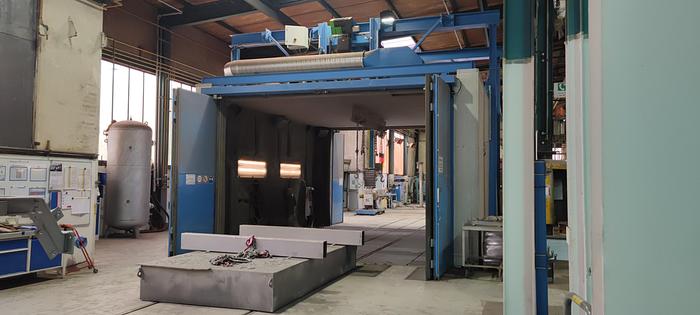

2017 Rump Freeblast

No longer available

2017 Rump Freeblast

Munich, Germany

Description

Free jet system, type 10

Length: 7.000 mm

width: 6.000 mm

height: 3.500 mm

for manual blasting of steel bogies

Free blast machine,


1 1,00 piece free blasting unit

consisting of:

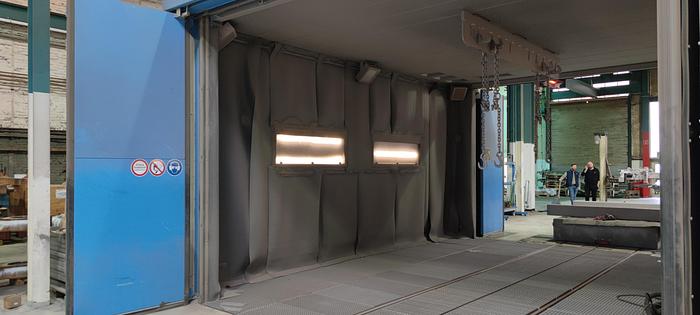

1.1 1,00 piece blasting house


consisting of a frame construction to accommodate the

wall cladding and the ceiling, complete with latch for gates.

Cladding of the walls with LL60 ISO sandwich panels (60mm).


1.2 1,00 piece rubber lining


Lining of the walls 3.5 m high with 4 mm thick black

sandblasted rubber, suspended, including the required

fasteners, total area approx. 49 m2.

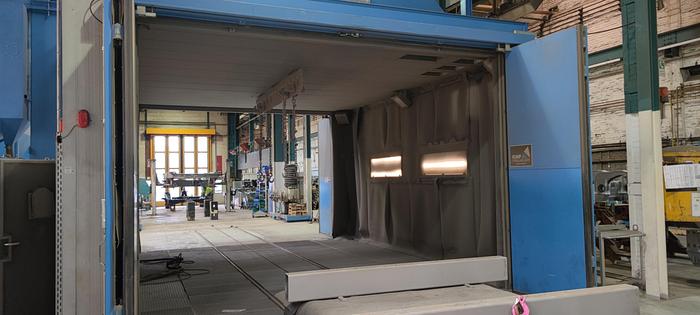

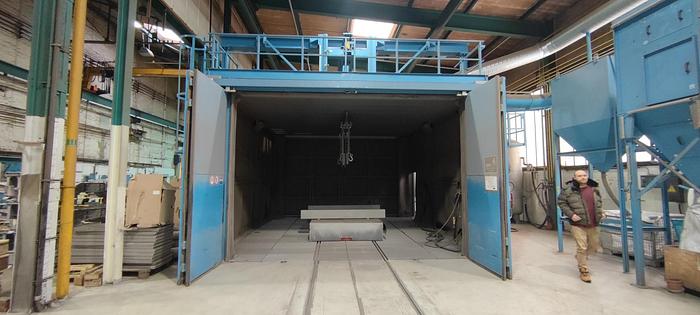

1.3 2,00 pieces folding sliding gate

with rubber lining,

width: 5.000 mm

height: 5.000 mm

number of wings: 4 pieces

Gate structure in double-walled design with mineral wool filling, incl.

gate frame.

Safety limit switch for locking the jet device when the gate is open.

gate is open.

1.4 1,00 piece wicket gate

width: 1.000 mm

Height: 2.000 mm

Door structure in double-walled design with mineral wool filling, including door frame.

gate frame. Safety limit switch for locking the jet device when the door is open.

when the door is open.

Viewing window with manually opened rubber protective cover.

1.6 1,00 piece Flat conveyor floor


for flat return conveying of the blasting medium, consisting of:

Conveyor tracks with longitudinal beams made of IPE profiles, which at the same time are used for the

to accommodate the pusher and the grating.

The middle IPE profiles are used to support a pair of rails,

track gauge 1,435 mm, including fastening material for mounting the rails.

of the rails.

The pushers suspended between the aforementioned girders with

easily replaceable sliders made of profiled sheet steel.

The pushers are moved linearly by pneumatic cylinders, which are also included in the delivery.

Pneumatic cylinders moved linearly.

Technical data:

Number of conveyor tracks: 5 pieces

Stroke length approx.: 800 mm

frequency approx.: 3 working strokes/min

Compressed air requirement approx.: 19 m3/h per track at 6 bar

Length: 7,000 mm

width: 6.000 mm

Foundation depth approx. 400 mm



Find more here - https://www.ucymachines.com/

Specifications

ManufacturerRump
ModelFreeblast
Year2017
ConditionUsed
