2005 ERSA HotFlow 2/14

No longer available

2005 ERSA HotFlow 2/14

Cologne, Germany

Description

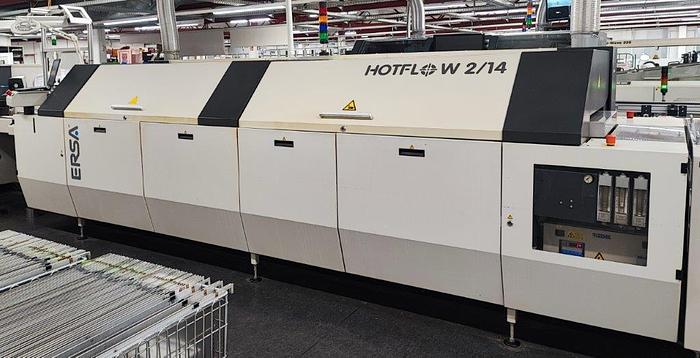

Ersa HotFlow 2/14 (year 2005)

Reflow Soldering with Flexible Profile Set-Up and

Integrated Process Management


Basic configuration 5 heating zones 2 cooling zones TOP/BOT side separately adjustable


Pin chain transport

Center support

Nitrogen equipment without residual oxygen measurement

Ext. cooling unit f. condensate traps and outlet cooling zones

PCB tracking

SMEMA interfaces



The machines have been running in 1-2 shifts since 2008. Every month


maintenance has been carried out according to the manufacturer's specifications.


Specification

Preheating zones 5 top / 5 bottom

soldering zones 2 top / 2 bottom

belt width 50 - 505 mm

passage height +35 / -25 mm

transport speed 20 - 200 cm/min

Process chamber width 700 mm

process zone length, total 3440 mm

heating zone 2570 mm

Cooling zone 870 mm

Infeed/outfeed zone 700 mm

Dimensions and other data

Dimensions LxWxH(open) 4840 mm x 1500 mm x 1530 mm (2040 mm)

Weight approx. 2200 kg

Power supply 3 x 400V, N, PE

Power 45 kW - 63 kW

Ambient temperature max. 35°C (95°F)

Nitrogen consumption 0 - 30 m³/h

Nitrogen pressure min. 6 bar

Sound level <64 dB (A)


Dimensions (Basic machine):

Length: 4,840 mm (191")

Width: 1,500 mm (59")

Height: 1,370 - 1,500 mm (54" - 59")

Heigt (open): 1,890 - 2,010 mm (74" - 79")

Weight: approx. 1,950 kg (4,300 lb) incl. all options

Paint: RAL 7035 / 7016



Find more here - https://www.ucymachines.com/

Specifications

ManufacturerERSA
ModelHotFlow 2/14
Year2005
ConditionUsed
