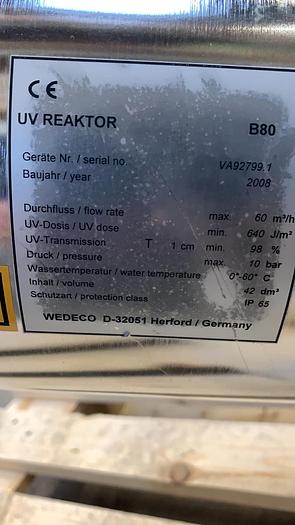

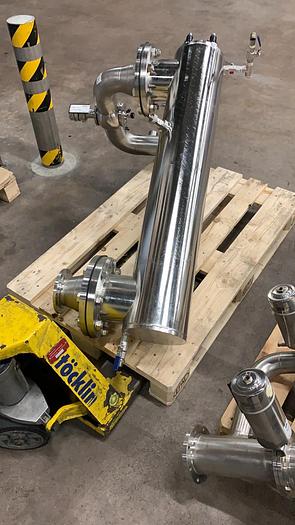

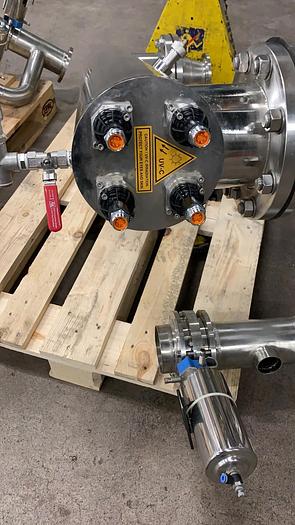

2008 Wedeco B80 UV system

UV system

unused / never used

Subject: UV system

Purpose: disinfection and protection of treated beverage water

Quantity: 1

Medium: Beverage water after activated carbon filtration

Transmission: 98

Flow rate: max 60 m3/h

Pressure: max 10 bar

UV-C dose > 600 J/m2 at 254 nm after 8000 h

Housing: stainless steel / electro-polished

Installation: indoor

Ambient temperature: 5-30 °C

Documentation: French/German

Labeling: French/German

Delivery date: October 2008

Accessories:

- With sampling tap of stainless steel

- Built-in UV-C sensor for wave selective UV control

- De-aeration and draining plug

- Internal water distribution system for special by-pass of the flow

- Low pressure lamps in protective tube of quartz

Electronic control with:

- Digital indication for operation hours,

- Intensity of radiation, indication in % and mW/cm2,

- Adjustable limit values for cleaning (pre-alarm) and fault (lamp exchange)

- Signal lights “Betrieb“, “Reinigung“ and “Fehler“ (also in french language)

- Push-button switch for “On“ and “Off“

- Potential-free contacts for fault signalling

- Possibility to control an external solenoid valve

- Installed in painted steel enclosure with pre-assembled connection cables
