2000 DECKEL MAHO DMC 63 V
2000 DECKEL MAHO DMC 63 V
Regensburg, Germany
Description

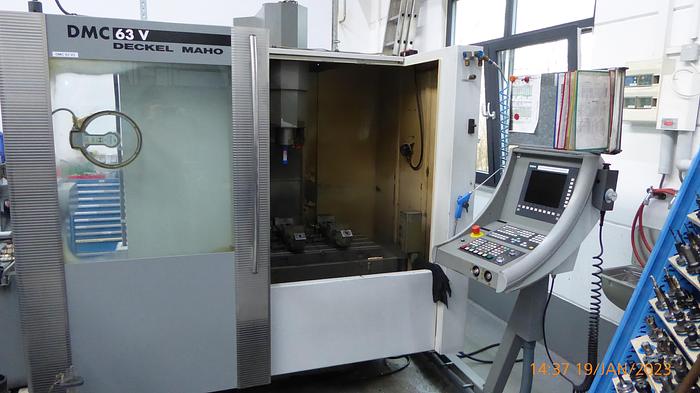

Vertical machining center DMC 63 V
Year of manufacture 2000
X = 630 mm, Y = 500 mm, Z = 500 mm
speed range 1 - 10.000 rpm
9/13 kW at 100 / 40 % ED
tool magazine with 24 places

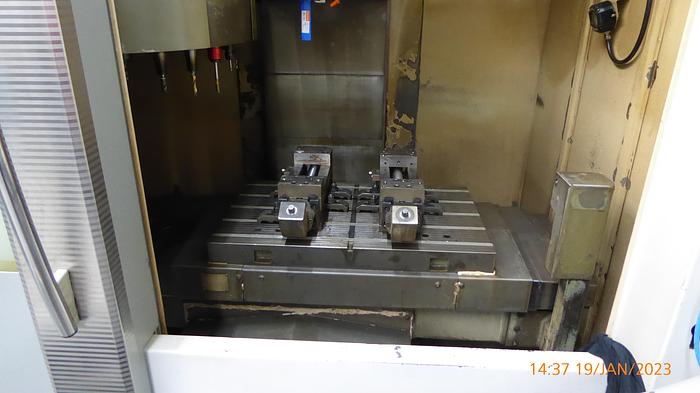

table 800 x 500 mm,
electron. handwheel, 3D path control
400 V, 50/60 Hz version
3D contouring control SINUMERIK 810D
User interface ShopMil
Extension package DMG-Netservice for machine networks per machine
Control: Siemens SINUMERIK
Drill breakage control and tool length and diameter measurement in the working area via laser
Direct path measuring system
Positioning accuracy according to VDI/DGQ 3441
in X-, Y-, Z-axis 0.010mm absolute
Internal cooling lubricant supply 15 bar centrally through spindle (201/min, 15 bar)

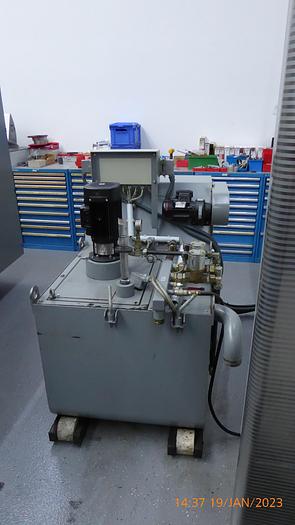

Cooling lubricant system
Cooling unit blowing air (from outside via 2 pipes)
Oil mist separator
Operating mode 4
Gross weight approx. 4,900 kg
Dimensions [cm] 330 x 242 x 270
Machine accessories in a box:
Vices and various tool holders
(see listing)
dimensions 960x550x530
14x ER16 with collet 6
1x ER16x100 with collet 6
1x ER16x100 with collet 4
5x ER16 with collet 4
4x ER16 with collet 3
3x ER16 with collet 10
1x ER16 with collet 7
1x ER16x100 with collet 2
1x ER16 with collet 2
2x ER16 with collet 8
1x ER16 with collet 1,5
1x ER16 with collet 5
1x ER16 with collet 2.5
2x ER16 without collet
7x SK40 with Ø12, 7x SK40 with Ø16, 7x SK40 with Ø10
1x SK40x100 with Ø10
11x SK40 with Ø6
1x SK40x100 with Ø6
6x SK40 with Ø8
1x SK40x100 with Ø8
4x SK63 with Ø20
2x SK40 with Ø14
1x SK40 with Ø25
1x SK60 with Ø18
1x SK70 with Ø32
1x SK100 with Ø25
8x Compensating chuck 113-112
5x ER25
1x ER32
2x drill chuck
1x surface clamping mandrel
2x vice with accessories
1x digital 3D probe
Find more here - https://www.ucymachines.com/
Specifications
Manufacturer | DECKEL MAHO |
Model | DMC 63 V |
Year | 2000 |
Condition | Used |
