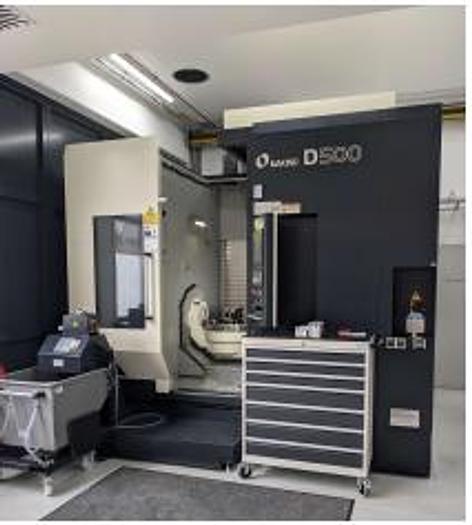

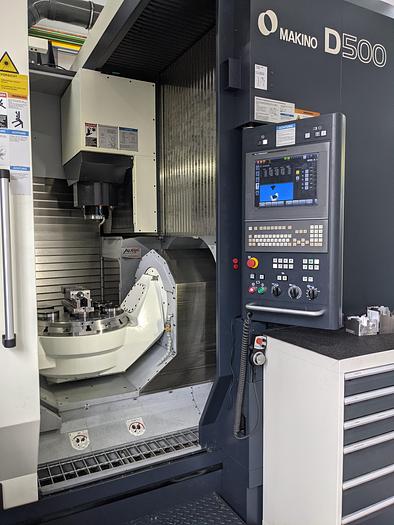

2019 Makino D500

Milling machining center with 5 axes

The machine was purchased in 2019 and was used exclusively for demonstrations and trials, so it has not experienced normal everyday workshop use. Accordingly, the operating hours are low.

Maschinentyp: (type) D500

Betriebsspannung: (operation voltage) 400V 3~ / 50Hz

Gesamtnennstrom: (nominal current) 90A

Zuleitungsquerschnitt: (size of lead wire) 35mm2 Cu

Absicherung der Zuleitung: (mains supply fuse) 100A träge (idle)

Technical data:

Category : Milling machines

Manufacturer : Makino

Machine control : Pro6

spindle; tool holder : HSK A63

Tool changer places : 80

X-travel : 550 mm

Y-travel : 1000 mm

Z-travel : 500 mm

Number of axes : 5

Year of manufacture : 2019

Machine overhauled/checked (year): Demo machine / as new

Condition : tested

Equipment : Probe Marposs

Tool laser Blum

Minimum quantity lubrication

Linear scales in X,Y,Z

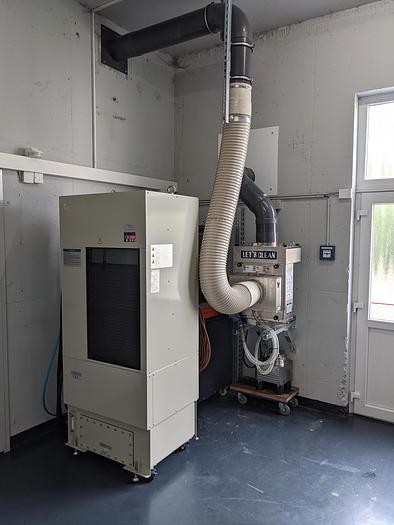

Coolant suction

Signal light 3 colors

spindle 20.000 rpm

robot door , IKZ 15 bar , air through the spindle

Transport dimensions:

Height: 3200 mm

width: 3300 mm

length: 2900 mm

Weight: 15700 kg

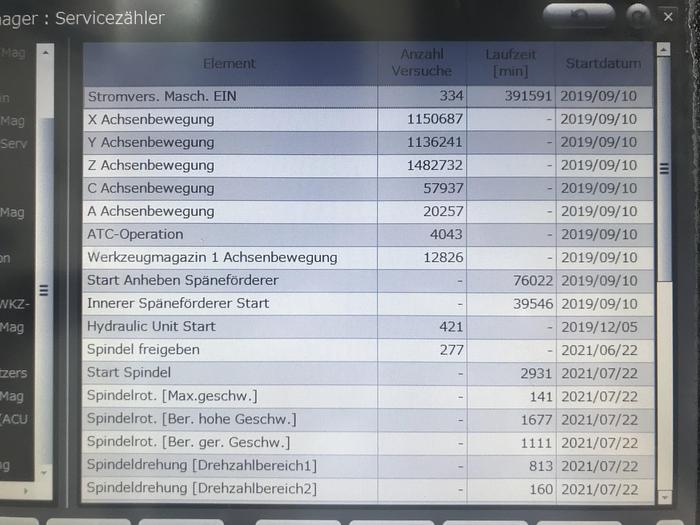

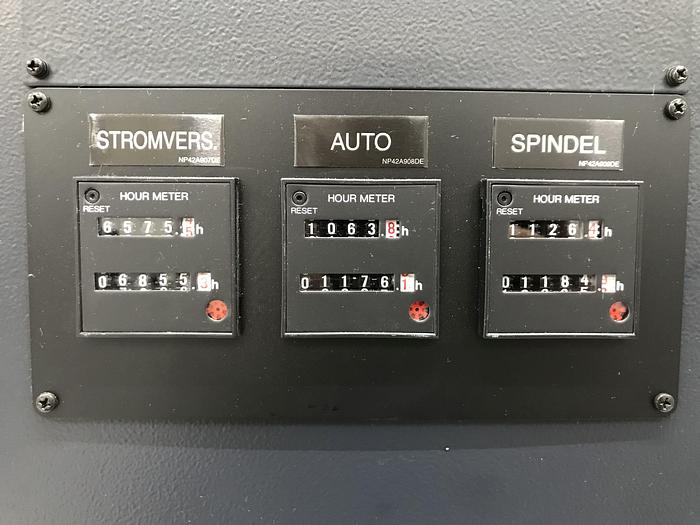

The machine was in irregular use until the week before last and delivered the usual results. Due to the low spindle and running hours and the use as a demonstration machine, there should be no concerns about the condition of the machine.

The 2019 Makino D500 is a high-speed vertical machining center that is designed for precision and productivity in a variety of manufacturing applications. This machine is engineered with advanced technology to deliver high performance and efficiency, making it an ideal choice for a range of machining needs.

The Makino D500 features a compact design with a work envelope of 500mm x 500mm x 500mm, making it ideal for machining small to medium-sized parts. It is equipped with a high-speed spindle that can achieve speeds of up to 20,000 RPM, allowing for fast and accurate machining of a wide range of materials.

One of the standout features of the Makino D500 is its advanced control system, which allows for easy programming and monitoring of the machining process. The machine is equipped with a Fanuc 31i-B5 control system and a 19-inch touchscreen display, providing users with an intuitive interface for programming and controlling machining operations.

In addition, the Makino D500 includes a range of advanced features to enhance precision and productivity, including a high-accuracy linear scale feedback system, a thermal compensation system, and a high-pressure coolant system.

Overall, the Makino D500 is a powerful and versatile vertical machining center that combines advanced technology, precision engineering, and user-friendly controls to deliver high performance and productivity in a compact package.
