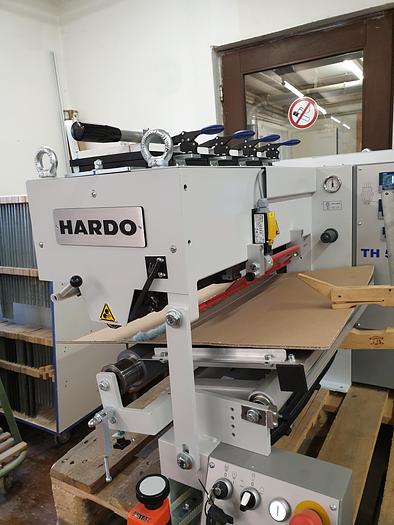

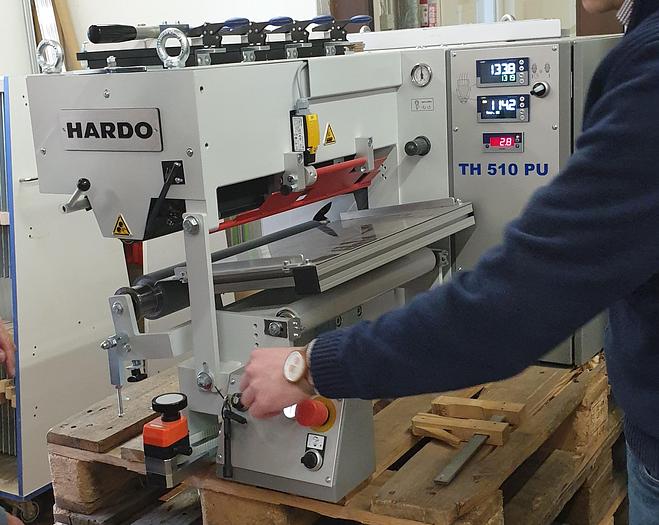

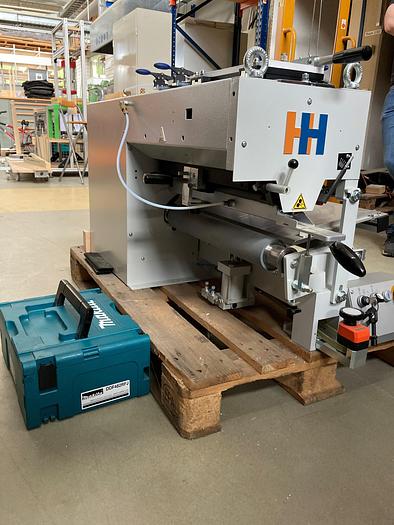

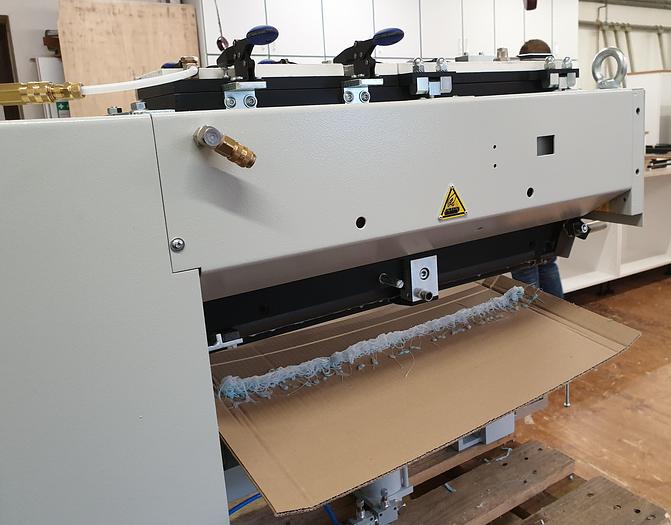

2019 H&H Gerätebau GmbH HARDO Thermo 510 PU

Condition: New (after acceptance from the manufacturer in 2019, the machine was no longer used as production and research did not take place as planned).

Location: In the laboratory of the Ostwestfalen-Lippe University of Applied Sciences, Lemgo

Type: HARDO-Thermo 510 PU roller coating machine

Manufacturer is H&H Maschinenbau. Hardo is the former distributor. (Sign on the machine was changed by H&H)

- For the application of reactive polyurethane hotmelt

- Max. Application width: 510 mm

- Diameter of the application roller: 37.5 mm

- Application element Teflon-coated

- Knurling of the application roller: 1.5 mm non-stick coated

- Melt tank Teflon-coated, volume approx. 12 litres

- Silicone-coated pressure roller, pneumatically operated, lowers automatically after the drive motor is switched off

- Material passage height between application roller and pressure roller: 0-50 mm

- Airtight sealing tank cover with:

- 1" connection for supply with molten hotmelt

- Brass feed-through for the probe of a level control system

- Connection with stainless steel overflow valve for dry air and protective gas

- Machine in right-hand version (i.e. material flow direction from right to left)

- Gear motor with a fixed speed between 1-24 m/min

- Timer for automatic heating with daily and weekly programme

- Electronic temperature control

- Heating power 4.0 kW

- Connection 400 V, 3 Ph + N + PE, 50 Hz

Control of the application speed via a frequency converter

- Speed range: 5-30 m/min

- Control by means of potentiometer

- Digital display of speed

Adjustment of the material passage height via a handwheel, with digital display

Small support table, attached to the pressure roller arm

- Dimensions (L x W) 300 x 510 mm

- Adjustable side guide on both sides

The H&H Gerätebau GmbH HARDO-Thermo 510 PU is a high-performance machine designed for hot water high-pressure cleaning applications. Here are the specifications for this machine:

The HARDO-Thermo 510 PU is a robust and reliable machine that is suitable for a wide range of industrial cleaning applications. Its high-pressure and high-flow capabilities make it ideal for tackling tough cleaning tasks, while its efficient heating system ensures that hot water is readily available for effective cleaning. The digital control panel and automatic start/stop system make it easy to operate, and its compact size and robust construction make it a versatile and dependable machine for industrial cleaning applications.
