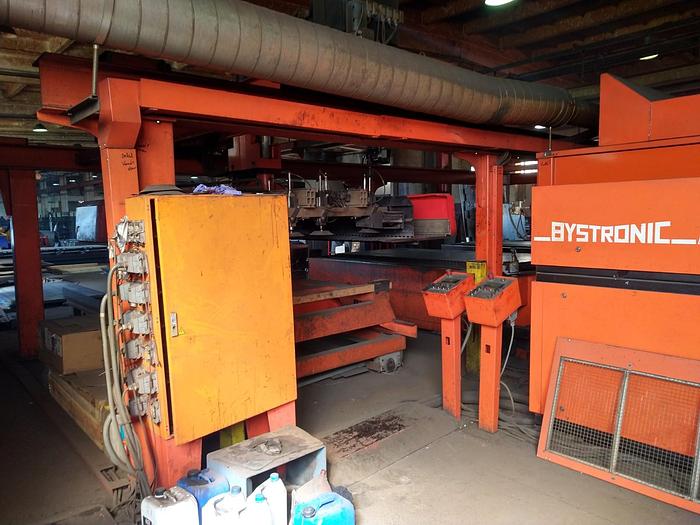

2000 Bystronic BTL 4000

Bystronic laser system with loading and unloading system

Will be available in autumn.

2000 Bystronic BTL 4000 laser cutting machine:

Machine Description:

• The BTL 4000 is a CNC laser cutting machine designed for high-speed and high-precision cutting of various materials such as metal, plastic, and wood.
• The machine is equipped with a large cutting bed that allows for the processing of sheet sizes up to 4000 x 2000 mm, making it ideal for large-scale industrial applications.
• The machine has a gantry design with a flying optics system, which ensures high accuracy and stability during cutting operations.
• The BTL 4000 uses a CO2 laser source with a power output of up to 4000 watts, allowing for fast and efficient cutting of a wide range of materials.
• The machine is operated using a user-friendly control panel and features a graphical interface for easy programming and operation.

Technical Details:

• Laser type: CO2
• Laser power: 4000 watts
• Maximum sheet size: 4000 x 2000 mm
• Maximum material thickness:Mild steel: 25 mm
• Stainless steel: 20 mm
• Aluminum: 15 mm
• Cutting speed:Mild steel: up to 35 m/min
• Stainless steel: up to 25 m/min
• Aluminum: up to 25 m/min
• Positioning accuracy: +/- 0.1 mm
• Repeatability: +/- 0.05 mm
• Maximum simultaneous positioning speed: 140 m/min
• Machine weight: approx. 15,000 kg
• Machine dimensions (L x W x H): 10200 x 5700 x 2250 mm

Overall, the 2000 Bystronic BTL 4000 is a powerful and efficient laser cutting machine suitable for a wide range of industrial applications. Its large cutting bed, high laser power, and precise positioning and cutting capabilities make it an ideal choice for manufacturers and fabricators in need of high-quality laser cutting solutions.
