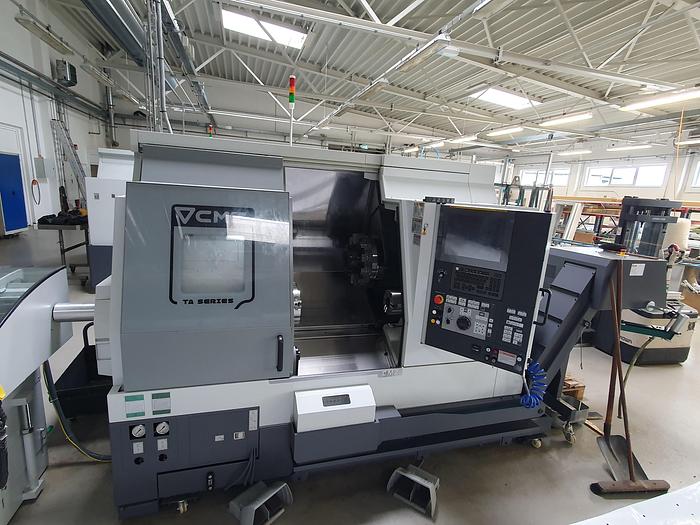

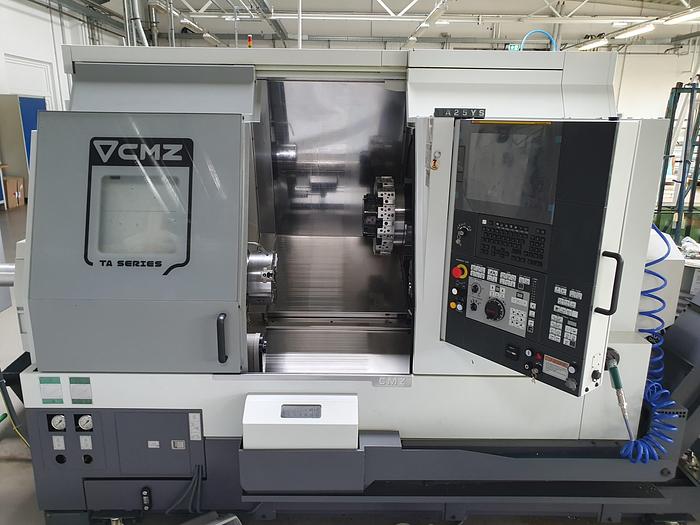

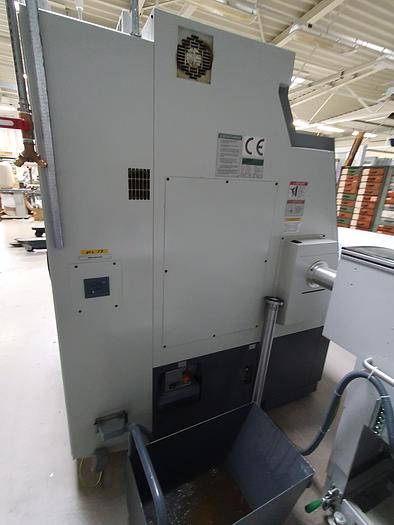

2020 CMZ TA 25 YS640

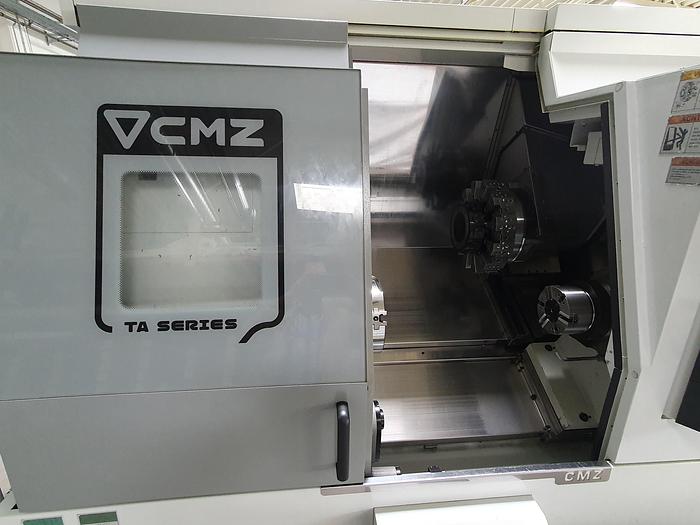

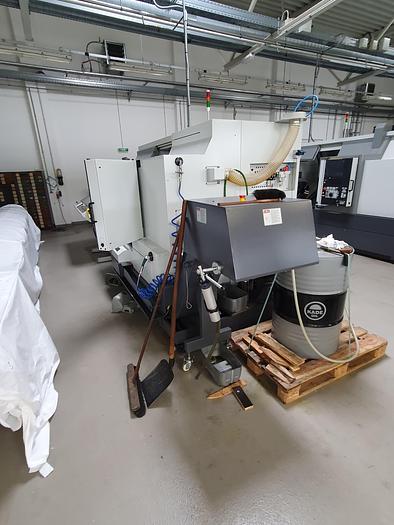

CMZ CNC Lathe Model:

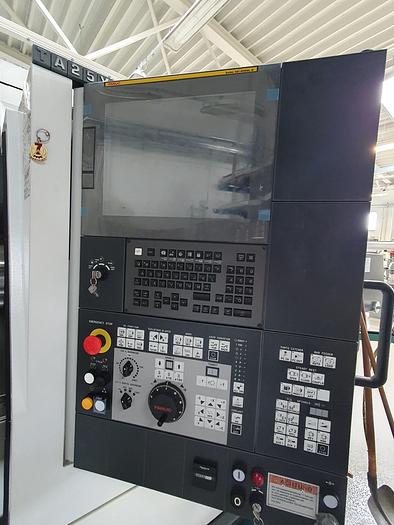

TA-25-YS-640/Fanuc 32iTB control with 15 "touch screen and new iHMI.

Standard equipment for TA series:

Interpolating and bidirectional compensation of mechanical errors by laser measurement.

Main spindle:

Oil-cooled main spindle unit

Foot pedal for opening and closing the chuck

Load indicator for main spindle motor

Safety device against chuck opening in case of hydraulic pressure drop

C-axis on main spindle (TA-15/20/25/30-M,Y,TM,TY,MS and YS):

Full C-axis with positioning and clamping every 0.001 degree

Direct encoder system for maximum precision

Hydraulic disc brake for C-axis

Switching from spindle to C-axis mode without approaching the zero point

Counter spindle (TA-15/20/25/35 -S,MS and YS)

Oil spindle cooling

Full clamping cylinder

Foot pedal for opening and closing the chuck

Load indicator for spindle motor

LPS in counter spindle

Safety device against chuck opening in case of hydraulic pressure drop

C-axis on counter spindle (TA-15/20/25/35-MS and YS):

Full C-axis with positioning and clamping every 0.001 degrees

Direct encoder system for maximum precision

Hydraulic disc brake for C-axis

Switching from spindle to C-axis mode without approaching the zero point

Spindle synchronization (TA-15/20/25/35 -S,MS and YS)

High speed spindle synchronization via optical fiber cable (incl.

angle synchronization in TA-15/20/25/35-S,MS and YS)

Part transfer to counter spindle with programmable transfer pressure via B-axis

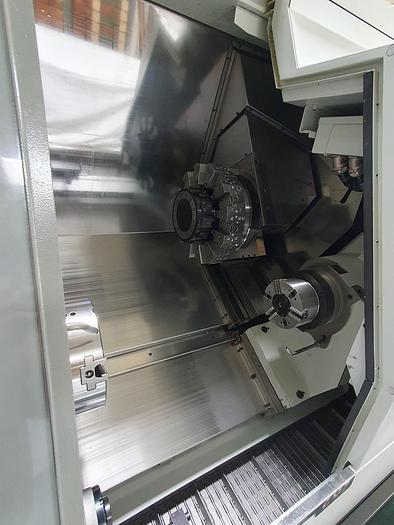

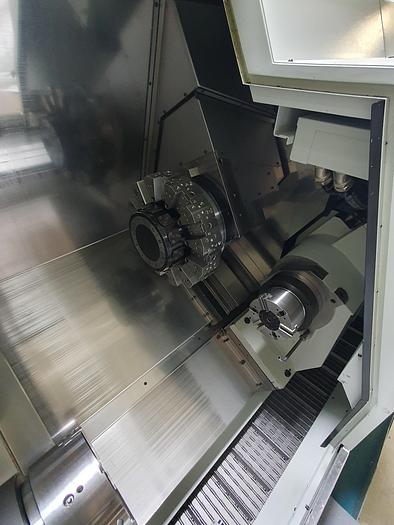

Tool turret:

12 positions servo turret with hydraulic clutch

Locking of turret disc via 3-fold toothed rim, 230 diameter

Changeover time 0.15 sec. (station to station) due to switching without lifting the

turret disc

Driven tool (TA-15/20/25/35-M,TM,Y,TY,MS and YS)

Driven by Gleason gearing (curved gearing), hardened and ground

Direct tapping / Rigid tapping

All stations driven

Helical interpolation (circular interpolation in 2 axes and simultaneous linear interpolation with a third axis)

interpolation with a third axis) GOM704A2600

Miscellaneous:

Electronic handwheel

Parts counter

Complete hydraulic equipment and installation

Automatic lubrication system

Safety monitoring against malfunctions on the lubrication system

Extra pipe to discharge used lubricating oil. Thereby no

contamination of the coolant

Complete installation of coolant circuit with electrical system, pump and tank

Easy access for cleaning the coolant tank

Complete electrical installation at 400 volts 50 Hz

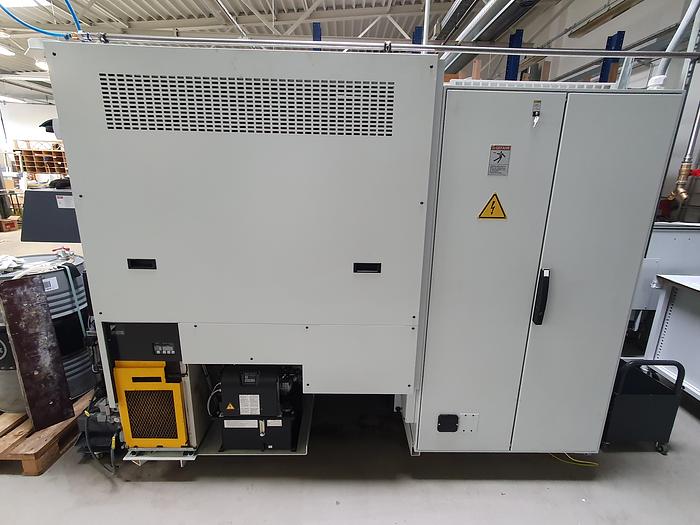

Heat exchanger on the control cabinet - thus no direct connection of the control cabinet to the outside air

outside air

Work area light

Unimag bar feeder software interface

Transport and lift kit incl. 3 Kevlar ropes

Closed splash guard

1 set of service tools

Operating manual (Operation and programming manuals)

Electrical diagrams and maintenance manual

Accessories for TA series:

Machine language German

G Codes type A in Fanuc control

Machine manuals in pdf format available for download on cloud.cmz.com

Tool turret standard with 12 positions

Hydraulic hollow clamping cylinder (standard) in main spindle (TA25 Autoblok VNK 150-67)

LPS in hydraulic cylinder of main spindle

Adjustable blow-off device for main spindle

BHD 250 3 jaw power chuck in main spindle with a set of soft top jaws

Hainbuch Nova Combi Axzug 65 (standard) Collet chuck for main spindle

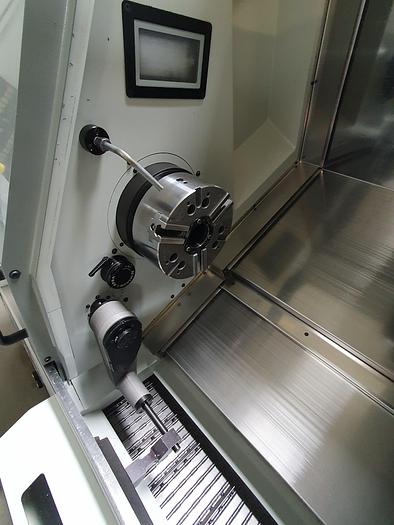

BBD 175 3 jaw power chuck for counter spindle with one set of soft top jaws

Hainbuch Nova Kombi Axfix 65 (standard) collet chuck for counter spindle

Tool presetter (tool presetter)

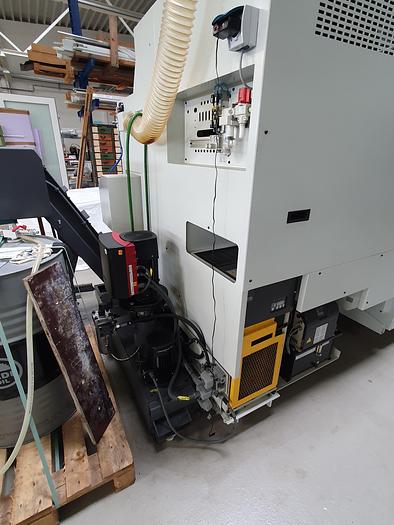

Side chip conveyor for Z=640 bed (standard version)

Machine status light

Tool life management

Tool load monitoring

High pressure coolant pump with three programmable pressure levels (35, 15 and 6 bar), incl.

replaceable 75 mm filter

Coolant wash nozzle

Programmable, automatic parts catcher (pneumatic) with conveyor belt

Interface for bar feeder (unimag)

Pneumatic ejector of counter-spindle with 100 mm adjustable travel

Coolant supply through counter spindle

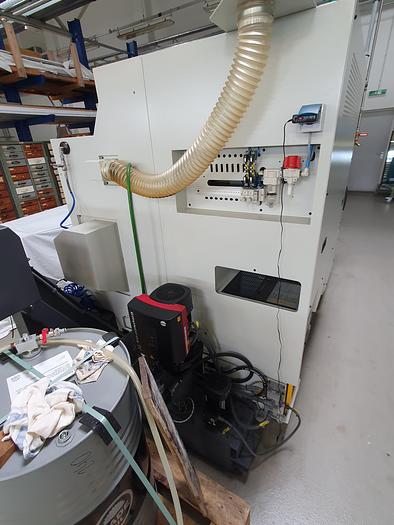

Preparation for suction, connection flange d=200

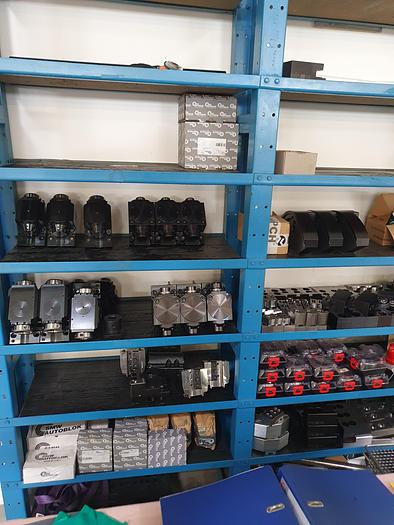

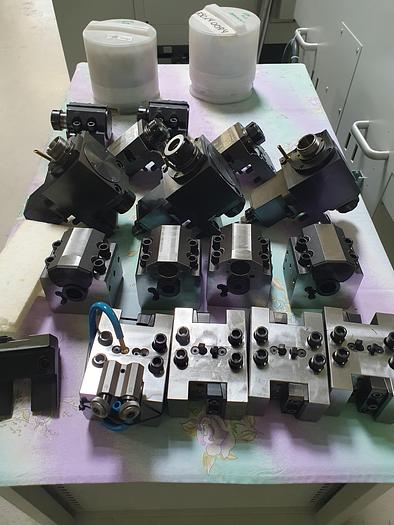

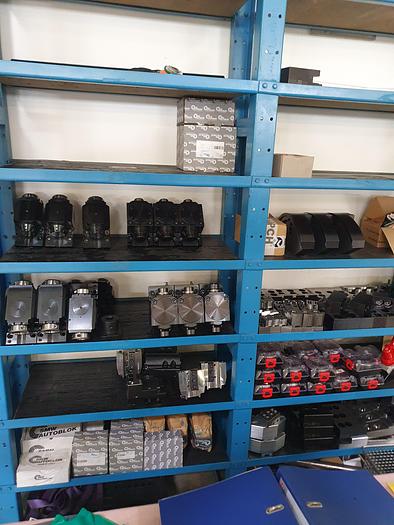

Optional tool holder

4 x holder for tools for counter spindle

Holder for parting tool

2 x holders for drilling tools 40 mm

2 x reducing bush d=25-40

2 x reducing bush d=32-40

4 x double boring bar holders d=32

2 x reducing bush d=10/32

2 x reducing bush d=12/32

2 x reducing bush d=16/32

2 x reducing bush d=20/32

2 x reducing bush d=25/32

3 x double axial holder AGW (max. 8,000 rpm)

2 x Radial holder for AGW with internal coolant supply (Max. 12.000 rpm)

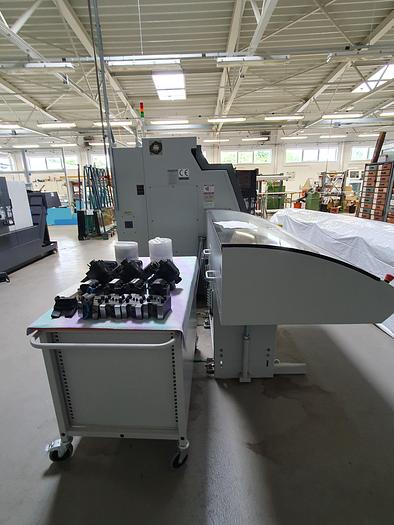

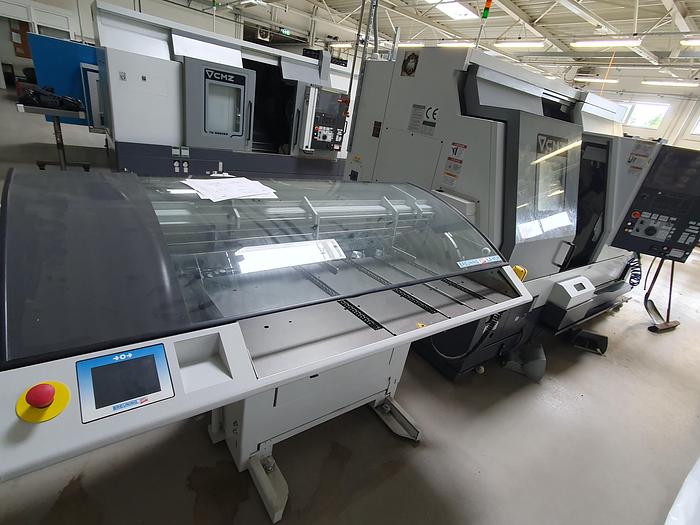

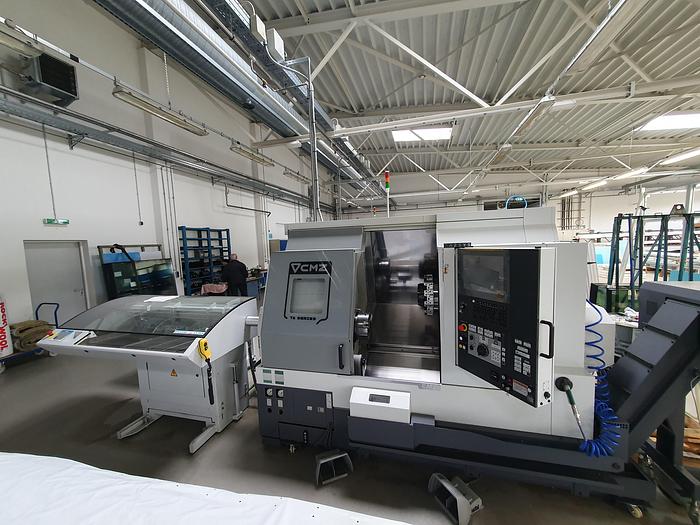

Loading magazine IRCO Breuning MUK 7012

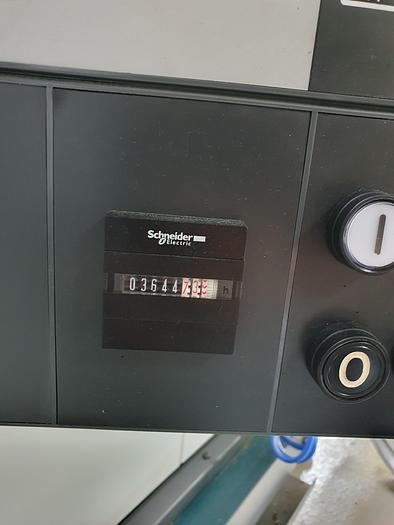

Counter reading as of 03/30/2023: 3,611 hrs, run in one shift

Year of manufacture of the machine, 2020
