2007 STÜRTZ Four-head welding line

Stürtz Four Head Welding Line Year 09/2007

Connection: 35A

Working pressure: 7 bar

line details:

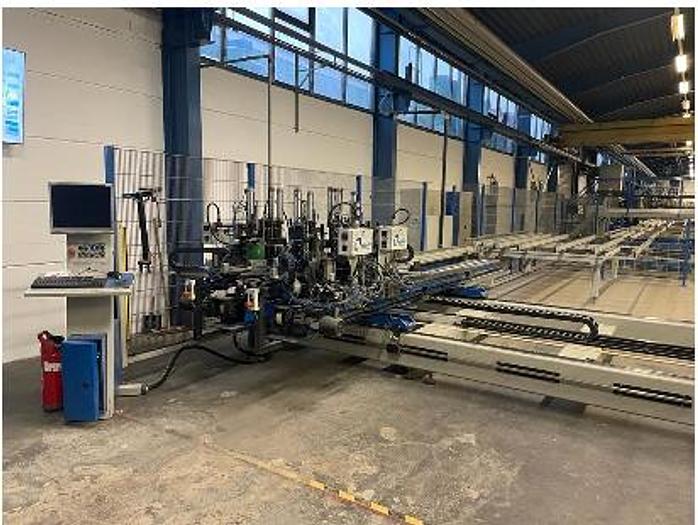

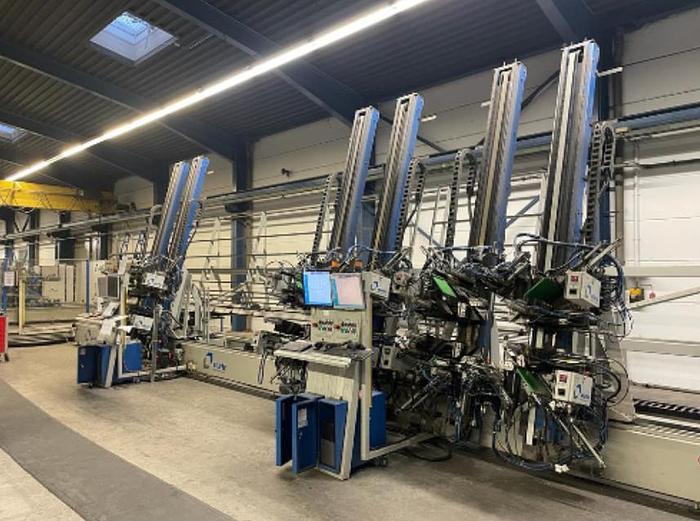

1.STÜRTZ Vertical four-head welding machine, frame

2.STÜRTZ Horizontal four head welding machine, wing

3.Stürtz 2 head SE-CNC-H

Horizontal frame cleaner

4.Stürtz 4 head-SE-CNC-H

Horizontal sash cleaner

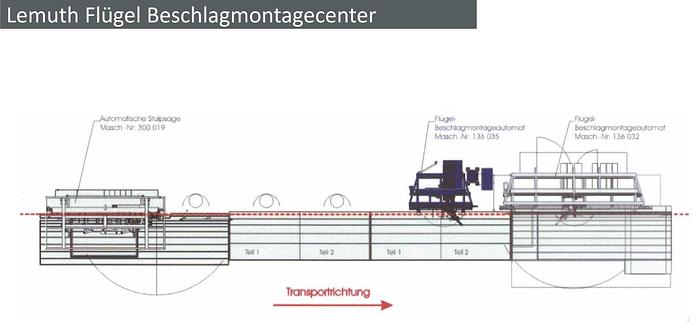

5.Lemuth 300 019

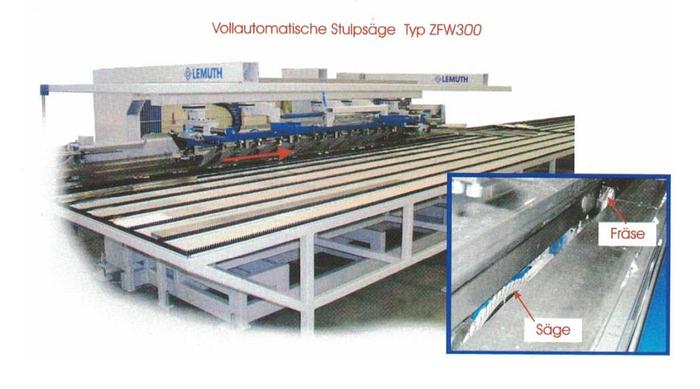

Fully automatic face saw

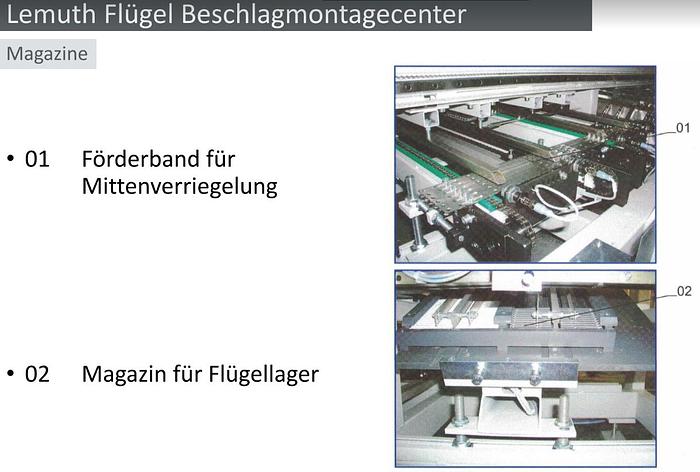

6.Lemuth 136 032 / 136 035

Sash fitting assembly center

7.Lemuth 136 033

Fully automatic fitting assembly center

8.Lemuth 330 021

Frame hardware assembly center

9.belt conveyor system/

Scissor lift table

With the vertical four-head welding machine, plastic profiles are welded at an angle of

automatically welded at an angle of 90°.

Three numerically controlled axes position the welding heads

according to the specified profile dimensions in the vertical direction.

All operating functions can be controlled by the operator via the screen control.

by the operating personnel.

After the desired machining programs have been set, the

new window profile dimensions are called up and the welding heads move to the corresponding position.

corresponding position.

The operator inserts the profile parts in two stages, which are then mechanically clamped and fused.

clamped and fused by machine. After the required cooling time

the welding heads open and the clamping unit moves back.
