2018 Huron VX10

HURON MACHINING CENTER - VX10

The VX series, specially designed to meet customers' criteria for precision and craftsmanship

and skill, is extremely intuitive and guarantees excellent profitability. Fast return on

investment. Compact, ergonomic, powerful and precise, the VX is the ideal investment for toolmakers and

for toolmaking and small to medium series production.

Ergonomic and accessible layout

- Movable table for easy access to the workpiece.

- Tilting operator panel.

- Easy accessibility to maintenance components, control of fluid levels and cleaning of work area.

cleaning of the work area.

WHAT MAKES THE DIFFERENCE

- Versatility and performance in various machining operations: milling, drilling,

reaming and threading

- High chip removal capacity thanks to machine rigidity and torque spindle

high

- Machining quality with a very high degree of precision in contours and

shape definition

- Easy to program with the ergonomic man-machine interface

- Excellent price/performance ratio

- Compact size

RIGIDITY AND CONSTANT PRECISION OVER TIME

- C-frame made of quality ribbed cast iron

- Wide base architecture with reinforced column to withstand cutting forces and absorb the effects of machining vibrations.

absorb the effects of machining vibrations

- Excellent dynamic performance for fast direction changes and acceleration

- Calibrated and pre-tensioned ball screws with direct motor coupling

MAIN FEATURES

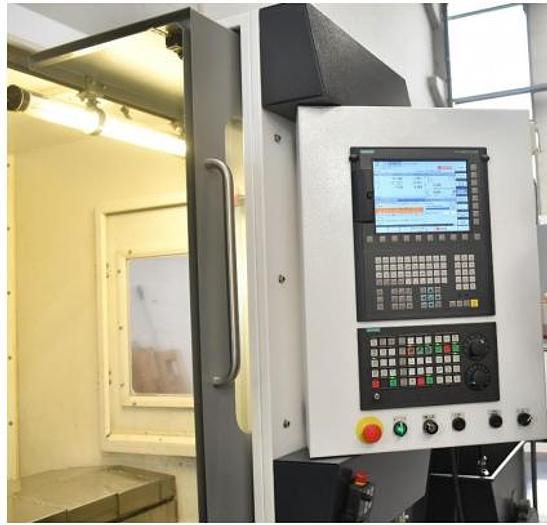

- SIEMENS 828D sl digital control

- Vertical spindle -> 10,000 rpm with Ceramic Bearings for better stability

stability

- Arbor cooling with oil

- Cone -> BT40

- Electrical System -> Voltage 400V +/- 10% / Neutral TN / Frequency 50Hz +/-2%

- X / Y / Z axis travels -> 1,020 x 510 x 510 mm

- Rapid feed rate X / Y / Z -> 24 m/min

- Table dimensions -> 1.200 x 530 mm

- Maximum table weight -> 800 kg

- Power / Torque (S1/S6) -> 10.5 / 14.5 - 50 / 69 (kW - Nm)

- Tool magazine with 20 positions

- Positioning accuracy (P) VDI 3441 X / Y / Z -> 0.015 mm

- Repeatability accuracy (mean Ps) VDI 3441 X / Y / Z -> 0.003 mm

- Machine weight -> 6,700 kg

- Width (doors closed + chip conveyor) -> 3,520 mm

- Depth -> 2.595 mm

- Height -> 2.900 mm

ACCESSORIES INCLUDED

- Air conditioning in the electrical panel

- Transformer for voltage stabilization

- Low-pressure pump for cooling 2 Bars-50 l/min with Cooling Canister

and nozzle outlet

- Pre-equipped for cooling from the center of the tool

- Swarf conveyor

- Digital rulers on all axes with air blower

- Air Blow Nozzles

- Handwheel

- Washing Gun

- Swarf Reservoir

- Integral fairing

- Leveling Feet

- Technical Documentation Kit

- Operator Station

- Electronic Centering Machine MARTEST 802EW - Mahr

- Press 175x400mm (x2) - ROHM

- Modular Cone SK40 AD - Rineck

- Modular Cone SK40 AD/B (x2) - Rineck

- Modular Cone SK40 9621275 - Rineck

- Thermal Cone SK40 KL60 6 - Depo

- Thermal Cone SK40 KL100 8 (x2) - Depo

- Thermal Cone 1004073 ø10 EXTRA-LONG - Depo

- Thermal Cone SK40-DC6-120 - Kojex

- Weldon Cone SK40 L80 25 - Depo

- Cone 904075/16 - Depo

- XHFD SK4024 8M Cone - Depo

- Cone 604073/6 - Depo

- Cone SK40 DIN69871 AD/B FM22 L35

- Cone SK40 FM22X55

- Cone SK40 FRESH SUPPORT ø22

- Cone SK40 LONG FRONT SUPPORT M12

- SK40 LONG FRONT SUPPORT M8 cone 704075/8

- Cone SK40 SFH 12120 AD+B

- Precision Bushing BF 40-16 - Depo

- Precision Bushing 40354 - Wte

- SK40 Hydraulic Collet Holder C32-105 w/Pieces 6 to 25

- Collet Holder w/Pinions 6/8/10 - Kojex

- Collet Holder ø50 WITH 3 TO 20 COLLECTORS (x2)

- Hanger ø40 WITH HANDLES FROM 4 TO 16

GENERAL CONDITION

- New equipment at the end of 2018

- After installation has only 4,635 hours of use

- The machine is in perfect working order and meets the strict factory specifications

factory specifications (Annex 1)

- Can be proven in operation
