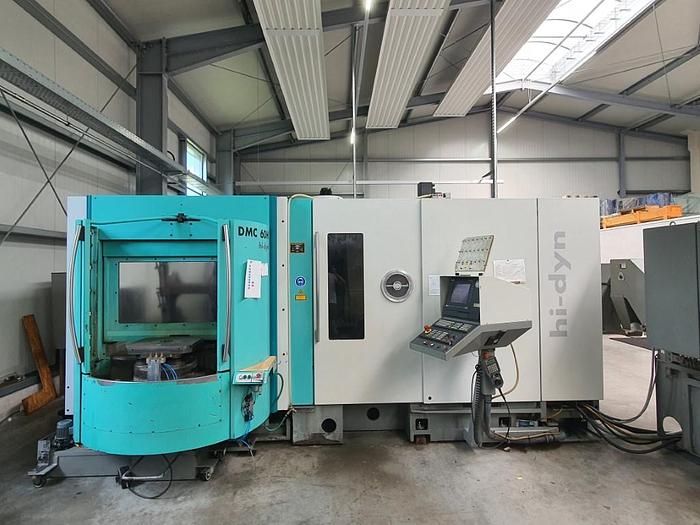

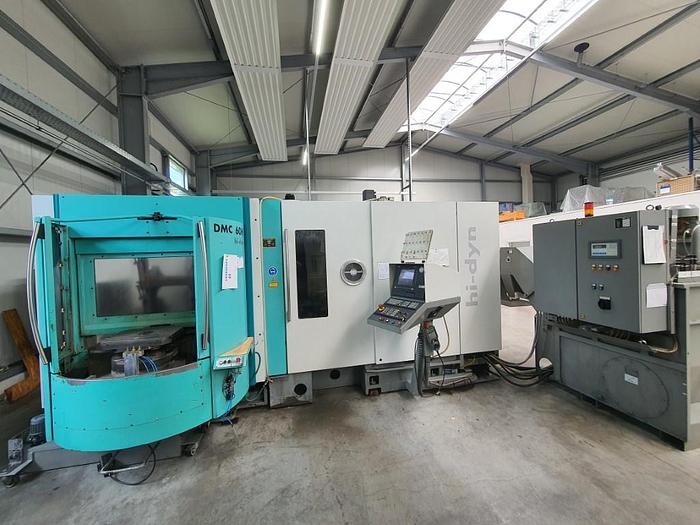

2000 DECKEL MAHO DMC 60 H hi-dyn

Machine designation: Machining center 4 axis

Manufacturer: DMG Mori

Model : DMC 60 H hi-dyn

Year of manufacture : 2000

Condition : Used

Description:

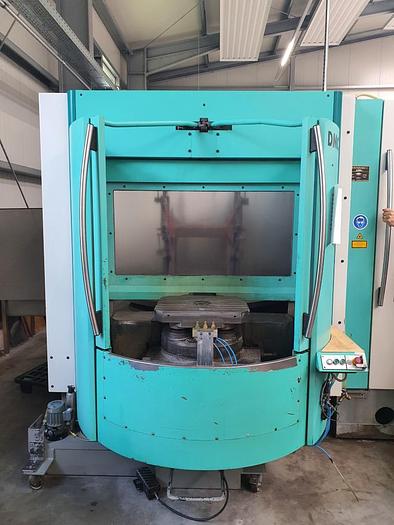

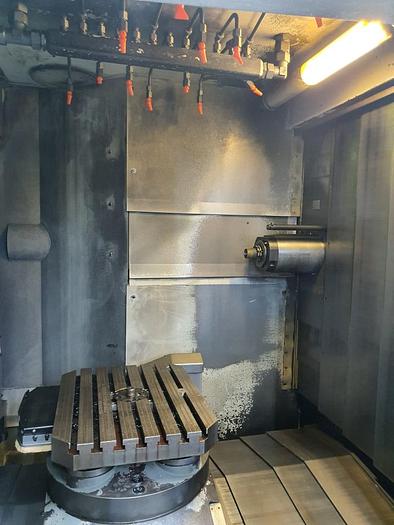

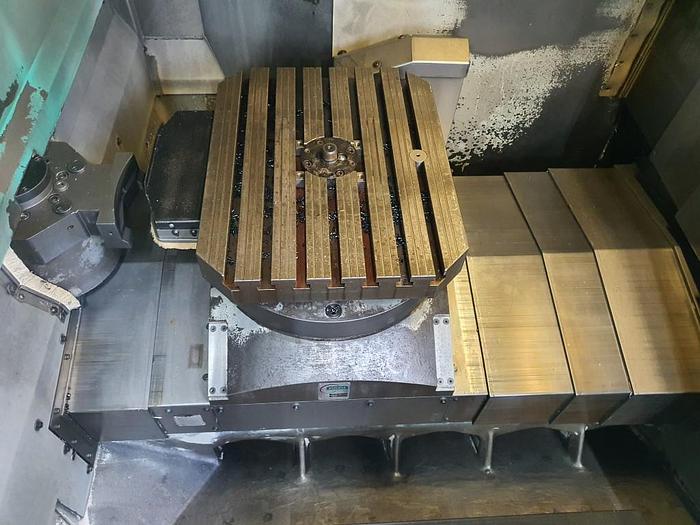

The machining centers are suitable for manual and automatic operation. The machine is equipped with

pallet turntable and loading station.

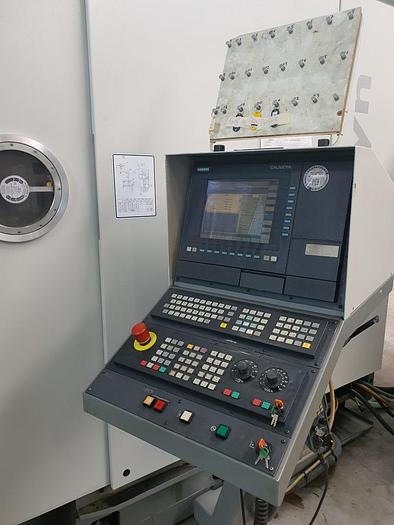

- SINUMERIK 840D powerline

- Technical documents and installation plan available.

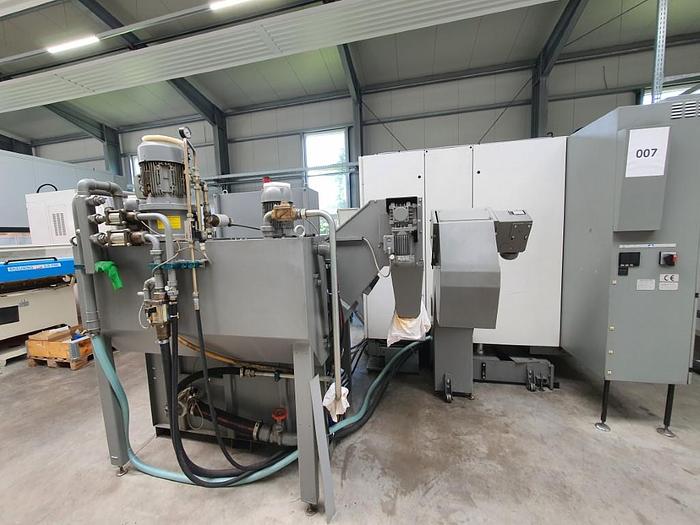

- Motor and pump for hydraulic system replaced

- The hoses replaced

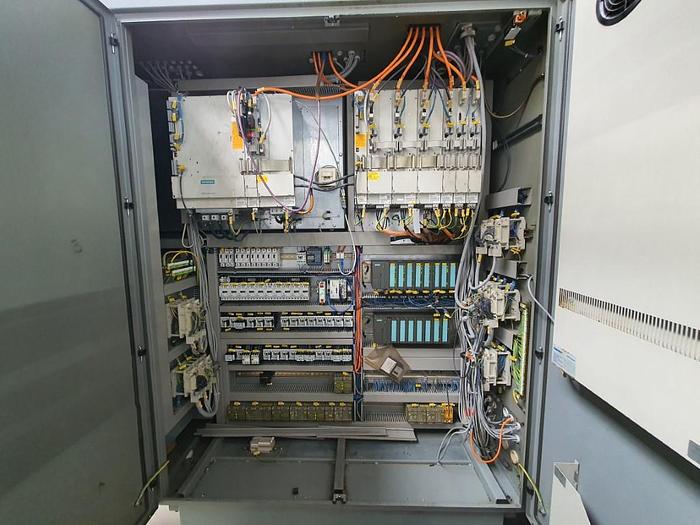

- In the control cabinet LI module exchanged

- Drum replaced on the Knoll system.

Technical specifications:

-------------------------------------------------

Machining center with chain magazine

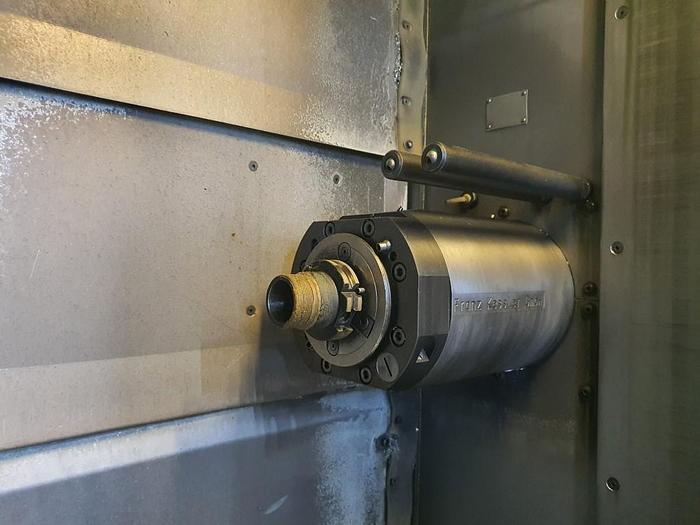

Main drive

Direct drive by speed-controlled asynchronous motor with liquid cooling

Speed continuously programmable: 0 to 8000 min-1

Torque

S1 - 100% ED max. 124 Nm

S6 - 40% ED max. 191 Nm

Motor power

S1 - 100% ED max. 13 KW

S6 - 40% ED max. 20 KW

Feed drive

speed: 1 to 60000 mm/min

rapid traverse: 60000 mm/min

Set-up speed: 1 to 2000 mm/min

Feed force

X and Z axis: 9600 N

Y axis: 8000 N

Position measuring system

Resolution: 0,001 mm (position tolerance according to VDU DGQ 3441)

Number of pallet: 2

Working range

Travel

X axis: 600 mm

Y axis: 560 mm

Z axis: 560 mm

B axis: 360

Transport data

Machine dimensions: L x W x H 4,5 x 2,4 x 2,4 m

Tool magazine (chain magazine)

Number of tool places: 90 / max. 450 kg

Chip transport

-------------------------------------------------

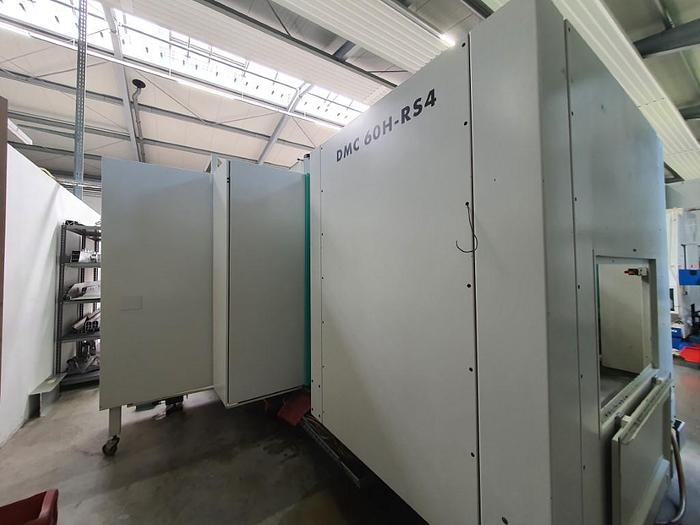

Pallet round storage "compact

Transport device

Rotation speed PSA axis: 3 min-1

Positioning time 1 x 90°: 3 sec.

Pallet change time: 6 sec.

Storage places number: 4

Set-up station

Pallet size - DMC 60 H/DMC 63 H: 400 x 500 mm

Loading height - DMC 60 H: 1100 mm

Permissible load per pallet with 1/2 loaded pallets: max. 350/600 kg

With loading on one side, the maximum workpiece weight must not exceed 350 kg.

Workpiece height - DMC 60 H: 770 mm

Workpiece width - DMC 60 H/DMC 63 H: (see collision space loading station)

Transport data

Transport weight (approx.) including cladding: 3 400 kg

Transport dimensions (approx.)

DMC 60 H: L x W x H 2.9 x 2.0 x 2.4 m

-------------------------------------------------

Overall dimensions of machine: L x W approx. 7 x 5 m
