1993 EVG GD6

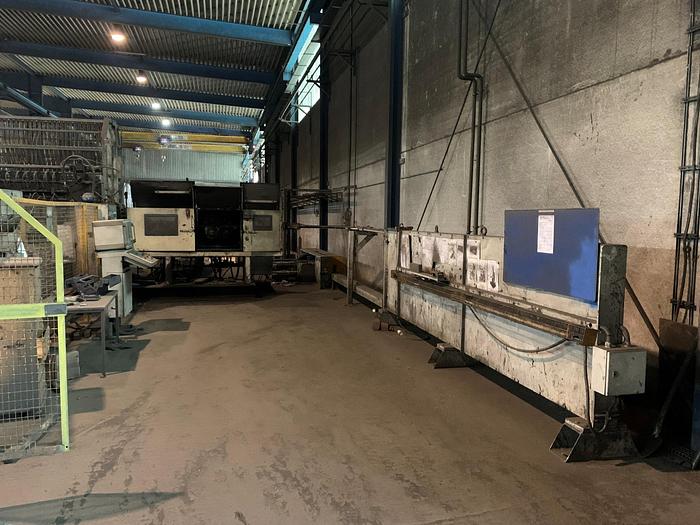

Grid welding machine GD6 / 96-HP8

mesh welding machine

WORKING DATA

Max. Mesh width (= max. cross wire length): 2300 mm

Max. Welding width: 2250 mm

Longitudinal wire spacing: 150 mm

Cross wire spacing: 100, 150, 200, 250, 300 mm

Line wires from ring: 4.0 - 10.0 m

Cross wires from ring: 4.0 - 10.0 m

Max. Total wire thickness: 20.0 m

Max. Double wire welding speed:

2 x 100 strokes/min = 200 QD/min, infinitely adjustable

Line features

• Mesh welding machine GD6/96-HP8

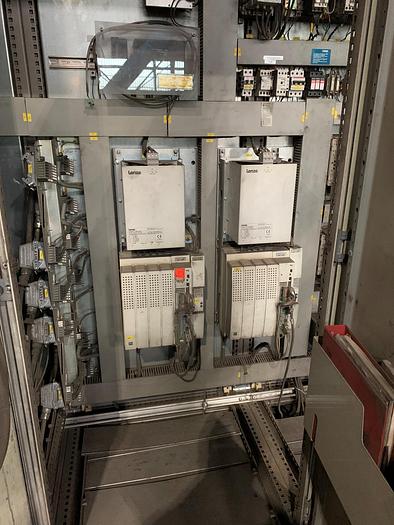

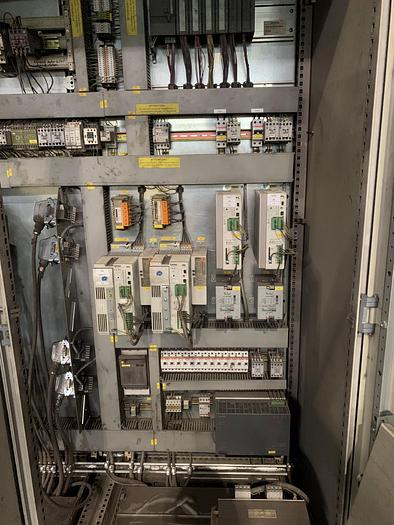

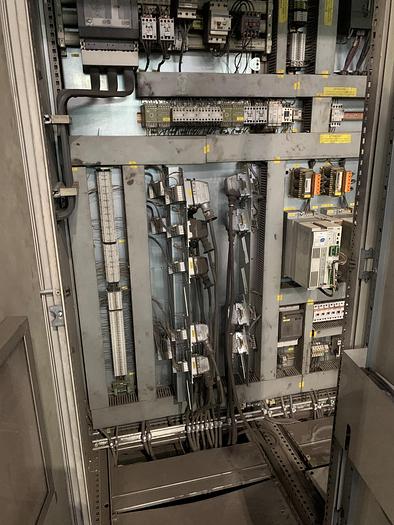

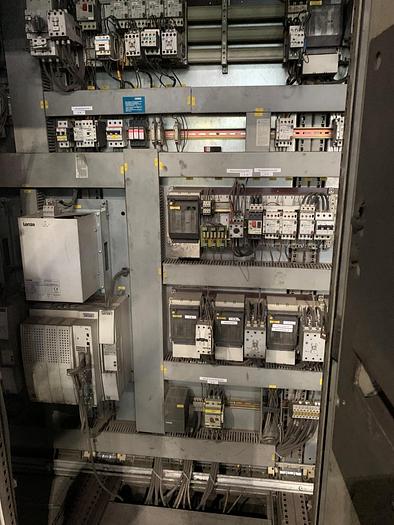

• Simatic S7 control system
• Cross wire pay-off station SQ1
• TQD 3000 V cross wire drawing machine
• Line wire pay-off
• Longitudinal wire drawing machine TL-RV/102
• DEC 45/102 and DET 45/102 longitudinal wire dressing device
• Mesh shear MD33/102

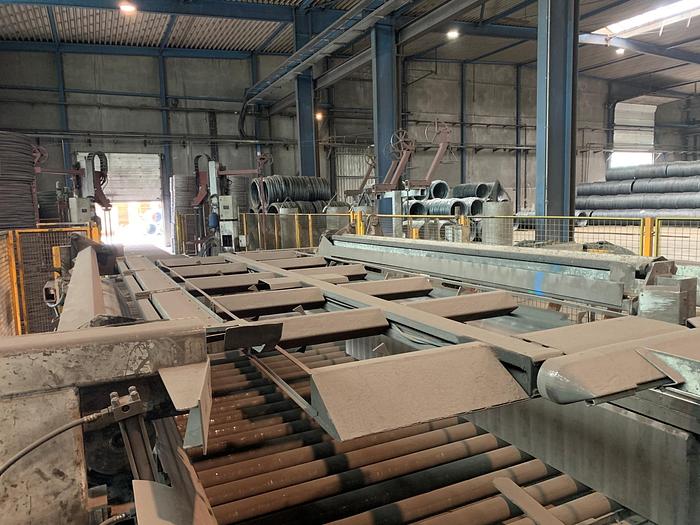

• Mat turner/stacker T6D/102T

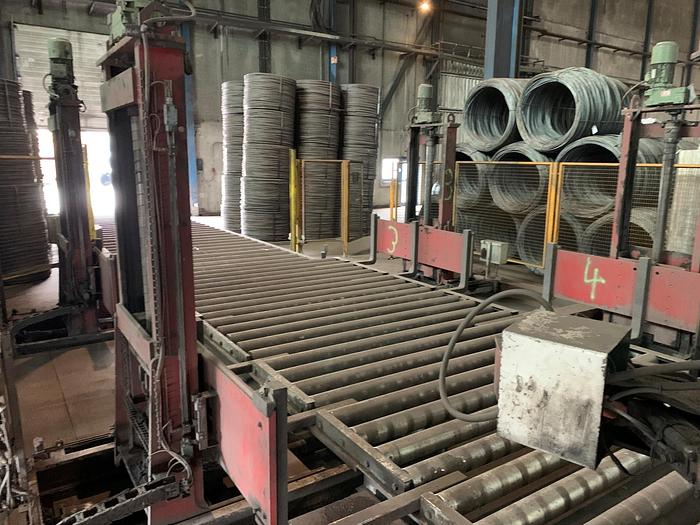

• LT2 linear conveyor
• Wire pay-off HA2
• Tying station ABM2
• Mesh package stacker MPS 4/102
