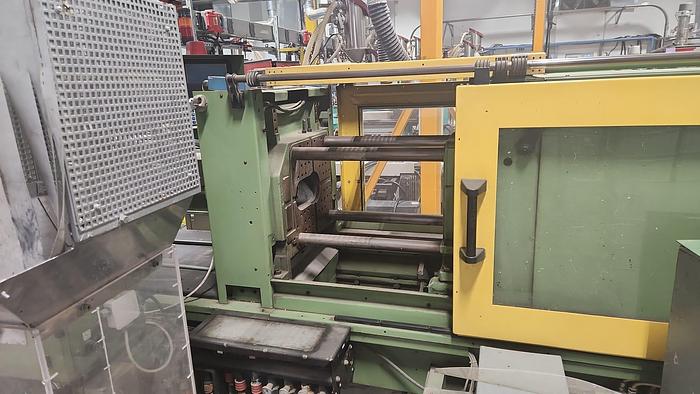

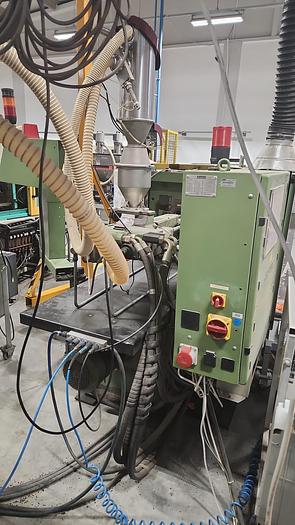

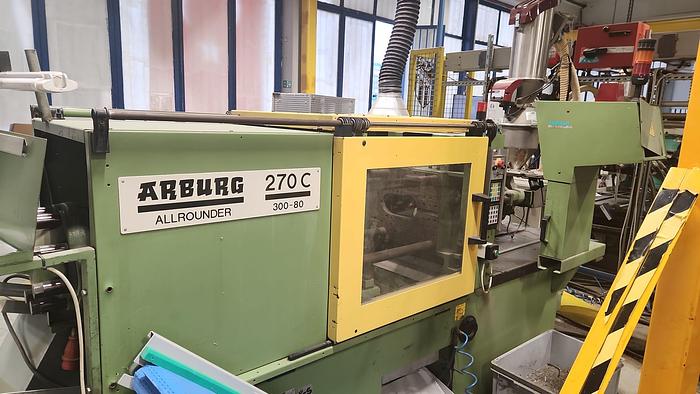

Manufacturer :Arburg

Type of machine: 270 C - 300 - 80

Year: 1997

Technical details

Clamping force: 300 kN

Mould opening force, max.: 25 / 125 kN

Size of mould platens (h x v): 405 mm x 405 mm

Distance between tie bars (h x v): 270 mm x 270 mm

Mould opening stroke: 350 mm

Mould height min.: 200 mm

Max daylight: 550 mm

Hydraulic ejector - stroke: 125 mm

Ejector force forward/backward: 30 kN

Screw diameter: 25 mm

Ls/D ratio: 20

Injection pressure: 2100 bar

Stroke volume: 49 ccm

Shot weight, PS: 41 g

Injection rate: 85 ccm/s

Injection stroke: 100 mm

Screw speed: 26 m/min

Nozzle pressure: 40 kN
