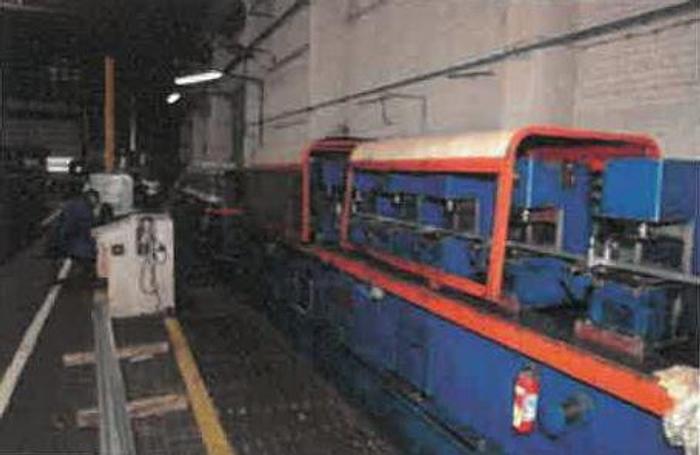

1999 SEN-FUNG Cold rolled profile production line

The machines are dismantled.

Name: Cold rolled profile production line.

Manufacturer: SEN-FUNG

Year of manufacture: 1999

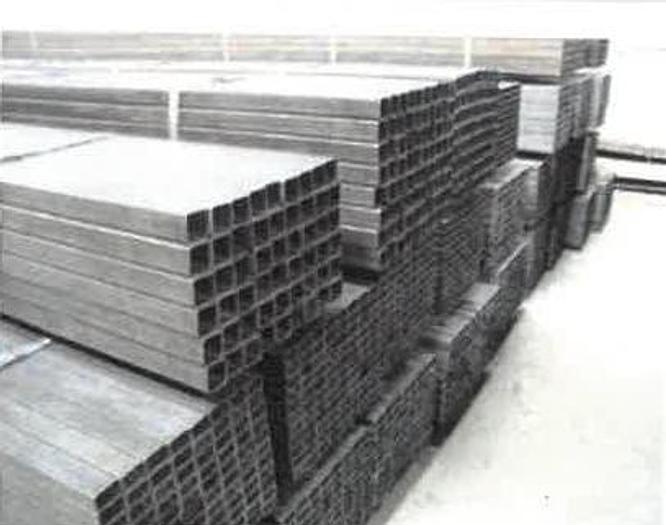

Description: Stuiy line for the production of profiles from galvanised sheets,

open and perforated profiles using the cold rolling method.

cold rolling.

Thickness of profiled sheet: o,s + 2 mm

Profiling speed: max. 25 m/min

Maximum sheet width: 20s mm

Maximum unwinding capacity: 2 tons

Maximum web diameter: D= 1540 mm

Unwinder type: single sided

Working roller diameter: 63.5 mm

Maximum number of work stations: 12 plus 10 stations with perf.

Cutting system: wasteless, die-cutting

Length of line after installation: 25600 mm

Maximum motor power: 15 kW

Maximum operating pressure: 2 atm.

The unit has an instrumentation for:

open profiles: type systems: DEKO, GEALAN, REHAU,

DECEUNINCK, ALUPLAST, FORIS

Technical condition: appliance in working order, dismantled.

Overall technical condition: 30 %.

Technical and technological documentation for the profiles manufactured.

Equipment with declaration of conformity.
